solid for insulator flexible polymer Epoxy fiberglass rod
- Category: >>>
- Supplier: Taizhou Huadong Insulated Material Co. Ltd.
Share on (60527738693):
Product Overview
Description

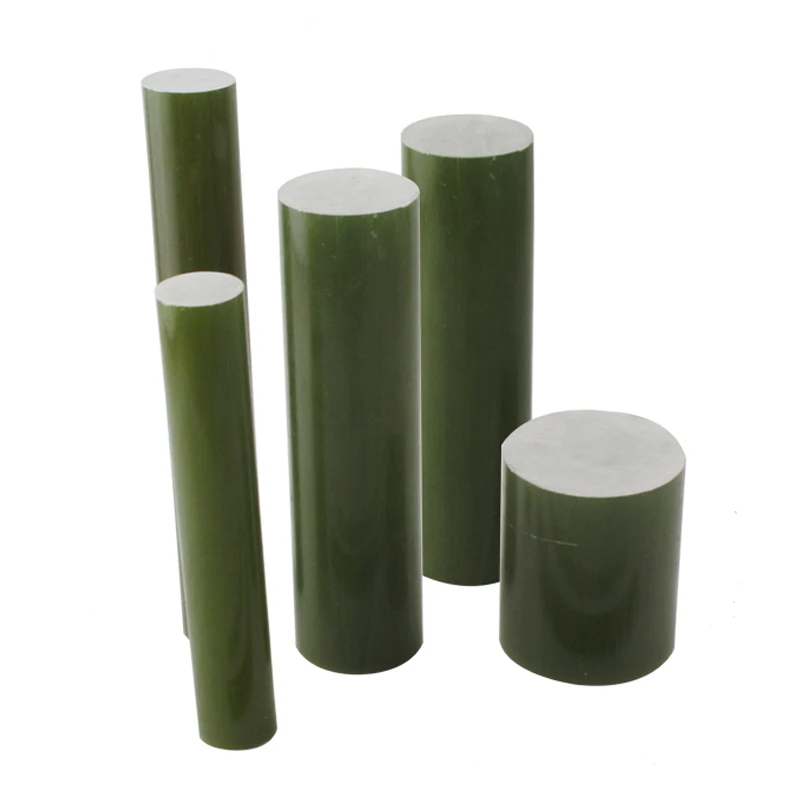

solid for insulator flexible polymer fiberglass rod
Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
our website : //thim.en.alibaba.com/
Product Description
| Diameter | kg/m | Diameter | kg/m | Diameter | kg/m | Diameter | kg/m |
| 2 | 0.007 | 18 | 0.55 | 38 | 2.5 | 65 | 7.3 |
| 4 | 0.0276 | 19 | 0.62 | 40 | 2.8 | 70 | 8.5 |
| 5 | 0.043 | 20 | 0.69 | 42 | 3.05 | 75 | 9.8 |
| 6 | 0.062 | 22 | 0.84 | 44 | 3.35 | 78 | 10.51 |
| 8 | 0.11 | 24 | 0.98 | 45 | 3.5 | 80 | 11.1 |
| 9 | 0.14 | 25 | 1.08 | 46 | 3.6 | 90 | 14 |
| 10 | 0.17 | 26 | 1.17 | 48 | 3.98 | 100* | 17.3 |
| 12 | 0.25 | 28 | 1.36 | 50 | 4.32 | 110* | 21 |
| 14 | 0.34 | 30 | 1.6 | 52 | 4.7 | 120* | 24.9 |
| 15 | 0.39 | 31 | 1.66 | 53 | 4.9 | 130* | 29.2 |
| 16 | 0.45 | 32 | 1.8 | 55 | 5.3 | 140* | 33.9 |
| 17 | 0.5 | 34 | 2 | 60 | 6.2 | 150* | 38.9 |
| 17.48 | 0.53 | 35 | 2.04 | 63 | 6.9 | 160* | 44.3 |
| 17.8 | 0.54 | 36 | 2.24 | 63.5 | 7 | 170* | 49.8 |
Note:The marking * listed in the specification in the table1-2 should be produced after signing the contract
and MOQ should not be less than 1500m
If you can’t find the suitable specification in the form. Please inform us.
We can manufacture acording to your request.
| Diameter mm | 1-39 | 40-55 | 60-100 | above100 |
| deviation mm | ±0.05 | +0.1 -0.05 | ±0.1 | ±0.2 |

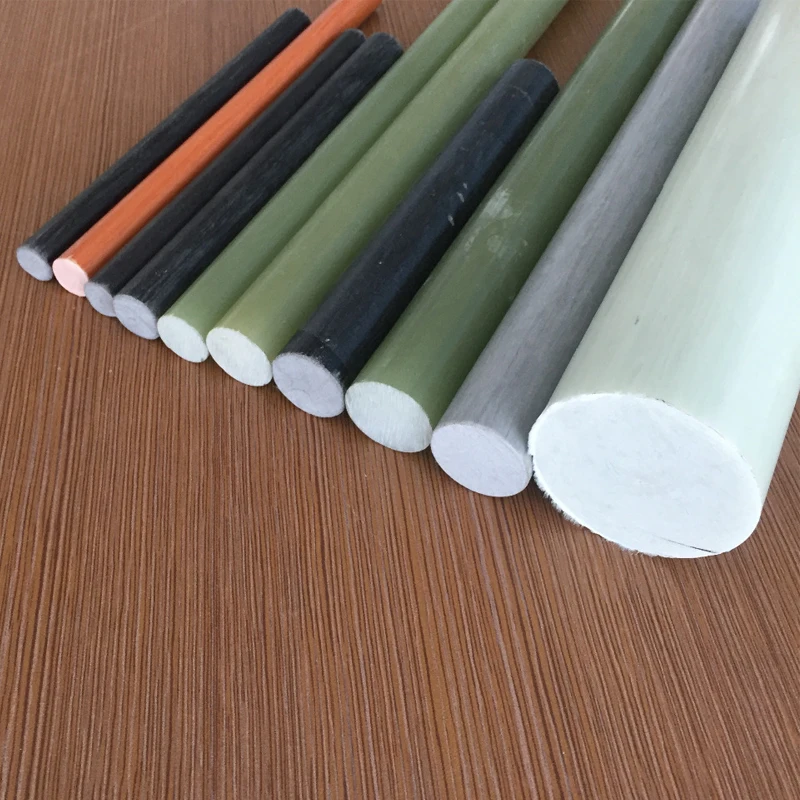

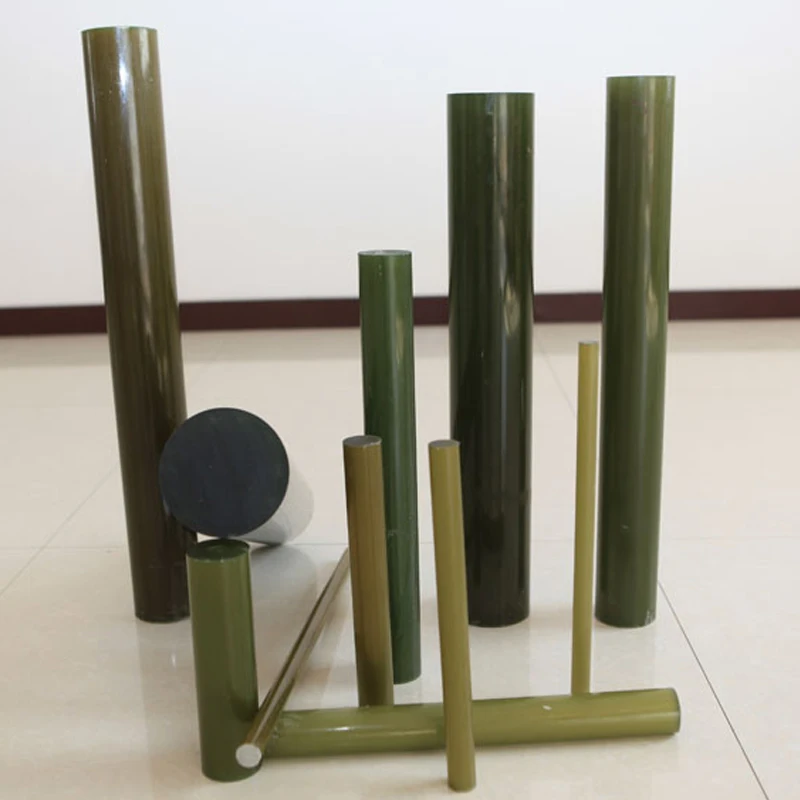

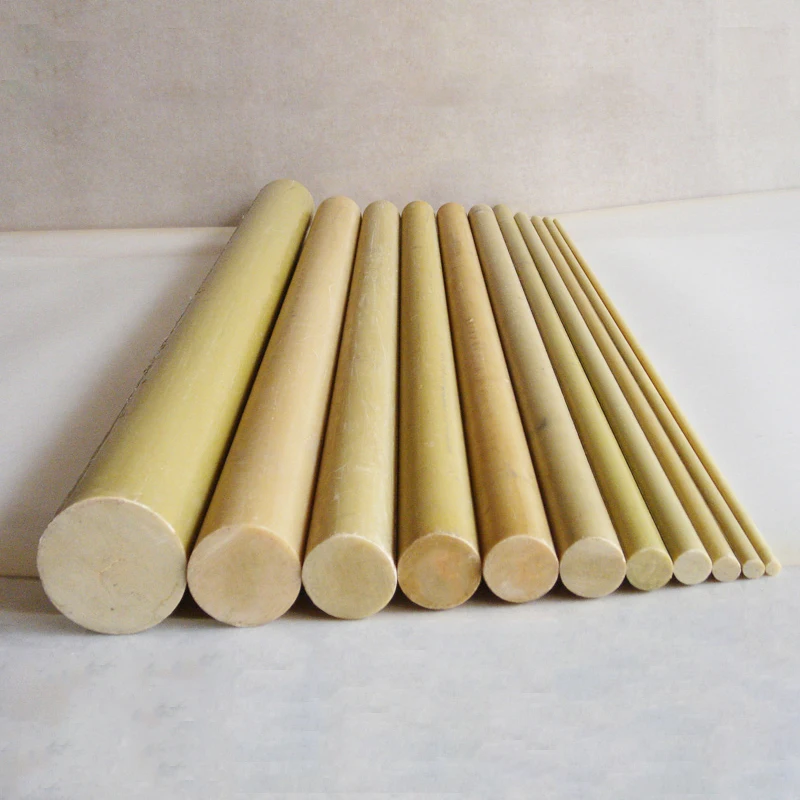

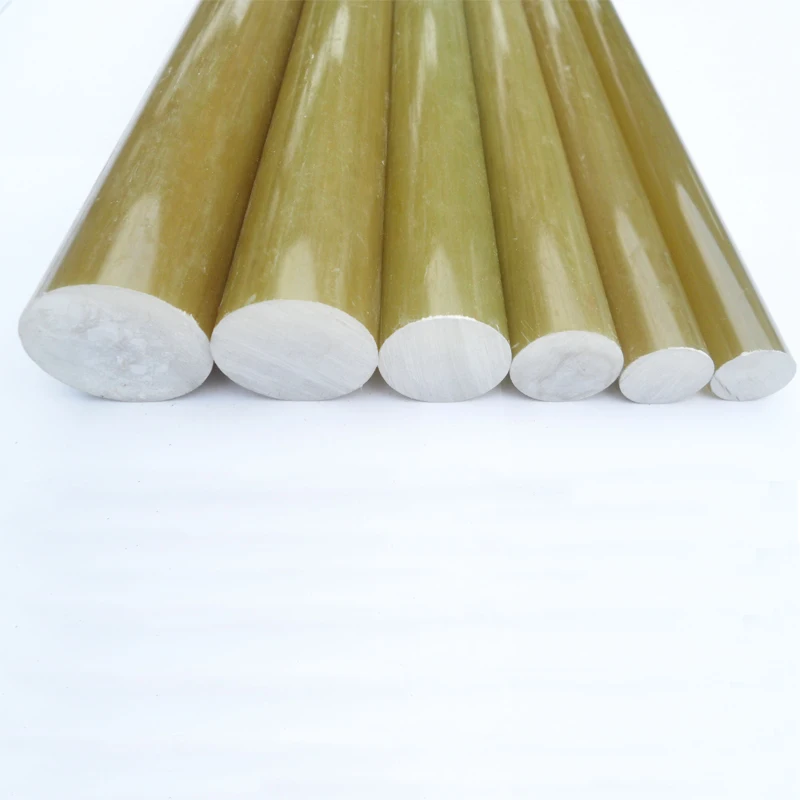

FRP ROD is made through alkali-free and twist-free glass fiber yarn soaking in epoxy compound glue, and passing the vacuum injection, continuous pulling and pressing, and being solidified. They have good electrical performance and mechanical strength.FRP rod are wildly used in freeway; bridge; airport; tunnel; railway station; jetties; underground engineering; sewage treatment plant etc.
1. Silicon rubber, composite polymer
2. Glass-fiber reinforced epoxy resin rod
3. Hot-dip galvanized steel
1.No flaw,crack in the surface and interior ,each bar color uniform(green or light yellow).
2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.
3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed to bear
overload.
4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high
temperature resistance,stress corrosion resistance etc.
Application
The product quality we manufacture for our clients meets IEC 61109,DL/T 810,GB/T 13096-1,GB/T 775.3
,JB/T 5892-91 and other related technical requirements .The main technical parameter of epoxy
fiberglass core for high voltage line composite insulator
Epoxy fiberglass core is widely used in composite suspension long rod insulator,composite post
insulator, compositecross-arm insulator,composite drop switch insulator,disconnector,wind
deflection of composite insulator,spacer composite insulator,composite insulator for electric
railway overhead contact line and other composite insulator industry.
Company Information
Taizhou HuaDong Insulated Material Co.,Ltd. is mainly engaged in the production of FRP ROD,profiles ,
related terminal parts and accessories products.The terminal and accessories products such as :various
types of composite insulators,silicone rubber,insulator fittings , line fittings and so on.The epoxy
fiberglass core we produce as intermediate connector and insulating parts is widely used in all the fields
and many kinds of composite insulators production.
Contact us
TELL:0523-88665172 88026699 82775589
Mobile:+86-13921721767
FAX:0523-88660086 88026677
Postcold:225529
SKYPE:HINSJUN
WEB:www.cnthim.com
hatsApp ID: +86-13921721767
ADD: Group 1,Huayang village,ShenGao town,Jiangyan district,Taizhou city,Jiangsu province,China225529
