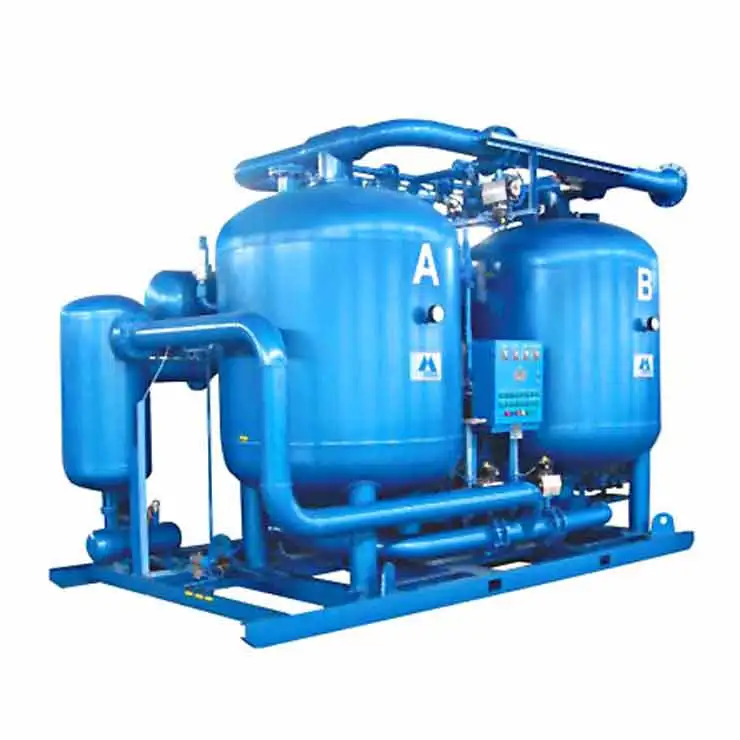

Heat Regenerative Compressor Desiccant SDXY 50 Air Dryer With Air Purge Type

                                                                          Working Principle

     Compression heat type products effectively utilize waste compressed air for the desiccant regeneration, which saves power and air consumption. After the heating regeneration, the compressed air flow directly into the water cooler and then enter the absorption tower to be a dry product gas.

1.High efficient and energy saving

2.Lower dew point

3.Less gas consumption

4.Less pressure loss

5.Quality switch valves with high stable and reliable

6.Special air diffusion & automatic regeneration to extend desiccant life time

7.Highly reliable programmable logic control (PLC).

8.Three-stage drainage features

Working Conditions and Technical Specifications

Air Inlet Temp.

110-200℃

Oil Content

≤0.1PPM

Air Inlet Pressure

0.8~1.0MPa

Pressure Loss

≤3% of Inlet Pressuren (Air Comsumption)

<=5% of Inlet Pressure (Zero Air Consumption)

Pressure Dew Point

-40℃ (Standard type)

Air Consumption

<=5% (Air Consumption)

0 (Zero Air Consumption)

Cooling Water Inlet Pressure

0.2-0.4Mpa

Power

AC 380V-50HZ /220V-50Hz

Cycling Time

T=6-8 (h)

Control Method

Microcomputer Automatic Control/ PLC Control
