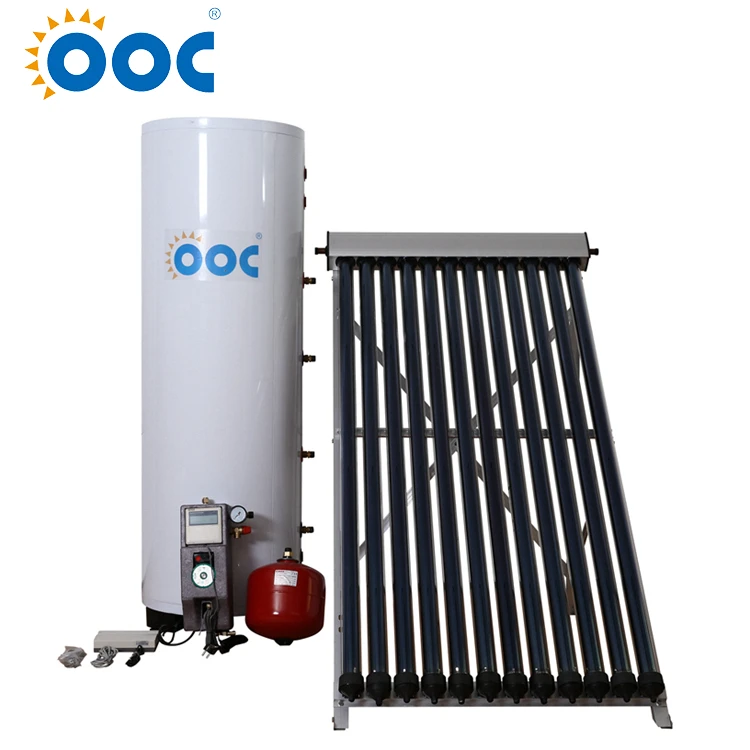

High pressurized split solar water heater 500 liter boiler
- Category: >>>
- Supplier: Haining Yousun Trade Co. Ltd.
Share on (60527769583):
Product Overview
Description
welcome to visit our factory
1. PRODUCT SHOW:
Product Description
Production description
| name | split pressure solar water heater |
| meterial of inner tank | Food grade 1.2mm-2.5mm thickness sus304 stainless |
| meterial of out tank | colar steel or stainless steel |
| inlet and outlet hole | male G3/4 |
| max pressure | 0.6mpa |
| vacuum tubes | 3.3 borosilicate glass with ss-aln(L)/ALnor cu/ss/aln coating |
| absorption | as=0.93-0.96(AM1.5) |
| emisstion ratio | εh=0.04-0.06(80°C±5°C) |
| idle sunning property parameters | Y=220˜260m2.c/kw |
| average heat loss coefficient | ULT=0.6˜0.7W/(M2.C) |
| bracket | 2.0mm thickness aluminum alloy |
| tank capacity | 80L-1000L |
| solar collector | 10/1215/18/20/24/30 tubes |
| thickness of glass | |
| vacuum tube tightness | P≤0.005 pa |

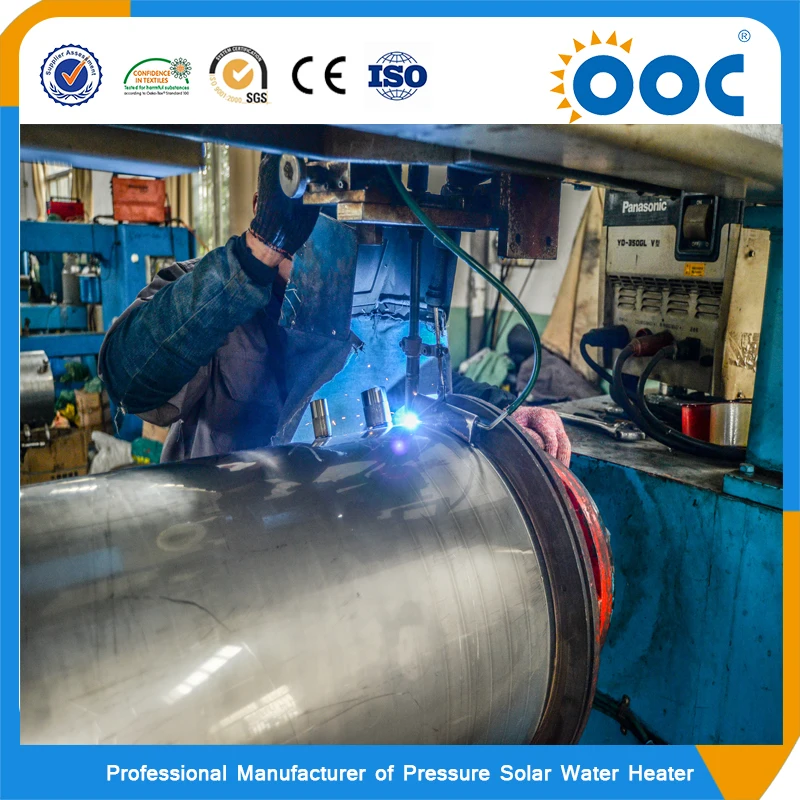

| welding | argon arc welding |
| cooper coils (heat exchanger length) | 10m/12m/15m/25/30m...... etc |
| working station | SP116/SP228/SR961 |
| OEM | OEM is ok |

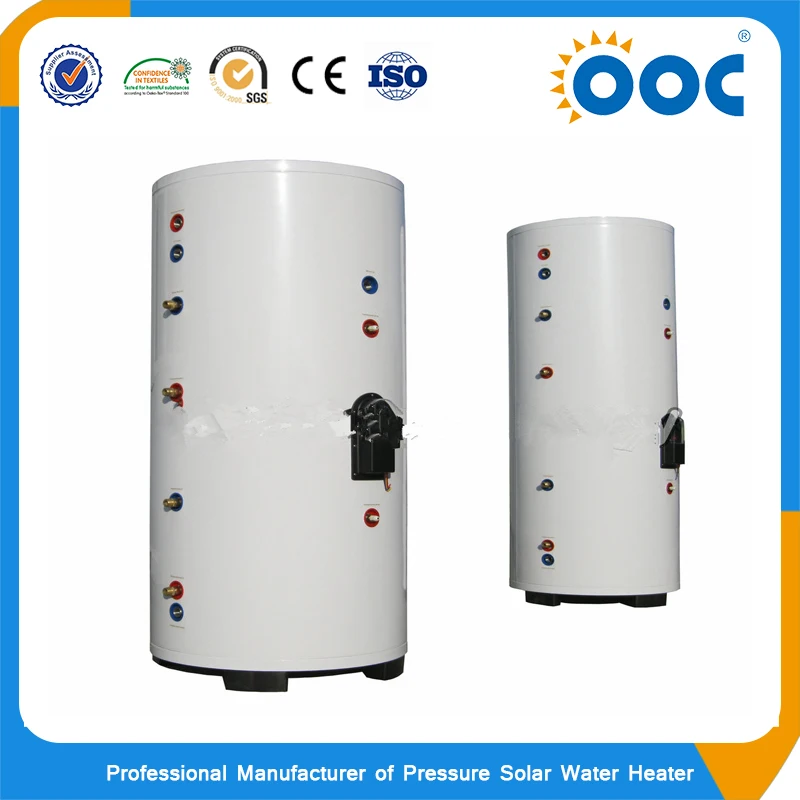

Water tank:
| Capacity(L) | 80L-1000L | ||||
| Material of inner tank | Food grade SUS 304-2B stainless steel1.2-2.5mm | ||||
| Dimensions of inner tank | Ø370mm-800mm, T1.5mm-2.5mm | ||||
| Material of outer tank | Colorful steel /stainless steel | ||||
| Outer tank diameter | Ø470mm-1000mm, T0.5mm | ||||
| Tank insulating layer | 50mm-100mm high-density polyurethane foamed | ||||
| Foam density | 45kg/m3 minimum | ||||
| Heat preservation | 96 hours | ||||
| Tank connections | water Inlet /water outlet / 2×1’’ female thread for integrating the heating circuit | ||||
1''thread electric heating and 1/2'' temperature sensor | |||||
| Female thread connections | SUS 304-2B stainless steel, 1.0mm thickness | ||||
| Tank welding | Argon arc welding | ||||
| Heat pipe vacuum tube Solar Collector Quantity | 10 pcs to 30pcs | ||||
| Lengh of upper coil and heat exchange area | 8M/0.4m2 | ||||
| Lengh of bottom coil and heat exchange area | 12M/0.6m2 | ||||

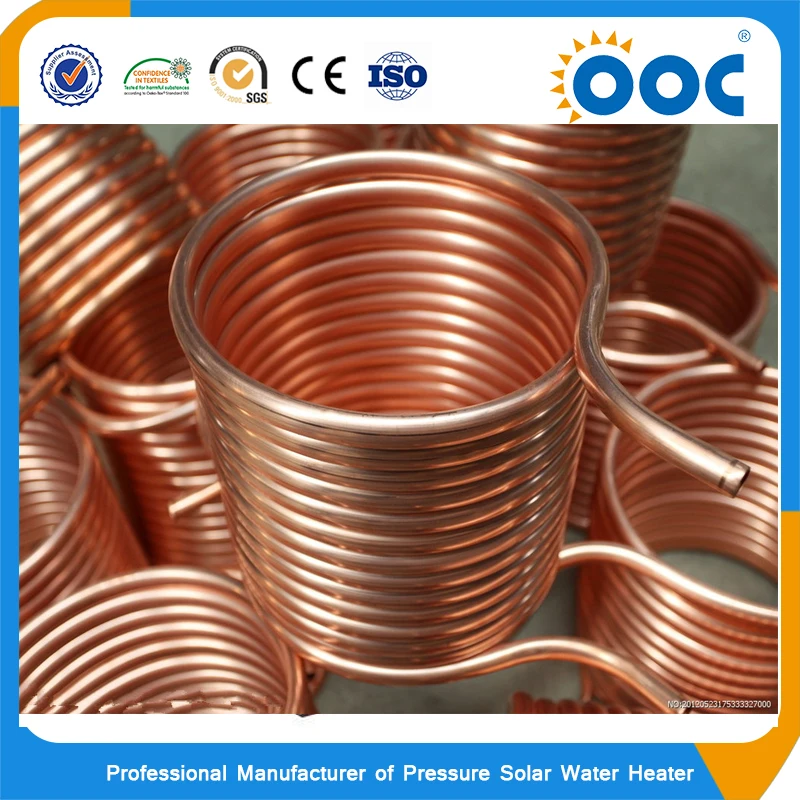

| Material of coil | Copper coil of Ø12*T0.8mm/ Ø16*T1.0mm/ Ø19*T1.0mm | ||||
| Tank welding | Argon arc welding | ||||

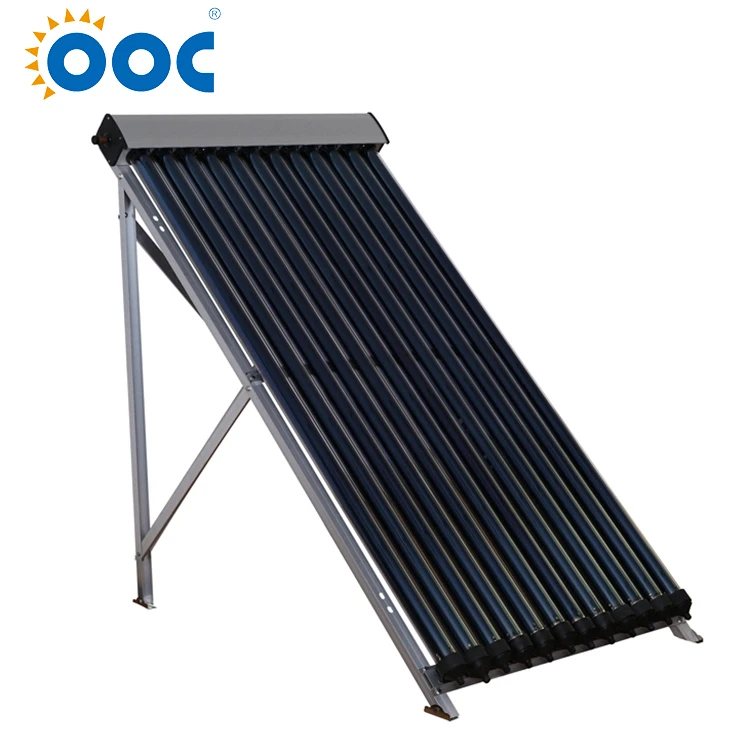

solar Collector:
| Vacuum tubes | SS/CU/AL-N AL selective coating, 58X1800mm glass tube, 1.6mm thickness 58X1800mm glass tube, 1.6mm thickness | ||||
| Insulation | Glass fabric, 32mm | ||||
| Outer cover material and thickness: | aluminum alloy, Thickness2.0mm | ||||
| Diameter and thickness of header pipe: | Ø35mm, T1mm,cooper manifold | ||||
| Heat pipe | High standard TU1 Copper, L1700* Ø 8*T0.6mm | ||||
| Aluminum fins length and thickness | L1620mm, T0.275mm | ||||
| Bracket material and thickness | Flexibility for flat or slope roof,Aluminum alloy with 2.0mm thickness | ||||
| Caliber of cooper manifold | Ø 22mm Thickness 0.8mm | ||||
| Anti-freezing | > -35 degree | ||||
| Seal | High quality silicone rubber polymer | ||||
features and advantages
1.this pressure tank could keep the water hot during the night
2.it could be installed at the basement or in the house, and the combined solar collector is put on the roof it is a perfect combination for
villa and apartment . and integrated with the villas.
3 the tank is in the house , you could confirm the temperature ,the water level and others by youself and it is very convenient

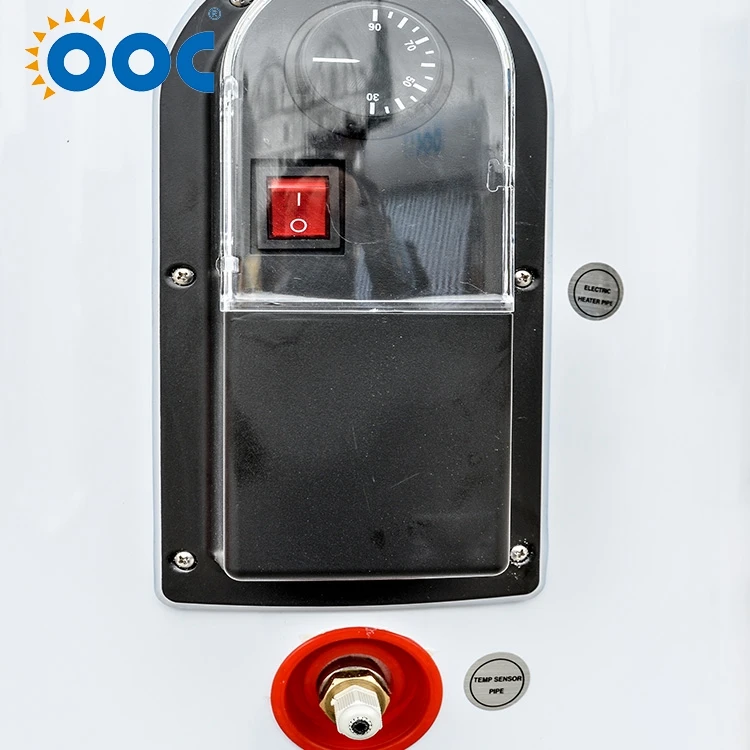

4.electric heater for backup , once there is no sun, it could start by itself .

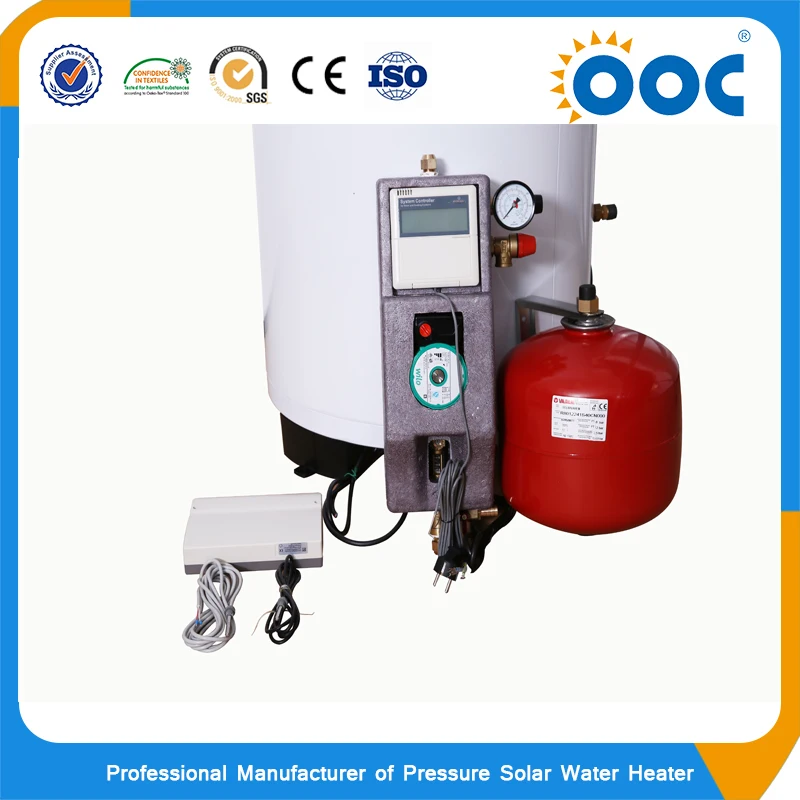

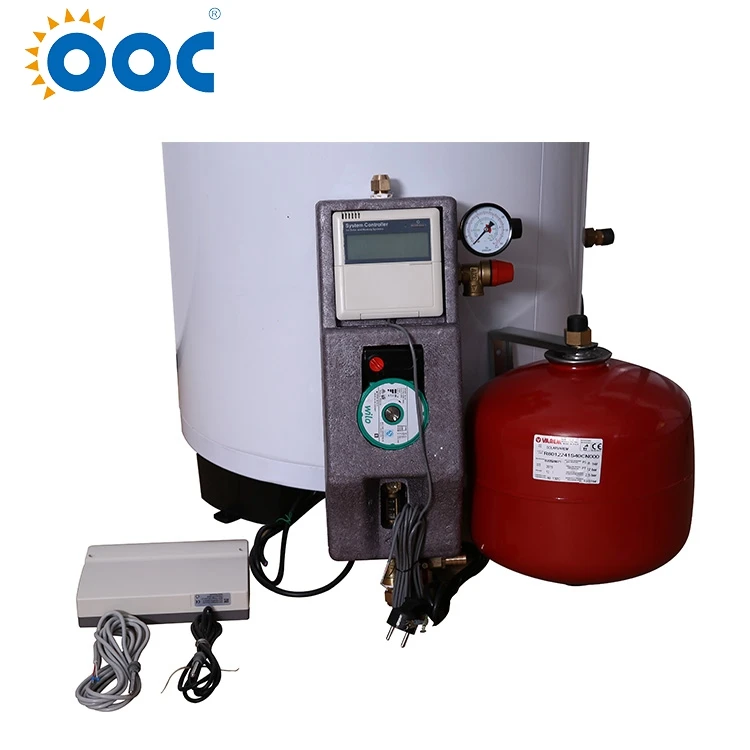

principle
1,the collector aborbs solar energy and transmits it to the water tank through circulation.
2,when the temperature of the collector reaches the set value ,
3,the controller starts the circulation pump automatically.
4,the circulation pump makes heat-conducting liquid transfers heat to water by lower heat exchange in the water tank .
5,when the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically.
Company Information
Haining yousun trade co.,ltd is a manufacturing and trading combo produce and export solar water heater items for more
than 10 years.
| Company Overview | Haining yousun trading co.,ltd a manufacturing and trading combo company |
| Brand name | ooc brand for foreign markets |
| Brief info | we are professional solar water heater manufacturer in haining zhejiang province china. our main product is solar water heater include non-pressure type, compact pressure type ,split pressure type and solar collector |
| Staff | 11-50 worker |
| Capacity | 100,000 sets |
| Authenticate | Passed the certification of ISO,CE,CCC,SOLAR KEYMARK |
| Capability | OEM&ODM service for more than 30 brands |
| Able to source across multiple industries | |
Total annual sales volume reaches above US$ 5 million |
Our Services
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
Reliable Quality Assurance
FAQ
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample
2. Shipping: 3 days for sample, 10 days for 20/40 container.
3. MOQ: Sample is available
4. Warranty: 10 years guarantee for whole set solar water heater
5. Port of departure: Shanghai or Ningbo
6. Supply ability: 5000 sets per month
7.life time : more than 20 years
