100g water treatment equipement ozone generator for swimming pool
- Category: >>>
- Supplier: Guangzhou Jiahuan Appliance Technology Co. Ltd.
Share on (60527836309):
Product Overview
Description
Product Details
oxygen source ozone generators types
1. Complete machine PSA oxygen source, with built-in oxygen concentrator with high concentration of ozone and ultra-low rate of ozone decay.
2. High ozone concentration output: assemble air cooled quartz ozone tube for larger models, both with internal and external electrodes cooled, large cooling area, easy heat dissipation, low temperature rise and high efficiency.
3. With refrigerant dryer for cooling air which can protect the oxygen & ozone unit for
long service life in good working condition.

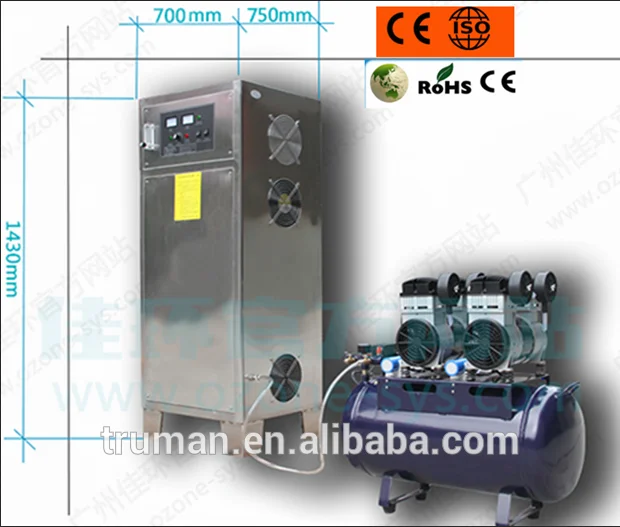

MODEL | YT-017 | YT-018 | |
ozone production | 80g/h | 100g/h | |
ozone concentration | 80-100mg/l | 80-100mg/l | |
gas source | natural air | natural air | |
cooling | air+water cooling | air+water cooling | |
cooling water | 0.2t/h | 0.2t/h | |
cooling water | <30 degree | <30 degree | |
inner oxygen generator purity | 93+-3% | 93+-3% | |
oxygen production | 8LPM | 10LPM | |
power | 1750w | 1800w | |
dimension | 55*40*133cm | 55*40*133cm | |
net weight | 85kg | 90kg | |
frequency | 110v/220v/230v 50hz/60hz | 110v/220v/230v 50hz/60hz | |
technology | corona discharge | corona discharge | |
ozone cell | quartz tube | quartz tube | |
ozone box | 304 stainless steel | 304 stainless steel | |
lifetime | 5-8 year | 5-8 year | |
warranty period | 1 year | 1 year | |
construction | A: inner oxygen generator B: inner ozone cell C:inner condenser D: inner ultrafilter and dryer E: outside air compressor F: inner circuit board G: Automatic drain valve | ||
water cooling :
Product Introduction
features:
1. Technology corona discharge high-quality quartz ozone cell
2. Adjustable ozone output 0-100%
3. Inner temperature controller to prevent heat generating
4. Ozone generated tube cooling way: water-cooling system
5. Special design to avoid water return
6. External / Inner air compressor
7. Inner refrigerant dryer / Inner ultra-filter (2sets), Inner electric drain valve(2sets)
8. PSA oxygen generator unit
9. Stainless steel 304 case
10. CE certificate
1. What is ozone?
Ozone is one of the most powerful oxidants available, destroying bacteria,viruses, mold and mildew in air, water and diverse applications almost instantly and more efficiently than any other technology. Ozone’s molecular structure is three oxygen atoms (O3).
2. Will Ozone hurt me?
Once the ozone concentration fails to meet the hygiene and safety standard, we can notice with our sense of smell and dodge away or take actions to avoid further leakage. So far there is no one death reported caused by ozone poisoning.
3. Why is ozone a green technology?
Ozone is a green technology with many environmental benefits. It reduces our dependence on traditionally used, harmful chemicals such as chlorine and eliminates their hazardous disinfectant by-products (DBPs). The only by product created by ozone applications is oxygen which is reabsorbed into the atmosphere. Ozone’s ability to disinfect in cold water also saves energy.
Product Details Show
Water quality can be improved eminently and costs can be saved on the long term when ozone is applied for swimming pool water treatment.
Swimming pool water pollutants
Swimming pool water pollutants
Swimming pool water polluntion is mainly caused by swimmers. This makes it a very dynamic pollution, which is dependent on the number and types of swimmers. Swimming pool pollutants can be divided up into three groups: microorganisms, undissolved pollutants and dissolved pollutants.
Each swimmer carries a large number of microorganisms, such as bacteria, fungi and viruses. Many of these microorganisms may be pathogenic and can cause disease.
Undissolved pollutants mainly consist of visible floating particles, such as hairs and skin flakes, but also of colloidal particles, such as skin tissues and soap remains.
Dissolved pollutants can consist of urine, sweat, eye fluids and saliva. Sweat and urine contain water, but also ammonia, ureum, kreatine, kreatinine and amino acids. When these substances are dissolved in water, they cannot harm swimmers. However, when these compounds react with chlorine in swimming pool water, incomplete oxidation can cause chloramine formation. This causes the so-called chlorine-scent, which irritates the eyes and respiratory system. In a number of cases, stable compounds can be formed, which can only be removed from swimming pool water by water refresment
Each swimmer carries a large number of microorganisms, such as bacteria, fungi and viruses. Many of these microorganisms may be pathogenic and can cause disease.
Undissolved pollutants mainly consist of visible floating particles, such as hairs and skin flakes, but also of colloidal particles, such as skin tissues and soap remains.
Dissolved pollutants can consist of urine, sweat, eye fluids and saliva. Sweat and urine contain water, but also ammonia, ureum, kreatine, kreatinine and amino acids. When these substances are dissolved in water, they cannot harm swimmers. However, when these compounds react with chlorine in swimming pool water, incomplete oxidation can cause chloramine formation. This causes the so-called chlorine-scent, which irritates the eyes and respiratory system. In a number of cases, stable compounds can be formed, which can only be removed from swimming pool water by water refresment
Benefits of ozone application
Swimming water quality can be sufficiently increased by ozonization. This is not only a benefit when it comes to swimming, but it also guarantees healthy swimming water. Recent research has shown that children’s immune systems may be affected by swimming in chlorinated swimming pools. The health risks are also increased for swimmers that train twice a day
These are the main benefits of ozonisation:
- Decrease in chlorine use
- Improval of the filter and coagulant capacities. This leads to a reduction of coagulant use and less backwashing of the filter is required
- Water use can be decreased, because of an increase in water quality
- Ozone oxidizes organic and inorganic matter in the water, without the formation of unwanted byproducts, such as chloramines (which cause a chlorine-scent)
- Chlorine scents can be fully diminished by ozone application
- Ozone is a more powerful oxidant and disinfectant than chlorine. Certain chlorine-resistant pathogens (see ozone disinfection: resistant microorganisms) cannot multiply in water that is treated with ozone
