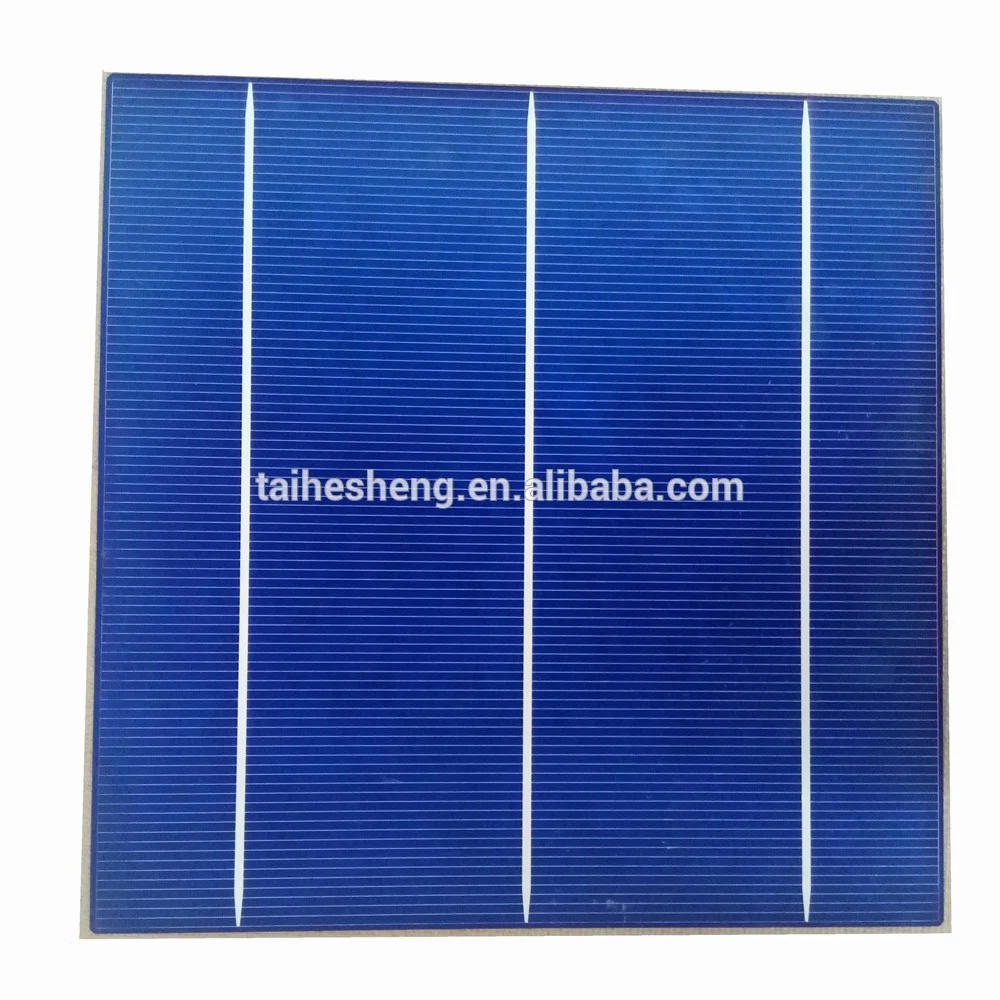

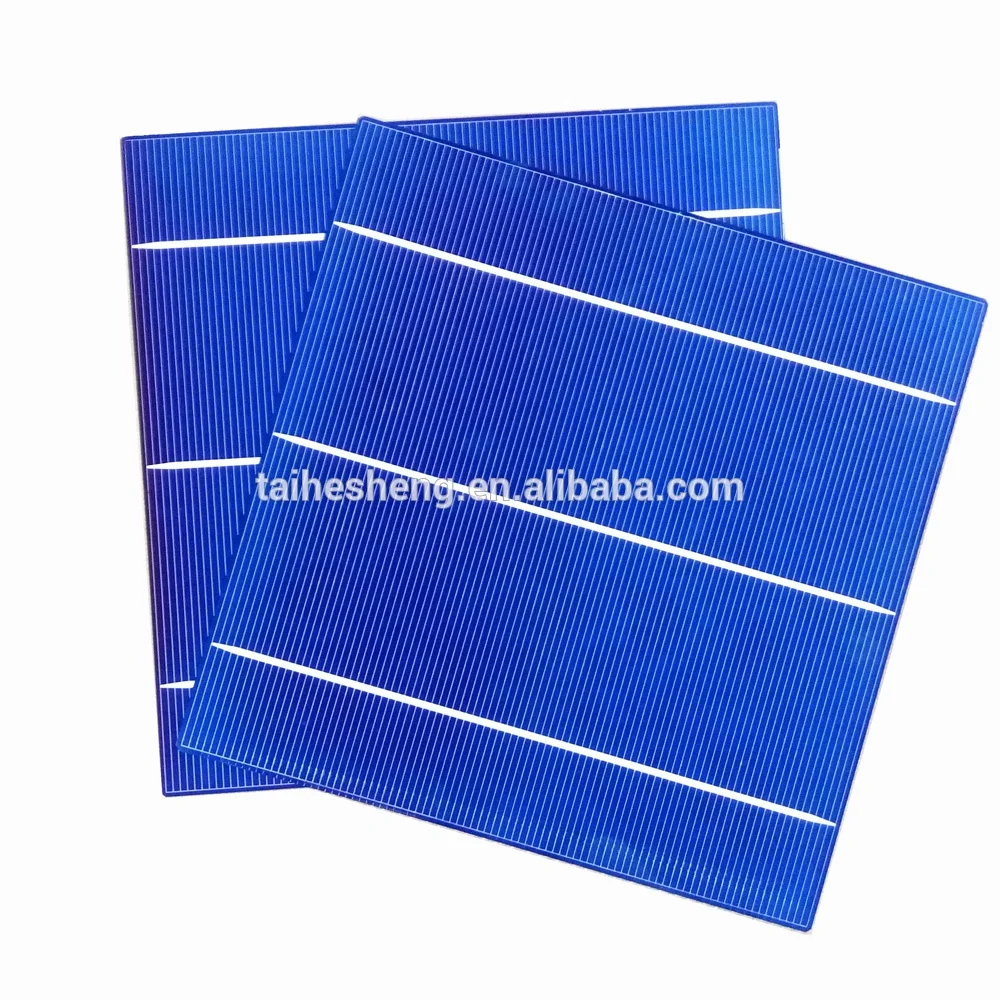

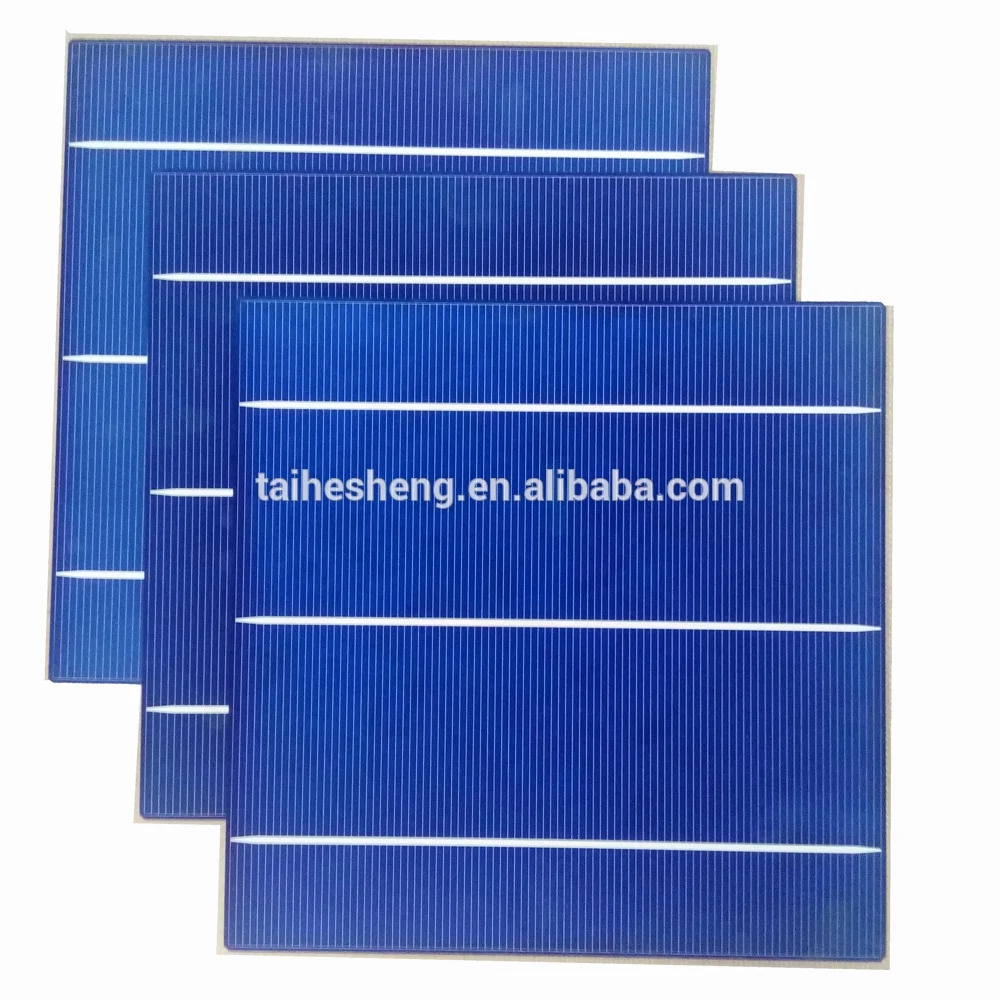

poly crystal silicon 156.75*156.75mm 3BB 4.42W 18% solar cell with best performance
- Category: Solar Cells >>>
- Supplier: Shenzhen Taihesheng New Energy Technology Co. Ltd.
Share on (60527872071):
Product Overview
Description
poly crystal silicon 156.75*156.75mm 3BB 4.42W 18% solar cell with best performance
Product Description

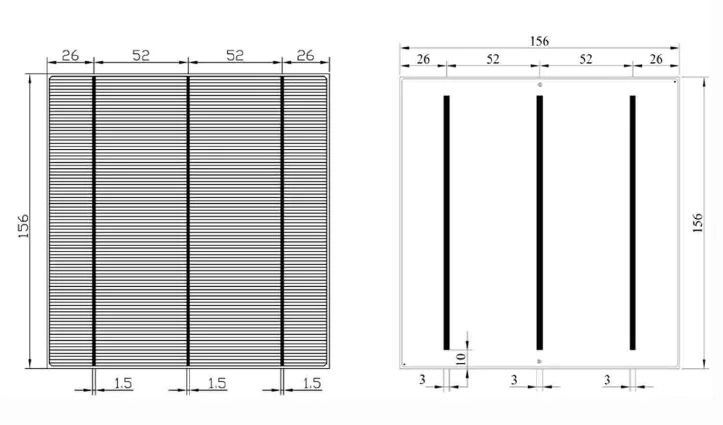

Physical Characteristics
Thickness:200μm±20μm
Dimension:156*156mm±0.5mm
Front(-) Back(+)
blue nitride silicon antireflection coating Aluminum back surface field
1.6mm wide bus bars 2.0mm wide soldering pads
Electrical Characteristics
*Data under standard testing conditional (STC):1,000w/m2,AM1.5, 25°C , Pmax: Positive power tolerance.
Efficiency(%) | 20.00 | 19.20 | 19.00 | 18.80 | 18.60 | 18.40 | 18.20 | 18.00 | 17.80 | 17.60 | 17.40 | 17.20 |
Pmpp(W) | 4.59 | 4.54 | 4.49 | 4.45 | 4.40 | 4.35 | 4.30 | 4.26 | 4.21 | 4.16 | 4.11 | 4.08 |
Umpp(V) | 0.541 | 0.540 | 0.538 | 0.535 | 0.533 | 0.530 | 0.527 | 0.523 | 0.519 | 0.518 | 0.516 | 0.514 |
Impp(A) | 8.484 | 8.407 | 8.346 | 8.318 | 8.255 | 8.208 | 8.159 | 8.145 | 8.112 | 8.031 | 7.950 | 7.869 |
Uoc(V) | 0.640 | 0.639 | 0.638 | 0.637 | 0.636 | 0.634 | 0.632 | 0.631 | 0.630 | 0.629 | 0.628 | 0.627 |
Isc(A) | 8.972 | 8.959 | 8.936 | 8.912 | 8.875 | 8.830 | 8.805 | 8.787 | 8.775 | 8.695 | 8.615 | 8.535 |
Features
High conversion efficiency resulting in superior power output performance.
Outstanding power output even in low light or high temperature conditions.
Optimized design for ease of soldering and lamination.
Long-term stability, reliability and performance .
Low breakage rate.
Output power tolerance of +/- 3%.

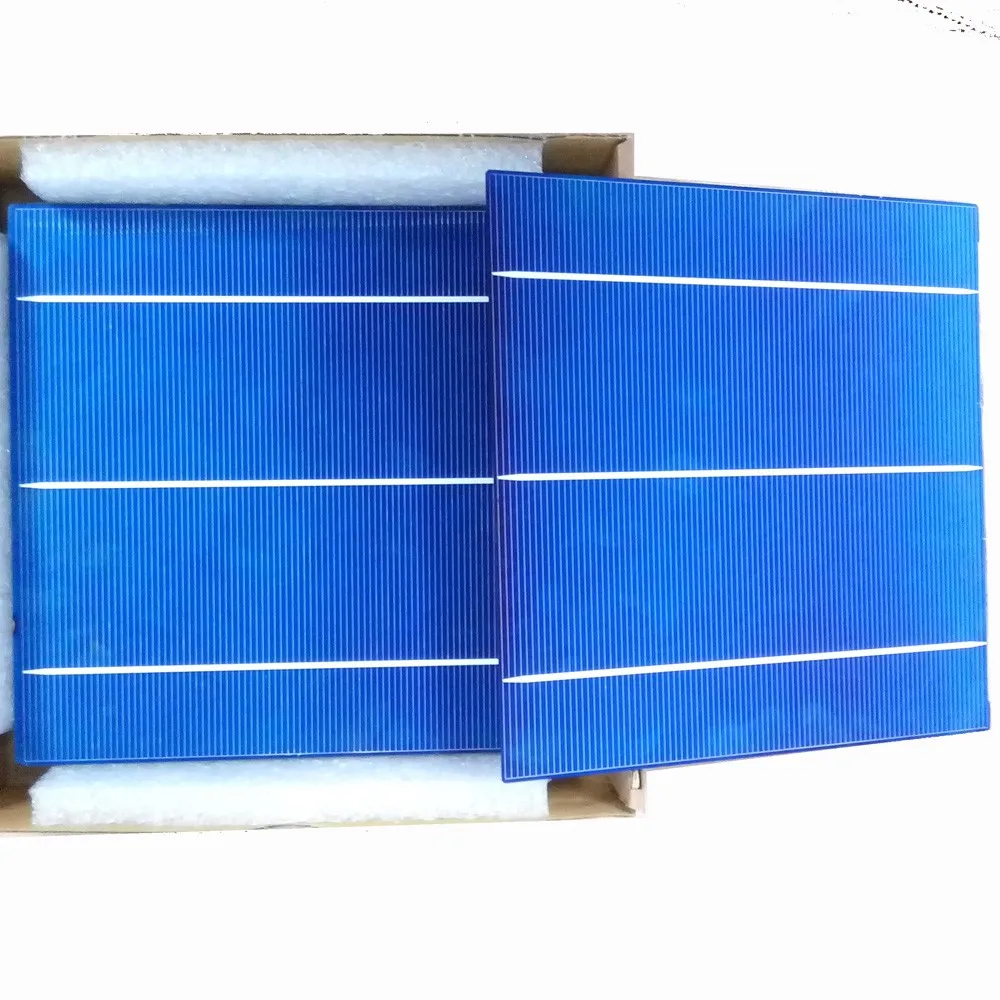

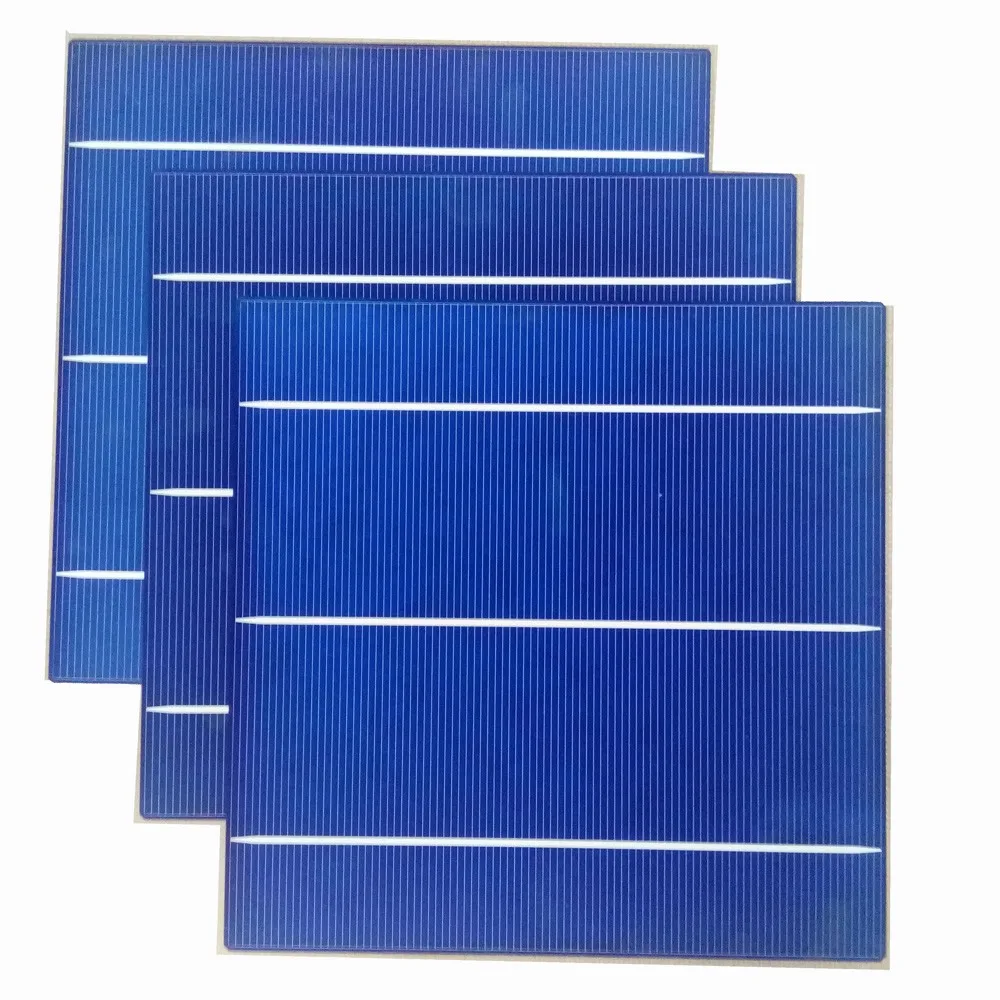

Picture shows

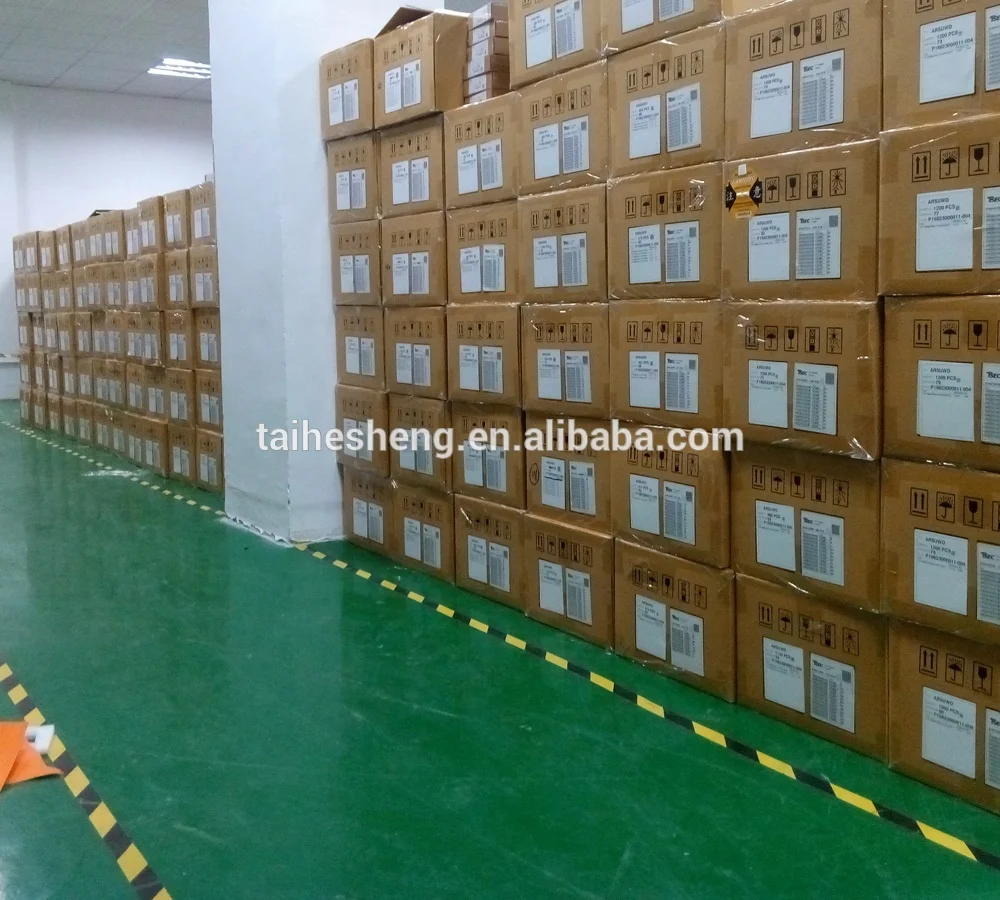

Packaging & Shipping
*Items are only shipped after PAYMENT is received.
*Solar cells are 100 pieces in one box, 12 boxes in one carton in general.
*Please check out you ADRESS carefully when place order.
Please check out your address carefully when processing order
Shipping will be EMS, DHL, Fedex or be sent by ship/air
Please contact us ASAP if you haven’t received the pacel
Our Services

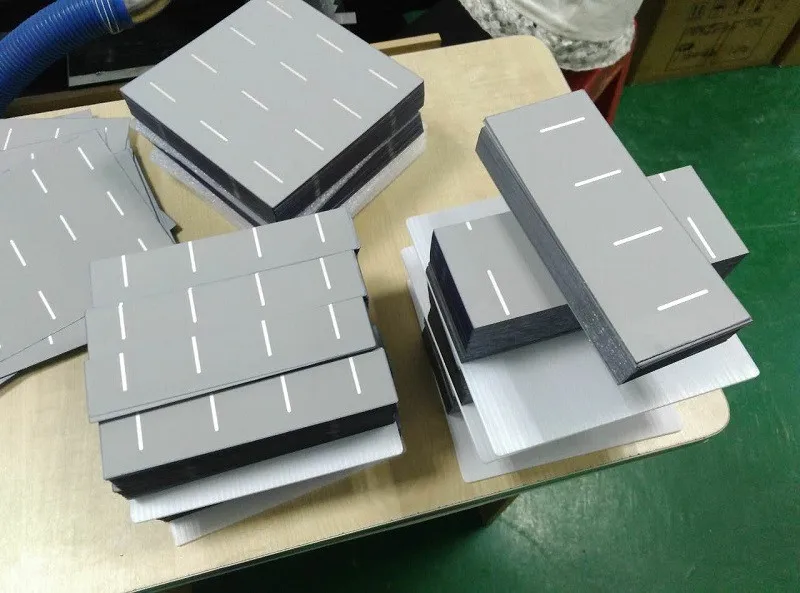

ACCEPT CUTTING SIZE SOLAR CELL ORDER
If there is a need , please contact us. We will try our best to provide the best quality goods and best services.
Company Information
Shenzhen Taihesheng Solar Energy Co.,Ltd is a professional manufacturer & exporter which is concerned
with the design, production,and marketing. our manufacturer covers an area of 8000 square meter as a
high-tech environmental friendly enterprise,which was established in 2009 and specialized in solar industry
for providing solar cells ,solar modules , solar panels and solar charger etc application products.
With the rapid development of solar industry, TAIHESHENG had set up two manufacture companies
in shenzhen,one operating company in HK.one marketing company Tanzania. TAIHESHENG is able
to provide customers with annual capacity of 3000MW solar cells ,4000MW solar modules and
600,000 units solar application products.
FAQ
1.Q: Are you manufacture or trading company?
A: We are manufacture, compared to trading company we own the advantage of low
price and good quality.
2.Q: May I take some samples to test before placing the order?
A: Of course, but you need to pay for the sample cost and express charge.
3.Q:How about the quality?
A: Our solar cells for making panel are provided by Taiwan, the quality of product is
superior.
4.Q:How many payment way we can chose?
A:We accept T/T, L/C, Cash.
5.Q:Where is your main market for your products?
A:Most of our products are exported to Southeast Asia, Africa and Mid East.
