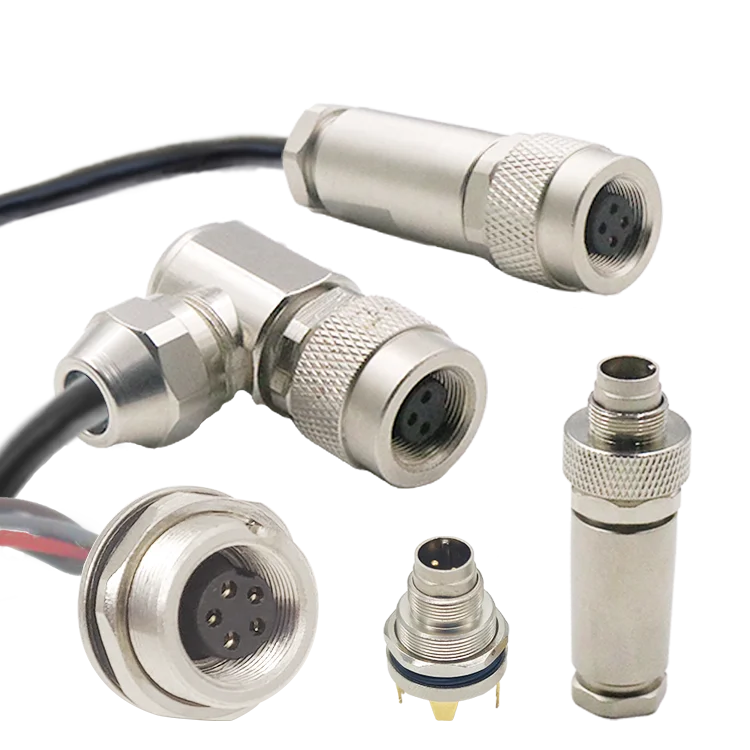

4pin 3pin electrical plug & socket m9 connector
- Category: >>>
- Supplier: Shenzhen Linconn Electronic Technology Co. Limited
Share on (60527897387):
Product Overview
Description
4pin 3pin electrical plug & socke m9 connector
Product Description
M9 connector descriptions:
• The M9 circular connector we produced conform to international standard IEC61076-2-101 with M9*1.0 screw locking.
• Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical
• M9 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A, B, D, coding, for both screw-locking and quick-locking system.
Electrical Data:
Rated current: 4A / 2A / 1.5A
Rated voltag: 250V / 60V / 30V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ
Connector Specification:
Gender: Male / Female
Insert: PA66+GF
Contacts: Brass / Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Degree of protection: IP67 in locked condition
Wire Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Temperature range: -25°C ~ +90°C

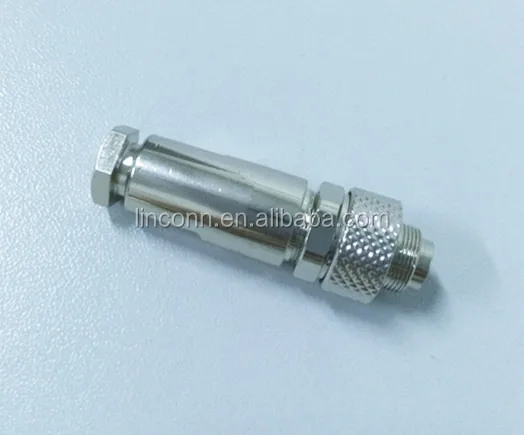

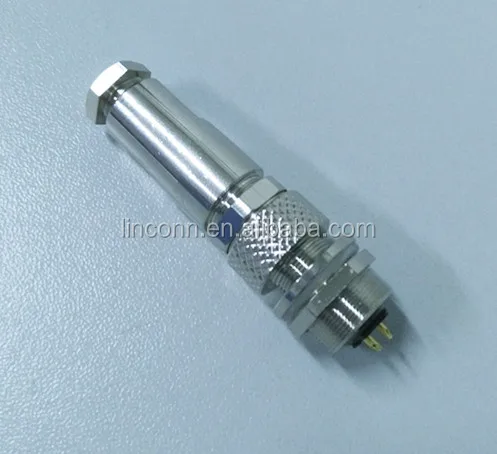

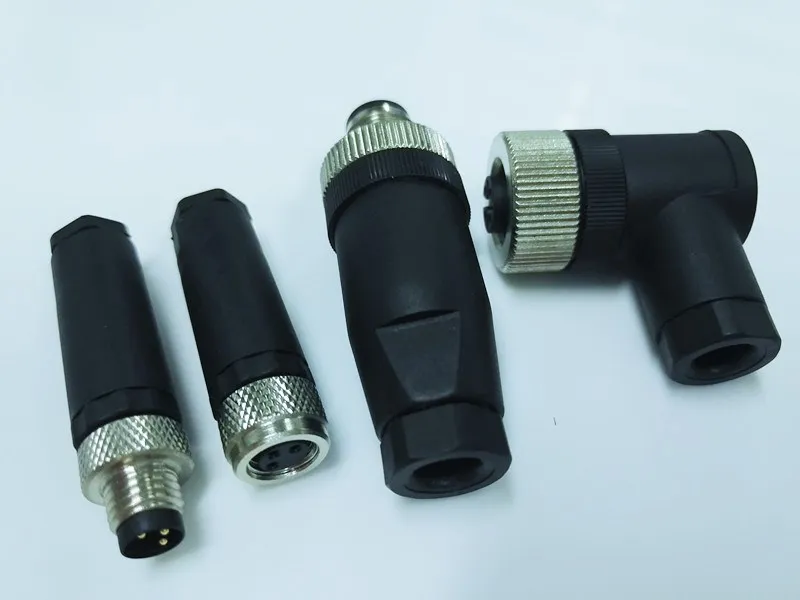

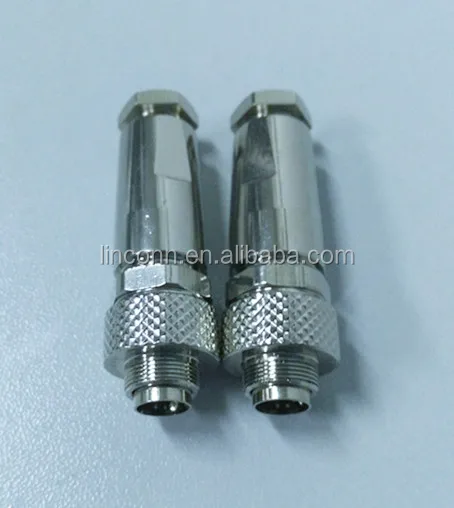

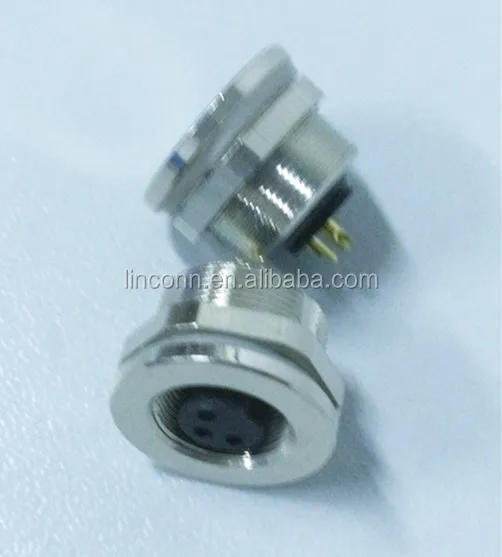

Pictures:
Application
1.Medical Electronics
2.Test and Laboratary
3.Measurement Instrumentation
4.Data and Telecom Systems
5.Audio and video Applications
6.Military and Aerospace
7.Industrial Controls
8.Nuclear Technology
Our Services
• Low cost but good quality in ip68 waterproof in locked condition with ISO9001 management under efficient service
• Provide free samples within 2 working days if it is normal product with existing tooling
• 10 years quality assurance
• OEM, ODM are available

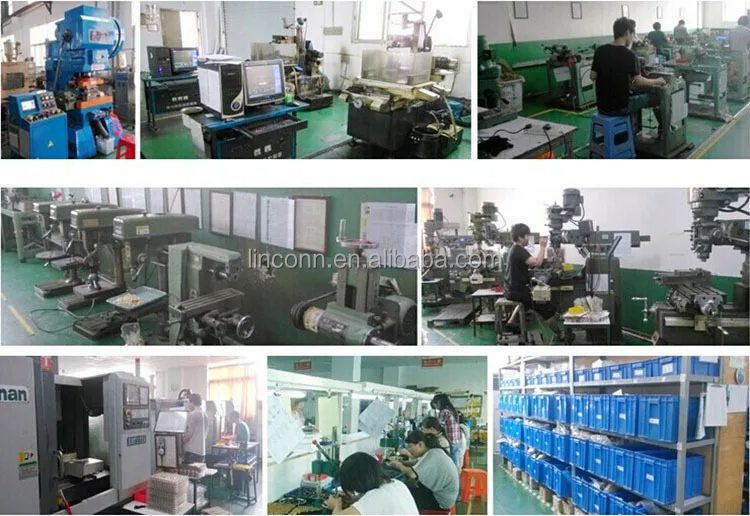

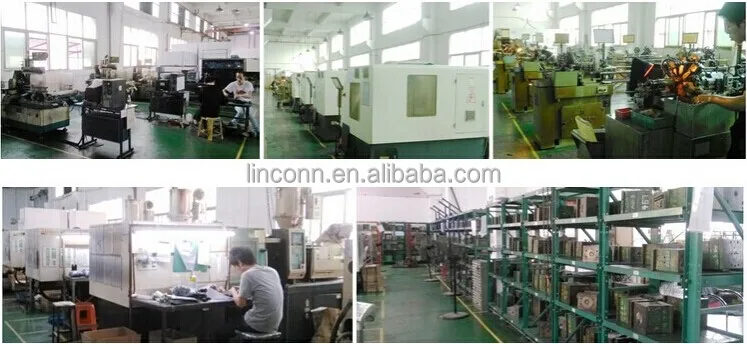

Company Information
Linconn is a leading high-tech manufacturer, specializes in development,design,manufacturing and service of unipole and multipole circular connectors and cable-assemblies.
Established by several experienced engineers of connectors and relative fields, Linconn is to serve both old and new, domestc and overseas customers in a better way.
Packaging & Shipping
connector Packaging & Shipping&Process
connector Samples: we can make the samples according to customer’s samples or designs.
connector: Our designer team can finish the samples timely, the exact sample delivery time depends on.
Order and Mass Production:
1.We will send PROFORMA INVOICE to you when the order is confirmed.
2.We will start to have mass production when confirm our sample and 30% T/T deposit received.
3. Quality is under the control and supervision during the production.
4. Packing information will be confirmed before the production finished, If no special
requirment, using our normal package.
