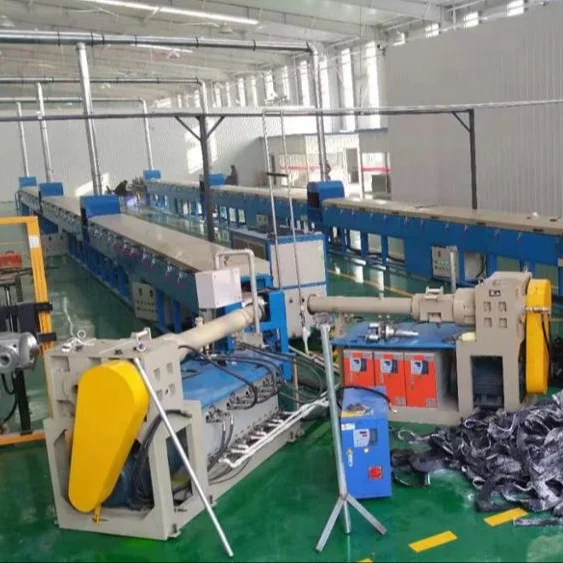

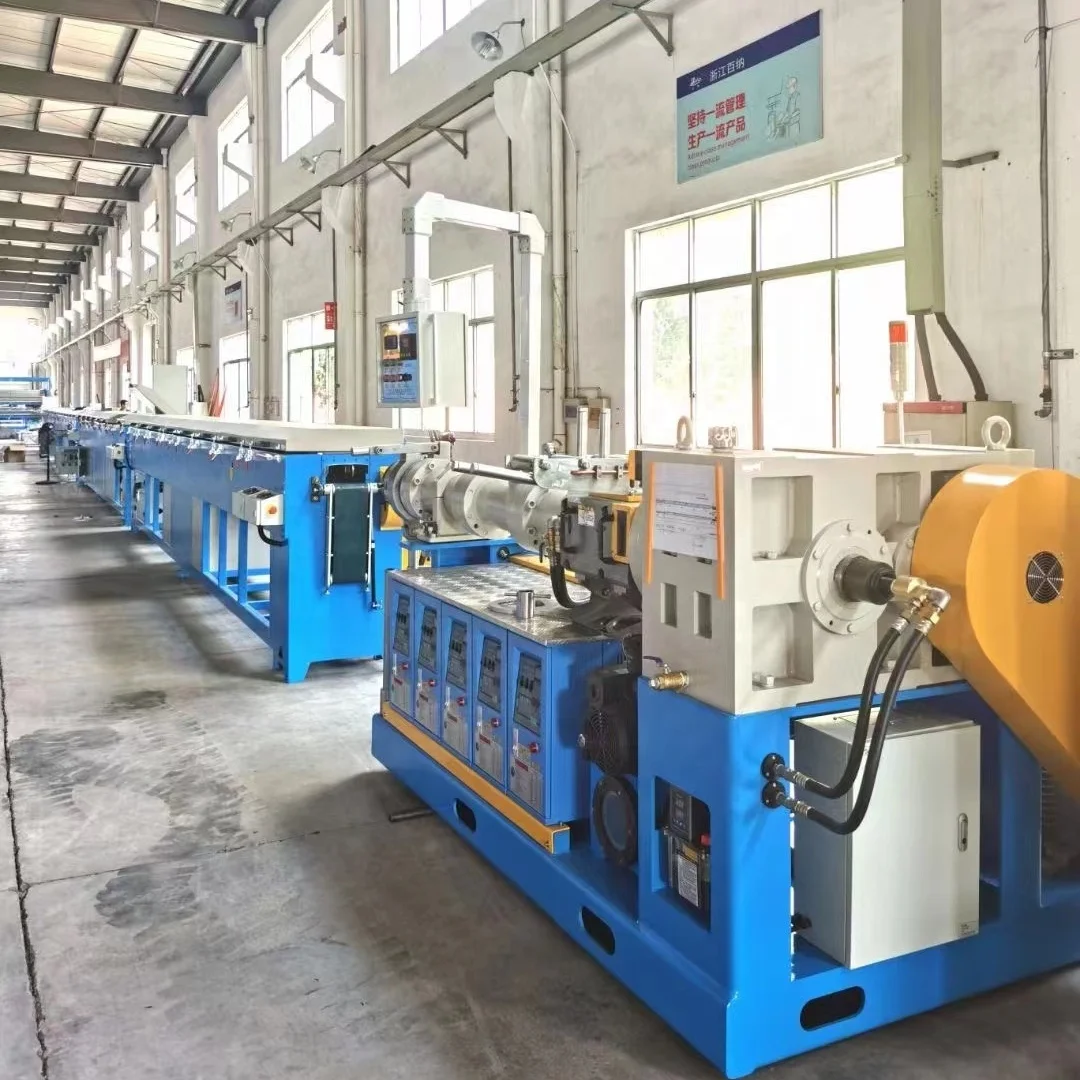

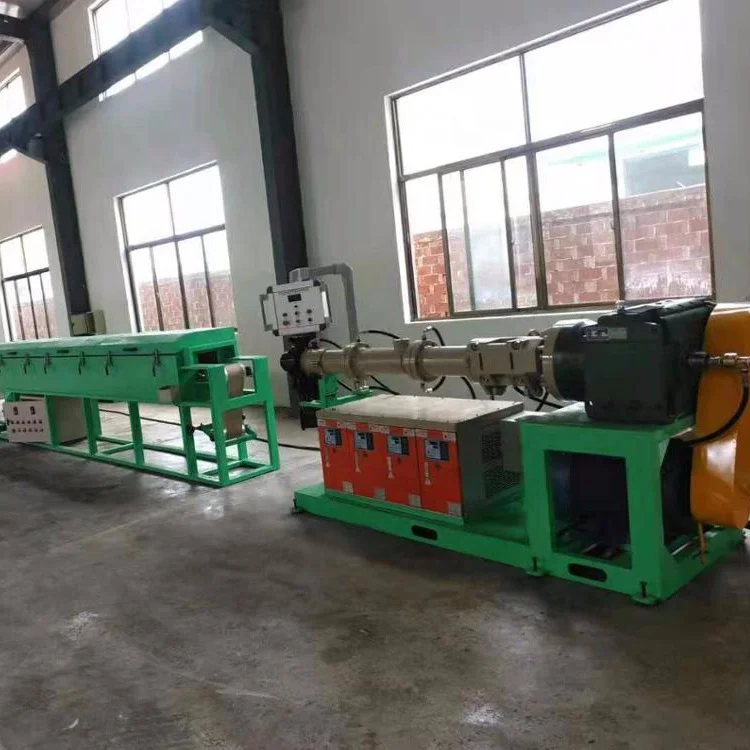

Cold feed Silicone Rubber Extruder Machine

Product Overview

Description

Silicone rubber extruder machine is mainly used to extruder and vulcanize the slicone rubber and slicone rubber strip and tube etc.

Technical information:

Model	Screw diameter (mm)	L/D Ratio	Screw speed (r/min)	Motor Power (kw)	Capacity (kg/h)
XJG-30	φ30	6~12:1	75	2.2~5.5	40
XJG-45	φ45	6~14:1	70	3.2~7.5	60
XJG-50	φ50	6~14:1	68	5.5~7.5	80
XJG-65	φ65	6~18:1	68	11~30	120
XJG-75	φ75	6~18:1	60	15~37	180
XJG-90	φ90	10~18:1	55	22~45	300
XJG-120	φ120	10~18:1	45	37~90	600
XJG-150	φ150	10~18:1	42	55~110	1200
XJG-200	φ200	10~18:1	33	90~160	2200
XJG-250	φ250	4~12:1	26	110~315	3000

Extruder head:

Extruder screw:



Rubber extruder machine is usually to be packed in wooden case, or pallet, or in bulk, in order to put into container.

























one year guatantee for whole machine







24 hours technical support by email or call







calling or door-to-door service







Use English software, manual and detailed videos/CD

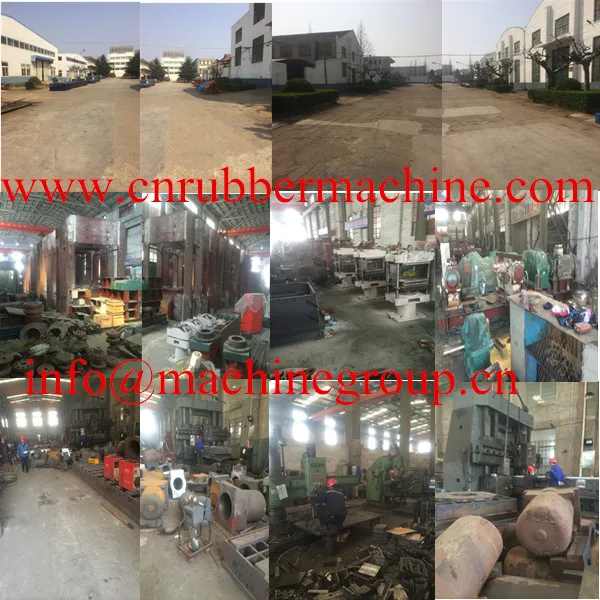

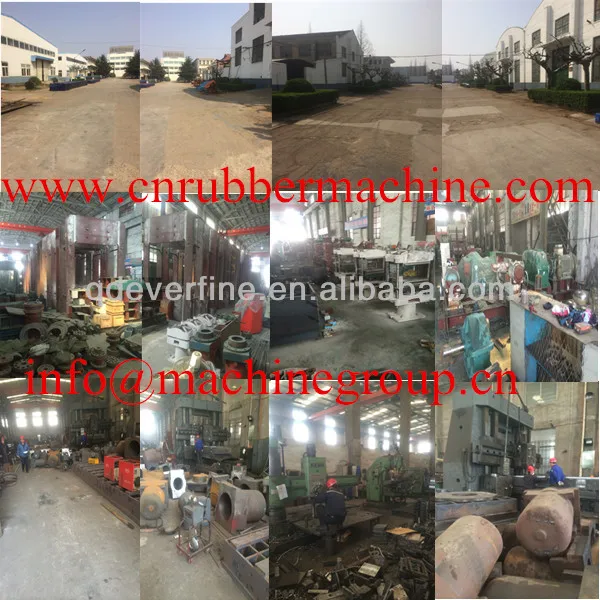

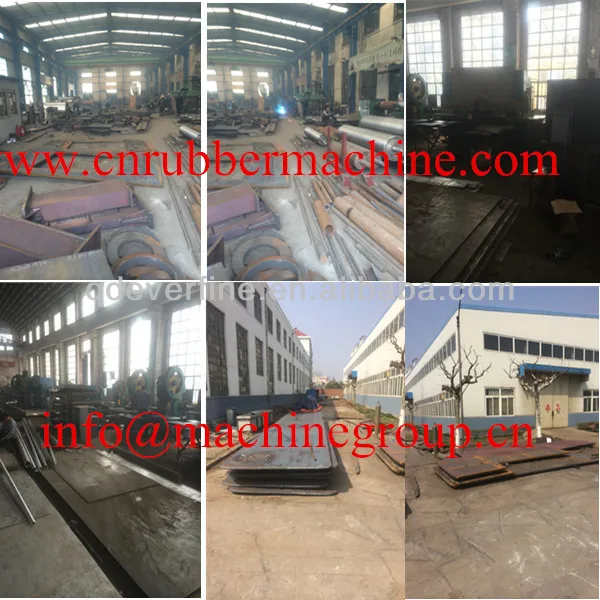

Qingdao Everfine Machinery Co., Ltd  (The former China National Rubber Machinery Corporation) is an enterprise of technology-pioneer type specializing in production of rubber machinery and the leading manufacturer and export base of rubber machinery industry in China.



Our rubber machinery includes: autoclave, devulcanizer, bale cutter, internal mixer, banbury intensive kneader, banbury mixer, dispersion kneader, butyl reclaimed rubber desulfurizing kneader, two roll rubber mixing mill, open type rubber mixing mill, rubber cracker mill, rubber refiner, batch-off machine, rubber extruder, hot feeding rubber extruder, cold feeding rubber extruder, rubber calender, three roller calender, four roller calender, plate vulcanizing press, tyre machinery, tyre curing press, inner tube press, EVA foam press, hydraulic press, rubber track joint press, conveyor belt vulcanizing press, conveyor belt vulcanizer, conveyor belt vulcanizing line, conveyor belt joint press, belt splice press, belt repair press, reclaimed rubber machinery, rubber powder machinery, rubber cracker, etc.



Meantime, we can design and produce conveyor belt, tyre and reclaimed rubber line according to customers' requests. These products are well sold to more than 30 provinces and cities, and autonomous regions in China as well as 30 countries and regions in Southeast Asia, the Middle East, Africa, Central South America, Australia, Europe, and USA, etc.
