HUAWEI Network Interface Device MA5673 4GE 4POTS 4E1 FTTO ONU
- Category: >>>
- Supplier: Shanghai Kaifei International Trade Co. Ltd.
Share on (60528019869):
Product Overview
Description
HUAWEI Network Interface Device MA5673 4GE+4POTS+4E1 FTTO ONU
SmartAX MA5673 ONU
Resilient Optical Networking Units (ONUs) designed for small office/home office environments and small-to-medium sized enterprises. Connect upstream to OLTs with Gbit/s Passive Optical Network (GPON) or GE cable; support up to 12 downstream ports for high-speed broadband, POTS, fax, Wi-Fi, and video surveillance applications.
Highly integrated for efficiency, flexibility, and easy O&M, SmartAX MA567x Series ONUs are also designed with comprehensive security features and protection against unauthorized access and DoS attacks.
Compact enclosure installs easily in vertical or horizontal orientation on a wall, table, or in a cabinet, suitable for any indoor environment.
Deliver multiple broadband, POTS, Wi-Fi, and high-bandwidth multimedia services with Huawei’s SmartAX MA567x Series ONUs for SOHO and small business users
- Multiple service support delivers integrated access: Provides users with access to a variety of services, such as GE-to-desk, POTS voice, fax, wireless office, and video surveillance
- Secure gateway functions with robust performance: Ensures reliable and secure applications; supports configurations for anti-DoS attacks, packet filtering based on MAC addresses, IP addresses or Uniform Resource Locator (URL) addresses, firewall and ONU access control rules
- Easy Operation, Administration, and Maintenance (OAM): MA567x Series ONU supports TR-069, ONU Management and Control Interface (OMCI), and OAM management modes. With this flexibility, terminal services can be managed without deploying additional IP network.

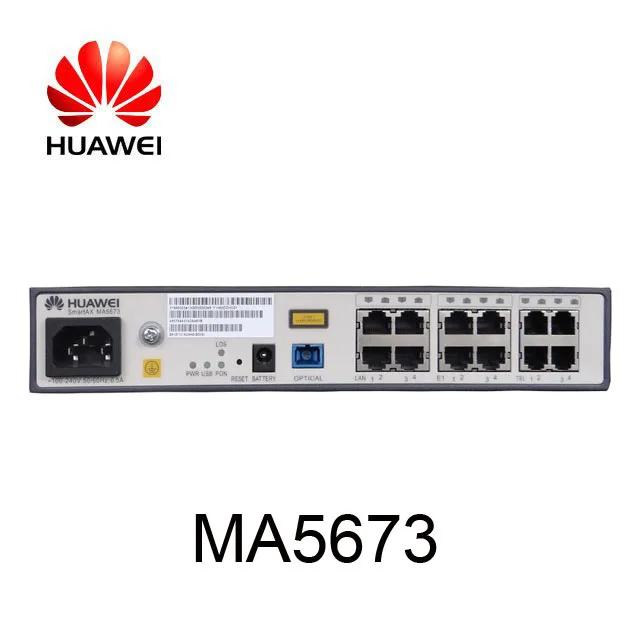

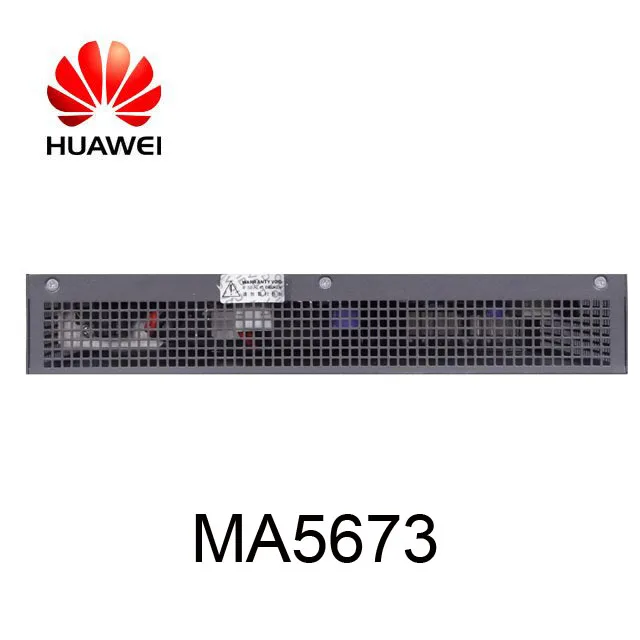

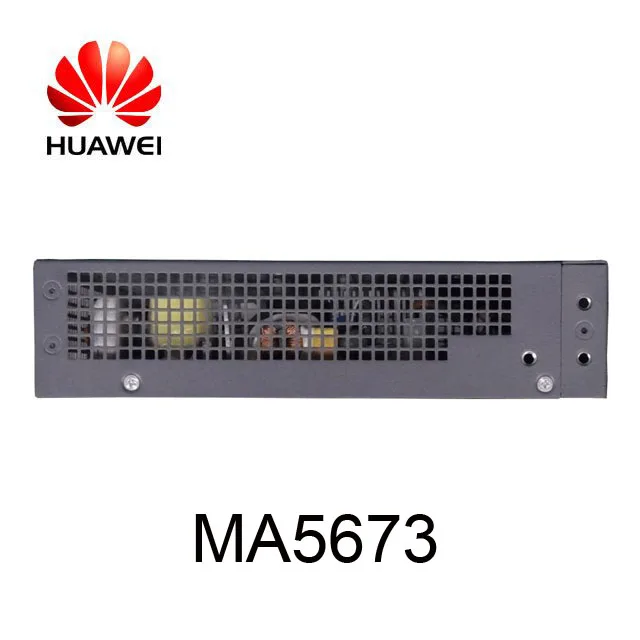

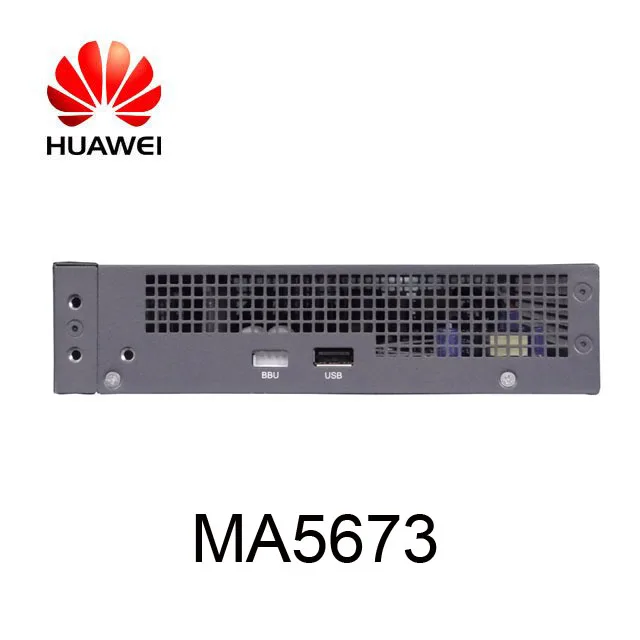

Appearance
SmartAX MA5673 are indoor Optical Network Units (ONUs) specifically designed for Small and Medium Enterprise (SME) and Small Office/Home Office (SOHO) users.
These devices support multiple service ports, such as GE, POTS, E1 and Wi-Fi ports, to provide services for customers, including high-speed broadband, wireless office, enterprise private line, and video surveillance.
The MA5673 of products can deploy in just about any small to medium office or enterprise, ranging from horizontal placement on a worktable, wall mounting, or installation in a network cabinet.
Technical Parameter
| Classification | Description | MA5673 |
|---|---|---|
| GPON | Class B and Class B+ optical modules Authentication by serial number (SN), password, SN+password, or LOID Type B protection | Y |
| Routing | Network Address Translation (NAT) Automatic binding of Internet, Internet Protocol television (IPTV), and VoIP services to a port on the MA5670 series Virtual server and port trigger Demilitarized zone (DMZ) and dynamic domain name server (DDNS) | N |
| Broadband | Any port any service IPv6 Protocol Support 4 priority queues per user port | Y |
| Voice | Session Initiation Protocol (SIP) and H.248 Separation of media and signaling streams 10 ms packet function RFC2198 Adjustable port impedance | Y |
| Multicast | Internet Group Management Protocol version 2 (IGMPv2) and IGMPv3 snooping Dynamic controllable multicast IGMP proxy | Y |
| Security | Filtering of source MAC address, IP address, and uniform resource locator (URL) Denial of service (DoS) anti-attack Access control rule configuration for the MA5670 series | Y |
| Maintenance | Local management through the web page Remote management of GPON terminals through optical network terminal management and control interface (OMCI) Optical power monitoring Loop line and call emulation tests performed through POTS ports GPON ring network detection | Y |
| Ethernet | VLAN filtering and transparent transmission VLAN tag adding for packets VLAN translation and priority switching | Y |
| WLAN | Power-saving mode for the stations (STAs) connected to the MA5670 series Adjustable transmit power | N |
| IPv6 | Coexistence of IPv4 and IPv6 IPv6 routing DHCPv6 DNSv6 | Y |
| E1 access | Native time division multiplexing (TDM) |
| Specifications | MA5673 |
|---|---|
| Network-Side Port | 1*GPON |
| User-Side Port | 4GE+4POTS+4E1 |
| Dimensions (W x D x H) | 250 mm x 180 mm x 43.6 mm |
| Weight | 1.3 kg |
| Operating environment | 0°C to +40°C |
| Power | AC power supply: 100 V AC to 240 V AC, 50 Hz to 60 Hz DC power supply: 12 V power backup |
| Power consumption | Static power consumption: 8 W Typical power consumption: 12 W Maximum power consumption: 15 W |
Typical Applications
Network Application:
Advanced Features
- The MA5673 products provide users with access to multipleservices, such as GE-to-desk, POTS voice, fax, wireless office, and video surveillance
- The MA5673 products support the configuration for anti-DoS attack, filtering based on MAC addresses, IP addresses, or uniform resource locator (URL) addresses, and firewall and ONU access control rules, ensuring secure and reliable application
- The MA5673 products support TR-069/ONU Management and Control Interface (OMCI)/OAM management modes. In this manner, terminal services can be managed without deployment of additional IP networks.
- The MA5673 products support ONU service issuance in batches and network adjustment. After being powered on, an MA5671 device is automatically upgraded.
- The MA5673 products support remote fault location through the NMS by reporting alarms and remote loopback diagnosis results. Therefore, O&M personnel can locate faults
- without visiting sites, which reduces O&M costs.
Company Information
Shanghai KaiFei International Trade Co., Ltd. is a professional trading company which commits to import and export business. Our company mainly engaged in international purchases and sales on communication equipment, electronic products, it also involves import and export business agency, such as declare at customs or clearance, commodity inspection, warehousing, international transport, receipt and payment of foreign exchange, international insurance, pay for export drawback, etc. We have established close strategic partnership with many production-oriented enterprises which with high-quality, first class service and reliable reputation. Our company has professional agency experience and quality service in the part of import and export agency business. We are striving to provide more quality products and more perfect service for both domestic and foreign customers.
We are now the agent of well-known international brands such as HUAWEI, ZTE, CISCO, ZYXEL, Grandstream, etc. Our customer include major national telecom carriers, as well as radio and television, electricity, mining and other industry professional network users; We have already established a long-term friendly and cooperative relations with them. In addition, the company has been actively expanding into foreign markets. The products are exported to Europe, America, Southeast Asia, the Middle East as well as Japan, Korea and other neighboring countries.
We will constantly improve our service and quality to create a win-win situation.
Please contact us to know details.
ShangHai Kaifei International Trade CO.,LTD
Address: Room 110,No.389 JinWan Road, ShangHai , China
Tel:+86-021-58718070
Fax: +86-21-58714662
Our Services
We can provide detail documents and remote help for device installation and configuration.
Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
