GLOBAL MANUFACTURER OF IRRIGATION EQUIPMENT SINCE 2002
Rainfine is an international irrigation company based in Dalian, China that specializes in center pivot and lateral move systems.
We are a leading manufacturer across the globe, supplying irrigation parts and equipment to major manufacturers in the United States, France, Russia, Australia, Sudan, Kazakhstan, Nigeria and Saudi Arabia.
Our irrigation manufacturing meets the following standards: International: ISO15873 ISO12374 ISOTR15155 French: NFEN909 British: BSEN12325-2 American for galvanizing: A123 ISO9001-2008 QC standard

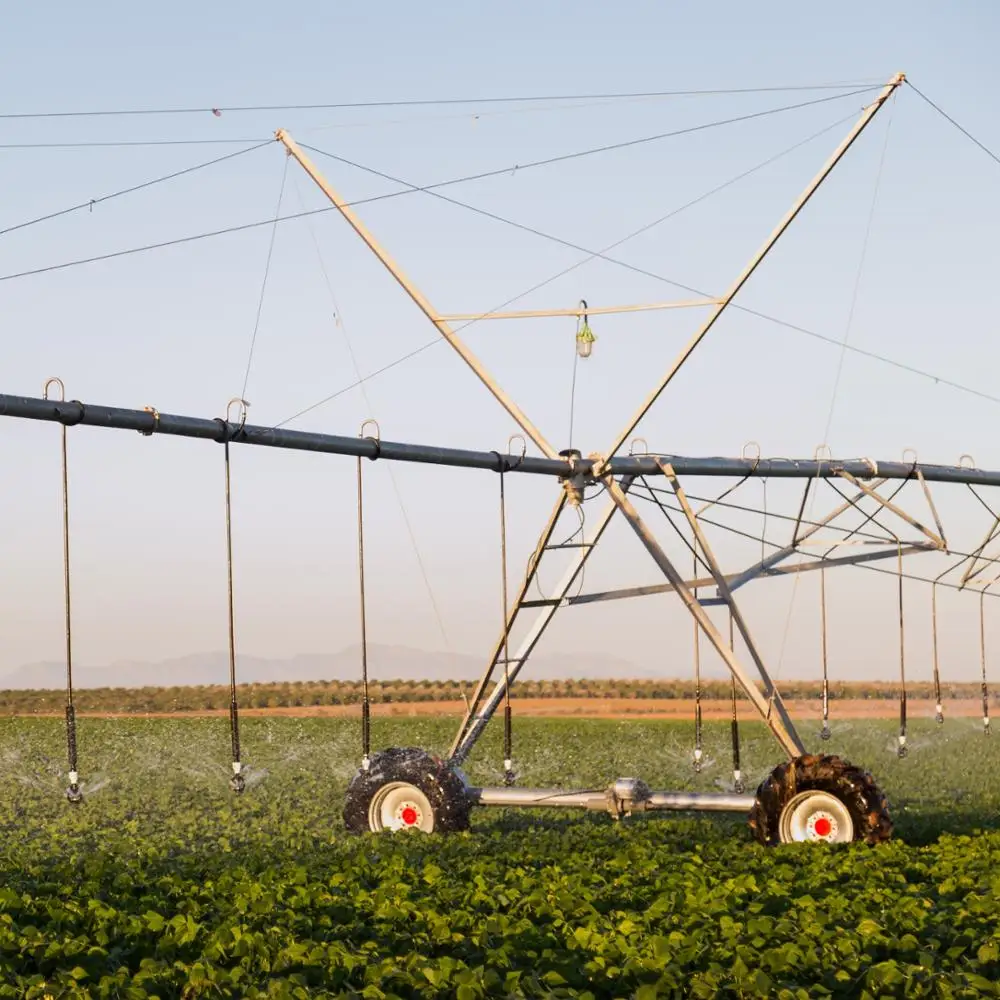

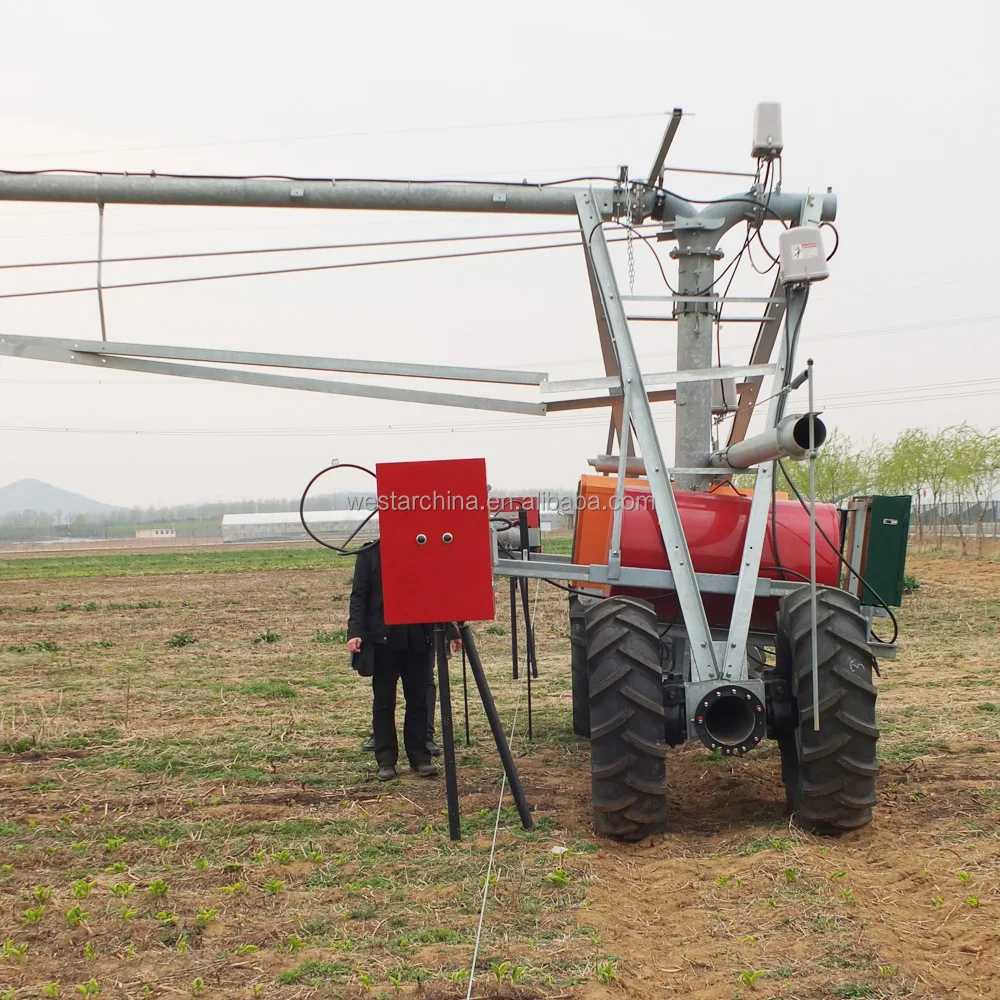

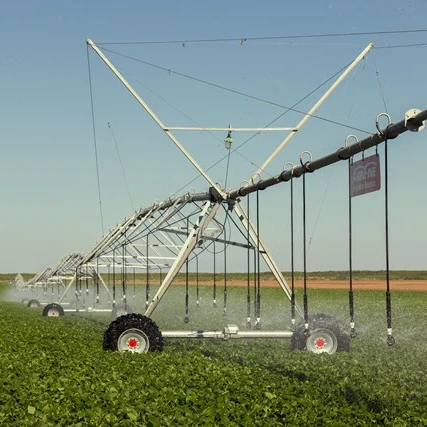

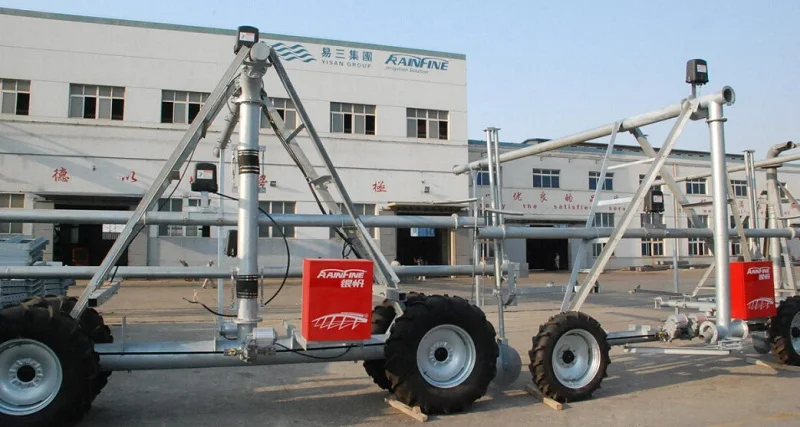

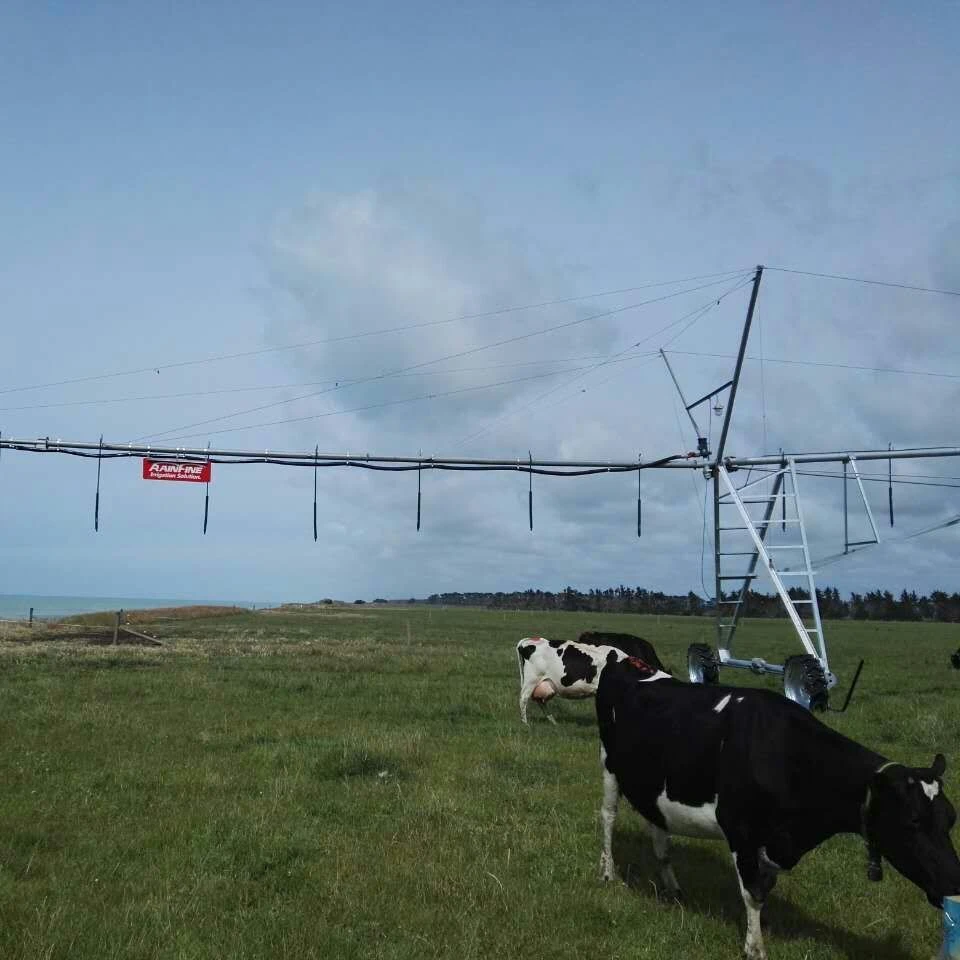

This is lateral move system or linear system. All the machines work in linear movement by motor driven tires to irrigate rectangle area. Unlike center pivot systems, where the area irrigated depends only on the length of the machine, lateral system area is determined by two factors: system length and travel distance.
This system is mainly used for grasses, grains, vegetables, cotton and sugar cane crops. The length can be from 1 span to 18 spans, normally more than 7 spans system is economical. Lateral move system is the only machine which can irrigate all land. In square land, all spans are parallel with the land, no blind angle. The irrigation ratio can increase to 99%.
Water source to fill the machine can be canal, concrete ditch, rivers and pond. It is not allowed to operate the machine without water.
The specification of the Rainfine Center Pivot
Items
Specification
Items
Specification
Pivot length
41.1-791.2m
Land covered
0.53-196.7ha
Qty.of spans
1-16
Span length choice
41.1/47.8/54.4/61.3m
Overhang length
6.7/13.4/20.1/26.8m
Pivot clearance
2.91-3.75m
Span dia.
141/168/203mm
Pivot height
4.62-5.46m
Span thickness
3mm
Surface
Hot dip galvanization
Flow rate
15-1080m3/hr
Water pressure at pivot base
1-7.5Bar
Friction Loss
0-2.5bar
Tire
Rubber: 320×1260 mm Plastic: 318×1170 mm
Max speed
142m/hr
Sprinkler
Nelson/Senninger
Regulator
10/15psi
Type of drops
Flex 5.5-ft drops
Gear box
50:1 heavy duty
Gear motor
33rpm(full loaded) at 380V.3/4HP 40:1 Ratio. Over-heating protection
Control panel
Standard
Required run power
0.7-11.5kw
Power supply
415V 50HZ
Irrigation Hours/Day
0-24hr/day
Daily applicationrate
0-50mm/day
Pressure gage
0-60psi

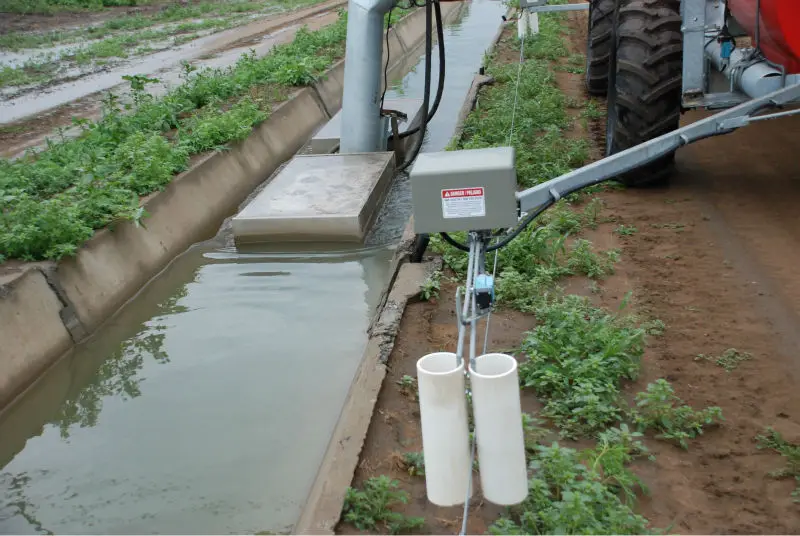

Ditch feed
Benefits of Lining a Ditch
Conserve water (e.g. reduce friction loss and seepage loss from earthen ditches)
Minimizes irrigation-induced erosion and invasive weed growth
Work well with a gravity system; No pumping is required
Maintenance minimal compared to a dirt ditch
Can work on any field, regardless of shape and be tailored to site-specific conditions
Hose feed
Electric power provided by cable or genset
PVC material, UV resistant
Diameter from 4 to 12 inch
Work pressure from 4 to 10 bar
Auto reverse
Prevent crashes
Stop machine from any tower
Provide additional safety
Package includes control box, sensing arm, cable, spring, traverse arm

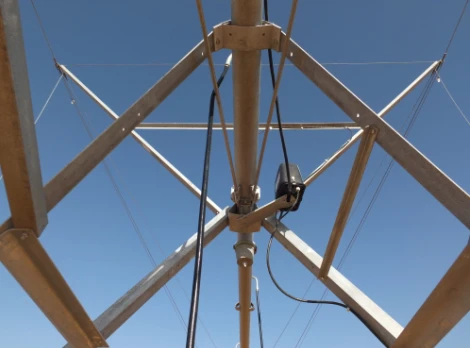

Construction
Metallic zinc-coated Spans rubber-band united between itself
Mounted on support of intermediate towers-each with two wheels
<V>-type, axles drive unit from electric geared motor to Wheels gearboxes
Electronic block of the system with equalization and checking
NOTICE
1. If you want pivot, please give us the following details"
- your country and name
- land area (in ha or m2 )
- crop and water application (mm/day or m3 /h or LPS)
- working degree (0- 360O)
- if you need any extras (options) for pivot such as Diesel generator, end gun with booster pump, corner control system for end gun, Fertilizer unit
2. Parts are not sold seperately, except for large amount.
Rainfine's work
-land surveying and planning
-Pipeline network calculation -Pump station calculation and design -Business proposals and budget plans -Pumps, valves and irrigation machines supply -Installation and commissioning
Warranty
-1 year concerning electric equipment -10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier -20 years concerning the galvanized equipment against corrosion -3 years for tires and rims
