Product Overview

Description


Product Description

IEPE is the abbreviation of Integrated Electronics Piezo Electric.
The power supply and signal output use the same cable (Internationally known as ICP).
IEPE piezoelectric accelerometer sensor can be customized with the TEDS function.


Features:

IEPE,  Miniature, Light Weight
Wide frequency range, wide dynamic range
Cost-effective general purpose accelerometer
Side output


Parameters:

\t
Sensitivity(20±5℃)
\t
1~5 mV/g
\t
Measurement Range(pk)
\t
5000-1000 g
\t
Max Transverse Sensitivity
\t
≤5%
\t
Frequency Response(±5%)
\t
1~12,000 Hz
\t
Mounting Resonant Frequency
\t
45,000 Hz
\t
Operating Temp. Range
\t
-40~+120 ℃
\t
Temperature Response
\t
See Graph
\t
Shock Limit(pk)
\t
10000 g
\t
Max Output Signal(pk)
\t
≤6 V
\t
Transient Temperature
\t
10 mg/℃
\t
Magnetic Sensitivity
\t
1.5 g/T
\t
Base Strain Sensitivity
\t
0.2 mg/με
\t
Noise(1~20KHz)
\t
<0.5 mg
\t
Output Impedance
\t
<100 Ω
\t
Operating Voltage(constant current source)
\t
+12~+24 VDC
\t
Operating Current
\t
+2~+10 mA(typical 4 mA)
\t
DC Bias Voltage
\t
7±1 V
\t
Mounting
\t
Overall M5 Stud
\t
Sensing Element
\t
Piezoelectric Ceramics
\t
Sensing Geometry
\t
Shear
\t
Case Material
\t
Stainless steel
\t
Weight
\t
8g
\t
Output
\t
L5

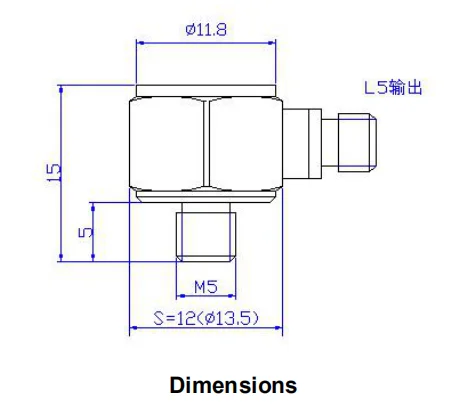

Detailed Images

                        Temperature Response


                             Frequency Response


Packing & Delivery

Packaging Details:\tCorrugated carton with styrofoam insert.
Delivery Detail:\tAbout 20 days after receive the payment

Accessories
\t
Certificate
\t
Calibration parameters, frequency response
\t
M5 Stud,Protection cap
\t
One
\t
L5/ L5 (2m) STYV-1
\t
One
Certifications

                 CE

Measurement Assurance


        ISO 9001-2008


FAQ

Q: What kind of your sensors?
A: Our main sensor is piezoelectric sensor. But if you have any special requirements,we can customized.

Q: Why your production is so long?
A: We process most parts by ourselves,includes manual polishing. Every welding in our sensors is welded by our workers. Each working procedure need to pass the test.

Q: Have you cooperated with some famous company?
A: We have cooperated with Siemens and many famous college such as Wollongong.
