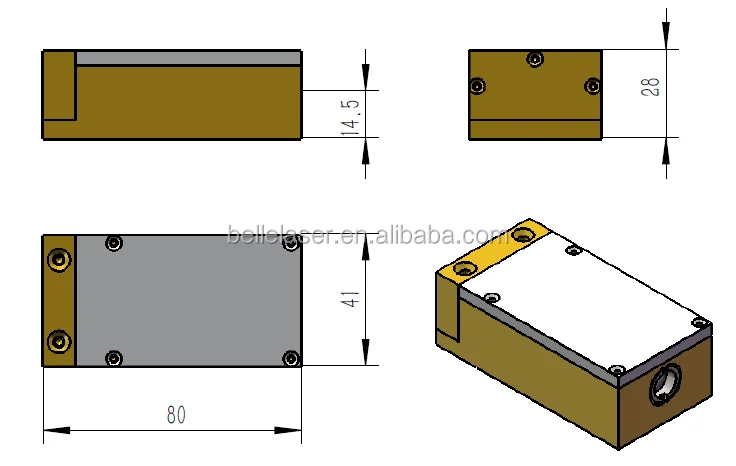

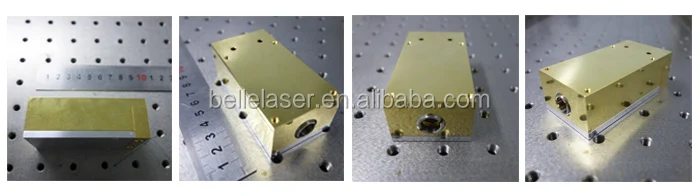

Fiber Coupled Laser Diode Modules

Product Overview

Description

 High Power Single Emitters



Based on GaAs, AlGaAs or InGaAs MOCVD technologies, NDL is able to provide high power laser diodes with max optical output power >5W and high EO efficiency up to >60%. These high power single emitters are widely used for solid-state pumping, infrared lighting, fiber coupling and etc.



Features:





 2W, 3W, 4W, 5W available

795nm, 808nm, 940nm, 976nm (+/-3nm, +/-5nm) available

C-Mount and TO3 package available

TM & TE polarization available

High efficiency >1.1W/A.

Long life time: 10,000 Hours







Standard Product Models



Model No.	Wavelength	Power	Package	Lead Time
C795-3	793+/-3nm	3W	C-Mount	In stock
C808-2	805+/-3nm	2W	C-Mount	In stock
T808-2	805+/-3nm	2W	TO3	2 workdays
C808-3	805+/-3nm	3W	C-Mount	In stock
T808-3	805+/-3nm	3W	TO3	2 workdays
C808-5	805+/-5nm	5W	C-Mount	In stock
T808-5	805+/-5nm	5W	TO3	2 workdays
C940-4	940+/-5nm	4W	C-Mount	In stock
T940-4	940+/-5nm	4W	TO3	2 workdays
C976-4	976+/-5nm	4W	C-Mount	In stock
T976-4	976+/-5nm	4W	TO3	2 workdays



 Price will be different for different wavelength tolerance.
PC/FC, ST or SMA-905 connectors can be provided.



Custom Products Available

Optical Output Power (CW):	1W, 2W, 3W, 4W, 5W
Mounting Package:	C-Mount, TO3, B-Mount
Wavelength Available:	795nm, 808nm, 940nm, 976nm
Wavelength Tolerance:	+/-3nm, +/-5nm, +/-10nm
Fast Axis Collimation:	Optional
Expected Life Time:	>10,000 Hours



Company Preview



Product line

Conductively Cooled Package (CCP Package) high power laser diode bars (laser diode arrays) are widely used for solid-state pumping (DPSS laser), infrared lighting, medical & aesthetic treatment and laboratory research. NDL provides both CW and QCW (Quasi-CW) laser diode bars.









Please contact us directly to Request Quote or Ask for Support.
