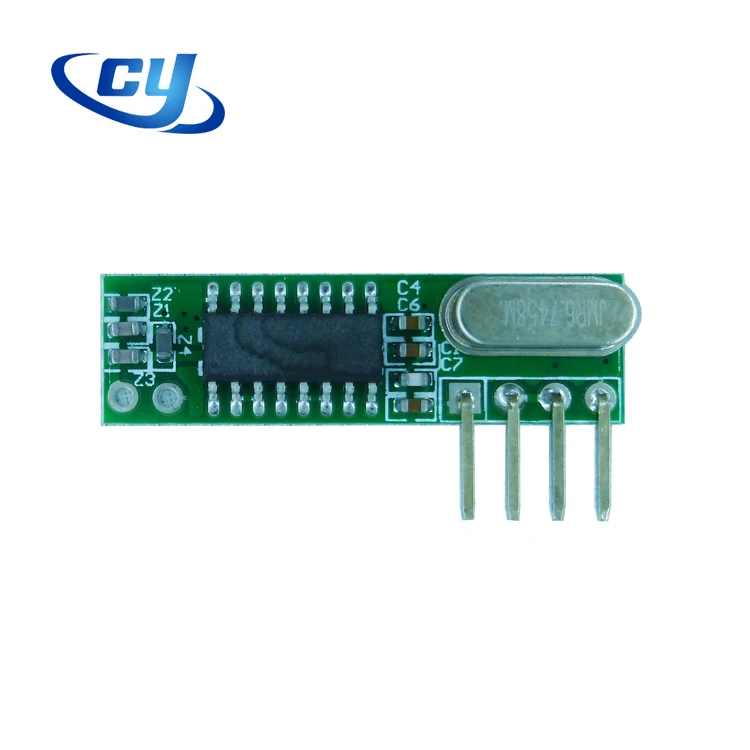

CY15 Low Cost ASK/OOK Wireless Receiver Module RXB22 433/315 mHz AM 433 Receiver
- Category: >>>
- Supplier: Shenzhen CY Wireless Technology Limited
Share on (60528435554):
Product Overview
Description
DESCRIPTION:
CY15 is an ASK/OOK receiver super-heterodyne module is designed specifically for unlicensed remote-control and wireless security receiver operating at 315/433.92MHz under FCC Part 15 regulation or pass ETSI certification. The CY15 is based on a single-conversion, super-heterodyne receiver architecture and incorporates an entire Phase-Locked Loop (PLL) for precise local oscillator generation. It can be used in OOK/ HCS/ PWM modulation signal and demodulate to digital signal. The CY15 is a high performance module at a competitive cost and easily to design for your product. The CY15 module can be also a RoHS compliant product.
FEATURES:
Frequency: 315M/433.92MHz (custom frequency is available)
Low cost ASK radio super-heterodyne receiver
High frequency stability (no adjust components) & coherence
Very low RF re-radiation at the antenna
Operation temperature: -20℃ ~70℃ ( It can custom to -40~85℃ upon requests)
Supply voltage: 3.0~5.5v
Compatible with most (ASK/OOK) transmitters
APPLICATION:
Smart home system
Remote controls
Remote fan and light control
Garage door and gate openers
Alarm and security system
PIN DEFINITION:
Please note: CY15 is come with standard 4 PINs (without the red colored pins). Please notify us if you would like 6PINs.

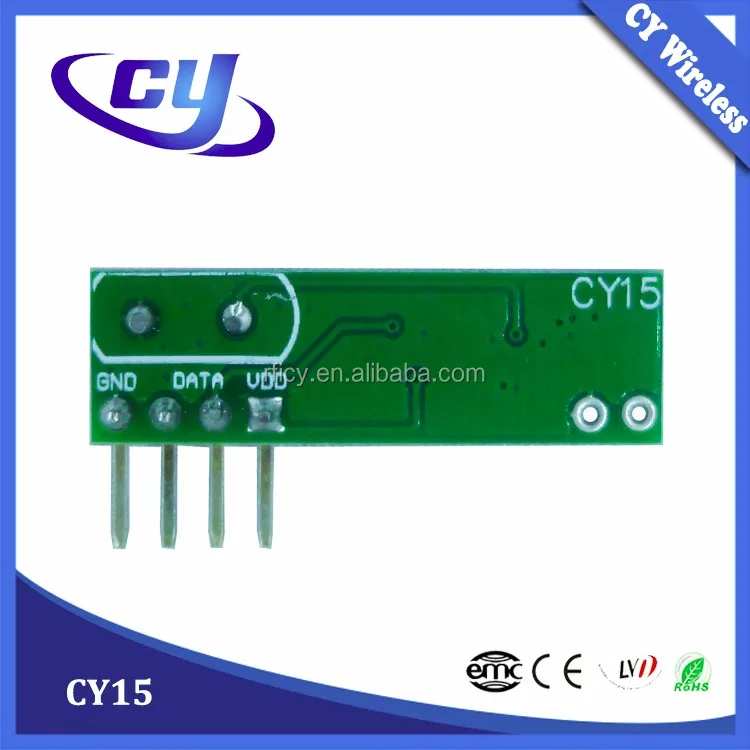

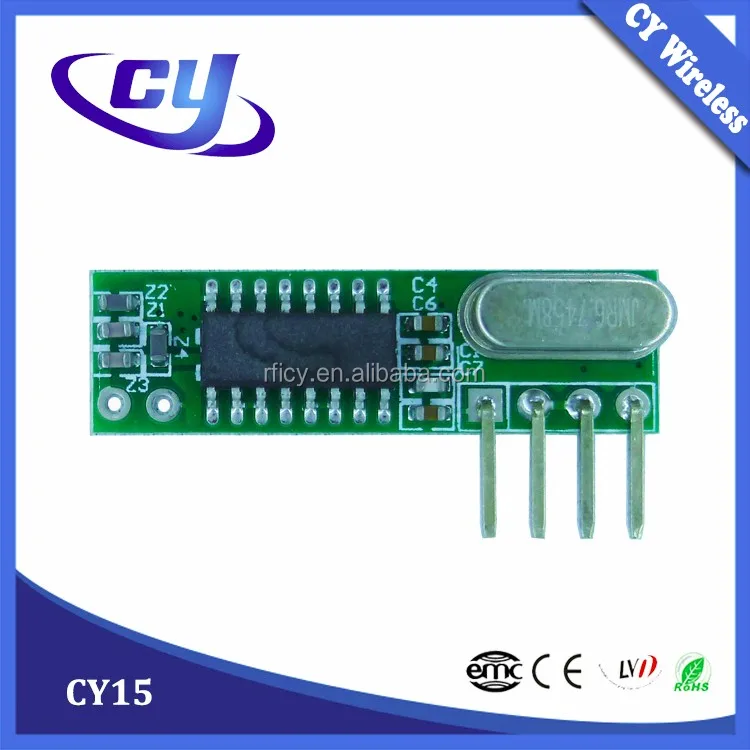

Figure1 CY15 Shape & Pins
Pin Name | Pin Definition |
ANT | RF signal input pin |
GND | Connect to negative power supply |
VDD | Connect to positive power supply |
DATA | Data output pin |
DATA | Data output pin |
GND | Connect to negative power supply |
Note1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz
ELECTRICAL CHARACTERISTICS:
Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz
Parameter | Specification | Unit | Condition | ||
Min | Typ | Max | |||
Frequency Range | 314.90 | 315.00 | 315.10 | MHz | Other freq. available |
Receiver Sensitivity |
| -107 |
| dBm | BER=10E-2 |
Data Rate |
|
| 2.4 | Kbps | Manchester code |
Supply Voltage, VDD | 3.0 | 5.0 | 5.5 | V | DC |
Current | 2.8 |
| 4.1 | mA | DC |
Operating Temperature | -20 |
| +70 | ℃ |
|
Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz
Parameter | Specification | Unit | Condition | ||
Min | Typ | Max | |||
Frequency Range | 433.82 | 433.92 | 434.02 | MHz | Other freq available |
Receiver Sensitivity |
| -107 |
| dBm | BER=10E-2 |
Data Rate |
|
| 2.4 | Kbps | Manchester code |
Supply Voltage, VDD | 3.0 | 5.0 | 5.5 | V | DC |
Current | 2.8 |
| 4.1 | mA | DC |
Operating Temperature | -20 |
| +70 | ℃ | |
MECHANICAL SIZE: (UNIT: mm)
Figure2 CY15 Dimension

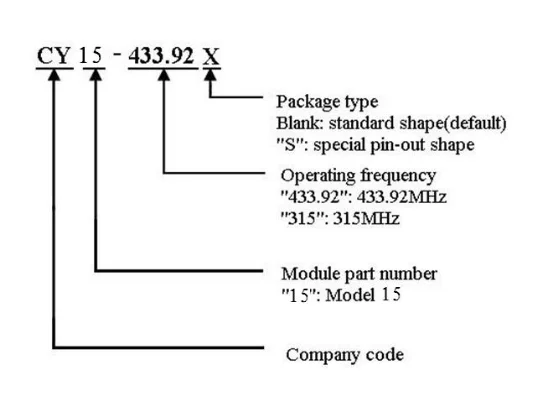

ORDER INFORMATION:
1. Why choose CY Wireless?
a. High Service Quality: OEM & ODM service; Reply in 24 hours; 7 years experience in overseas export.
b. High Product Quality: Quality inspection in factory and double check in company.
c. Professional Manufacturer: We possess several production bases, gathering over 300 staff, a professional R&D team and many other cooperation manufacturer, all products are directly from factory.
d. Competitive Price: Every order must follow our quoted price rule; We never allowed the higher price.
e. Advantaged Shipment: Our partner: DHL, UPS, FedEx, EMS; Delivery time: 4-7 working days.
2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.
4. If I want cheaper quality, can you produce?
Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
5. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
