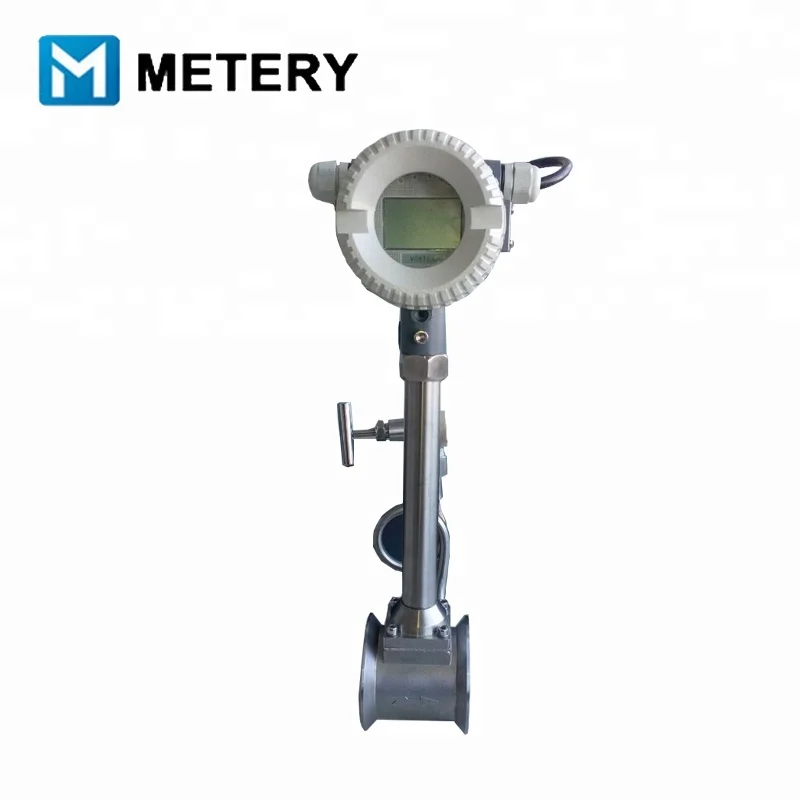

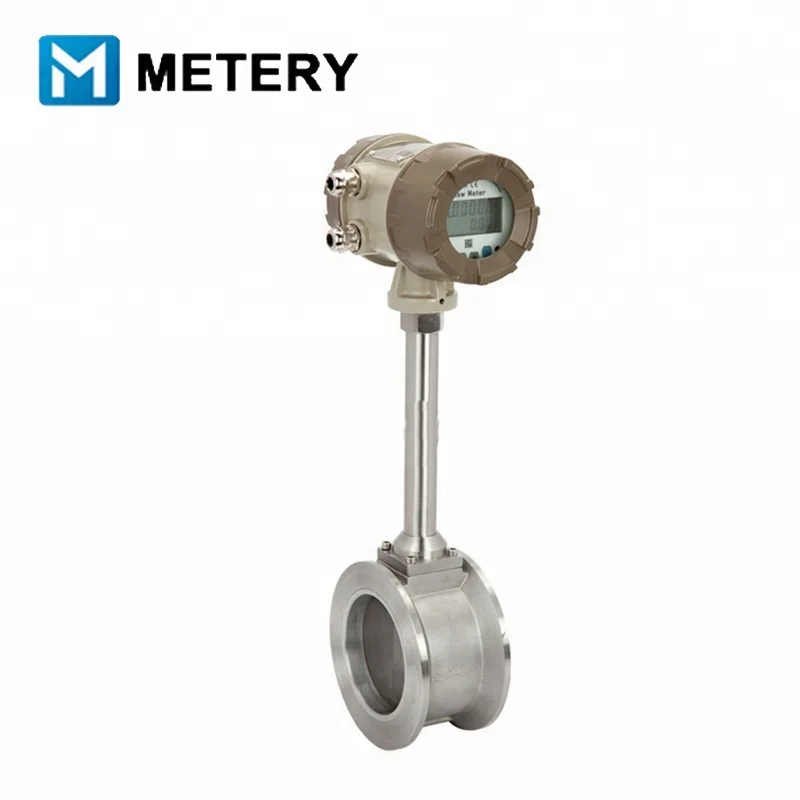

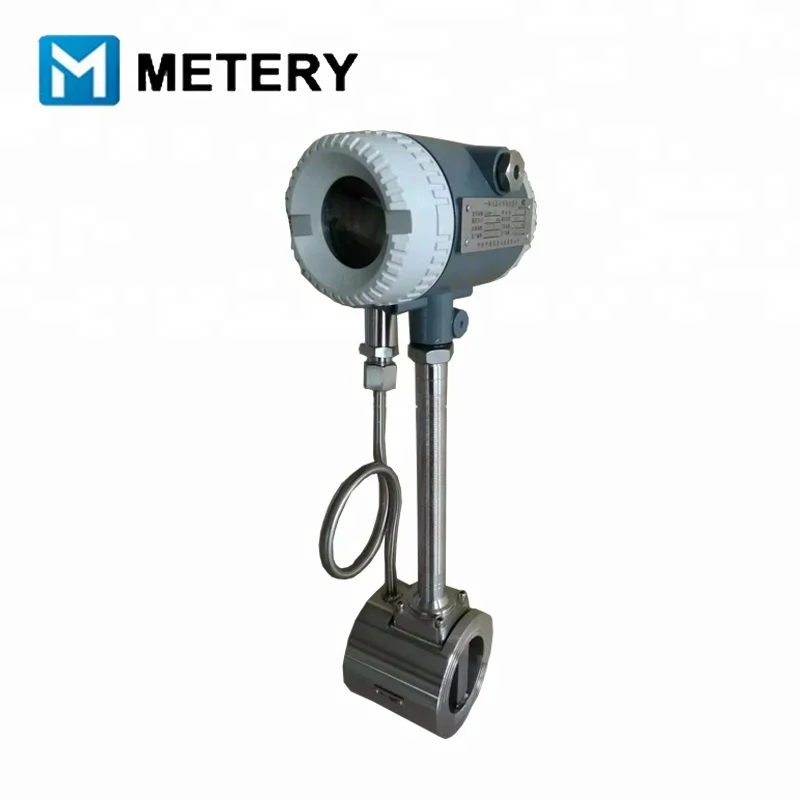

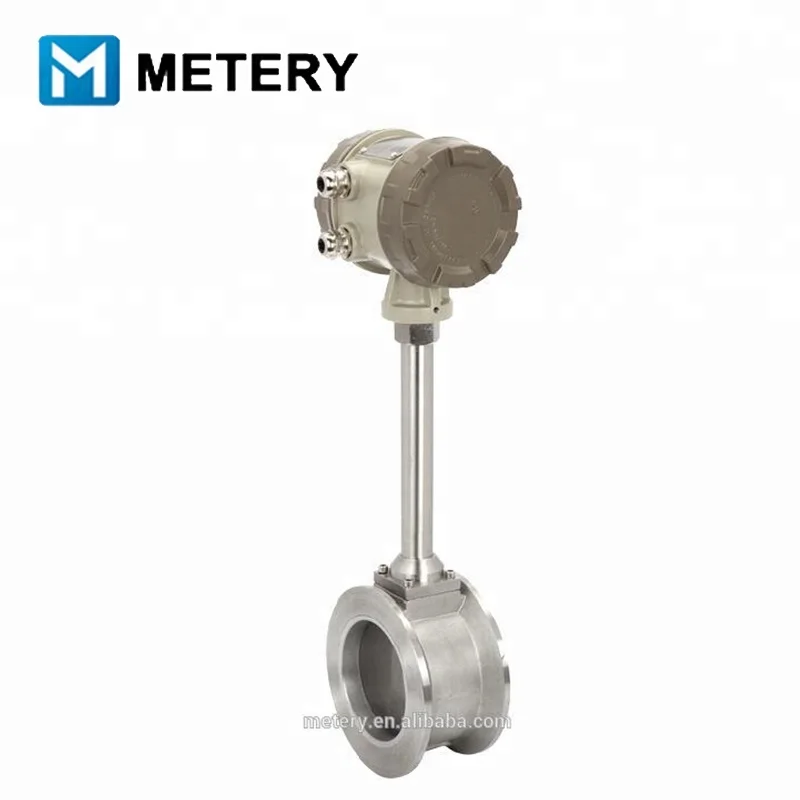

Фланцевый цифровой вихревой расходомер/Паровой расходомер
- Category: >>>
- Supplier: Dalian Metery Technology Co. Ltd.
Share on (60528509211):
Product Overview
Description
Product Description
| Model | MT100VX-N | MT100VX-A | MT100VX-B | MT100VX-C | MT100VX-D1/D2 |
| Signal Output | Pulse | 4-20mA | N/A | 4-20mA | Optional: 4-20mA/Pulse |
| Power Supply | 24VDC±15% | 24VDC±15% | Lithium Battery | 24VDC±15% | 24VDC±15% |
| Communication | N/A | N/A | N/A | Optional: RS485 | Optional: RS485 |
| Accuracy | Liquid: 1.0% Gas: 1.0% Steam: 1.5% | ||||
| Local Display | None | Yes | Yes temperature and pressure compensation | ||
| Housing Material | SS304 | ||||
| Explosion Proof | Optional: ExiaIICT5 or ExdIIBT6 | ||||
| Protection Level | IP65 | ||||
| Diameter | DN15 to DN300 | ||||
| End Connection | Flange or Wafer | ||||
| Pressure Rating | Standard: 1.6 MPa; Optional: 2.5MPa | ||||
| Fluid Temperature | 1. Standard: -40℃~250℃; 2. High Temperature: -40℃~350℃ | ||||
| Ambient Temperature | -20℃~60℃ | ||||
| Nside nominal diameter (mm) | 25,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in) | ||||
| Nominal pressure (MPa) | DN25-DN200 4.0(>4.0 order by agreement),DN250-DN300 1.6(>1.6 order by agreement) | ||||
| Medium temperature (°C) | piezoelectric type:-40~260,-40~320;capacitance: -40~300, -40~400,-40~450(order by agreement) | ||||
| Noumenon | 1Cr18Ni9Ti,(order by agreement if need other material) | ||||
| Vibrating acceleration | piezoelectric type:0.2g capacitance:1.0~2.0g | ||||
| Range | ±1%R,±1.5%R,±1FS;plug-in:±2.5%R,±2.5%FS | ||||
| Range degree | 1:6~1:30 | ||||
| Service voltage | sensor:+12V DC,+24V DC;transmitter:+12V DC ,+24V DC; battery supply feed:3.6V battery | ||||
| Output signal | square wave pulse (non- battery supply feed):high level≥5V ,low level≤1V;current:4~20mA | ||||
| Loss coefficient | JB/T9249 Cd≤2.4 | ||||
| Anti-explosion sign | Ben-an type:ExdⅡia CT2-T5 anti-explosion type:ExdⅡCT2-T5 | ||||
| Protection grade | ordinary type IP65 dive type IP68 | ||||
| Environment condition | Tem-20°C~55°C,relative humidity 5%~90%,atm press 86~106kPa | ||||
| Medium | gas,liquid,vapor(steam),Air | ||||
| Transmission range | three-wire system flow sensor:≤300m,electric sign of two-wire system transmitter (4~20mA):load resistance≤750Ω | ||||
Our Services

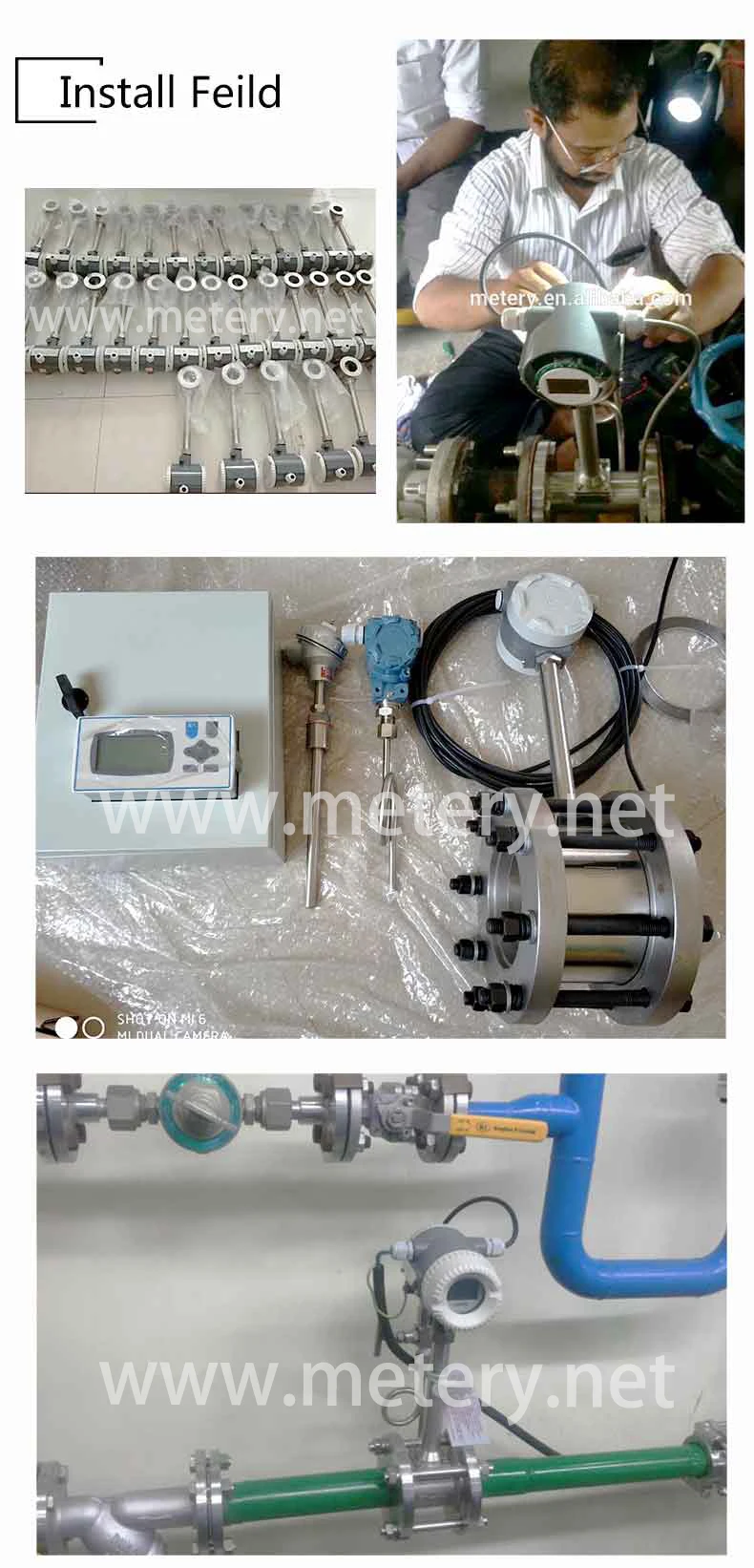

Install Feild
