Product Overview
Description
System Performance | Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD Maximum split ratio of 1:256 Maximum logical distance between devices: 60 km | ||
HUAWEI Optical Networking Device MA5603T OLT GPON
SmartAX MA5600T Series OLT
Carrier-grade Gigabit Passive Optical Network (GPON) Optical Line Terminals for large-scale aggregation and access networking.
SmartAX MA5600T Series OLTs combine high-performance aggregation and switching capabilities, providing 3.2 Tbit/s backplane capacity, 960 Gbit/s switching capacity, 512K MAC addresses, and a maximum of 44-channel 10 GE or 768 GE access ports.
Lowers Operations and Maintenance (O&M) costs with software versions for all three models that are fully compatible with service boards; reduces quantities of stock required for spare parts.
Advanced Features

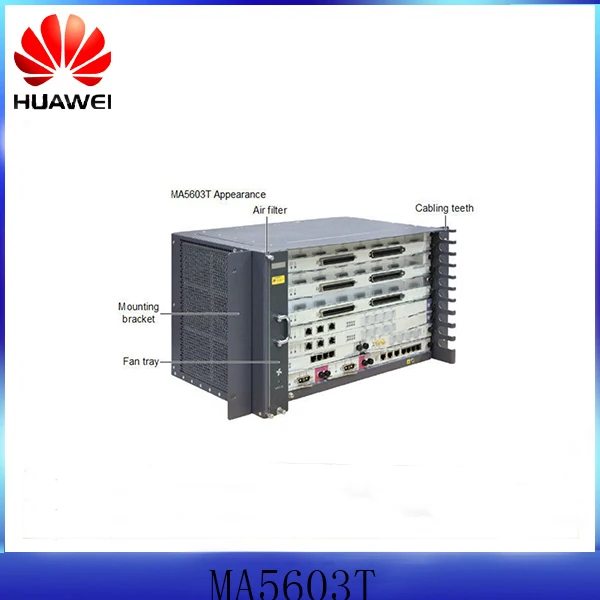

The MA5603T is a multi-service access device provided by Huawei Technologies Co., Ltd..
Resilient, high-capacity SmartAX MA5600T Series OLT platforms for flexible optical networking, simplified O&M, and easy transition to ultra-high-bandwidth access
- High reliability: OLT two-node cluster hot backup, remote Disaster Recovery (DR), hitless upgrade, Quality Of Service (QoS), and end-to-end (E2E) high reliability design
- Multiple methods of access: Includes E1 private line access, native TDM (CESoP/SAToP), E-LAN, and non-convergence IPTV user access
- Simple evolution: GPON, 10G PON, and 40G PON share a single platform, enabling smooth evolution and supporting ultra-bandwidth access and IPv4/IPv6 dual-stack
- Environmentally friendly and energy-efficient design; idle board are automatically powered off, intelligent fan speed feature further reduces power consumption of idle boards
The MA5603T provides the integrated broadband and narrowband access and FTTx optical access services that feature high rate, high bandwidth, and high quality:
- Supports broadband access services such as ADSL2+, VDSL2, and SHDSL, thereby enhancing the xDSL function.
- Provides the STM-1 optical port through the AIUG board for subtending to the ATM DSLAM and converting the IPoA/PPPoA access into IPoE/PPPoE upstream transmission,thus implementing the ATM network consolidation function.
- Provides the voice service solutions based on the Session Initiation Protocol (SIP), H.248,supports the POTS port, and implements the voice service, fax service, narrowband modem service, and various supplementary services.
- Supports the GPON access service. The MA5603T can function as an optical line terminal(OLT) in the GPON system, working with the optical network terminal (ONT) or optical network unit (ONU).
- The MA5603T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or MDU.
- The MA5603T, if serving as an OLT, supports GPON and 10G GPON access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
- The MA5603T, if serving as a DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes.
- The MA5603T, if serving as an MDU, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and transmit packets upstream to the OLT through a GPON/10G GPON/GE/10 GE port.

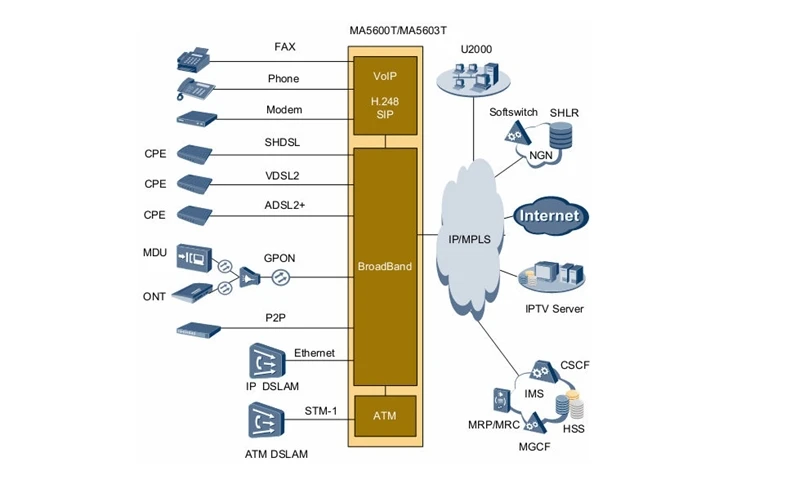

Typical Applications
Technical Parameter
Classification | Feature |
Access features | GPON access |
GPON access | GPON terminal management |
MPLS | Basic MPLS functions MPLS RSVP-TE MPLS OAM Graceful restart (GR) function of the LDP, RSVPTE, |
Broadband L2 features | MAC address management VLAN attribute management Service stream processing L2 forwarding policy Traffic classification VLAN switching policy *Bridging |
QoS | Priority processing Traffic management ACL policy Congestion management *HQoS |
Multicast | PIM-SSM IGMP snooping IGMP proxy Multicast VLAN management Multicast program management Multicast user management *Multicast CAC |
L2 tunnel emulation technology | *TDM PWE3 ATM PWE3 *ETH PWE3 *Terminating the SAToP service and transmitting Terminating the native TDM service and |
L3 features | VLAN L3 interface ARP ARP proxy DHCP relay DHCP Option60 Static routing RIP dynamic routing OSPF dynamic routing DHCP proxy ECMP VRF |
Voice services | VoIP - SIP - H.248 FoIP MoIP |
Security features | User security System security OAM security Line security |
Network protection features | MSTP *Smart link and monitor link *Inter-board aggregation Ethernet link aggregation (through the LACP BFD *STM-1 protection switching *Type-B dual-homing protection switching Redundancy protection |
OAM features | Remote operation and user management Version and data management Device abnormality management *Service overload control ETH OAM |
Clock features | *IEEE 1588 V2 clock synchronization BITS access clock synchronization Synchronous Ethernet clock System internal clock Network time synchronization Line recovered clock (E1/STM-1/SAToP) |
Control board redundancy | Load-balancing mode Active/Standby mode |
System energy conservation | Energy conservation control Energy consumption monitoring |
Specification | MA5600T | MA5603T | MA5608T |
Dimensions (H x W x D) | 447 mm x 490 mm x 275.8 mm | 263 mm x 442 mm x 283.2 mm | 88 mm x 442 mm x 233.5 mm |
Operating Environment | –25°C to +55°C 5% RH to 95% RH | –40°C to +65°C 5% RH to 95% RH | –40°C to +65°C 5% RH to 95% RH |
Power | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V |
Switching Capacity — Backplane Bus | 3.2 Tbit/s
| 1.5 Tbit/s | 720 Gbit/s |
Switching Capacity — Control Board | 1,920 Gbit/s | 960 Gbit/s | 512 Gbit/s |
Access Capacity | 64 x 10G GPON 256 x GPON 768 x GE | 24 x 10G GPON 96 x GPON 288 x GE | 8 x 10G GPON 32 x GPON 96 x GE |
Port Type | Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port | ||
System Performance | Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD Maximum split ratio of 1:256 Maximum logical distance between devices: 60 km | ||
