5MP 6.3MP measurement microscope camera with Focus stacking and image stitching can capture image record video measure
- Category: >>>
- Supplier: Shenzhen Boshida Optical Instrument Co. Ltd.
Share on (60528609408):
Product Overview
Description
5MP 6.3MP measurement microscope camera with Focus stacking and image stitching can capture image record video measure
Product Description
| Model | HC500FS | ||
| Pixel | 5MP | ||
| Resolution | Max: 2592*1944 | ||
| Frame rate | Max: 23FPS | ||
| Scan model | Line by line | ||
| Color | R, G, B adjustable seperatly | ||
| Output port | USB2.0 | ||
| Cache | 16MB | ||
| Camera adapter | C-Mount | ||
| Control | OSD menu | ||
| Exposure | Automatic exporsure/ Manual exposure/ Zone exposure system | ||
| White balance | Automatic white balance/ Manual white balance/ zone white balance | ||
| Function | Taking photo, recording video, measurement(optional) | ||
| Power | USB powre share | ||
| Measurement | Circle: radius, circumfefence, squre; Distance from center of a circle to a line, to a point, to another center of a circle Arc: radius, arc length, radian; Rectangle: length, width, square and perimeter; Polygon: Primeter and square; Elipse: primeter and square; Length, angle; Distance from point to line, distance between 2 lines, ect. | ||
| Software | Capture image, recording video, measurement. Control of all camera functions. Automatic exposure/Manual exposure/area exposure. Automatic continous white balance/One touch white balance/area white balance. Measurement: Circle: radius, circumference, squre. Distance from center of a circle to a line, to a point, to another center of a circle. Arc: radius, arc length, radian. Rectangle: length, width, square and perimeter. Polygon: primeter and square. Elipse: primeter and square; Length, angle. For win7/8/10(64 bit). | ||
| Size | 45*48*36.4mm | ||
| Working condition | Temperature: 0°-50°, Huminity: 20%~80% | ||

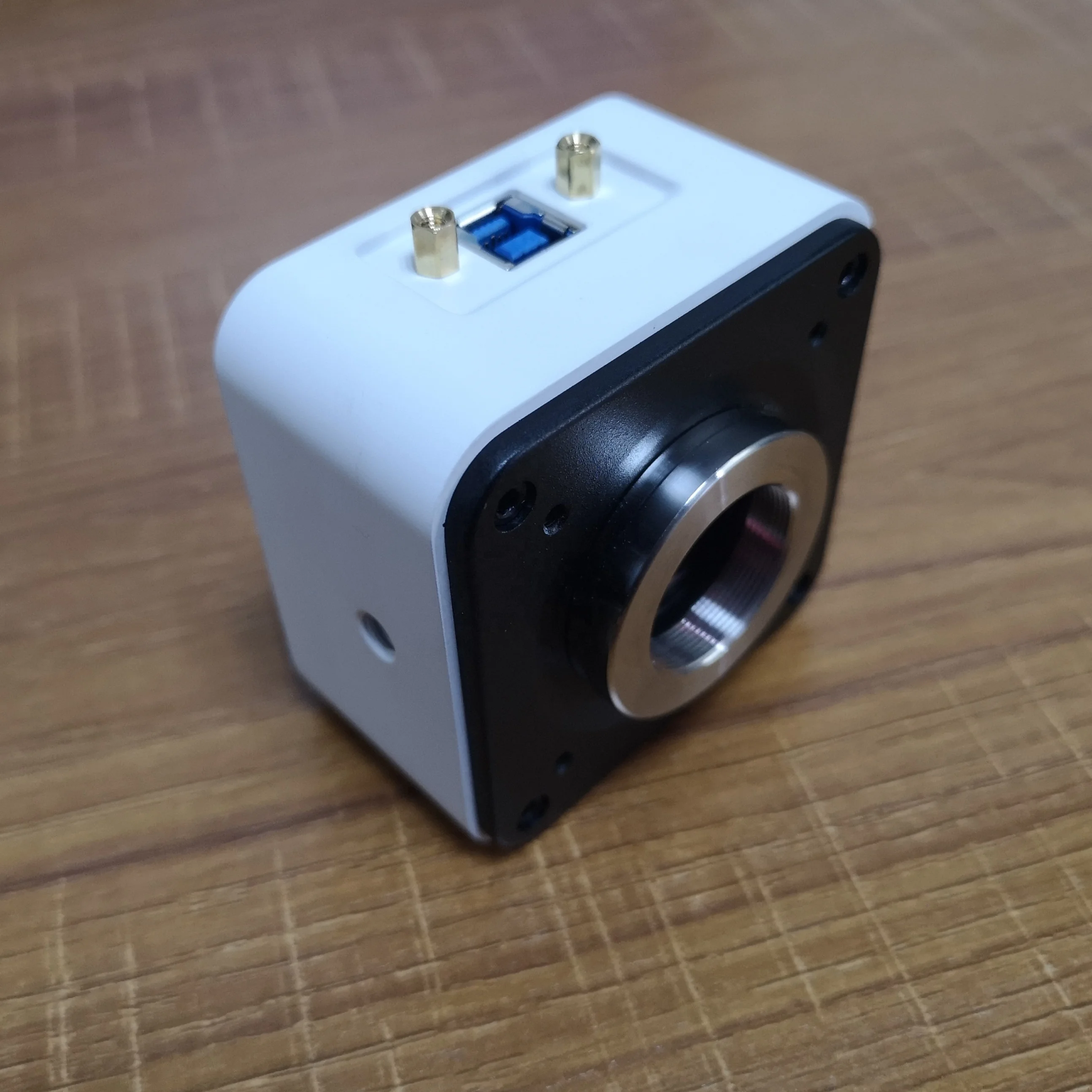

| Model | HC630FS | ||
| Sensor | CMOS 1/1.8” | ||
| Pixel/Resolution | 6.3MP/Max: 3072*2048 | ||
| Frame rate | 40FPS | ||
| Output port | USB3.0 | ||
| Exposure | Automatic exposure/Manual exposure/area exposure | ||
| White balance | Automatic continous white balance/One touch white balance/area white balance | ||
| Function | Capture image. Record video. Measurement. Focus stacking. Image stitching. | ||
| Power supply | USB power supply | ||
| Operating systerm | Win7, Win8, Win10. |
Company Information
Contact: Apple Cheng
Mobile/wechat: +86 136 1304 5058
QQ: 3032176780
www.cn-microscope.com
Our Services
Warranty
1). We provide one year warranty for whole machine, three month for consumable spare parts.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
