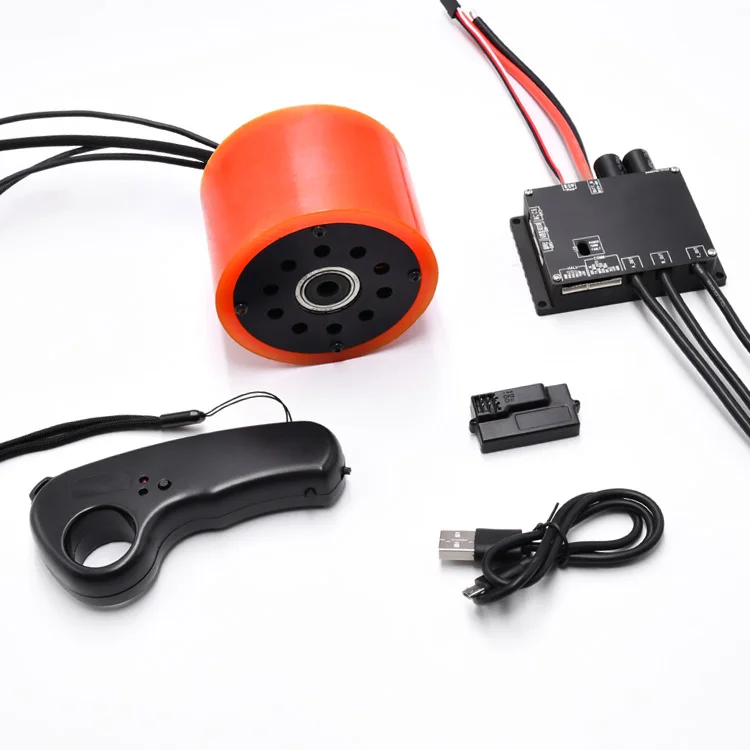

Freerchobby 1500W 83mm 90mm single hub motor kits with vesc 6 and remote controller for skateboard/scooter/robotic/machine

electric skateboard 83mm hub motor with vesc sina wave controller and 2.4 G remote controller.

The best material has been adapoted:
0.2mm thickness japan stator 24 slot
N48SH high level magnet with rare earth material 28pole
Orginal Japan NSK ball bearing
Hall sensored board with temperature sensors
Single and dual can be adopted in each board.
Sina wave controller
4 wheel are in same size and totally same design and material.

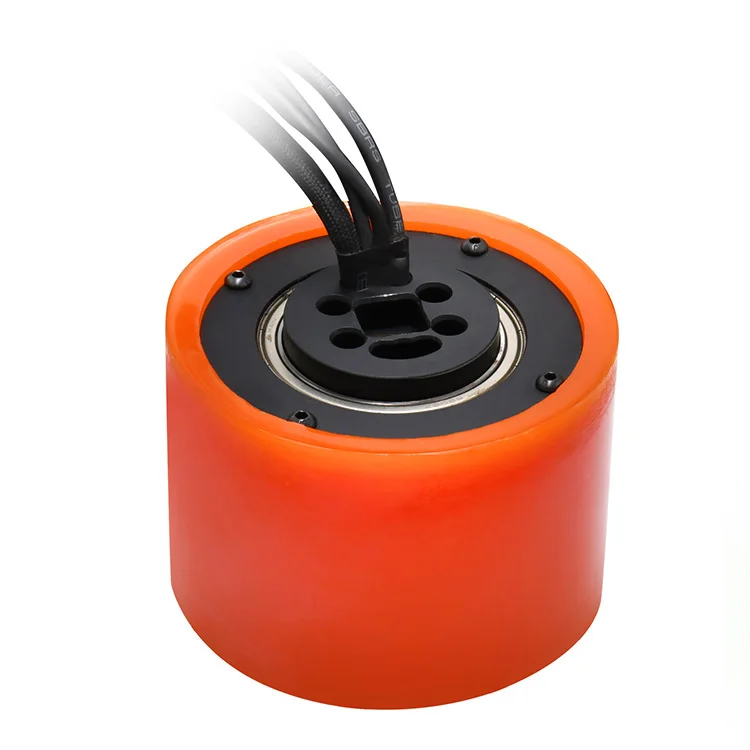

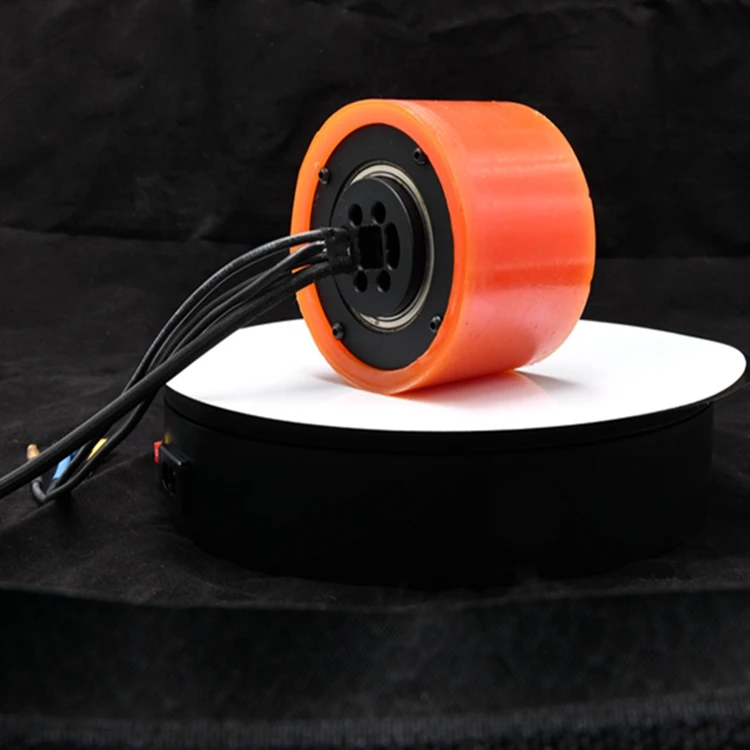

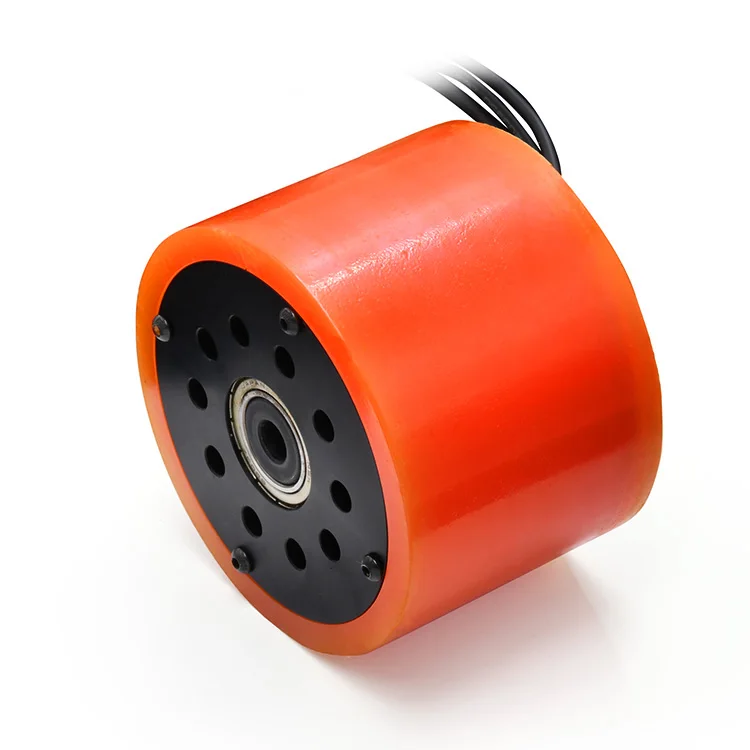

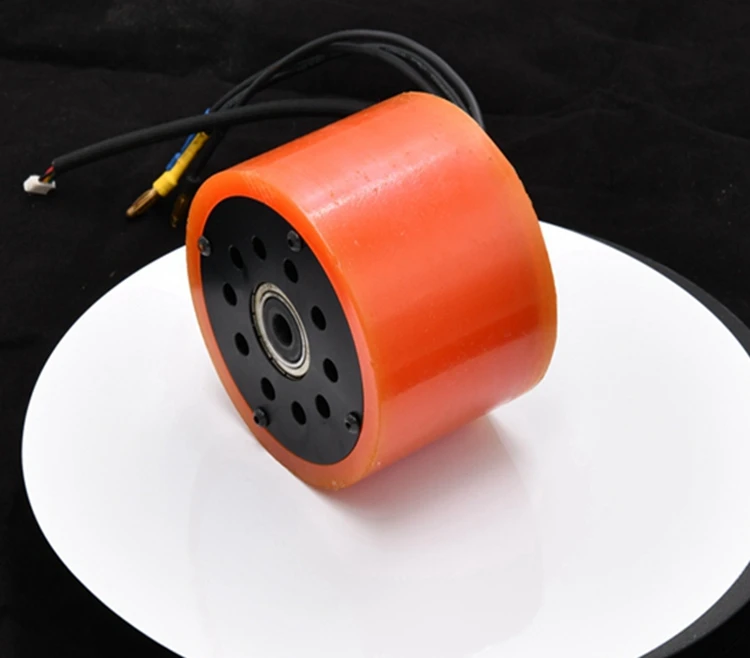

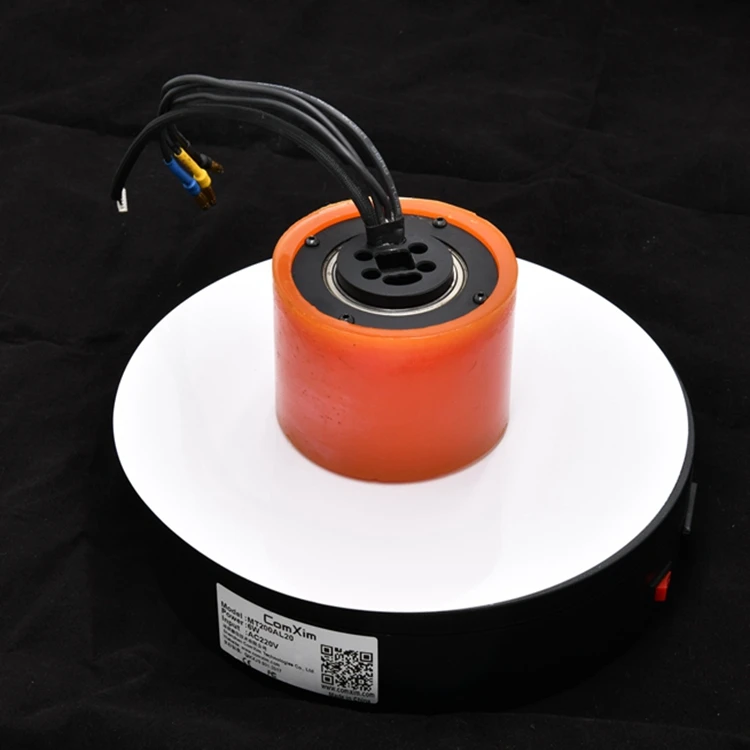

MP 83mm wheel hub motor.

Motor specs:

1)Specifications:
* Motor: MP 83mm hub motor
* Power:3kw max, 1.5kw rated
* Current: 60A max ,30A rated
* Gradeability: 28 degree
* Voltage:8-50V (safe for 3S-12S lipo)
* Speed: 35km/h
* Weight: 0.9kg
* Size:83*60*63mm

Our sina wave controller spec:
5V 1A output for external electronics from the buck converter integrated on the DRV8302.
Voltage: 8V - 60V (Safe for 3S to 12S LiPo).
Current: Up to 240A for a couple of seconds or about 50A continuous depending on the temperature and air circulation around the PCB.
Firmware based on ChibiOS/RT.
PCB size: slightly less than 40mm x 60mm.
Current and voltage measurement on all phases.
Regenerative braking.
DC motors are also supported.
Sensored or sensorless operation.

Package included:
one MP 83mm wheel hub motor
one sina wave controller
one remote controller

Packaging Details: White box package or custom package with eva foam
Delivery Detail: Shipped in 7 days after payment

Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with
highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We
are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC
lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity,
monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories
100000. The products sell well in more than 50 countries and regions from the whole world.

The company strictly controls each process to be standardization, systematization and unification. The company has testing
equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester,
oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can
reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS
certification.
The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives
full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the
fastest delivery for customers at home and abroad with exquisite technology and standardized management.
Our slogan is "we can do what you need"! We are looking forward to cooperating with you!

We can provide OEM, ODM serivice for any potential client and projects. Pleased to hear from you.

Ask: Why choose your company?
Answer: We are an RC model manufacturer specializing in designing & producing RC car model, brushless motor, rc tools and accessories with 12 years’ motor design experiece. We have established long term business relations with many famous companies both in the electric skatboard sector and in electric paramotor an paragliders.

Ask: What certificate have you got?
Answer: Our products has passed CE and ROHS certificates.
