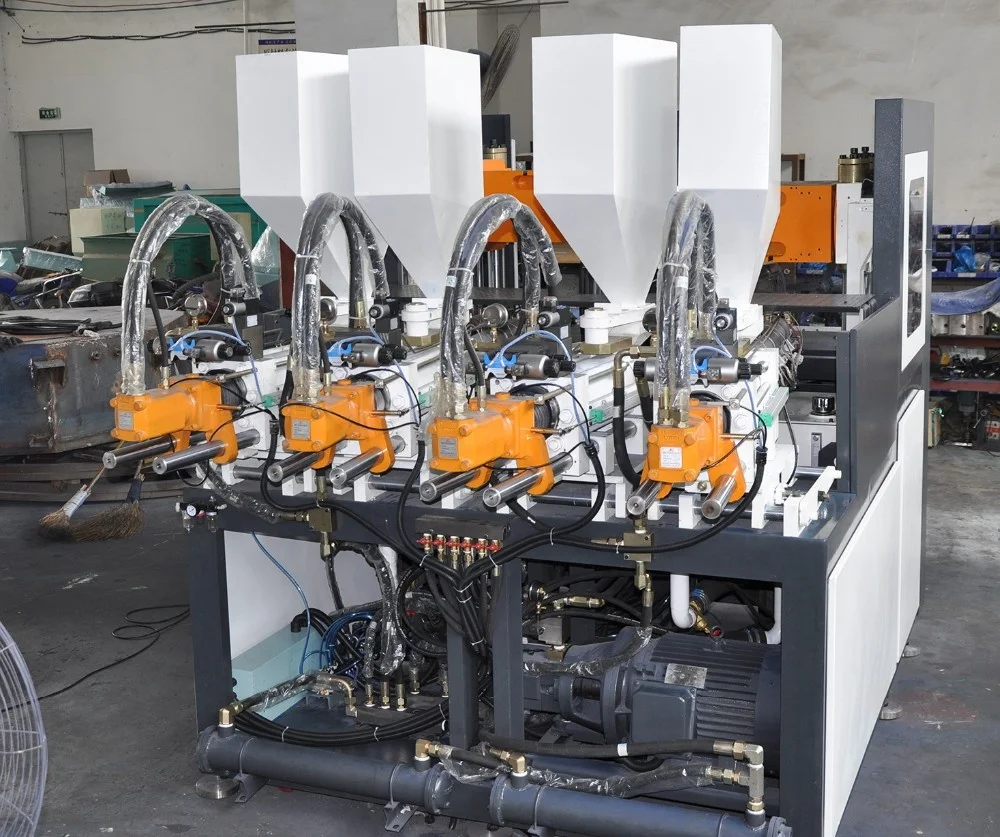

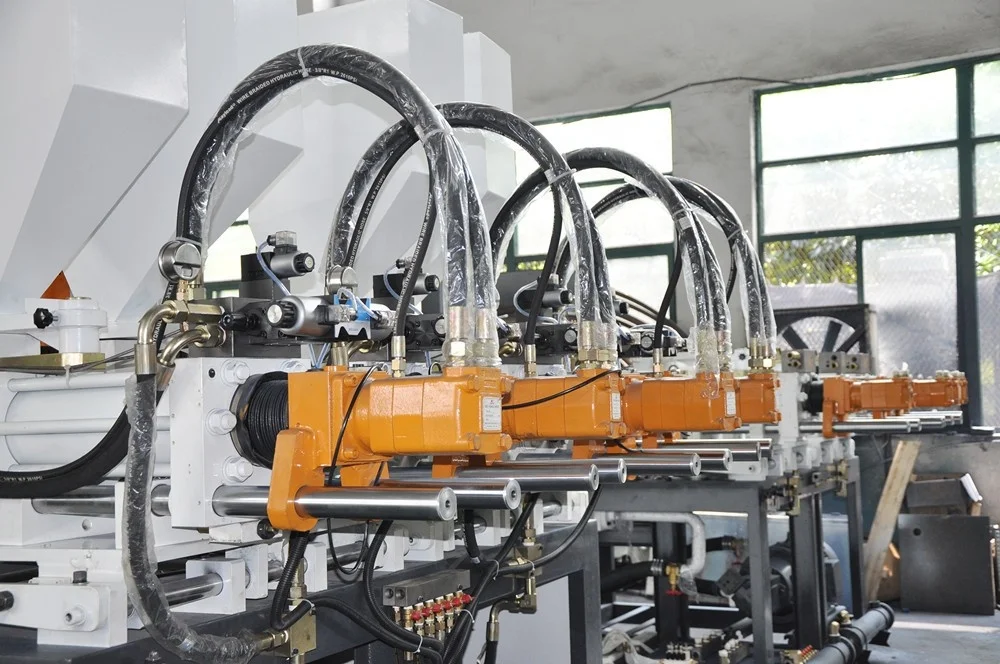

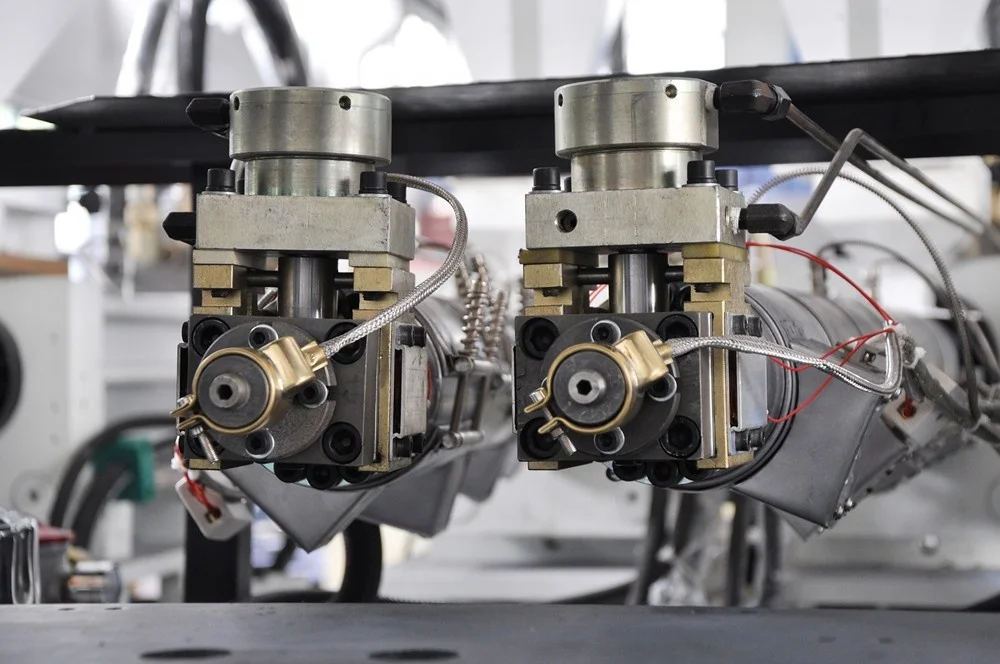

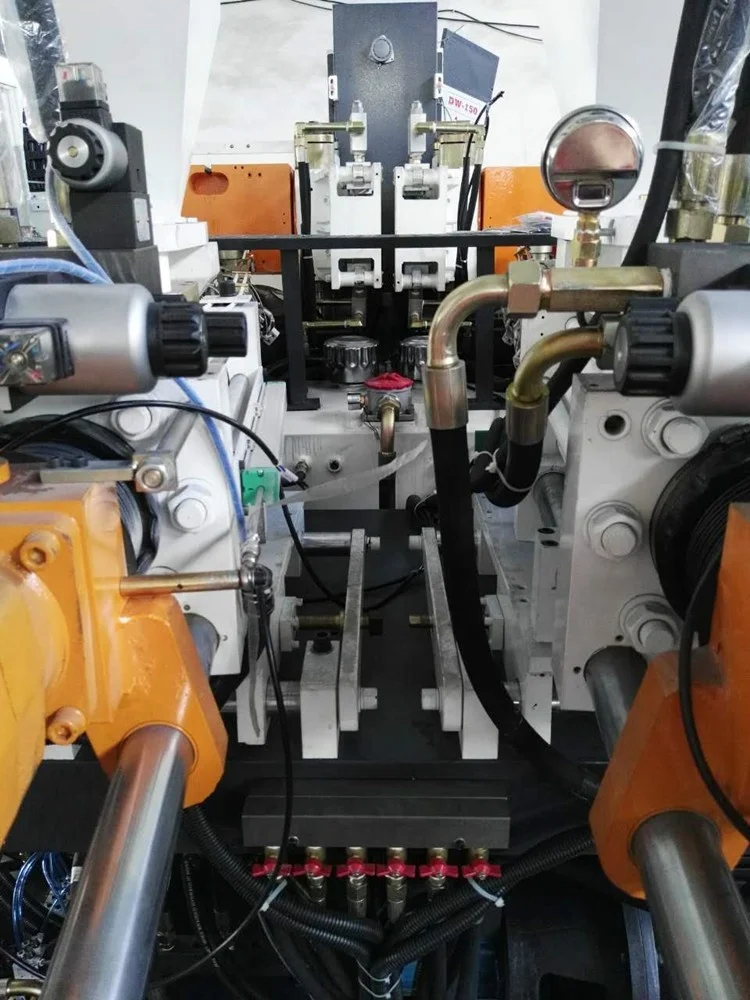

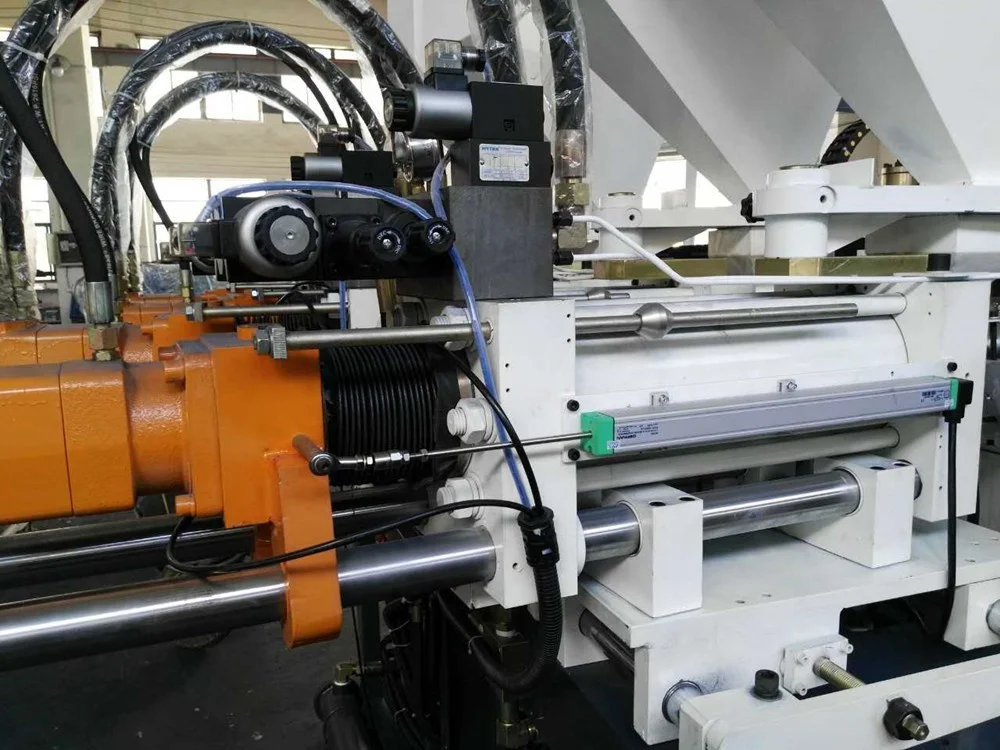

Automatic vertical TR/TPU sole injection moulding machine

Machine Advantage

1.Used for TR TPU PVC TPR material shoe soles.
2.Can use servo motor to save engergy
3.fullautomatic operation can save labor force
4.same operation as tradition italian machine
5.Qualified products
6.Bulk supply
7.Unexperienced workers can also run the production.
8.Convenient maintenance

9. High clamping force 150 Tons makes high quality of sole

Feature

1.This shoe injection moulding machine is applied to produce the one color, two color or three color leisure shoe soles, male and female slippers and sandals , air blowing shoes and sport shoes which are made of PVC,TPR,TPU,PP materials.
2.Full automatic computer control. The system can detect the work state of all parts all the time and show the result on screen.
3.Virtically pressed hydraulic mold-close system,quickly mold-lock system.

4.0-90°-180° turnover strucure available with several production molds.

5.The mould thickness can automatic adjust between 80-200mm.

6.The oil pump of the motor is outside placed,causing a better radiating effect and thus a longer duration of the machine.

7.Integrative of elecric control box and hydraulic system.

Why choose us

1.factory price
2.soon delivery
3.sample available
4.customer design can be done
5.high quality and reliability
6.export to different countries.

Q:Where is your company? How I can visit it?
A:Our company is located in Wenzhou City,Zhejiang,China. It needs 2 hours from Guangzhou by air.

Q:Are you a foreign trade company?
A:No. We have a factory, welcome to visit our factory. You can also check here :www.wz-deyu.com

Q:Do you also supply shoe mould?
A:Yes,we have shoe mould facotry.Beside providing customers with existing sampless,we also accepts customizing orders.

Q:What are your payment terms?
A:As usual, 30% deposit in advance and balance T/T before shipment or L/C

Q:What is your delivery time?
A:It depends on your order quantity. Normally ,it needs 20-30days.
