round glass bottle paper labeling machine machinery making
- Category: Labeling Machines >>>
- Supplier: Higee Machinery (Shanghai) Co. Ltd.
Share on (60529008700):
Product Overview
Description

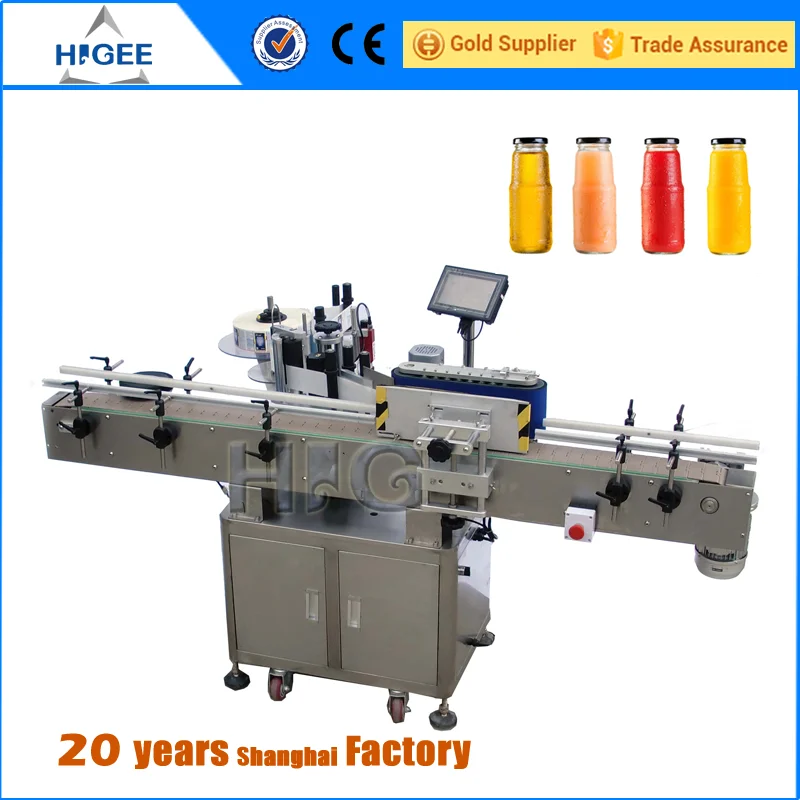

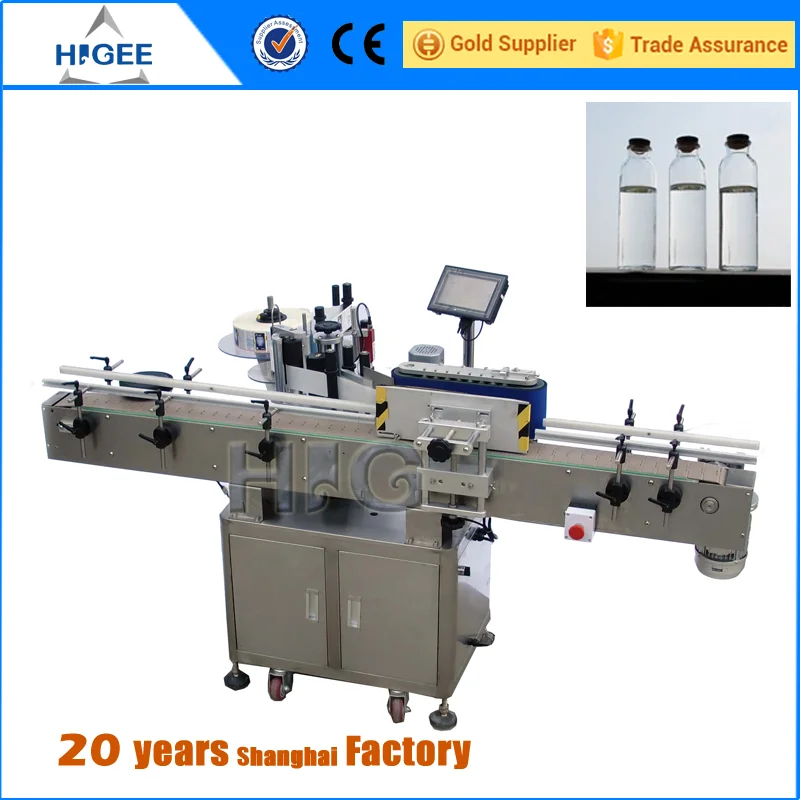

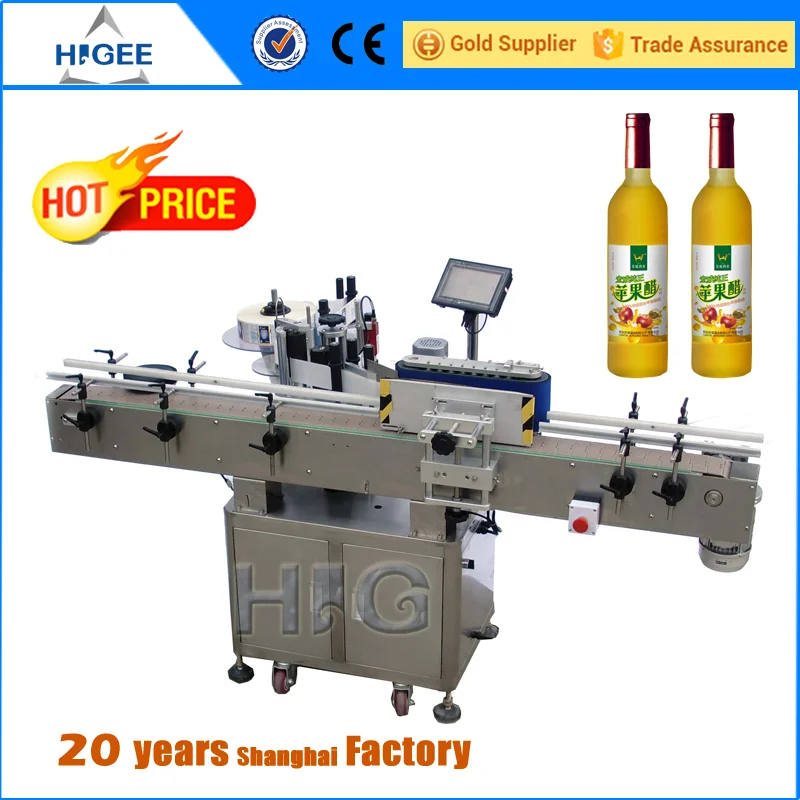

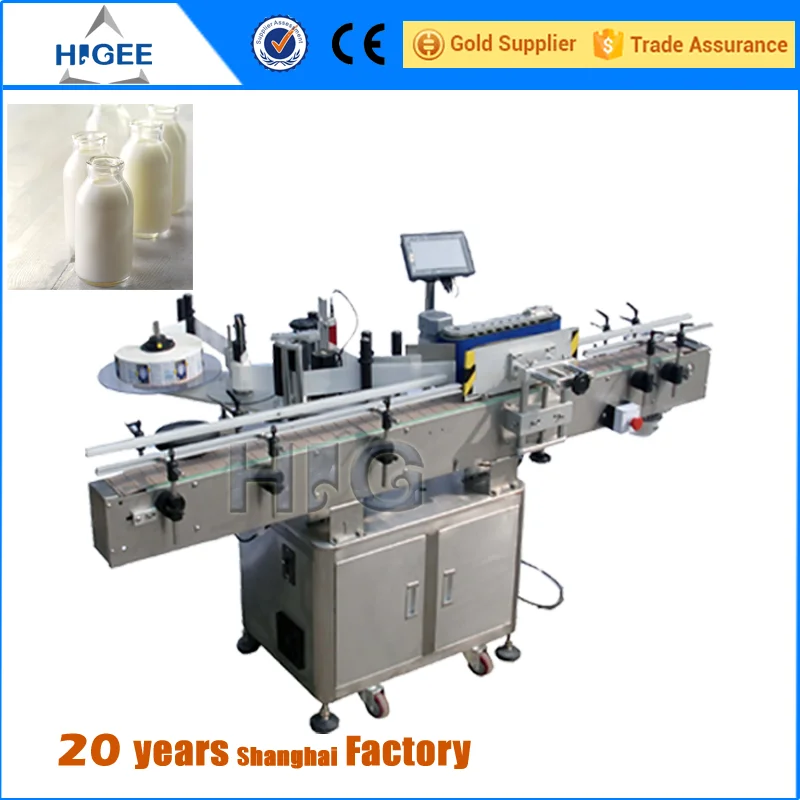

round glass bottle paper labeling machine machinery making
Application
Round glass bottle paper labeling machine machinery making is applicable for all kinds of cylindrical objects, such as glass bottles, Plastic bottles. (The machine also can be customized for cone objects)

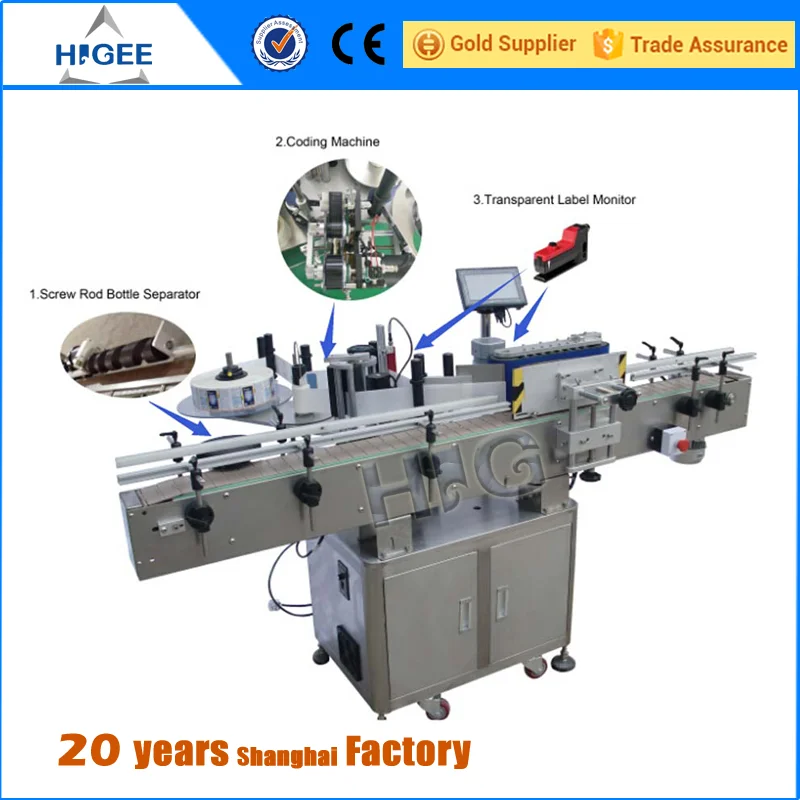

Client can choose to add screw bottle separator or coding machine.
It can work separately or connecting with conveyor to work with other equipment.
Client can choose to add screw bottle separator or coding machine.
It can work separately or connecting with conveyor to work with other equipment.
Features
| Operation | PLC control system makes labeling machine easy to operate |
| Material | Labeling machine's main body is made of SUS304 stainless steel |
| Configuration | Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts |
| Flexibility | Client can chose to add printer and code machine; can chose to connect with converyer or not. |
Related products
Other labeling machines we produce are as follows (each model has links to detailed information).
Pls click the picture if you are interested.
 |  |  |
| Round Bottlt Labeling Machine | Semi-automatic Flat Surface Labeling Machine | Flat Surface Labeling Machine |
 |  |  |
| HDY200 Point Labeling Machine for Cylinders | Two Sides Labeling Machine | Horizontal Labeling Machine |
Technical Parameters
| Name | round glass bottle paper labeling machine machinery making |
| Labeling Speed | 20-200pcs/min |
| Height of Object | 30-280mm |
| Diameter of Object | 30-120mm |
| Height of Label | 15-140mm |
| Length of Label | 25-300mm |
| Label Roller Inside Diameter | 76mm |
| Label Roller Outside Diameter | 380mm |
| Accuracy of Labeling | ±1mm |
| Power Supply | 220V 50/60HZ 1.5HP |
| Gas Consumption of Printer | 5Kg/m2(if add coding machine) |
| Size of Labeling Machine | 2000(L)×1100(W)×1300(H)mm |
| Weight of Labeling Machine | 150kg |
Packaging & Shipping
- Port: Shanghai
- Packaging details: wooden case export packing
- Delivery detail: Normally 12-15 days after receipt of payment
Our Services
1. Offer you professional labeling sulution according to your specific labeling requirements.
2. Supply you high quality labeling machine after placing order.
3. Try to make the delivery time as short to meet your needs.
4. Provide you lifelong free technial support after you receiving our machine.
FAQ
1. What kind of labeling machine do you have?
Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface.
Some model for one label and others for two labels or even more. And we can design the machine according to your specific
labeling situation.
Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.
2. Could we add coding machine to print date and lot No.?
Yes, you can chose to add coding machine to print the letters and No. you want.
It's hot stamp and can print at most three lines.
3. What information should we supply to check the suitable model?
Pls send us picture of your container and label, as well as the container and label size.
Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in
roll or pieces.)
Then, we'll let you check the suitable model.
Company Information
Company Profile
HIGEE MACHINERY (SHANGHAI) CO., LTD, located in Shanghai, forefront city of China, the Chinese economic, financial, trading and
shipping center. We are not only proud of high quality of our machine, but also our excellent customer service. In order to provide one
stop efficient purchasing service, HIGEE, started from labeling machine manufacturer, also invested and shared several factories
from filling machine, capping machine and packing machine, now HIGEE also own other packing product making machine factories
including carton making machine, wine capsule making machine etc. Our research and development engineers can make
professional solution for the customized machines according to client’s various requirements in all kind of industries like food and
beverage, cosmetics, chemical, pesticide, information, communication etc. Give suitable packing solution to meet your needs is our
advantage and mission.
HIGEE provide the following services to make you rest assured and process comfortably and smoothly:
1. Technical design and research
2. Sales & Customer service
3. Export & Shipping
4. Training & Commissioning
4. After sale service
