SGUV 650 small uv coater whole coating machine with Width 650mm
- Category: >>>
- Supplier: Zhejiang Fengming Industrial Co. Ltd.
Share on (60529040337):
Product Overview
Description

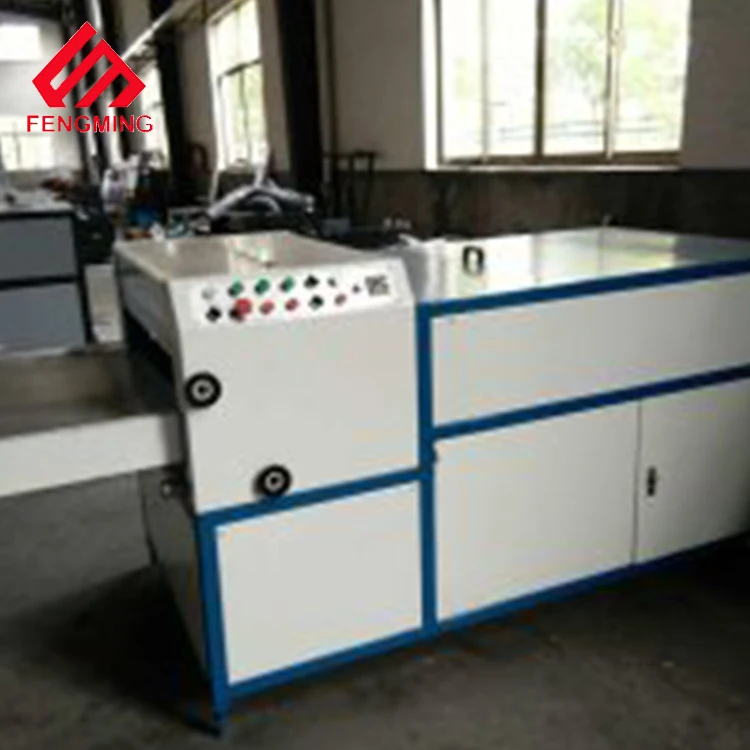

SGUV-650 small uv coater whole coating machine with Width 650mm
Product Description
SGUV-650 small uv coater whole coating machine with Width 650mm
1.Product Features:

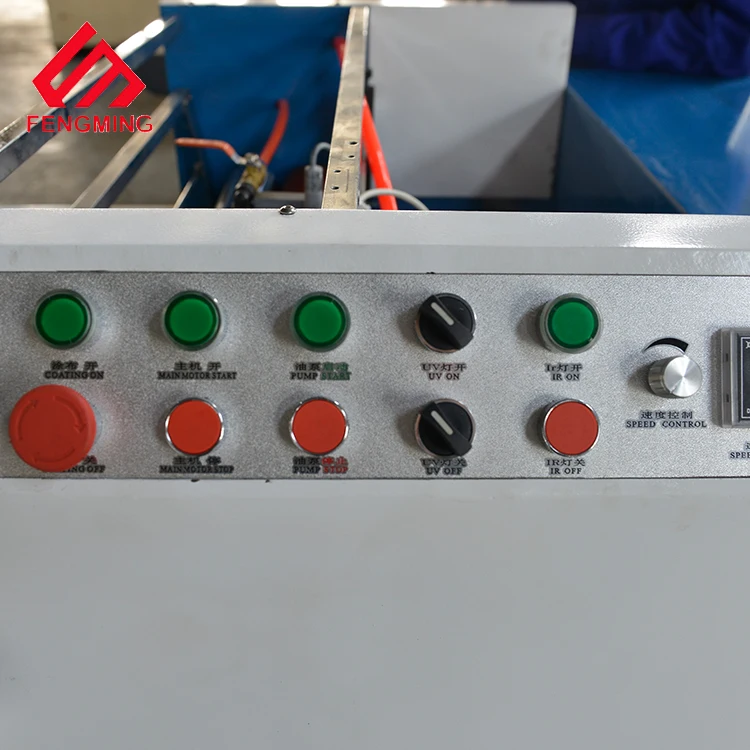

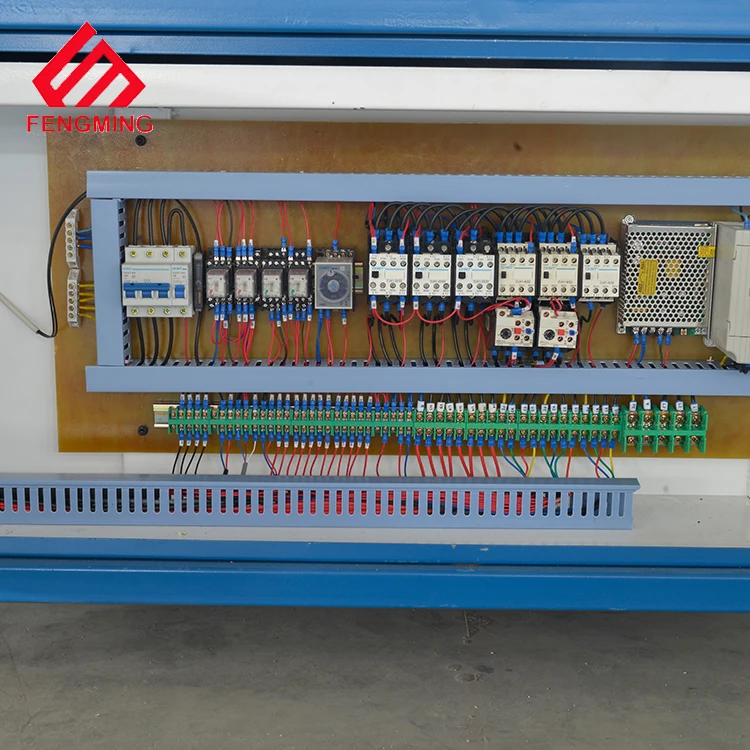

PLC Control
Air Knife(If you need to coat thin paper)

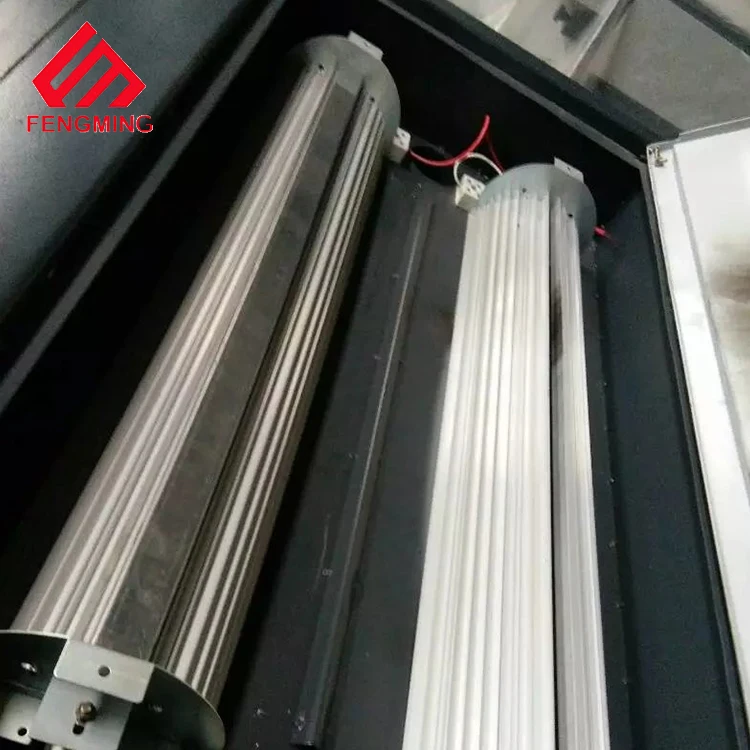

Equipped with 2 UV Lamps and 4 IR Lamps
1.4m dry tunnel

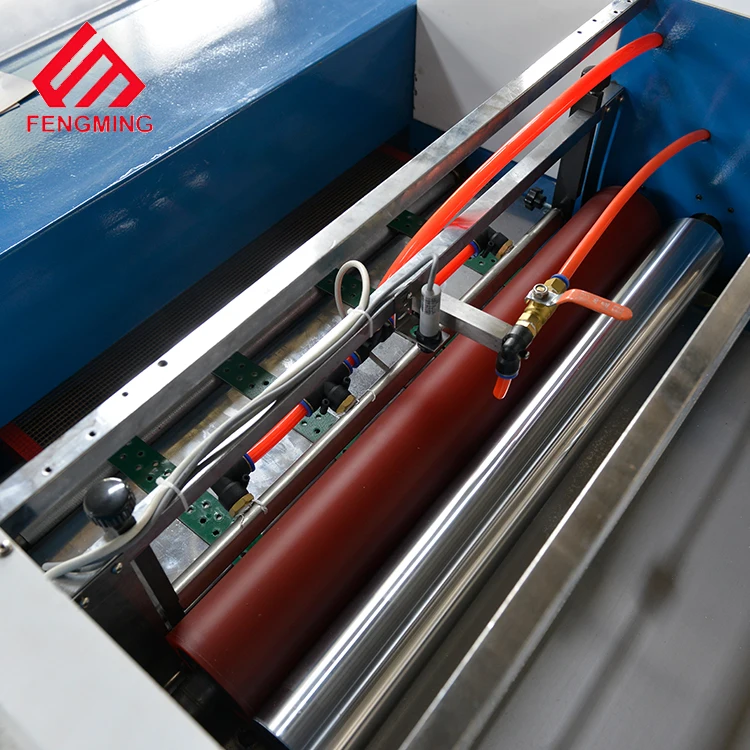

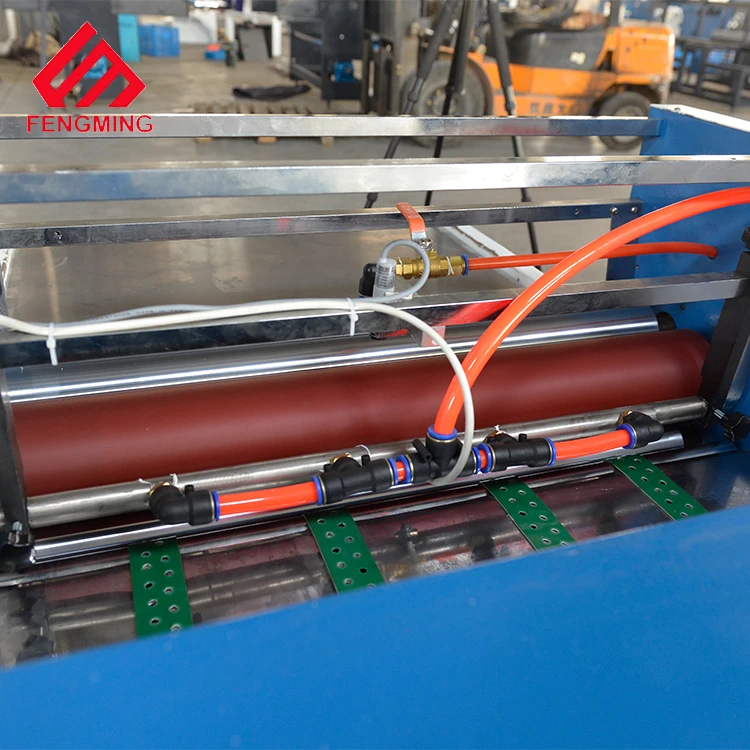

In this equipment, the Ductor Blade,Conveyor Belt and Rubber Roller are most often changed . (PS:When you buy the machine, we will free give you two Doctor Blades, one UV lamp and one IR lamp)
Manual Feed and Manual collection
2.Technical Specification:
MODEL | |
Max.Coating Width | 630mm |
Max.Feeder Speed | 1400pcs/hour(15-20m/min for thin paper,20-30m/min for thick paper) |
Diameter of Coating Roll | 100mm |
Total Power | 9KW(normal is a half) |
Total Weight | 600kg |
Overall Dimensions | 2580*1130*1140mm |
