Разъем IEC DBI5 3A, шнур питания переменного тока, шумовой фильтр EMI
- Category: Filters >>>
- Supplier: Tong Yue Xin Commercial And Trading Co. Ltd. (Chengdu)
Share on (60529114404):
Product Overview
Description
DBI5 3A IEC connector AC power line EMI noise filter

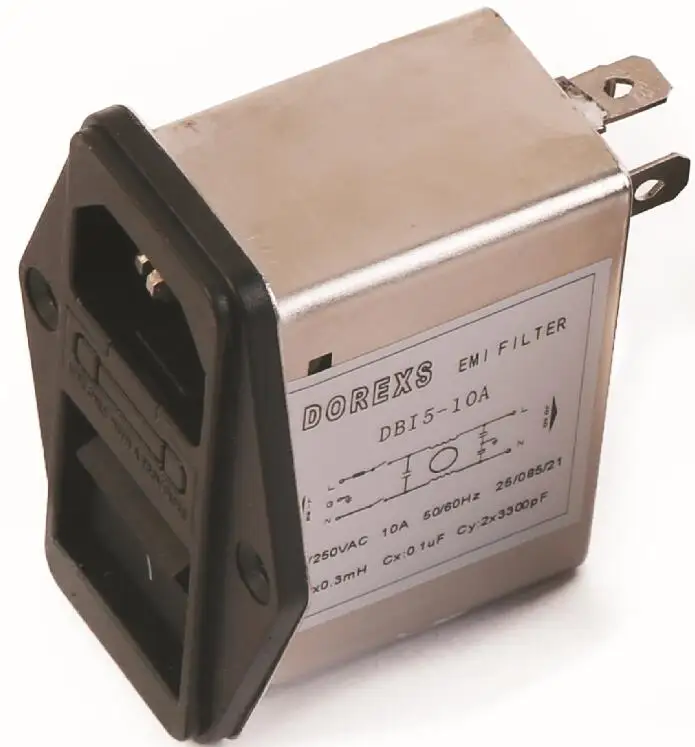

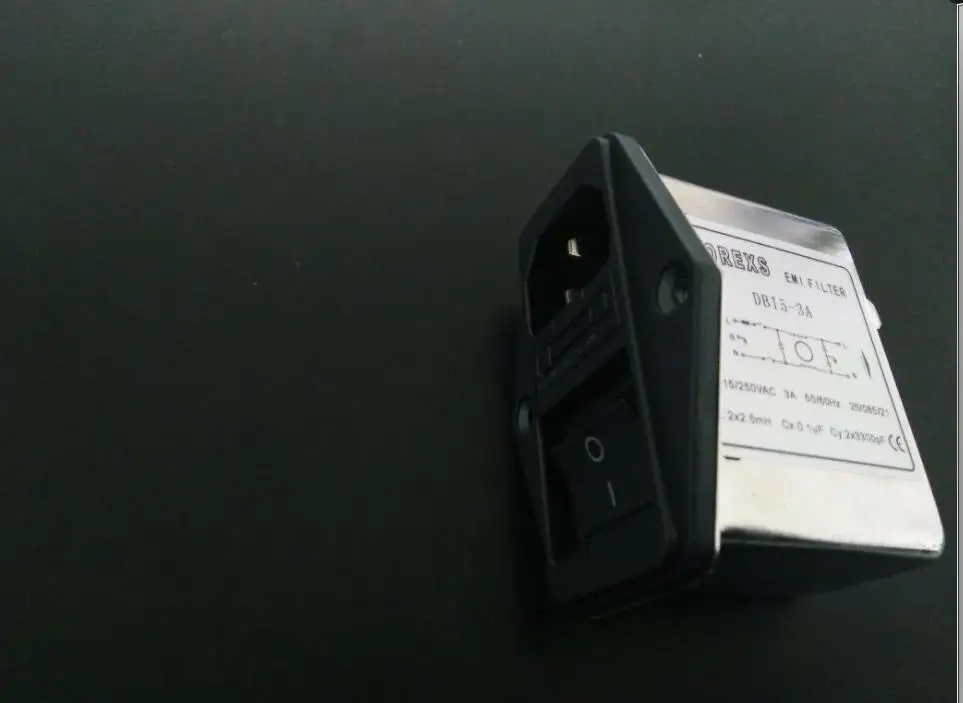

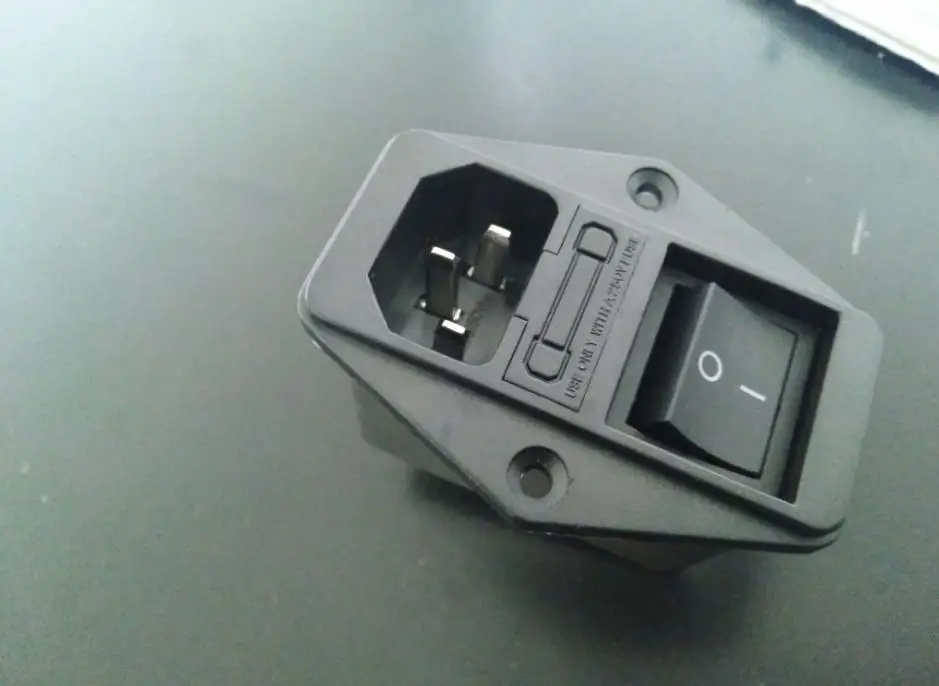

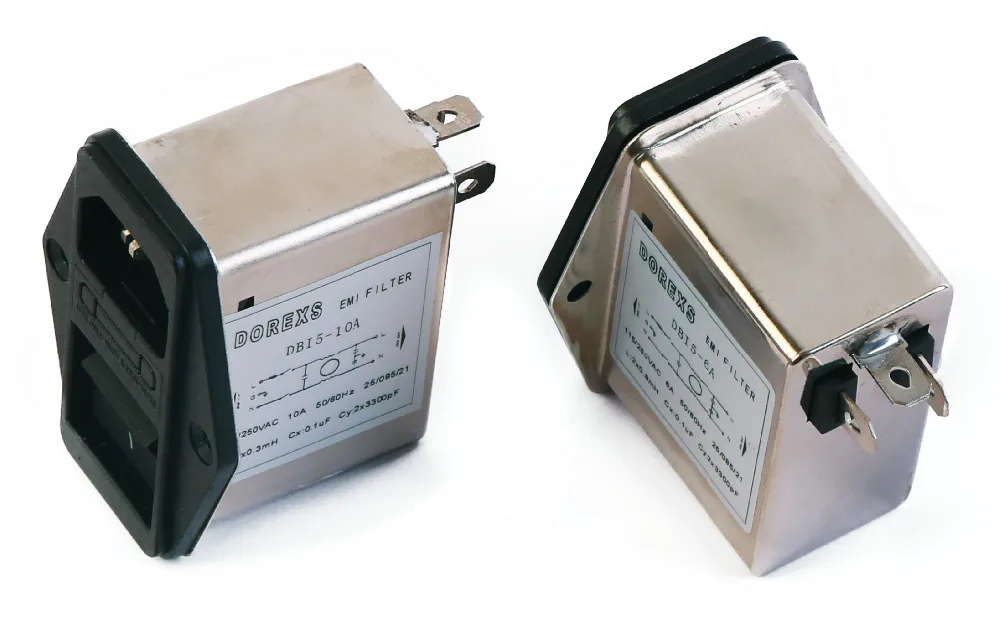

Products picture
Outline drawing
Technical parameters:
Rated voltage ................................................................................. 110/250VAC
Operating frequency ....................................................................................... 50/60Hz
Rated Current ....................................................................................... 1A ~ 20A
Pressure test ................................................ line - Line: 1500VDC line - ground: 1500VAC
Insulation resistance ........................................................................> 50MΩ @ 500VDC
Temperature rise .......................................................................................... <30 ° C
Climatic category .................................................................................... 25/085/21
Feature:
Single Phase AC filter
General Purpose filter with ICE connector
High ration of performance to cost moke
Available for mini-electronic equipments and instruments

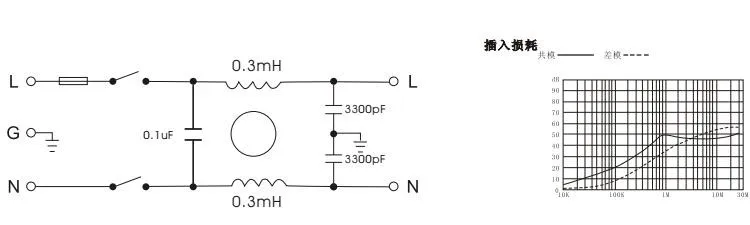

Electrical Schematics

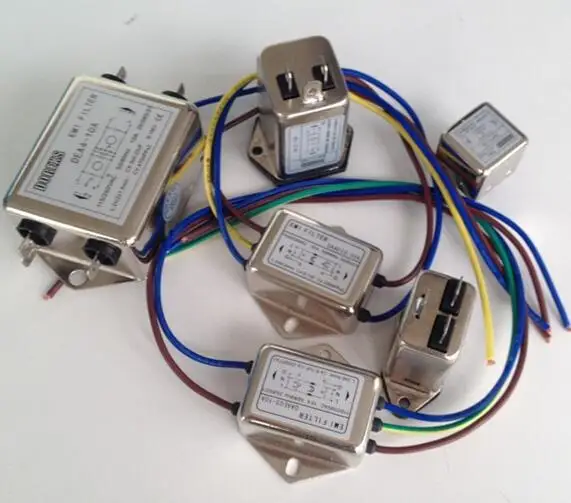

Other main products
Trimming Poten
Rotary potentiometer
Resistor
Production line
Packaging & Shipping
Quantiy Per Cartoon: 250 Pcs
Gross Weight: 12kg
Cartoon Size: 45*36*21cm
