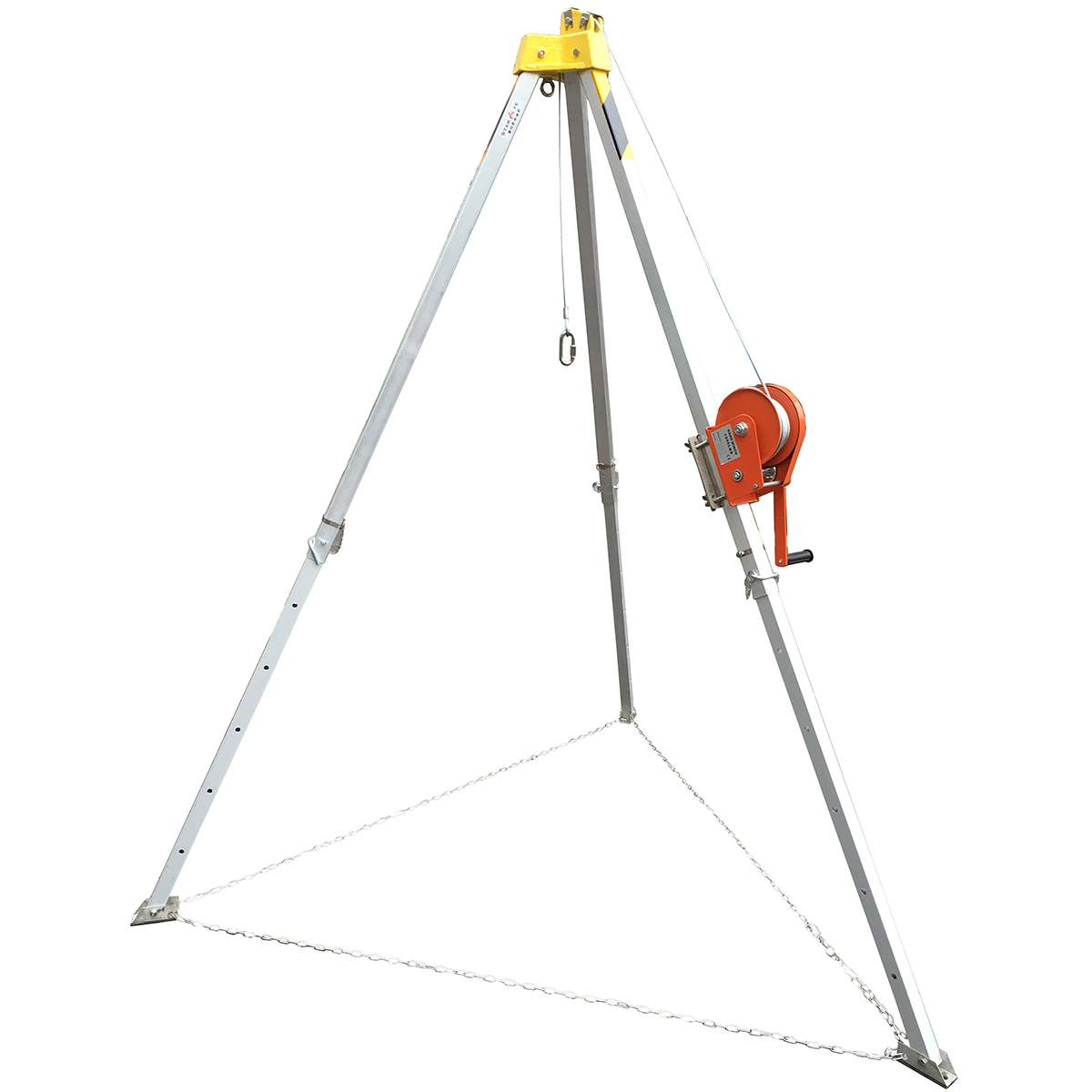

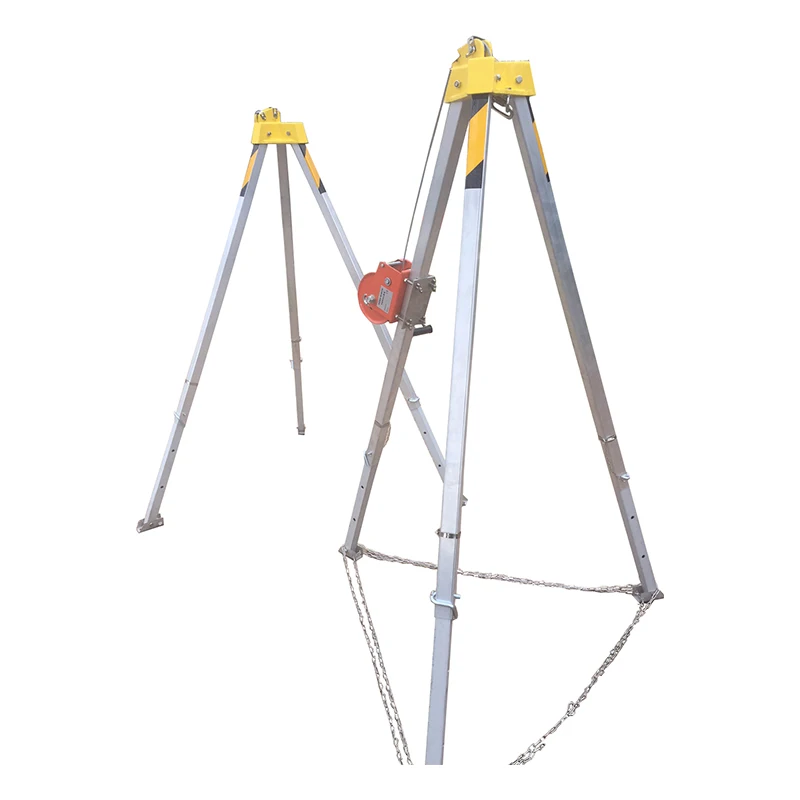

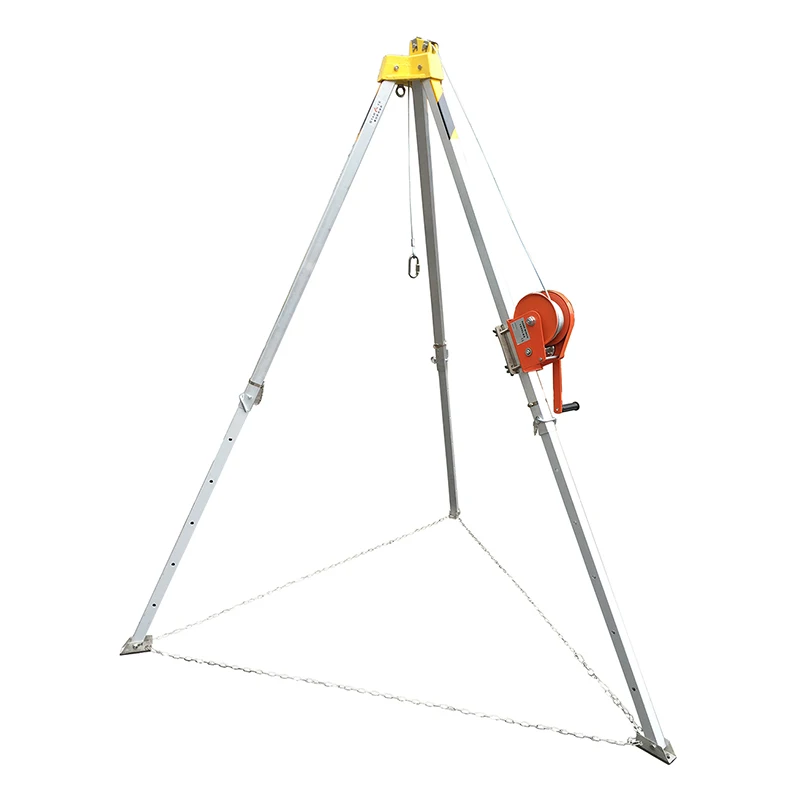

Wholesale Person Falling In Pot And Well Rescue Manual Lifting Tripod
1. Material of the rescue & retrieval tripod: Aluminum #6061
2. Basal Apparatus of this rescue & retrieval tripod: Carbon Steel Wire of 30m(can also replaced by SS)/ Metal handle/Reel/Auto-brake, harness of 180KN load alternatively
3. Overlength of the rescue & retrieval tripod legs can reach 2.56m(8.3'), close length of 1.6m.
2. Basal Apparatus of this rescue & retrieval tripod: Carbon Steel Wire of 30m(can also replaced by SS)/ Metal handle/Reel/Auto-brake, harness of 180KN load alternatively
3. Overlength of the rescue & retrieval tripod legs can reach 2.56m(8.3'), close length of 1.6m.
Application
This RT-400/180-A rescue & retrieval tripod is mainly used for rescue operations in high altitude, cliff and confined space, such as underground pipe, shaft, cesspit, closed container etc. Widely used by firefighting, municipal administration, mining etc rescue institution.
Features
1. This rescue & retrieval tripod is made up by high strength #6061 aluminum alloy with safety factor bigger than 10;

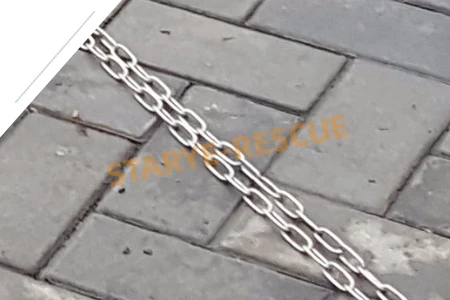

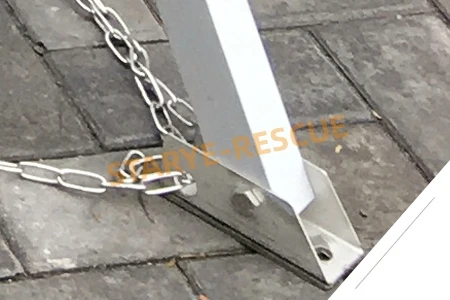

2. Ring protection chain on the feet;
3. Self-lock device on winch of the rescue & retrieval tripod, which ensures lock-in in any position, to make sure the safety of the sling;
4. Special stainless steel sling with good suppleness is taken used. The sling will not be damaged by corrosion or lack of oil;
5. The length of the rescue & retrieval tripod's legs can be adjusted, suitable for rugged rescue situations;
6. Alternative accessories: Safety Harness, Safety Rope
2. Ring protection chain on the feet;
3. Self-lock device on winch of the rescue & retrieval tripod, which ensures lock-in in any position, to make sure the safety of the sling;
4. Special stainless steel sling with good suppleness is taken used. The sling will not be damaged by corrosion or lack of oil;
5. The length of the rescue & retrieval tripod's legs can be adjusted, suitable for rugged rescue situations;
6. Alternative accessories: Safety Harness, Safety Rope
Product Specifications
Technical Data of Rescue & Retrieval Tripod | ||
Model | RT-400/180-A | |
Closed Length | 160cm | |
Extension Length | 256cm/8.3' | |
Max. Handle Force | 85N | |
Min. Operating Load | 300kg | |
Breaking Load | 800kg | |
Max. Prevent breaking force | 22KN/4944.94Lbs(Steel Wire Rope) | |
Length scope | 160-256cm | |
Packing Dimension | 182*35*30cm | |
Weight | 29kg | |
Winch with Automatic Brake Device | ||
Wire length | 30m | |
Wire Diameter | 5.2mm | |
Operating load | 300kg | |
Brake Distance | 16mm | |
Weight | 14kg | |

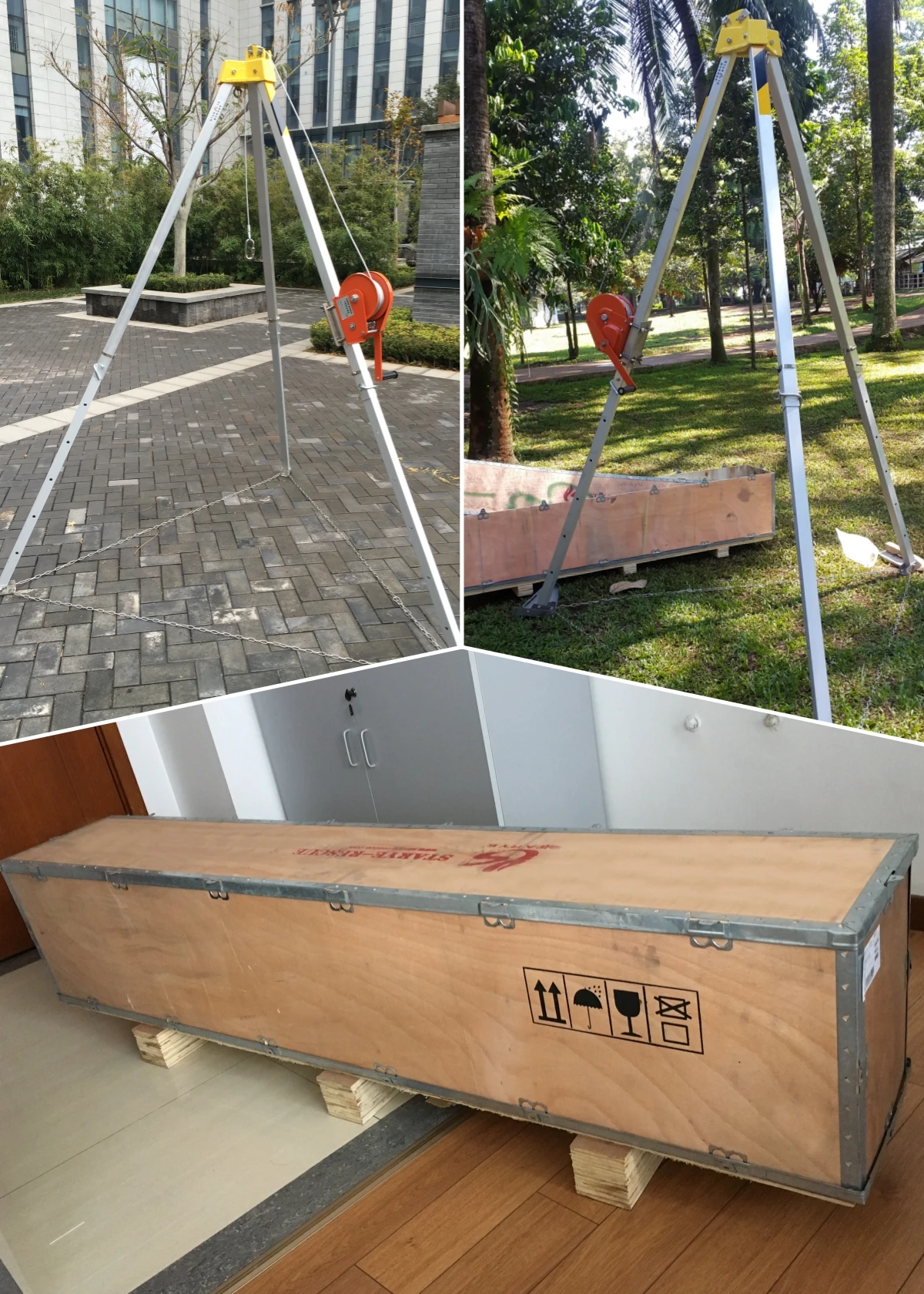

Product Actual Shooting
Product Details

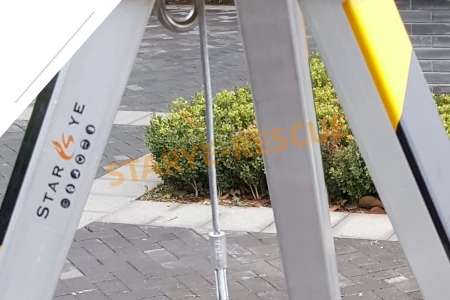

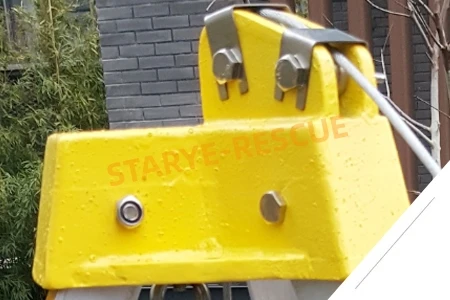

01 A thickened roof
The top cover has a high quality selection of materials, thick design it selected hardware accessories, withstand energy ability and durability
It can adjust theheight of the bracket accordingto the actual situation
Angle adjustable, easy to cope with a variety of working environment stable and firm
Airclass quality rotating wire rope with international high-qualitywith good toughness, equippedpulley, not easy to cause damage tothe wire rope.

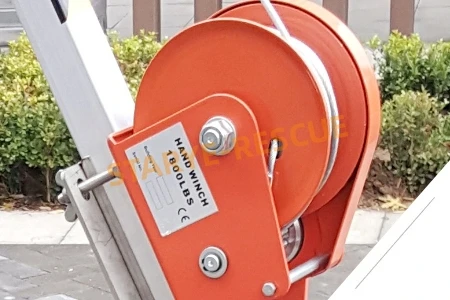

Choose a durable winch. The winch is provided with a self locking device for ascending and descending, making it safer.
