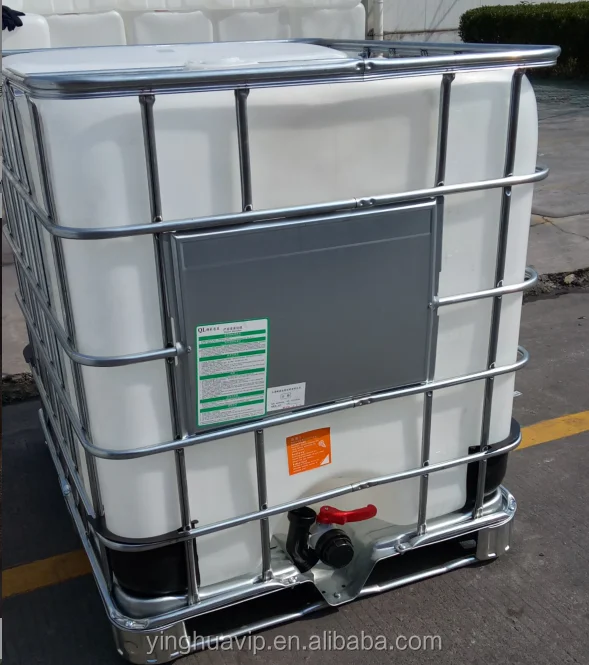

1000L IBC tank 275 gallon ibc tank ibc container manufacturers

                                         Item                                             Specification                         Tolerance

                           Rated Volume(L)                                          1000                               /

                           Brimful Volume(L)                                      ≥1050                              /

                          Overall Dimension(mm)                  1200x1000x1150                  (±5)

                          Top cap Mouth diameter              142(diameter of thread SLCS 160mm,Pitch 7mm)         (±2)

                          Weight for Inner Tank(kg)                           15.5                             ±0.5

                          Weight for IBC Tank(kg)                                58                               ±2

                          Valve outside diameter(mm)                       50                                ±1

                          Wall Thickness(min)                                  ≥1.5mm                           /

                          Outlet Valve(discharge valve)          DN50 ball valve& butterfly valve          /

                          Height for Pallet(mm)                                   120                                   /

                          Height for forklift holes(mm)                         90                                  /

                          Length for forklift holes(mm)                        795                                 /

                  Other detailed date for our IBC Tank 1000L

                                       1.Model:YH-1000L

                             2.UNMark:each IBC Tank will mark exclusive UN Uumber

                             3.Overall dimensiobn:1200*1000*1150mm(±5mm)


                             4.Max Allowable Weight:2013 kg


                             5.Tare Weight:58±2kg


                             6.Allowable Stacking Weight:4056kg


                             7.Material of inner Receptacle: HDPE


                             8.Material of outer Casing :Galvanized steel DCD51D


                             9.Material of pallet: Galvanized steel DC53D


                            10.Material of seal :EPDM,FKM,Nitrile,PE


                            11.Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50


                            12.Stacking Test Weight;4056kg


                            13.Dropping Test Height:1.9mm


                            14.Hydraulic Test pressure:100kpa

                            15.Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour

                  Shanghai Yinghua Plastic Products Co., LTD,founded in 1995, which is located in Xinqiao northeast of Songjiang District, with covers an area of 13500 square meters.It is a set design, production of industrial products packaging container of sino-foreign joint ventures.When founded, the company has been committed to producing and selling plastic packaging container with high quality and low price .It realized the target of the high quality and low price and successfully opened the path to cooperate with the world top 500 and other famous chemical enterprises through founder of more than 10 years of unremitting effortsand actively explore .Yinghua in line with "cooperation, innovation, profession, good faith" business philosophy, couple with advanced production equipment, high-quality customer service and perfect ISO9001 quality management system, it is growing on the road to development and has became a strong contender in the domestic market.In the future, we will continue to innovate in order to provide customers with better and safer packaging container.
Our company focuses on all kinds of plastic packaging containers, at present the main products are the IBC tank and below 1000L plastic buckets, annual sales are more than one million .Customer satisfaction is our relentless pursuit of power!Welcome people from all walks of life contact us and visit our company for guidance
