CY07 V1.1 ASK/OOK Receiver Module RF Wireless 433 Receiver

Product Overview

Description





DESCRIPTION:
The CY07-V1.1 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets, that the model has a high receiving sensitivity and strong ability of resisting. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development. CY07-V1.1 is for commercial level version.



FEATURES:
Frequency: 315MHz/433.92MHz (custom frequency is available);
High sensitivity -110dBm/433.92 1kbps BER10E-2;
supply voltage: VCC= 3.6to 5.5 V;
IF band: 230KHz;
Low power consumption: 4.8mA/315M, 6mA/433.92M.
Excellent selectivity and noise rejection;



APPLICATION:
Remote gate controls
Remote keyless entry
Car alarm systems
wireless security systems
Automation systems





PIN DEFINITION:

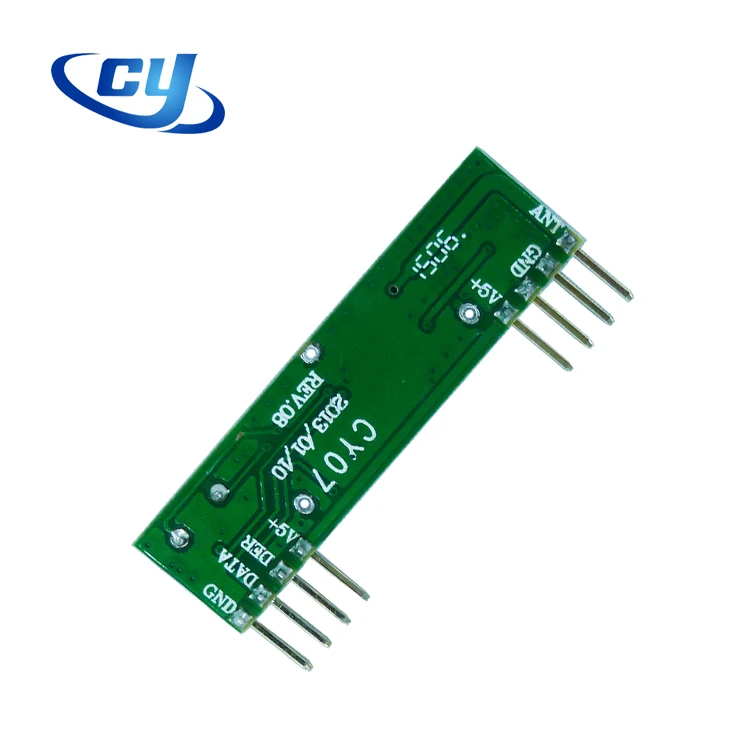

Figure1 CY07-V1.1 Shape & Pins

Pin Name	Pin Definition
ANT	Antenna In
GND	Connect to negative power supply
GND	Connect to negative power supply
VCC	Connect to positive power supply
VCC	Connect to positive power supply
DER	Optional output: 1, DATA output(default setting) 2, Battery Saving Mode (Working mode in low level input) (Sleeping mode in high level input)
DATA	Data Output
GND	Connect to negative power supply





Note1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz


ELECTRICAL CHARACTERISTICS:
Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz

Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz



MECHANICAL SIZE: (UNIT: mm)





ORDER INFORMATION:
