JC Electric Induction Gold Mini Melting Furnace for Industrial Use
- Category: >>>
- Supplier: Zibo JC Eco-Tech Co. Ltd.
Share on (60529486673):
Product Overview
Description

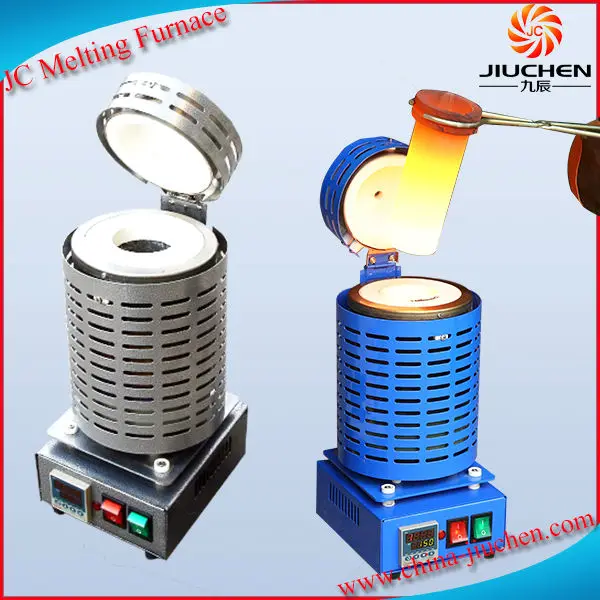

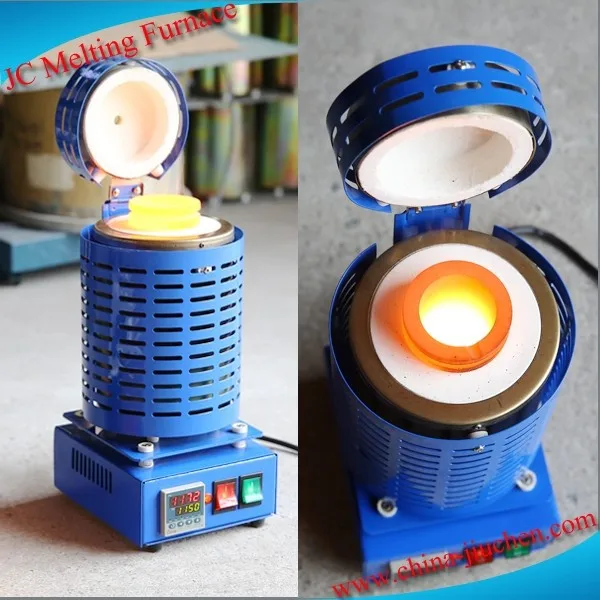

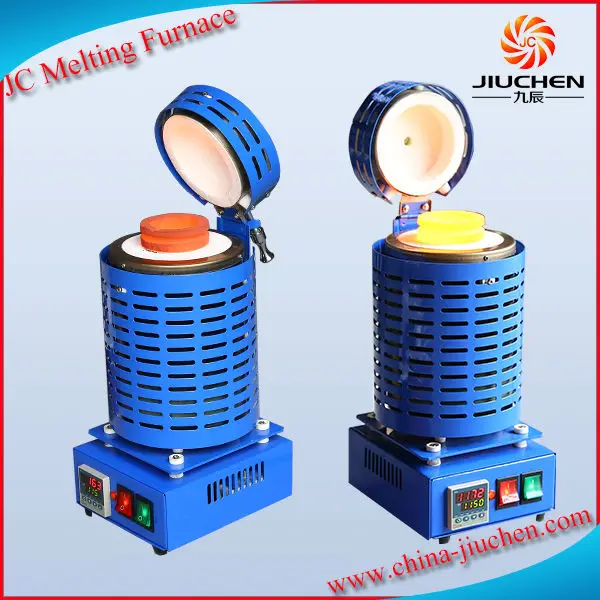

JC Electric Induction Gold Mini Melting Furnace for Industrial
Specifications
1. Easy to install and operate.
2. Super small size and portable, occupies not enough 1.0 square meters.
3. 24 hours no-stop melting ability.
4. Energy saving and environmental protection.
5. It's easy to change furnace to melt different materials.
Product Description
JC Electric Induction Gold Mini Melting Furnace uses solid state relay control, high temperature alloy heating wire, high temperature furnace made of synthetic materials and aluminum insulation materials and a series of advanced, high-quality accessories, making the market than similar machines, long life, high efficiency.
Furnace Details
| Furnace Name | JC Electric Induction Gold Mini Melting Furnace |
| Furnace Model | JC-K-220-2 |
| Furnace Voltage | Single Phase AC220V~240V,50/60HZ |
| Furnace Power | 1500W |
| Working Temperature | 1150 Degrees C(2102F) |
| Max Temperature | 1200 Degrees C(2192F) |

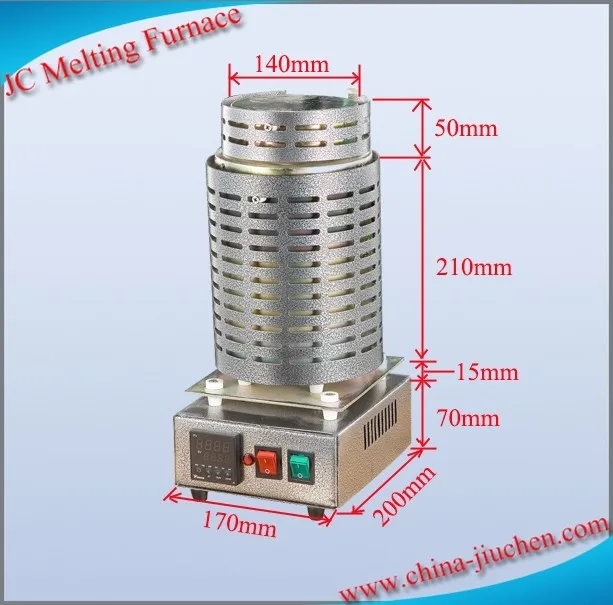

| Furnace Size | 170*200*370mm |
| Package Weight | 10kgs(22lbs) |
| Heating Rate | 15-20mins for heating up to 1100C |

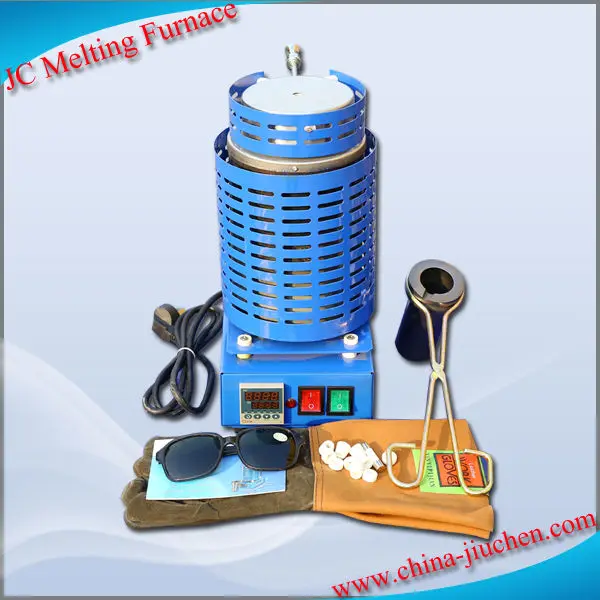

Furnace Accessories
1-1kg graphite crucible
1-crucible tong.
1-replacement fuse.
1-heat insulating glasses.
1-heat insulating gloves.
1-manual instruction.

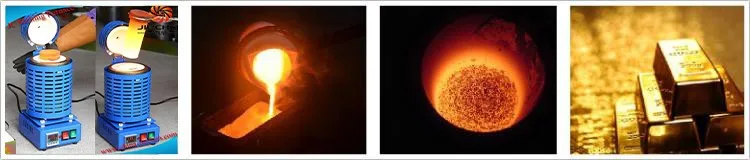

Melting Material
It can melt various metals whose melting point is less than 1150 degrees,such as gold lead zinc copper glass etc.
Applications
1. Smelting of bulk metals such as copper, aluminum, tin
2. Application of heat treatment and sampling of products in different occasions
3. Can be used as ceramics, chemicals, steel and other industries for product sampling, laboratory and heat treatment.

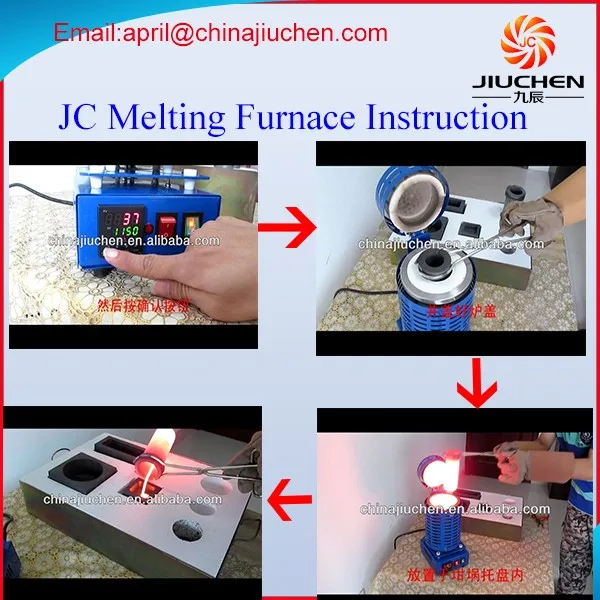

Operate Instruction
1. Put the molten gold into the crucible, then put the crucible into the furnace.
2.Open green switch power supply, then red switch.
3. Temperature controller with the digital furnace is slowly rising.
4.When the temperature reached 1150 degrees, the red light indicator cut off. Then cut off red switch and green switch, take out the molten crucible from the furnace.
5. Please pay attention to safety and maintain normal use of machine.

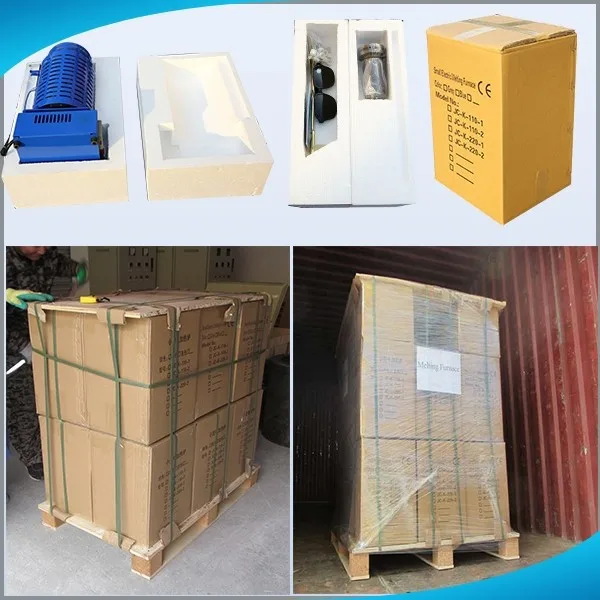

Packaging & Shipping
*Normal Package:Plastic inside,Polyfoam filled,Carton Outside;
*If over 10 sets,it will be packaged with the pallet;
*Delivered by express,such as EMS,FedEx,DHL,TNT and so on;
*Delivery time:Within 3 days after getting the payment;
*It usually takes about 5-7 days to receive the furnace.
Certifications
Our furnace has obtained Chinese patent of Certificate of Utility Model Patent,Certificate of Design Patent and CE.Currently,we are cooperating with ICBC,domestic famous universities and national key laboratories.we open smoothly North America,EU, Australia and Southeast Asia,the furnace won high praise with more than 30 countries and region.
If any queries/inquiries or interests on our products, please feel free to contact us.Your any of inquiries will be at our soonest attention and response.
