Replacement spares High chrome alloy with hard iron/white cast iron material
Strong abrasion resistant material Competitive price 100% interchangeable with the world famous slurry pump
Product Description

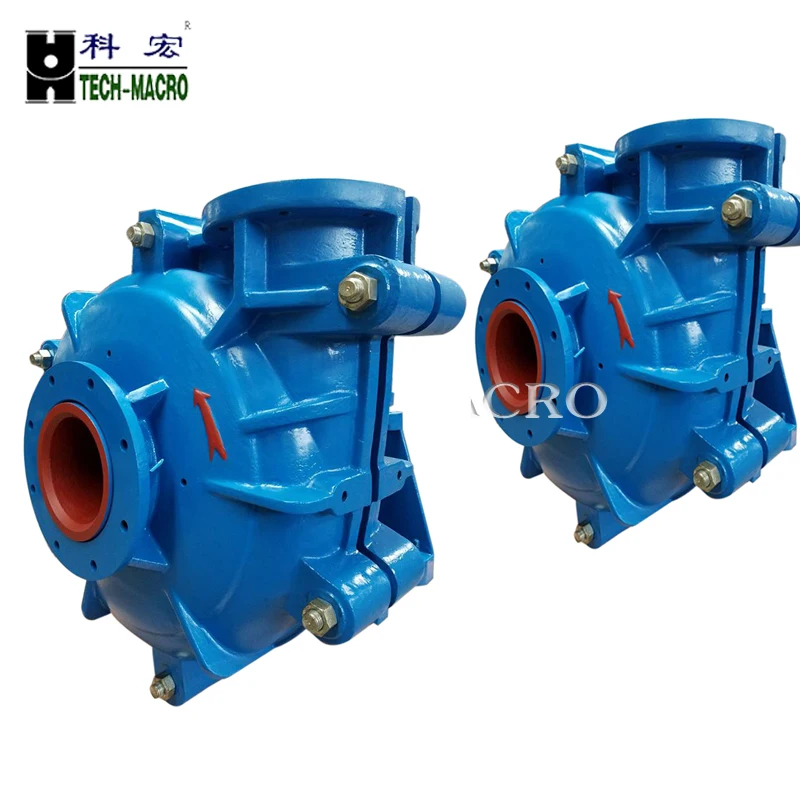

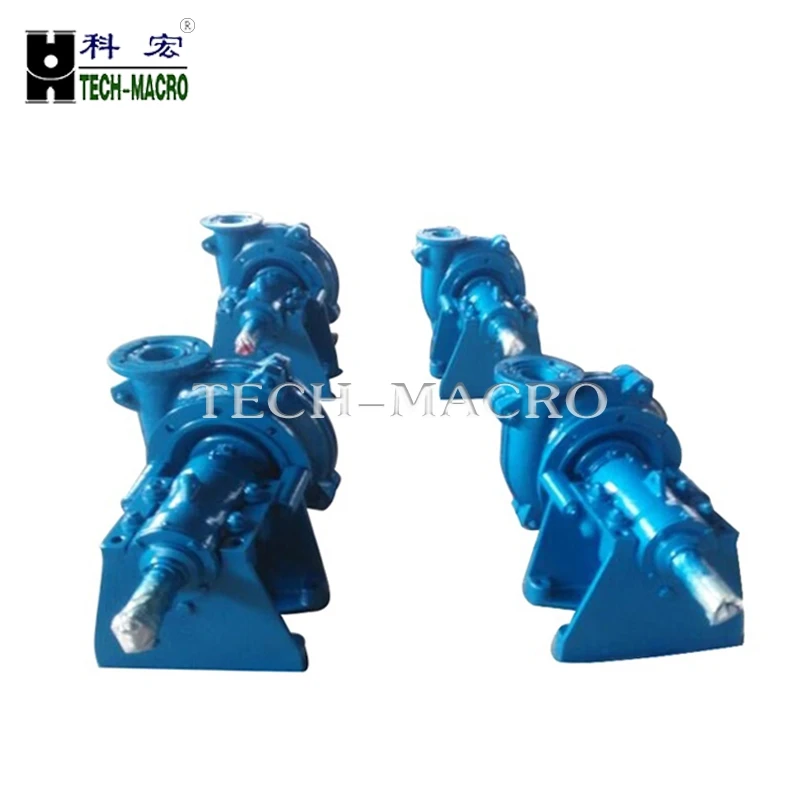

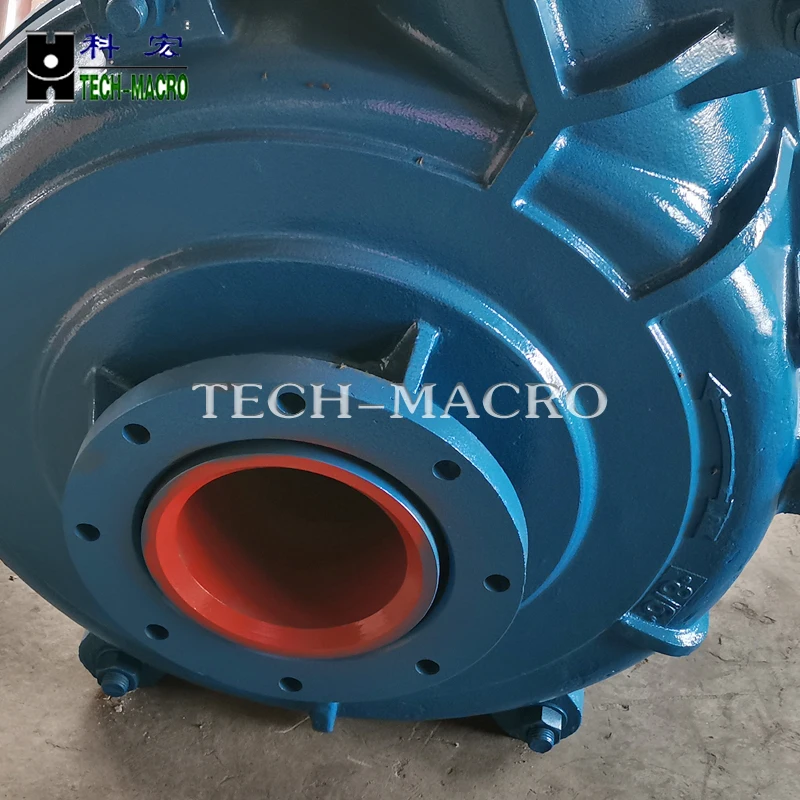

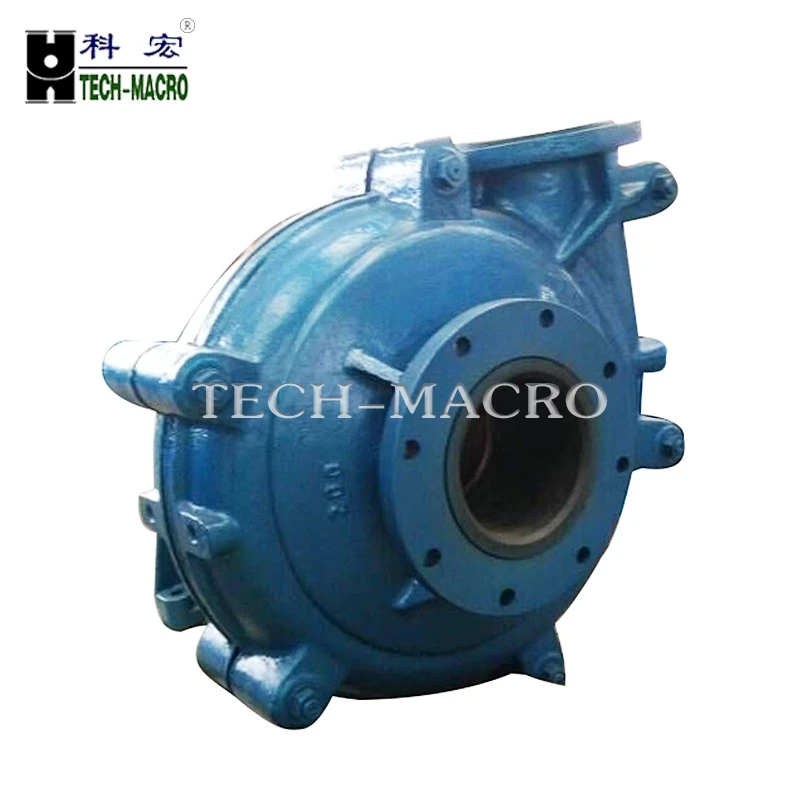

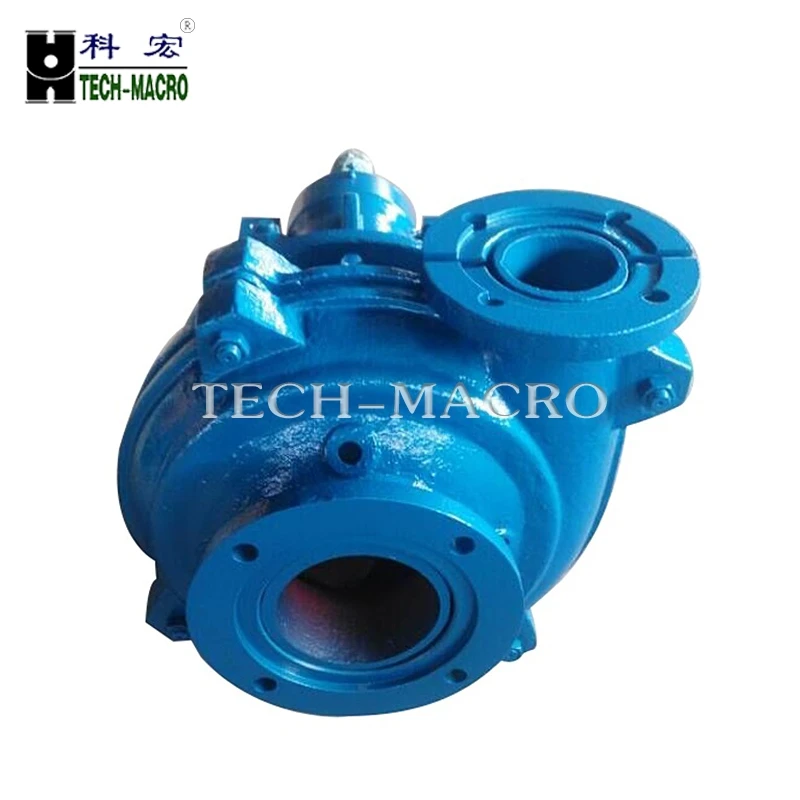

Centrifugal slurry pump for mining water pump
Slurry pump Features:
KA(R) series centrifugal slurry pumps have replaceable wear-resistant metal liners. The impellers&volute liners are made of wear-resistant metal(such as A05,A49,A33 and other high chrome metal).
KA(R) series centrifugal slurry pump bearing assembly use cylindrical structure, adjusting the space between impeller& front liner easily, being removed completely when being repaired. Grease lubrication.
KA(R) series centrifugal slurry pump shaft seal could use the packing seal, expeller seal and mechanical seal. One pump also can be use packing seal with expeller seal together.
The discharge outlet can be positioned at intervals of 45 degrees by request and oriented to any 8 positions to suit installations and applications.
KA(R) series centrifugal slurry pump drive types, such as V belt drive(CR, CV, ZV), direct coupling drive(DC),etc.
KA(R) series centrifugal slurry pump can be installed in multistage series to meet the delivery for long distance.
Typical Application:
Chemical Process
Heavy Minerals
Paper and Pulp
Mill Discharge
Sugar Beet
Slag Granulation
Bottom Boiler and Fly Ash
Cyclone Feed
Power Plants
other industries
Material:
high chrome A05 , A31 , A33 , A49 etc
Technical parameter:
Tech-macro KA(R) series Pump Specification:
KA pump operating limits:
Size range (discharge) : 1 inch to 18 inch (25 mm to 450 mm)
Capacity: 3.6--6480 m3/h
Heads(TDH): 4--69 m(13 to 230 feet)
Max allowable particle size: Depend on pump model
KAR pump operating limits:
Size range (discharge) : 1 inch to 18 inch (25 mm to 450 mm)
Capacity: 3.6--5760 m3/h
Heads(TDH): 4--52 m(13 to 170 feet)
Max allowable particle size: Depend on pump model

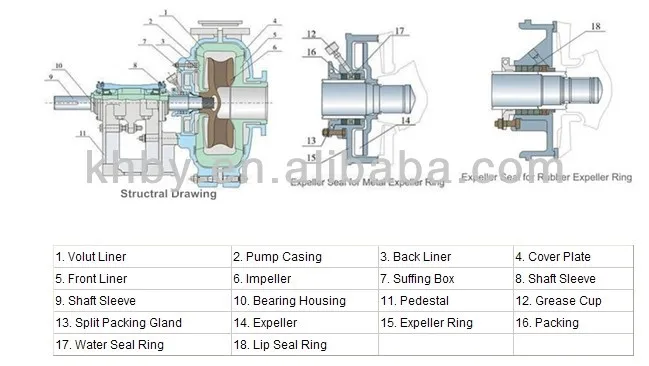

Slurry pump Structure:

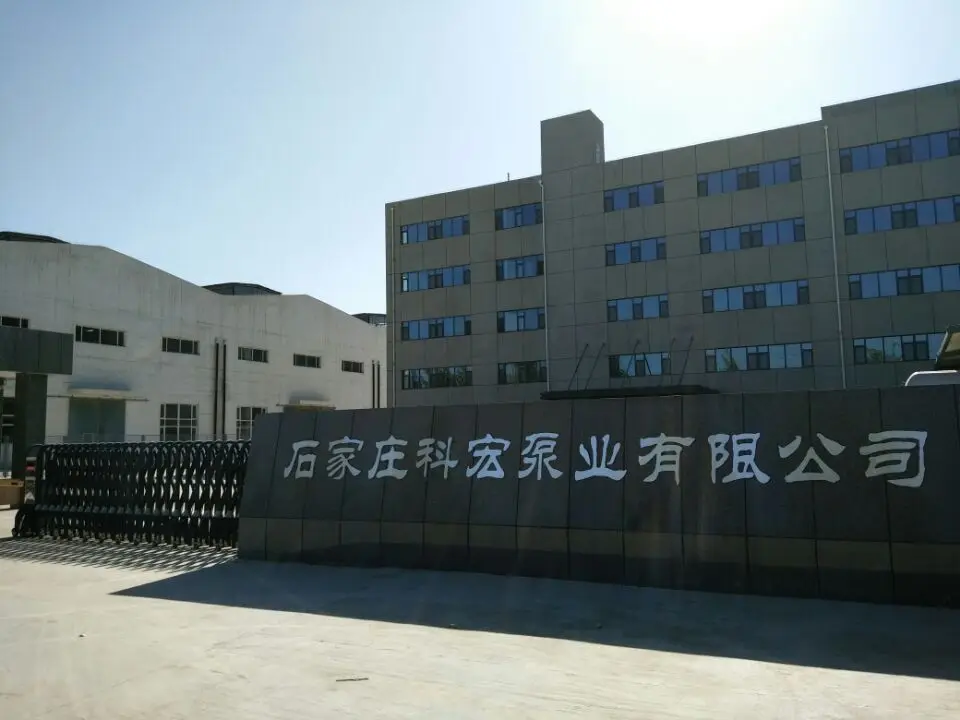

Company Information
Shijiazhuang Tech-macro Pump Industry Co.,Ltd is a professional manufacturer of slurry pump and slurry pump parts, sewage pumps, OEM pump,etc.We rely on the CFD(Computational Fluid Dynamics ) and CAE (Computer Aided Engineering) to calculate and software research the application of pumps wear-resisting material and the development of new products.We can satisfy different needs of users and have received the praise from customers.
Production Flow
Certifications
ISO:9001
SGS
CE
Yes
Yes
Yes
Our strict quality control can ensure the hardness to bring alonger life using for the pump and pump parts. CE and ISO certificates are available.
