zeolite molecular sieve 13x hp 0.4 0.8mm 1.6 2.5mm for 5l oxygen concentrator zeolite 13x jlox 501
- Category: >>>
- Supplier: Guangzhou Chemxin Environmental Material Co. Ltd.
Share on (60529690708):
Product Overview
Description

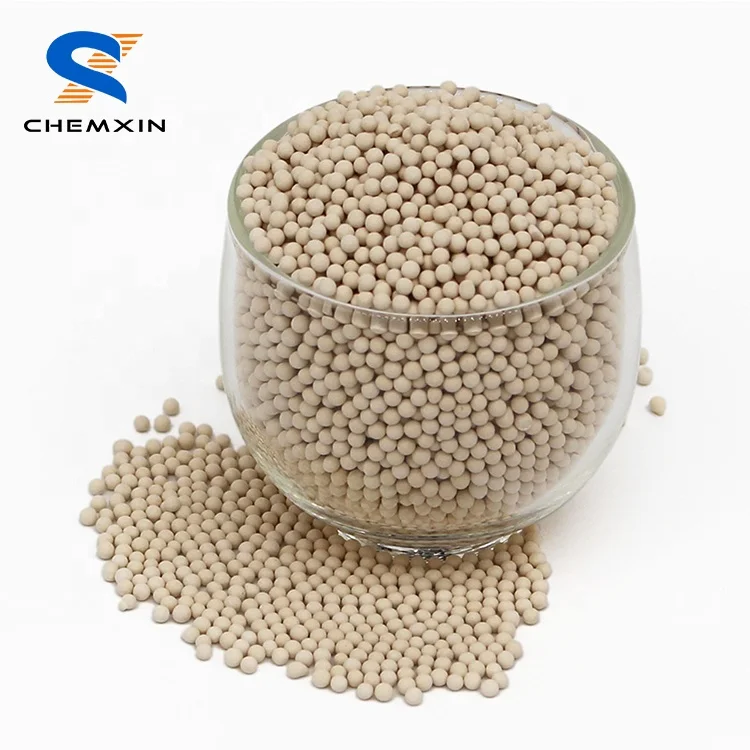

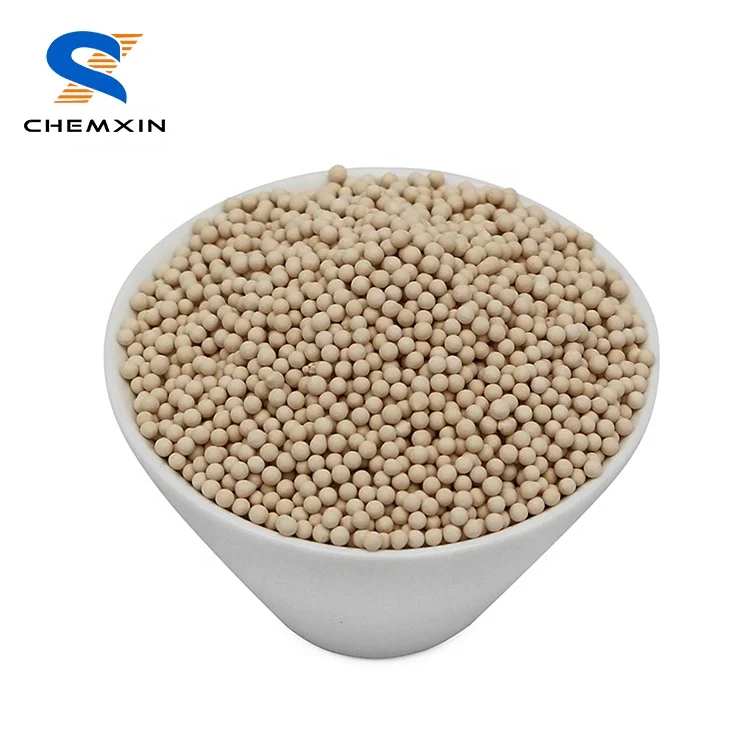

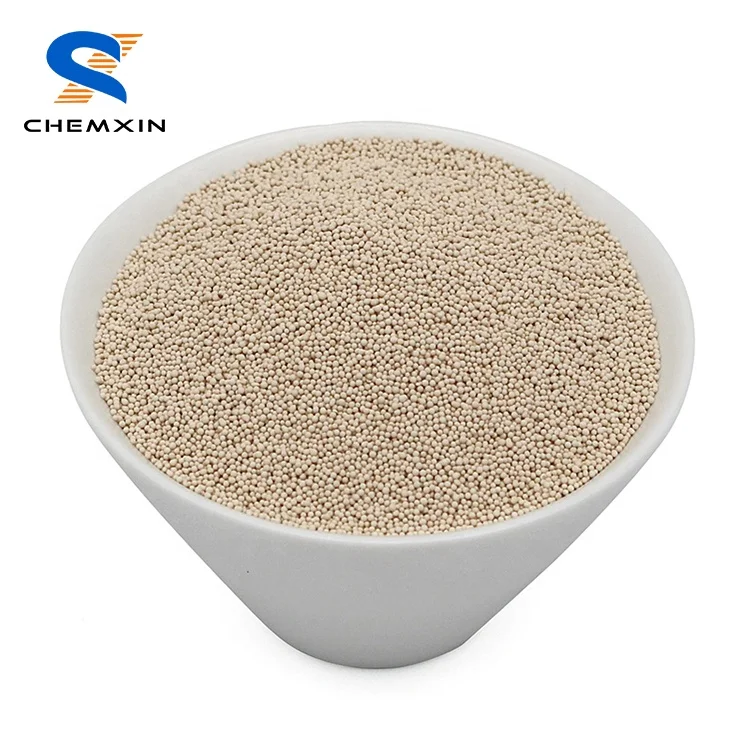

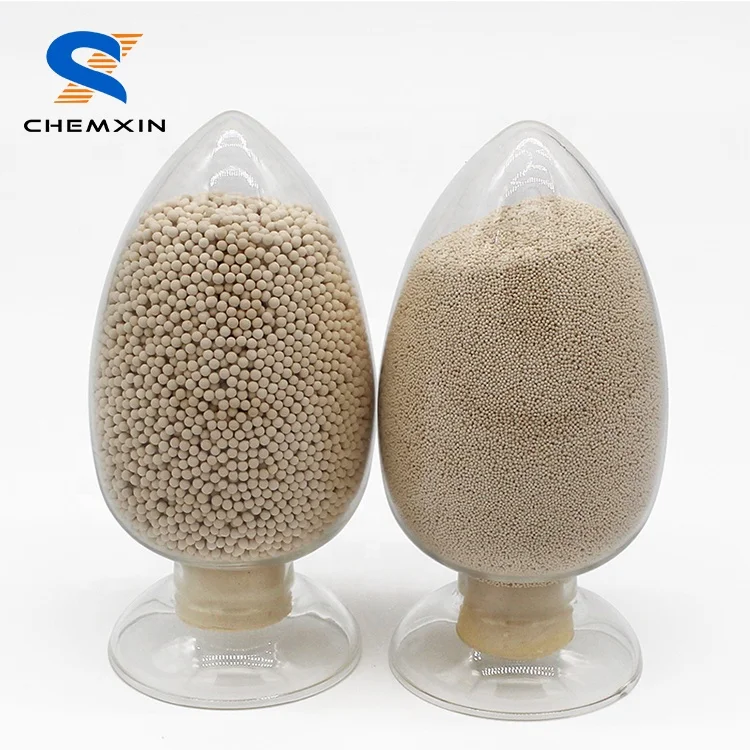

zeolite molecular sieve 13x hp 0.4-0.8mm 1.6-2.5mm for 5l oxygen concentrator zeolite 13x jlox-501
Product Description

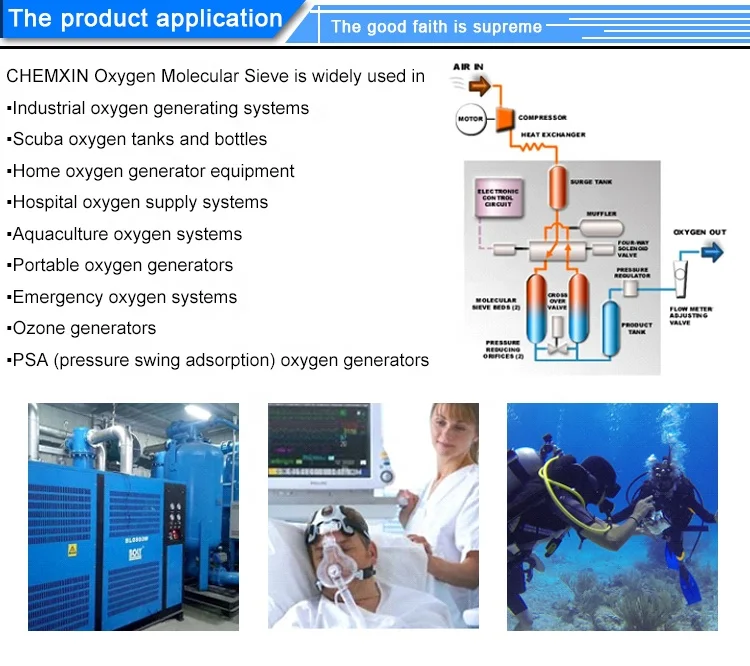

Molecular Sieve 13X HP is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc.
Technical Parameter:
| Model | 13X HP | |
| Color | Light gray | |
| Nominal pore diameter | 10 angstroms | |
| Shape | Sphere (ball) | |
| Diameter (mm) | 0.4-0.8 | 1.6-2.5 |
| Loss on Ignition (wt%.575℃, 1hr) | ≤1.0 | ≤1.0 |
| Bulk density (g/ml) | ≥0.62 | ≥0.62 |
| Crushing strength (N) | / | ≥30/piece |
| Static H2O capacity (wt% RH60%,25℃) | ≥30 | ≥30 |
| Static CO2 capacity(wt% 250mmHg, 25℃) | ≥19.8 | ≥19.8 |
| Attrition (wt%) | ≤0.2 | ≤0.2 |
| Particle Ration (%) | ≥95 | ≥97 |
| N2 capacity(ml/g,) | ≥8 | ≥8 |
| N2/O2 Selectivity(a,) | ≥3 | ≥3 |
Hand & Storage Recommendation:
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
Chemxin Lithium based molecular sieve is a synthetic zeolite of lithium-type crystal structure, large Nitrogen adsorption capacity, high efficiency of oxygen/nitrogen separation. Below chart indicates lithium based molecular sieve((The temperature is 25℃)) It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen. The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.
Technical Parameter:
| Model | Lithium based molecular sieve | |
| Color | Light gray | |
| Shape | Sphere (ball) | |
| Diameter | 0.4-0.8mm | 1.3-1.7mm |
| Bulk density (g/ml) | 0.63-0.67 | 0.61-0.65 |
| Crushing strength (N) | ≥8N/piece | ≥15N/piece |
| Static N2 adsorption (%) | ≥22 | ≥22 |
| N2/O2 seperation | ≥6.0 | ≥6.0 |
| Wear ratio(%) | ≤1 | ≤1 |
| Water content (%) | ≤0.5 | ≤0.5 |
Attention: To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
