JYMA series TIG Pulsed Tungsten Argon Arc power source:
---A DC pulse and two output modes, has good load adaptability
---Digital signal processor (DSP) as the control, fast dynamic response, high precision and high stability, etc.
---Constant current control to ensure the stability of welding quality
--- Inverter topology to improve power factor, power condition stable
.
Product Description
Model
JYMA-50A
Input voltage
3*AC 380V ±10% 50Hz
Power
5.84kVA
Dimention
485(L)*200(W)*330(H)mm
Werght
17kg
Control mode
Constant current 100kHz
Voltage with out load
60V
Current
10~50A
Time setting
0~9999ms by 1ms
Current setting
10~50A
Frequency setting
10~300Hz
Duty cycle
50A at 35%
Memory
Flash memory
Conditions
Tem :+5~+40°C
Humidity <90%
IP40
D ground
· with DC and pulse two output modes, has good load adaptability.
· using digital signal processor (DSP) as the control core, with fast dynamic response, high control precision, stability higher advantages.
· using constant current control mode, to ensure the quality of welding stability.
· inverter topology to improve the power factor, power condition became stable.
· with current value transfinite, over and under voltage, overheating fault diagnosis, protection and alarm function.
· the LCD screen can be convenient for parameters setting, with 32 sets of parameters storage function, convenient use of various welding varieties.
· 320x240 LCD display interface, high resolution, which can display a variety of content.
? strong external communication function: welding end, fault, counting signal, RS-232 data communication port (optional), convenient for automatic welding.
· fast response. Using MOSFET as the switch tube, 100kHz inverter frequency, electrifying time control cycle peaked at 50 μ s. Pulse output mode, the output pulse frequency can be adjusted continuously in 10 Hz~300Hz, pulse duty ratio is adjustable in the range of 10%~90%.
3, Won the national high-tech certificate

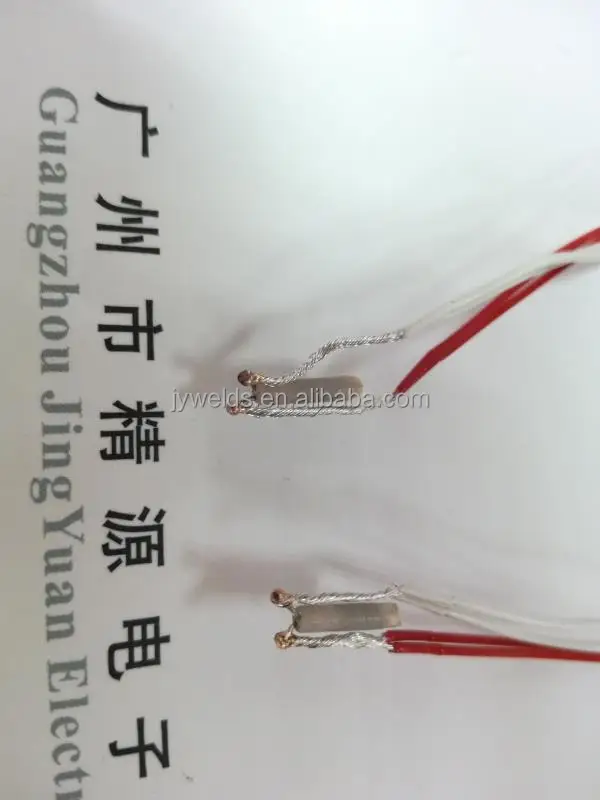

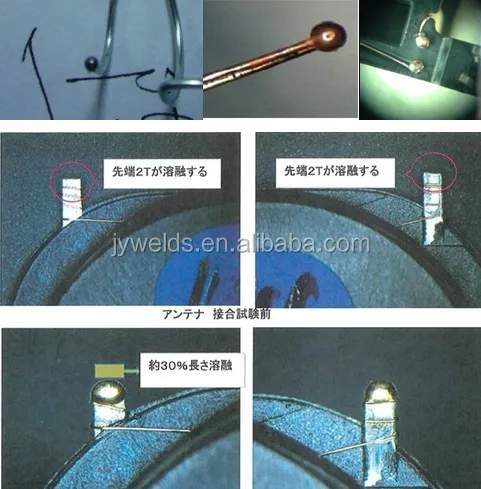

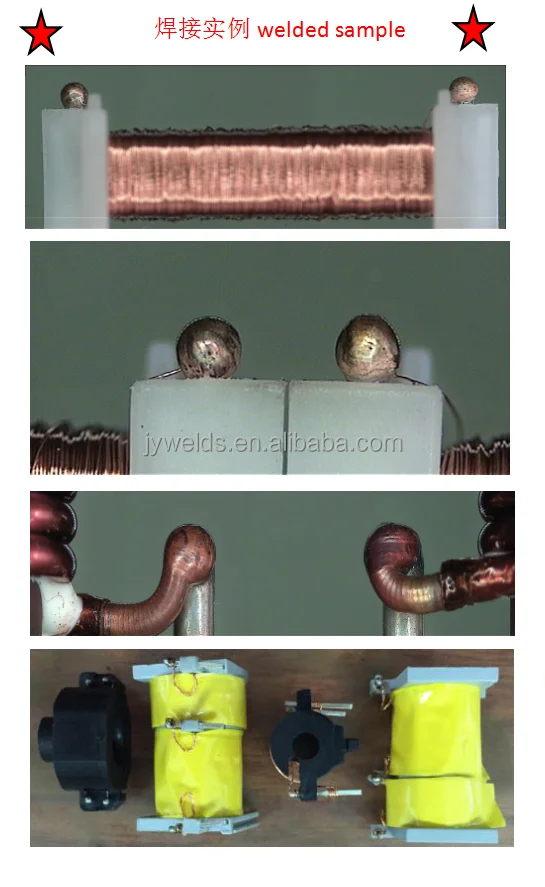

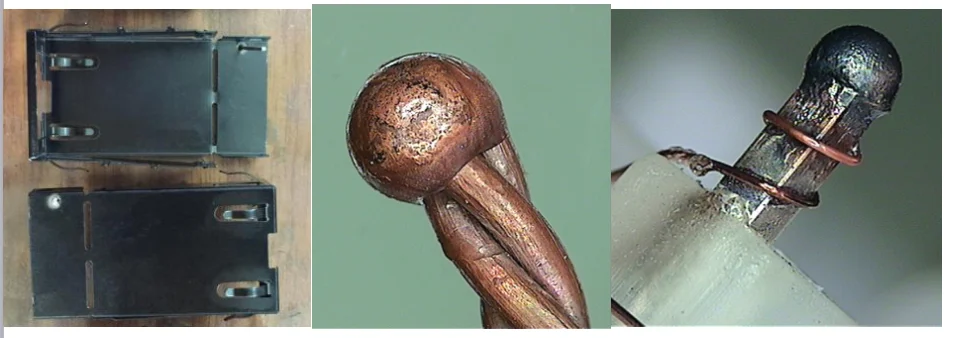

WELDING SAMPLES:
