China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china

Product Overview

Description

China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china

China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china

EC9 EC7.5 EC5.5 EC9 68x1Z40 EC7.5 24x1Z40 EC5.5 12x1Z40 EC9 68x2S110 EC7.5 24x2S110 EC5.5 12x2S110 EC9 68x3S110 EC7.5 24x3S110 EC5.5 6x1Z40 EC9 33x1Z40   EC5.5 6x2S110 EC9 33x2S110     EC9 33x3S110     EC9 33x4S110     EC9 33x6S110



---



DESCRIPTION of China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china

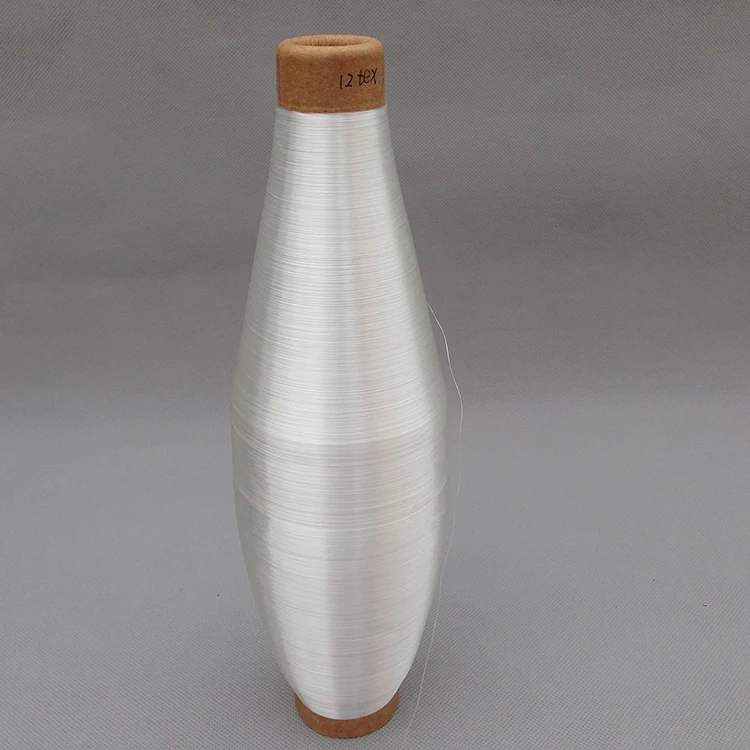

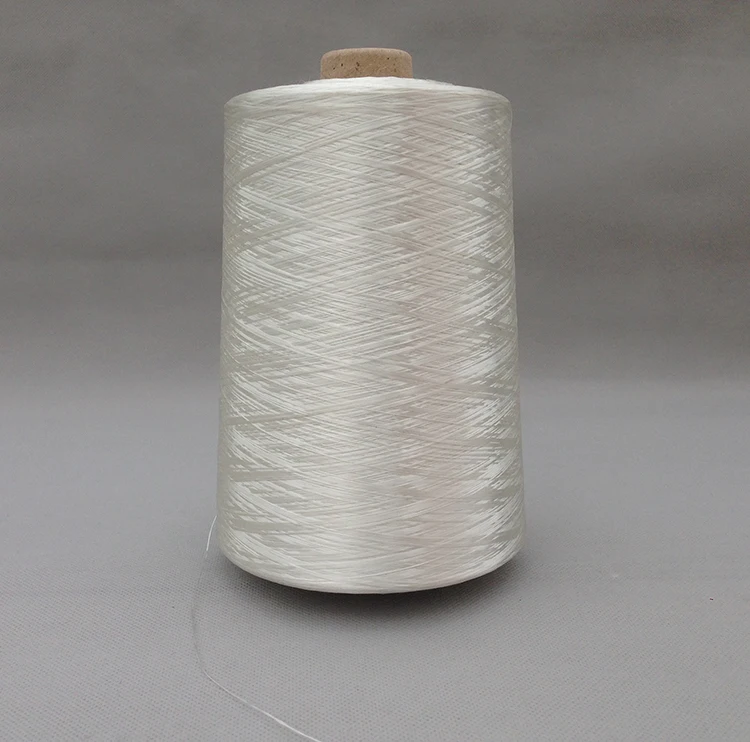

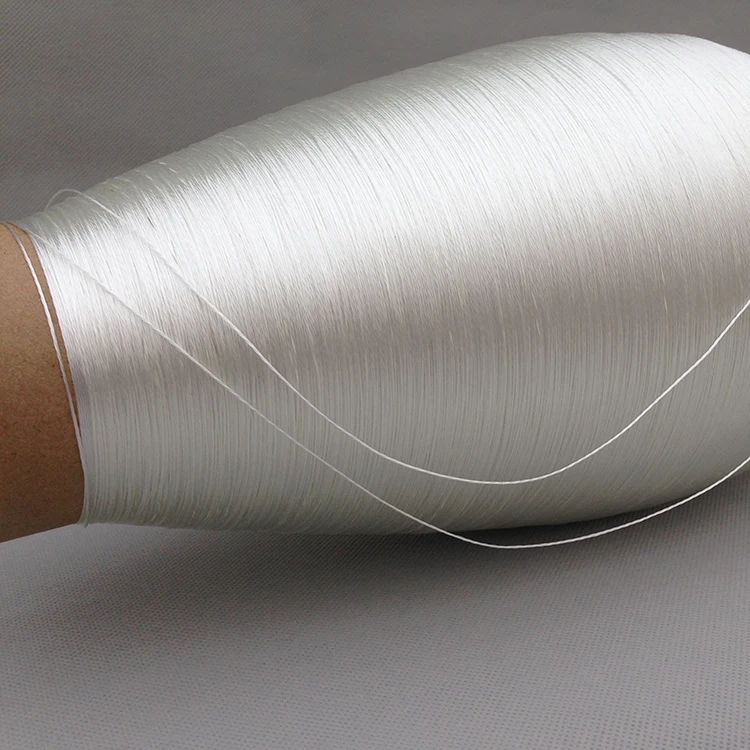

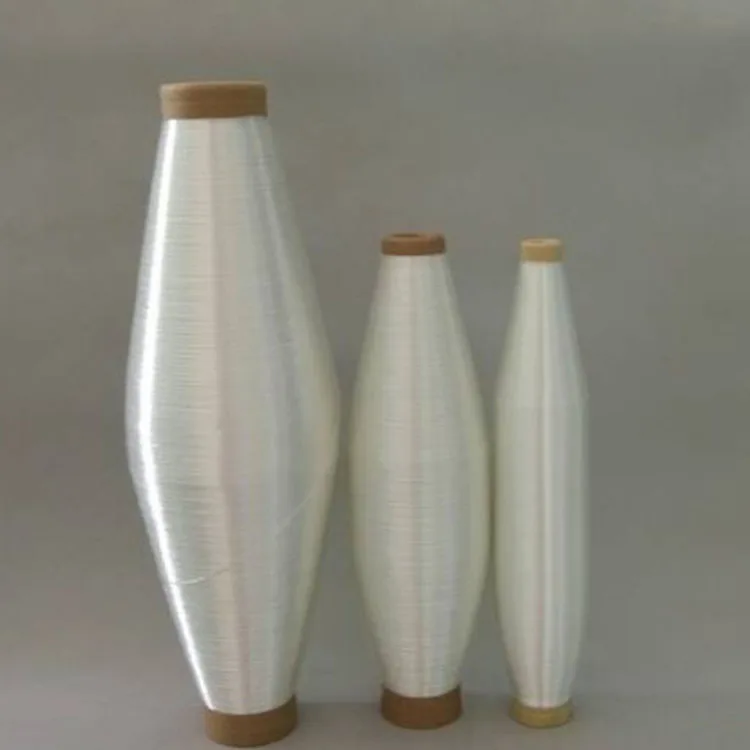

  Fiberglass Yarn



Fiberglass yarn is electrical insulation materials, electronic industrial fabrics ,tubes and other industrial fabric raw

materials.It is widely used for weaving all kinds of fabrics in the scope of reinforcement, insulation, corrosion resis-tance,heat resistance and so on.

Fiberglass yarn is made from 5-9um fiberglass filament which are then gathered and twisted into one finished yarn.
Glass fiber yarn is necessary raw material for all kinds of insulation products, engineering material and electric industry. Ending product of Glassfiber yarn: such as, electronic grade fabric, fiberglass sleeving and so on, E glass twsited yarn is characterized by its high strength, corrosion resistance, heat resistance, low fuzz and low moisture absorption.

Fiberglass textured yarn have three main sizing types: paraffin, silane and starch.
Specification: ECG751/0, 1/2, 1/3; ECG1501/0, 1/2,1/3; ECE2251/0, 1/2, 1/3; ECD4501/0, 1/2; ECD9001/0, 1/2, 34 / 66 / 68 / 100 / 134 / 150 /160tex
Bobbin weight: 0.7kg/1.5kg/2.0kg/4.0kg

E glass fiberglass yarn shape: paper bobbin,plastic bobbin,milk bottle,cone
Package: plastic film bag then in carton box
MOQ: 1 ton





Get An Quotation



---



PRODUCT INFORMATION of China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china



Produce No.			Filament Diameter (μm)	Linear Density (Tex)	Twist (Tpm)%	Net Weight (Kg/roll)
Tex		Count
EC9	EC9 68x1Z40	ECG75 1/0	9	68±6.8	40±10	0.7
	EC9 68x2S110	ECG75 1/2		136±13.6	110±10	0.7/2.0/4
	EC9 68x3S110	ECG75 1/3		204±2.04	110±10	0.7/2.0/4
	EC9 33x1Z40	ECG150 1/0		33±3.3	40±10	0.7
	EC9 33x2S110	ECG150 1/2		66±6.6	110±10	0.7/2.0/4
	EC9 33x3S110	ECG150 1/3		99±9.9	110±10	0.7/2.0/4
	EC9 33x4S110	ECG150 2/2		132±13.2	110±10	0.7/2.0/4
	EC9 33x6S110	ECG150 2/3		198±19.8	110±10	0.7/2.0/4
EC7.5	EC7.5 24x1Z40	ECE225 1/0	7.5	24±2.4	40±10	0.7
	EC7.5 24x2S110	ECE225 1/2		48±4.8	110±10	0.7/2.0/4
	EC7.5 24x3S110	ECE225 1/3		72±7.2	110±10	0.7/2.0/4
EC5.5	EC5.5 12x1Z40	ECD450 1/0	5.5	12±1.2	40±10	0.7/0.3
	EC5.5 12x2S110	ECD450 1/2		24±2.4	110±10	0.7/0.3
	EC5.5 6x1Z40	ECD900 1/0		6±0.6	40±10	0.3
	EC5.5 6x2S110	ECD900 1/2		12±1.2	110±10	0.3

 NOTICE: Click to get to the detail page



---



WORKING PROCESS of China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china



1. Raw material-glass ball 2. Wire drawing 3. Unwinding(1/0 yarn finished)

4. Twisting(more counts yarn) 5. Finished product 6. Quality Checking





---



SHIPPING & STORAGE of China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china



Storage:   Moisture:   Shipping:                      Best use period:

15 ℃ - 35 ℃,keep it cool and dry   35% - 65%   Packed with a plastic film bag,then in carton box   In 12 months







---



ABOUT US of China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china





4 Factories 2300 Workers 3 Production Lines Of Chopped Strand Mat(Standard Width:1600/ 2600/ 3200mm, Customized Width Available) 200 Weaving Equipment 2.6 Million- 5 Million USD Annual Export Value   Factory Capacity: 390000 Tons/Year Of Fiberglass Yarn And Roving                               67000 Tons/Year Of Fiberglass Mat                               35000 Tons/Year Of Fiberglass Cloth Delivery time: 7 Working days Main Market: Asian,Western Europe,Middle East,South America, South-East Asian





About Us

Exhibition Page View







---



FAQ of China Factory Supply Twisted Fiberglass 100% spun polyester yarn manufacturer in china



     1. Q: Is it C glass or E glass fiberglass yarn?

         A: It is E glassTwisted E-Glass Fiberglass Yarn .

     2. Q: How about the bobbin type and shape?

         A: There are paper tube and plastic tube two kinds,and have straight and pagoda shape.

     3. Q: How about the sizing?

         A: Paraffin and Silane.

     4. Q: If there are one joints of one bobbin E glass fiberglass yarn?

         A:  It is used more finished one strand yarn to twisting,so there is no joint.

     5. Q: If the raw materials are environmental?

         A:  It is used environmental without arsenic and alkali-free glass ball.

     6. Q: What's the packing?

         A:  Each yarn in a plastick film bag then in carton box.

     7. Q: What's the payment terms?

         A:  Our company's payment terms is 30% deposit and 70% balance before shipment.

     8. Q: How about the delivery time?

         A:  It is depend on the order quantity,normally one 20'ft container need about 15-20 days.
