Sensor model

Sony IMX236(Color)

Sensor Size

1/2.8"(5.5x3.4mm)

Pixel

2.8x2.8μm

FPS/Resolution

60@1920x1080

Binning

1x1

Exposure

0.4ms~999ms

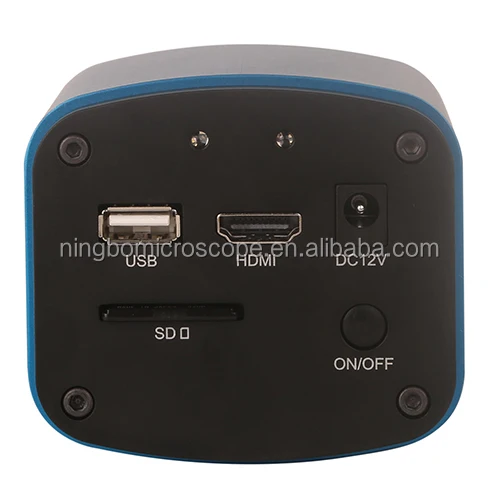

Interface & Button Functions

USB

USB Camera or USB Mouse

HDMI

HD Output

DC12V

12V Power in

SD

SD Card Slot

ON/OFF

Power On/off Switch

LED

Power On Indicator

Other Specification for HDMI Output

UI Operation

With USB Mouse

Image Capture

High Speed in SD Card(8G)

Video Record

1080P 30fps in SD Card(8G)

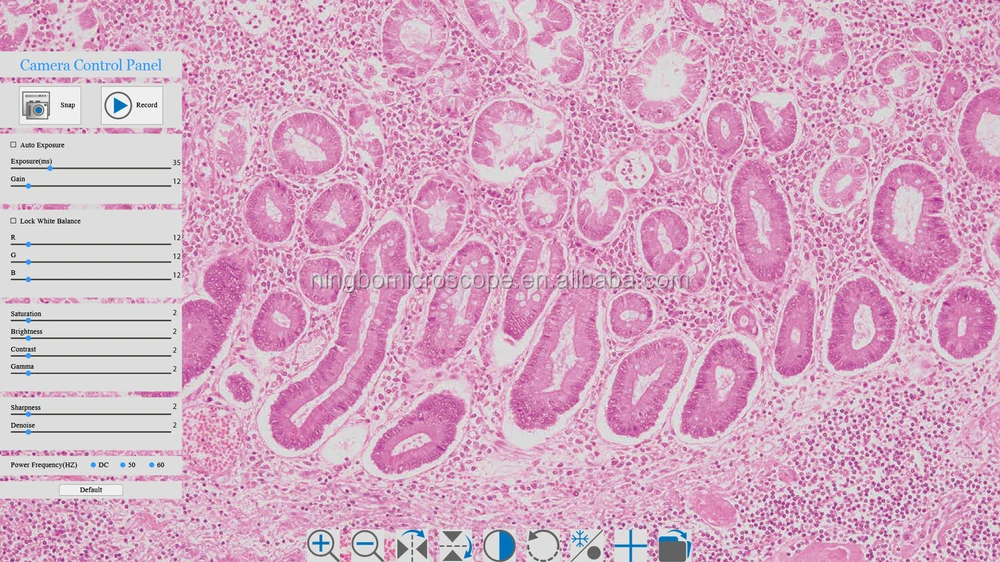

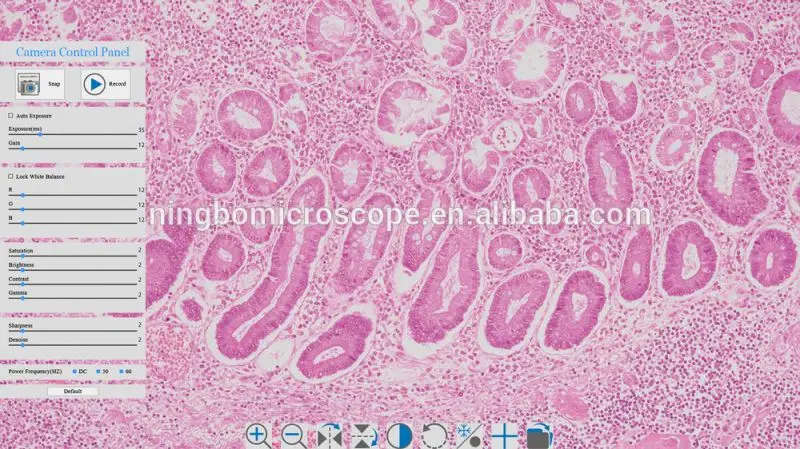

Camera Control Panel

Including Exposure, Gain, White Balance, Color

Adjustment, Sharpness and Denoising Control

Toolbar

Including Zoom, Mirror, Comparison, Freeze,

Cross, Browser Function

Other Specification for USB Output

White Balance

Auto White Balance

Color Technique

Ultra-FineTM Color Engine (USB)

Capture/Control API

Standard UVC for Windows/Linux/Mac(USB)

Recording System

Still Picture or Movie (USB)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:4GB or More

USB Port:USB2.0 High-speed Port

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature

-10~ 50 (in Cent degree)

Storage Temperature

-20~ 60(in Cent degree)

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/2A Adaptor

Overall Dimensions

Width x Depth x Height 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)

Shipping Weight

0.47 kg (1.0lbs)
