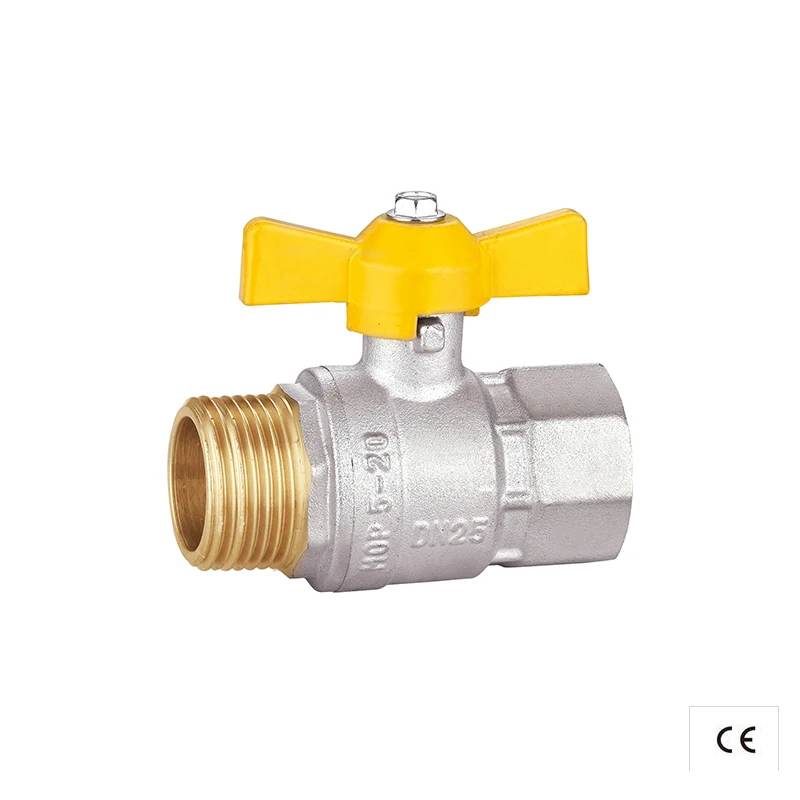

Valogin 1/2 1 inch Propane Stove Brass Gas Ball Valve for Gas Cooker
- Category: >>>
- Supplier: Zhejiang Valogin Technology Co. Ltd.
Share on (60530336065):
Product Overview
Description
Product Overview
CE GAS BALL VALVE,LIGHT TYPE,FEMALE-MALE
Gas ball valve suitable for installation in family and industry gas system..
FEATURES AT A GLANCE
Size: 1/2"~1"
CE Approved, EN331 standard, light type
Male/male threads.
Butterfly handle in Aluminum.
Body in nickel-plated brass.
Working temperatures: -20°C, 60°C.
Working pressure:MOP5
CE Approved, EN331 standard, light type
Male/male threads.
Butterfly handle in Aluminum.
Body in nickel-plated brass.
Working temperatures: -20°C, 60°C.
Working pressure:MOP5
Threads Type :
Female threads:
- ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1)
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
Male threads:
- ISO 7/1 R taper (equivalent to DIN EN 10226-1 and BS EN 10226-1)
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
Female threads:
- ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1)
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
Male threads:
- ISO 7/1 R taper (equivalent to DIN EN 10226-1 and BS EN 10226-1)
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
No | Item | Data |
2 | Supply capacity | 1000000 pcs/month |
3 | Minimum order | 500 pieces |
4 | Conventional packing | in the box/carton or as each customer required |
5 | Application | Gas ball valve suitable for installation in family and industry gas system. |

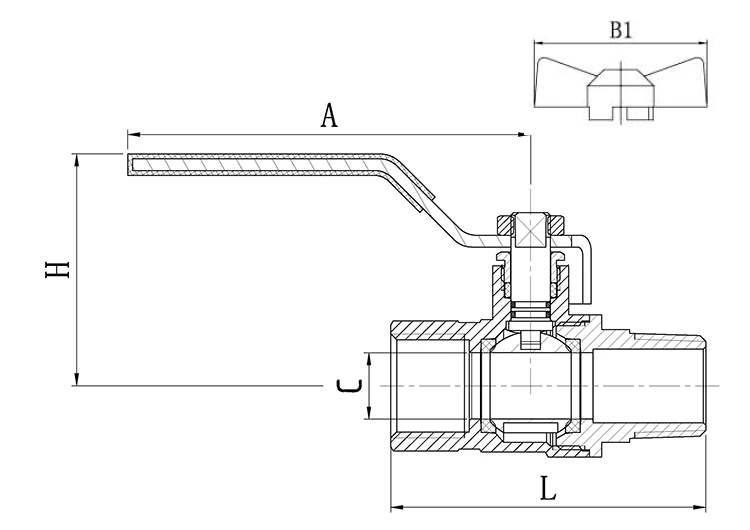

SIZE | CODE | B1 | C | L | H |
1/2"(DN15) | VG10.12551.15 | 52.5 | 14 | 57 | 49 |
3/4"(DN20) | VG10.12551.20 | 52.5 | 19 | 64 | 50.55 |
1"(DN25) | VG10.12551.25 | 65 | 24 | 75 | 58.1 |
Standard Package
Company Profile
Zhejiang Valogin Technology Co., LTD founded in 1985, after years of development, we are now a leading manufacturing of brass valves, fittings and distribution manifolds for plumbing, gas and heating systems, for use in residential , industrial and commercial settings. We are committed to provide the world best one-stop solution for water, gas, oil and heating systems. With manufacturing ability from material to spare parts, Valogin has formed a vertical production supply chain which effectively improving the capacity, shortening the delivery time, and trying to gain our presence in the whole world.
120 million in turnover, of which more than 90% comes from international market, 7 buildings covering 64,000 sqm, 1100 employees and 30000 tons of brass processed per year. These are key numbers regarding our company .
120 million in turnover, of which more than 90% comes from international market, 7 buildings covering 64,000 sqm, 1100 employees and 30000 tons of brass processed per year. These are key numbers regarding our company .
30K
The production capacity of Valogin is 30,000 ton per year.
100+
We distribute our products to over 100 countries across 6 continents globally
100+
We hold over 100+ patents coming from our technology & design.
120+
With an annual turnover of $120,000,000.
MANUFACTURING
With manufacturing ability from material to spare parts , valogin has formed a vertical production supply chain , effectively
improving the capacity and shortening the delivery time . Continuous quality control on raw material, production process and finished products.
The lean production line not only saves labor costs, but also increases the productivity from 160 pcs to 450 pcs per 8 hours of each employee , and the first pass rate has been increased to 99% , the strong capability of “ Scheduled and Qualified “ provides excellent products and services to our customers all over the world.
The lean production line not only saves labor costs, but also increases the productivity from 160 pcs to 450 pcs per 8 hours of each employee , and the first pass rate has been increased to 99% , the strong capability of “ Scheduled and Qualified “ provides excellent products and services to our customers all over the world.
Valogin has 38 sets hot forging equipments with production capacity 28 Tons per day
Valogin has realized 90% of core spare parts produced by ourselves in order to guarantee the quality and satisfy delivery time
Valogin has realized 80% automatic production of core spare components parts through continuous automatic production equipment, there is 5 sets automatic assembly line with production capacity 65,000 pcs per day .
Valogin has realized 90% of core spare parts produced by ourselves in order to guarantee the quality and satisfy delivery time
