Китайская фабрика, 60x105x63 мм, самоустанавливающиеся сферические гладкие втулки/подшипники, модель GEG60ES GEG60ES 2RS с типом ES для двигателя

Китайская фабрика, 60x105x63 мм, самоустанавливающиеся сферические гладкие втулки/подшипники, модель GEG60ES GEG60ES 2RS с типом ES для двигателя

Category: Rod End Bearings >>>
Supplier: Jinan,Shenglei,Bearing,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

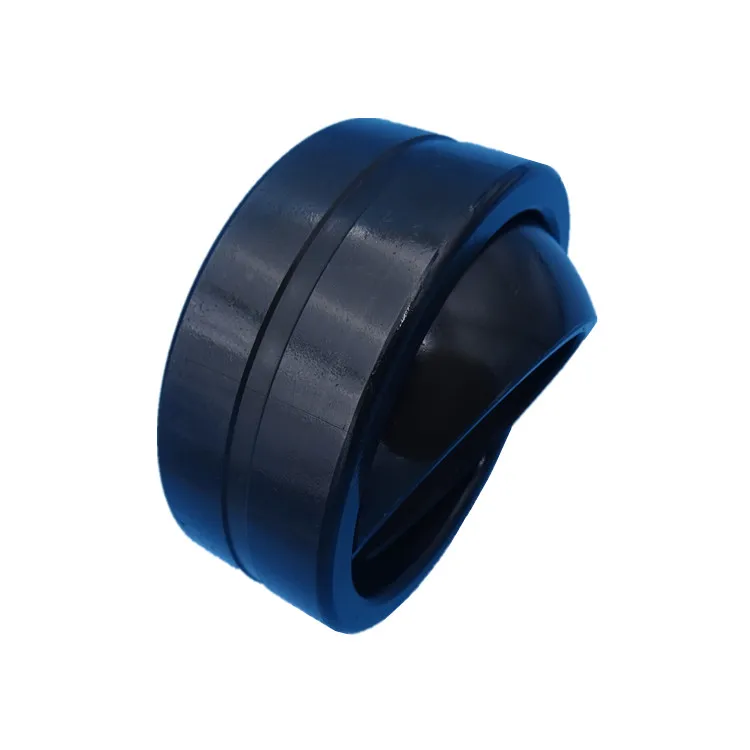

China factory 60x105x63mm self-aligning spherical plain bushings/bearings GEG60ES GEG60ES-2RS with "ES" type for Engine Machine

A part of our products:

Description

A joint bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other

attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

Rod End Bearing PHS10L mainly bear radial load, but also can withstand a certain amount of axial load which has little friction, high limiting speed, many type of size and forms. It's suitable for precision instruments, low noise motors, automobiles, motorcycles and general machinery, the machinery industry, the most common kind of bearing.

The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

^Material:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.

Pictures show

Drawing

Related models and specifications

Requiring maintenance Spherical plain bearing GE ES 2RS (GE DO)
Bearing No.		Dimension (mm)				Mass
No.	No	d	D	B	C	(kg)
GE 5 E		5				0.005
GE 6 E		6	14	6	4	0.004
GE8 E		8	16	8	5	0.008
GE 10 E		10	19	9	6	0.011
GE 12 E		12	22	10	7	0.015
GE 15 ES	GE 15 ES-2RS	15	26	12	9	0.027
GE 17 ES	GE 17 ES-2RS	17	30	14	10	0.041
GE 20 ES	GE 20 ES-2RS	20	35	16	12	0.066
GE 25 ES	GE 25 ES-2RS	25	42	20	16	0.119
GE 30 ES	GE 30 ES-2RS	30	47	22	18	0.153
GE 35 ES	GE 35 ES-2RS	35	55	25	20	0.233
GE 40 ES	GE 40 ES-2RS	40	62	28	22	0.306
GE 45 ES	GE 45 ES-2RS	45	68	32	25	0.427
GE 50 ES	GE 50 ES-2RS	50	75	35	28	0.546
GE 55 ES	GE 55 ES-2RS	55	85	40	32	0.939
GE 60 ES	GE 60 ES-2RS	60	90	44	36	1.04
GE 70 ES	GE 70 ES-2RS	70	105	49	40	1.55
GE 80 ES	GE 80 ES-2RS	80	120	55	45	2.31
GE 90 ES	GE 90 ES-2RS	90	130	60	50	2.75
GE 100 ES	GE 100 ES-2RS	100	150	70	55	4.45
GE 110 ES	GE 110 ES-2RS	110	160	70	55	4.82
GE 120 ES	GE 120 ES-2RS	120	180	85	70	8.05
GE 140 ES	GE 140 ES-2RS	140	210	90	70	11.02
GE 160 ES	GE 160 ES-2RS	160	230	105	80	14.01
GE 180 ES	GE 180 ES-2RS	180	260	105	80	18.65
GE 200 ES	GE 200 ES-2RS	200	290	130	100	28.03
GE 220 ES	GE 220 ES-2RS	220	320	135	100	35.51
GE 240 ES	GE 240 ES-2RS	240	340	140	100	39.91
GE 260 ES	GE 260 ES-2RS	260	370	150	110	51.54
GE 280 ES	GE 280 ES-2RS	280	400	155	120	65.06
GE 300 ES	GE 300 ES-2RS	300	430	165	120	78.07
