Air Temperature Humidity Sensor
Rika RK95 01 Dimension Customized Protection Weather Station Solar Radiation Shield
- Category: >>>
- Supplier: Hunan Rika Electronic Tech Co. Ltd.
Share on (60530450591):
Product Overview
Description

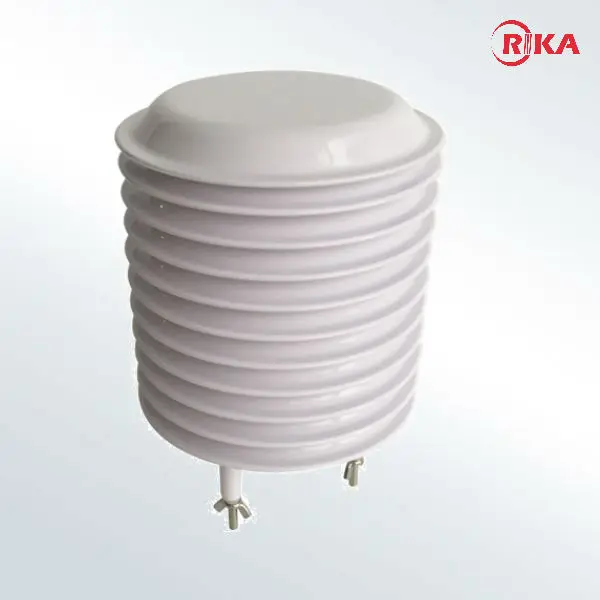

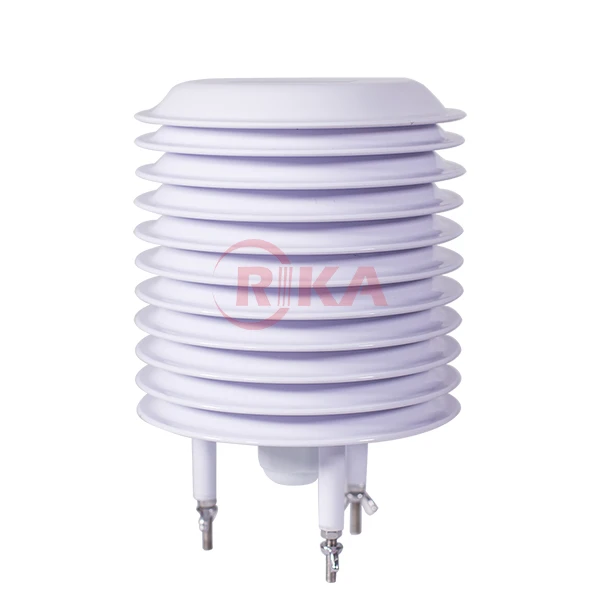

Rika RK95-01 Dimension Customized Protection Weather Station Solar Radiation Shield
Product Description
The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding.
Installation Tips
- Good air circulation around shield
- Away from large masses (asphalt, masts, solar panels) especially metal items
- Away from exhaust vents,electrical machinery and motors
- Away from standing water, water fountains and sprinklers
Specification
Item | Specifacations |
Operating temperature | -40℃-+60℃ |
Material | Shield:ABS engineering plastics,mounting with metal bracket |
Number of plates | 4 to 20 plates optional,typ.:11,14,19 |
Color | White or light yellow |
Dimensions | Inner diameter:45mm,Outer diameter:140mm, Height:180mm(11 plates),220mm(14 plates),280mm(19 plates) |
Details Show
Relateive Products
In order to recommend proper products to you, please tell me your information below:
1. How many plates you need ? -- The standard plates is 11plates, 4-20plates optional
2. Do you need the mounting bracket ?-- It is optional, the mounting bracket is made of 304SS

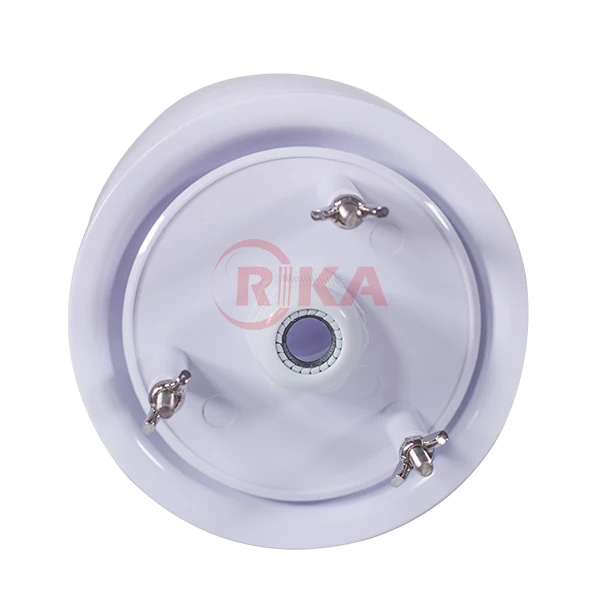

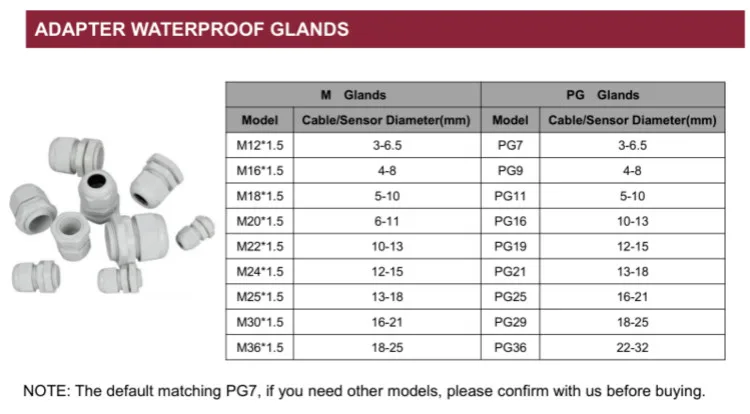

3. What connector you need ? -- The standard connector is PG7 for the sensor with dia of 3-6.5mm, please confirm it according to your sensors’ diameter.
4. Quantity?
5. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calculation.
6. Your complete company name,address, post code,contact person, tel, fax etc.
.
Relative Products
solar radiation shield |
RK95-02A solar radiation shield |  95-02B solar radiation shield |
|  Multi-Plate Radiation Shield |
|
Testimonial
Applications
Our factory show
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service ?
A: Yes, we can offer OEM service and design the logo marking for you . But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples ?
A: Sorry , we do not offer free samples .
Q: What payment ways do you accept ?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time ?
A: It is in 6-8 working days since the payment confirmed . If quantity more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service ?
A: Our service is free exchange within one month and 18 months`quality guarantee
Q: Could we make a visit to your factory ?
A: Yes, you are welcomed . But before that ,we will do the visiting investigation.
