Product Overview
Description

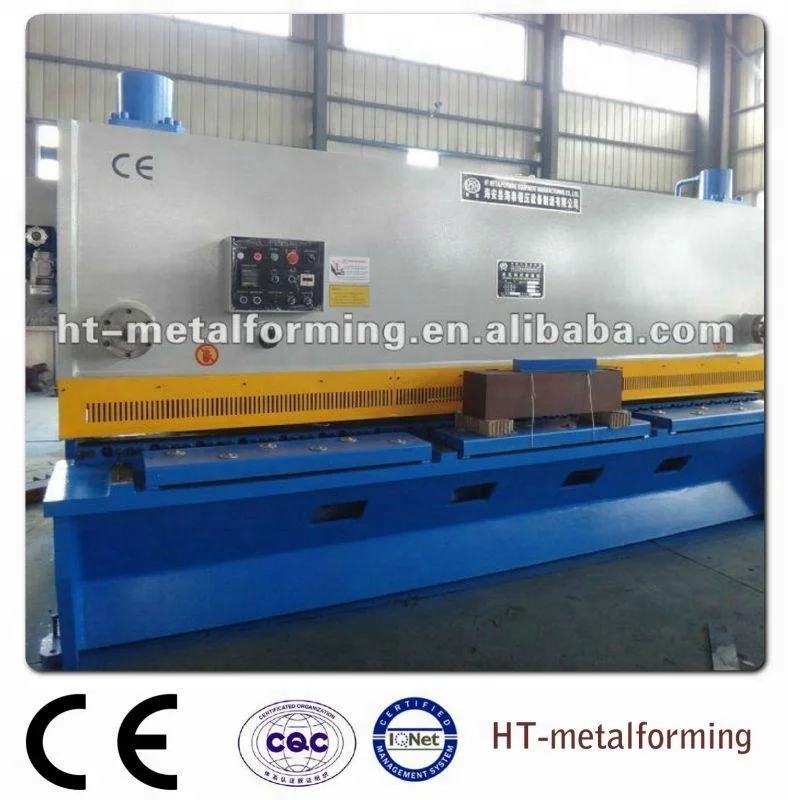

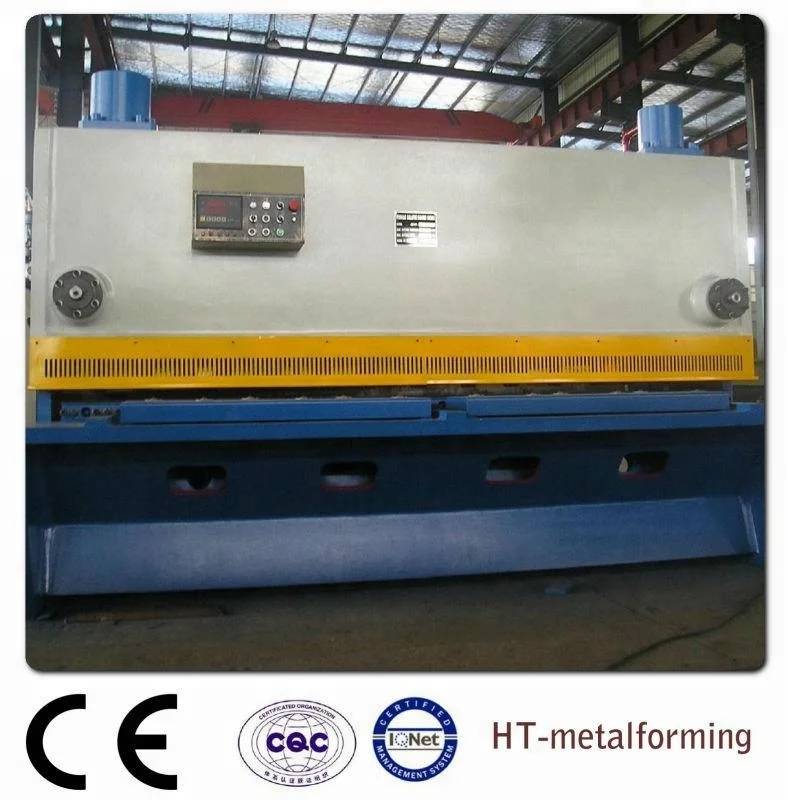

Hydraulic Plate Guillotine Shearing Machine
Functions and Characteristics:
1. | Swiss CYBELEC 61G special-purpose system controls back gauge moving forward and backward. |
2. | Back gauge equipped with high performance line guide, ball screw and servo motor. |
3. | Blade clearance, shearing angle and shearing length are calculated and controlled automatically by DNC system. |
4. | International famous key electric and hydraulic parts. |
Optional Available:
1.CNC or NC control system.
2.Front light protection.
Sales Issue and Sales Service:
a. | Delivery Time | 25-30 days after receiving deposit or L/C. |
b. | Payment Terms | 30% deposit in advance 70% before shipment, or 100% L/C at sight. |
c. | Guarantee | 14 months after shipment. |
d. | Service | Return air ticket and economic food and hotel should be supplied by customer when needs training or installing. |

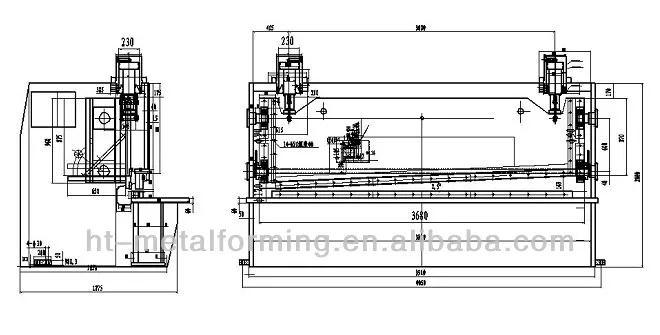

Plate Shearing Machine Structure Chart:
Main Technical Data:
| QC11 Serial shearing machine main parameters | ||||
| Specification | 4*2500 | 4*3200 | 4*4000 | 4*6000 |
| shearinf angler | 0.5-1.5° | 0.5-1.5° | 0.5-1.5° | 0.5-1.5° |
| strokes | 10`22 | 8`18 | 7`15 | 4`10 |
| shearing width | 2500 | 3200 | 4000 | 6000 |
| backgauge range | 0-500 | 0-500 | 0-500 | 0-600 |
| main motor power | 5.5 | 5.5 | 5.5 | 7.5 |
| depth of throat | 120 | 120 | 120 | 120 |
| overall dimensions | 305*145*185 | 370*160*190 | 450*160*200 | 680*175*231 |
