Description


♣. With outstanding flexibility and extremely strong structure, F series speaker widely used as high-quality loudspeaker in various amplification occasions.
♣. High Smooth frequency response and stirring dynamic sound performance.
♣. Classic ergonomic cabinet design, small, multi-angle, very convenient to hang up, all of these make the construction of large PA system efficient and stable .
♣. Our order have gained Alibaba trade assurance,on-line shippment and quality can be guaranteed by Alibaba.com .
Application:
1) Hall PA system
2) Theater, auditorium
3) Club, DISCO
4) Mobile shows

| Product Name | XL-F12 empty speaker cabinet 12" nexo subwoofer audio speaker | |||

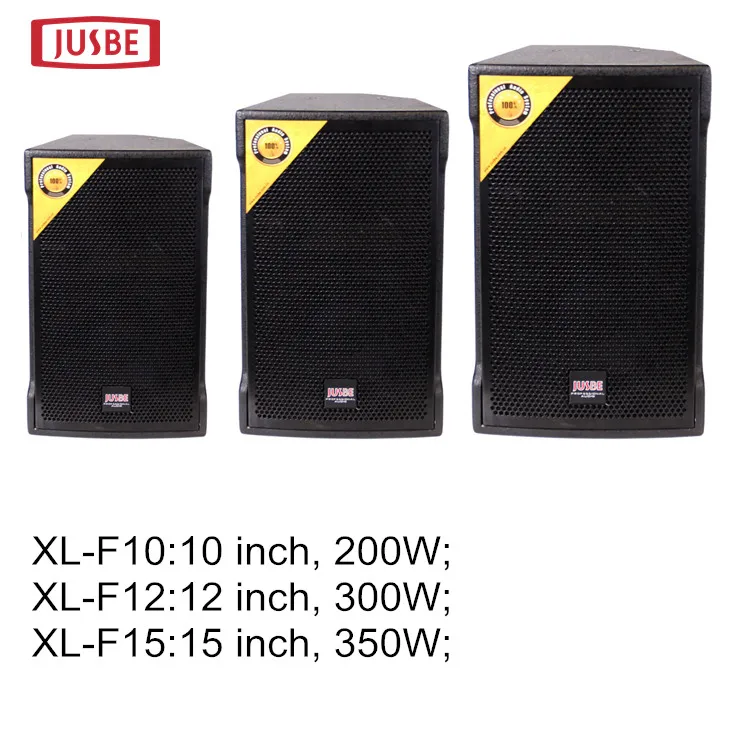

Item No. | XL-F10 | XL-F12 | XL-F15 | XL-GF15 |
Raterd Power | 200W | 300W | 350W | 400W |
| Max Input Power | 400W | 600W | 700W | 800W |
| Impedance | 8Ω | |||
| Frequency Response | 50Hz-20KHz | 55Hz-19.7KHz | 45Hz-20KHz | 35Hz-19KHz |
| System Type | 10 inch, two channel, two unit, full-frequency | 12 inch, two channel, two unit, full-frequency | 15 inch, two channel, two unit, full-frequency | 15 inch, two channel, two unit, full-frequency |

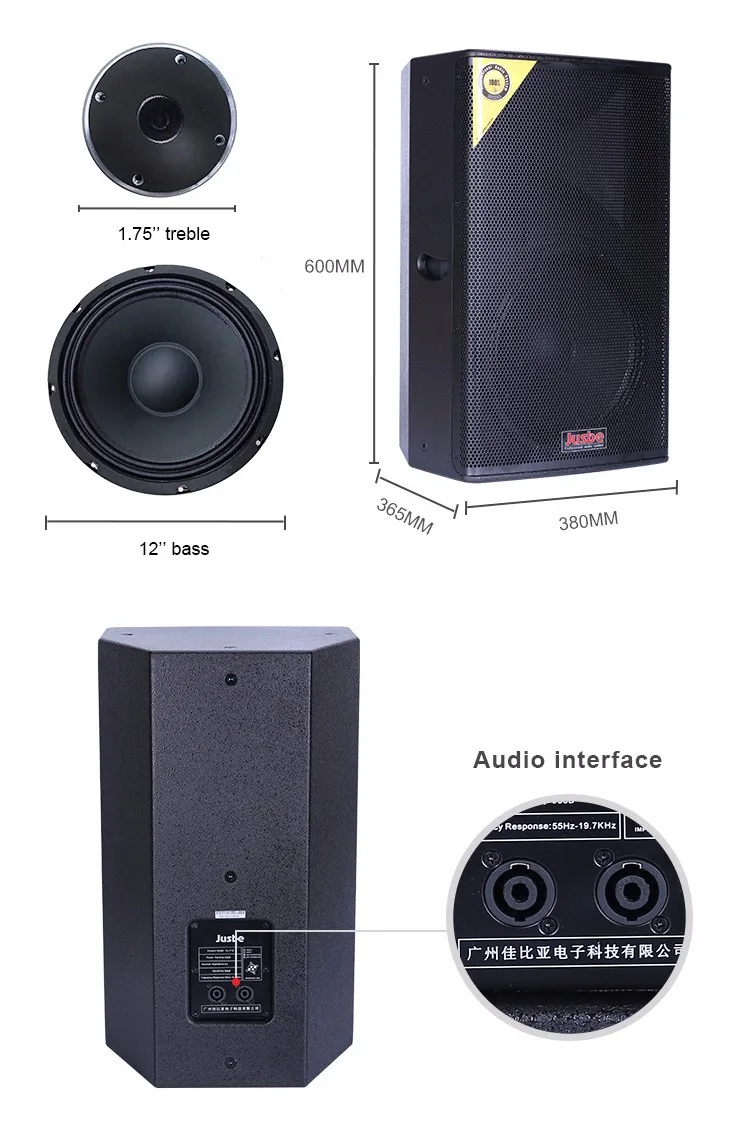

| Tweeter Unit | 1.5 inch tweeter * 1 | 1.75 inch tweeter * 1 | 1.75 inch tweeter * 1 | 3 inch tweeter * 1 |
| Woofer Unit | 10 inch woofer* 1 | 12 inch woofer* 1 | 15 inch woofer* 1 | 15 inch woofer* 1 |
| Standard coverage angle | 90°(H) * 50°(W) | |||
| Max SPL | 125dB | 127dB | 129dB | 132dB |
| Sensitivity(1W/1m) | 96dB/W(1m) | 98dB/W(1m) | 99dB/W(1m) | 102dB/W(1m) |

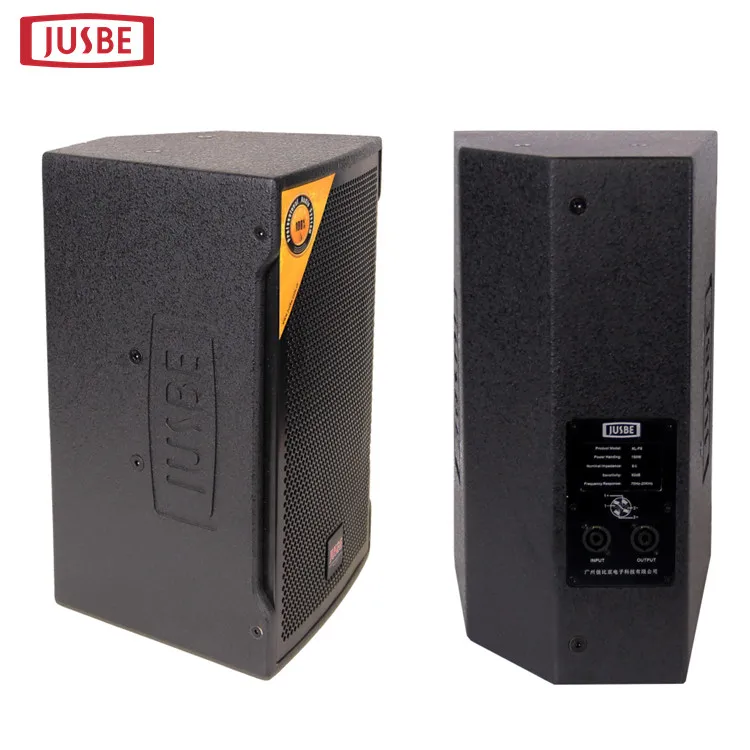

| Connector | SPEAKON NL4*1 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs) | |||
| Suspension Hardware | 10*M8 suspension point, base | |||
| Material | plywood | 18mm plywood | ||
| Surface treatment | environmental protection water based paint | |||
| Color | Black | |||
| Product Size(mm/pc W*D*H ) | 330*330*530 | 380*365*600 | 430*450*670 | 430*450*670 |
| Net Weight | 18KG | 24KG | 30KG | 30KG |

China Jusbe Electronic Technology Co. Ltd. Is a leading manufacturer, exporter and supply chain service provider on professional audio system including amplifier, speakers, microphone, line array series, peripheral equipment, mixer, etc.. The products widely used in teaching, conference, KTV, auditorium, stadium and other amplification occasions.
We believe “Customers’ success is our success, and our success is customers’ success”. It will be our greater honor to serve you. Hope we can build up mutual business cooperation in the nearest future.

1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
4.Q:How can I get some samples?
A: We are honored to offer samples to you. If you need, please send a inquiry to us
