Jiaxing Gates Hardware Products Co., Ltd. is a professional manufacturer of Gates Hardware since 2010. Our products are mainly used for Sliding Gates, Swing gates, Cantilever Gates, Wooden Gates & Industrial Doors. Such as sliding gate wheels, nylon rollers, brackets, latches, guide wheels, ground tracks, hinges, door stoppers, etc. We have been working in this industry for more than 10 years. We have a splendid capital strength that enable us to equip with advanced technology and engage professional technicians. In order to meet customers’ demand, we continuously develop new products, so we could offer not only the existing items, but also as per clients’ drawings, samples or idea.

We are growing very fast based on the respect of quality standard, perfect service, fast delivery and continuous innovation. Our products have been covering over 40 countries & area , like Australia, New Zealand, Poland, Hungary, Slovakia, France, UK, Russia, USA, Argentina, India, etc. And always attain good reputation from our customers.

Product Description

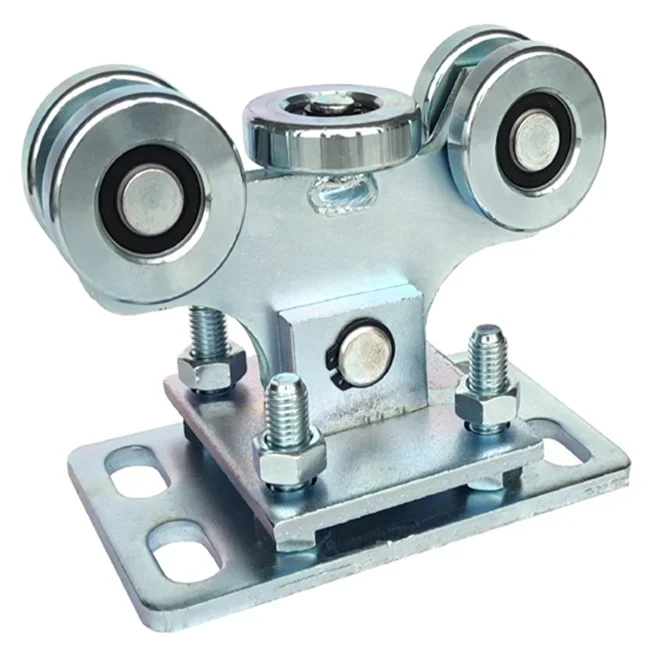

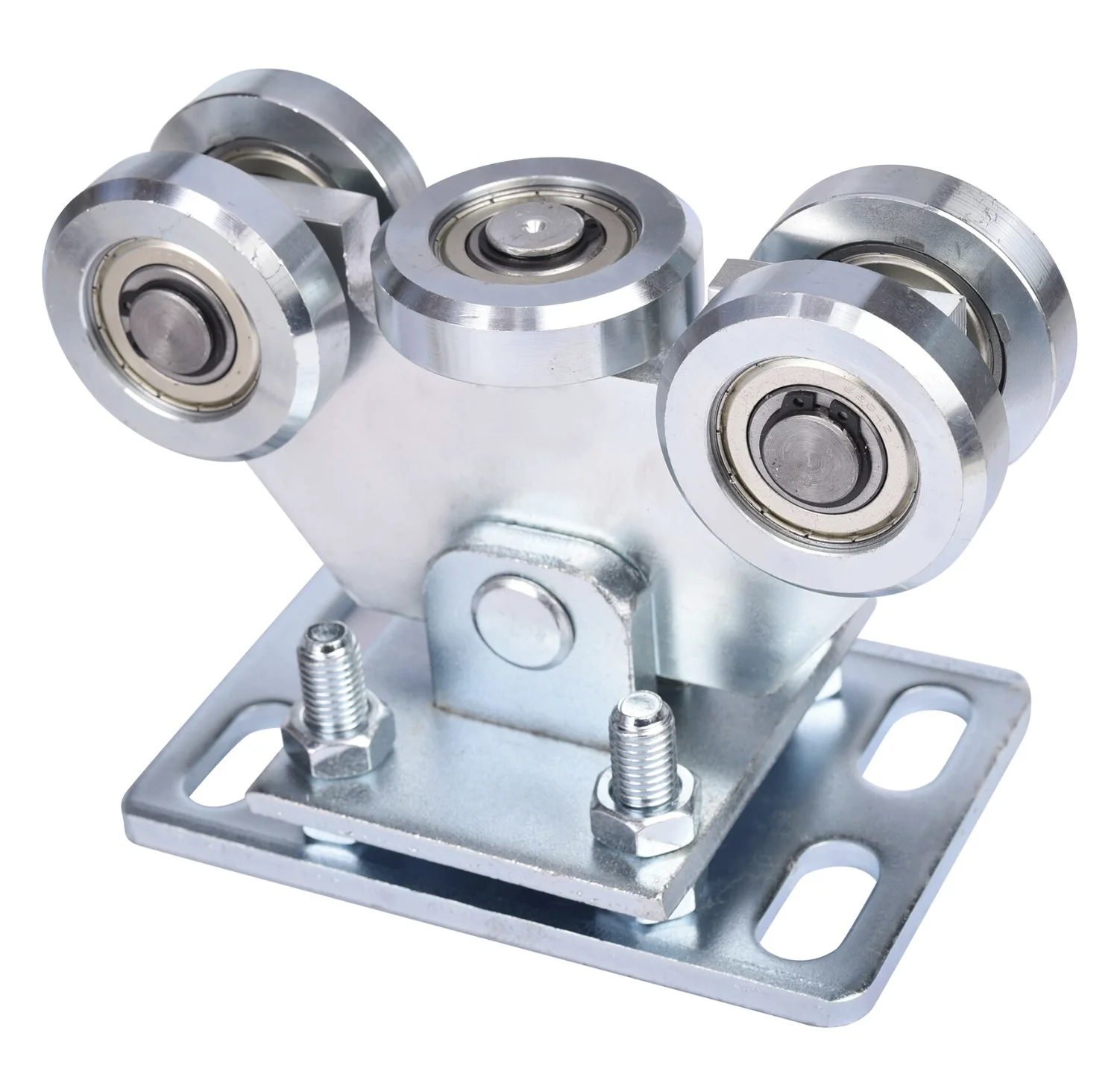

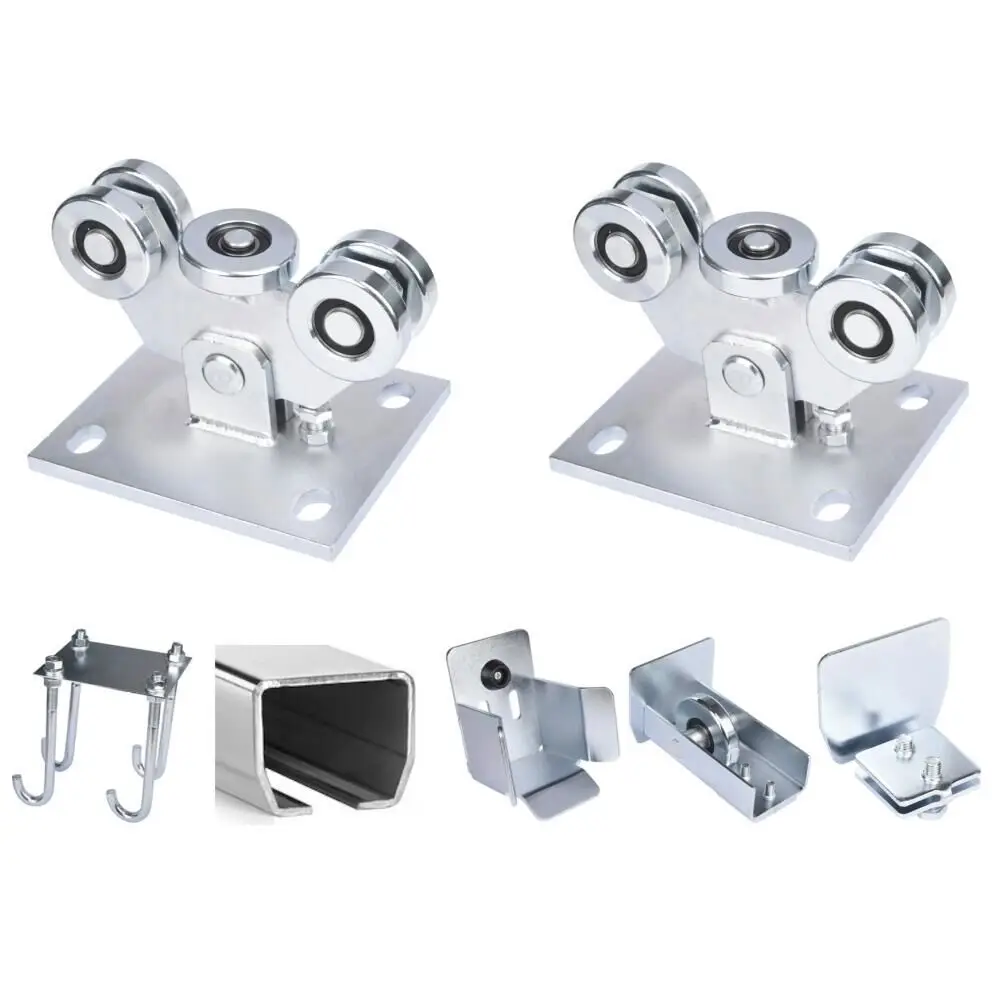

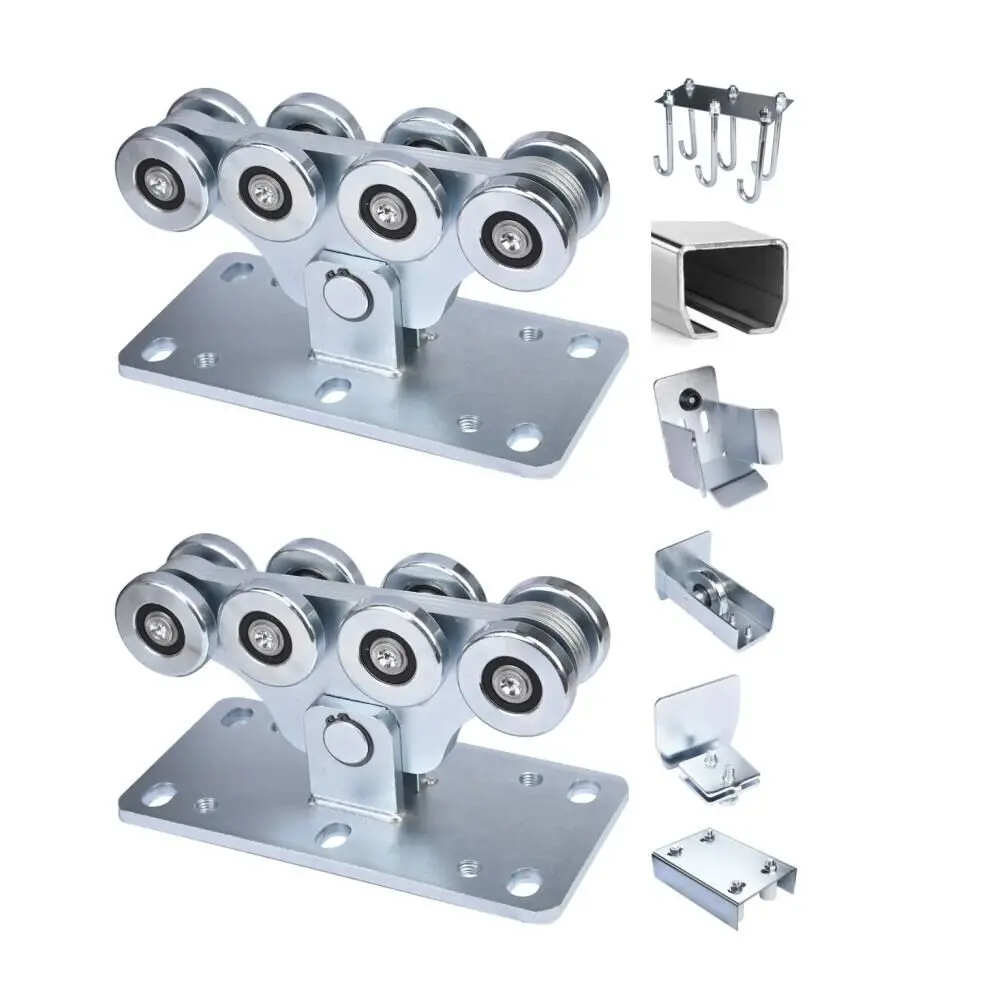

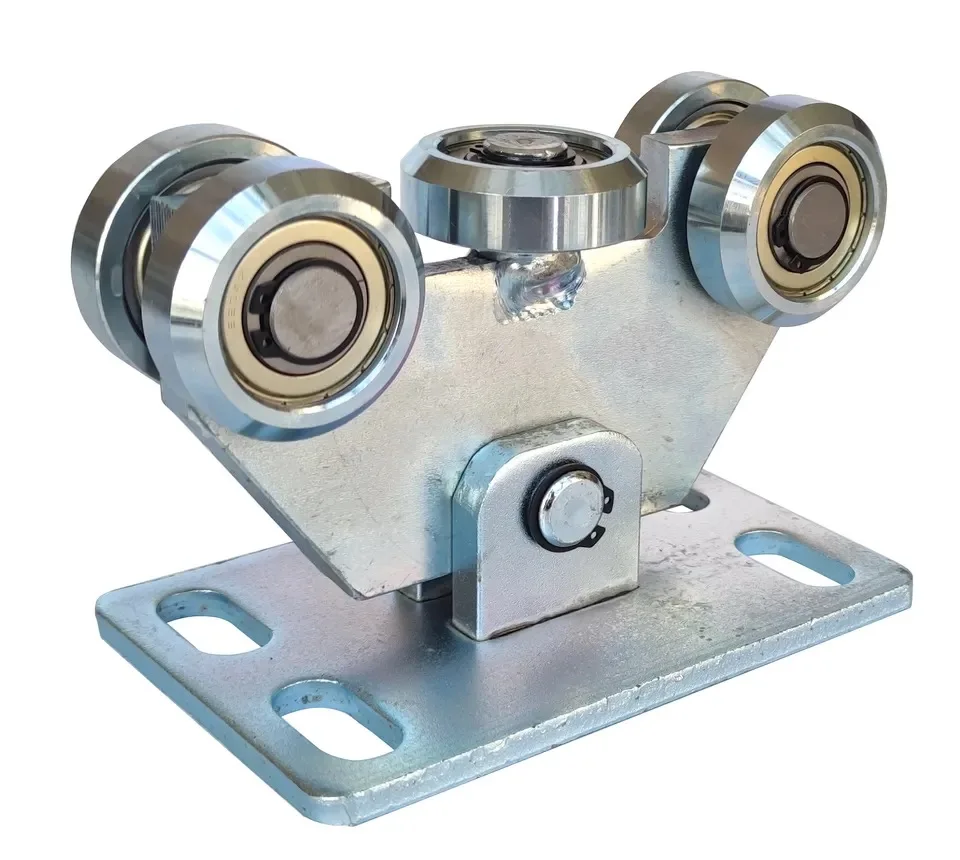

Cantilever Gate Wheel,

made of Q235 steel,

used for Cantilever Gates,

finished with zinc plated, the color can be white or yellow.

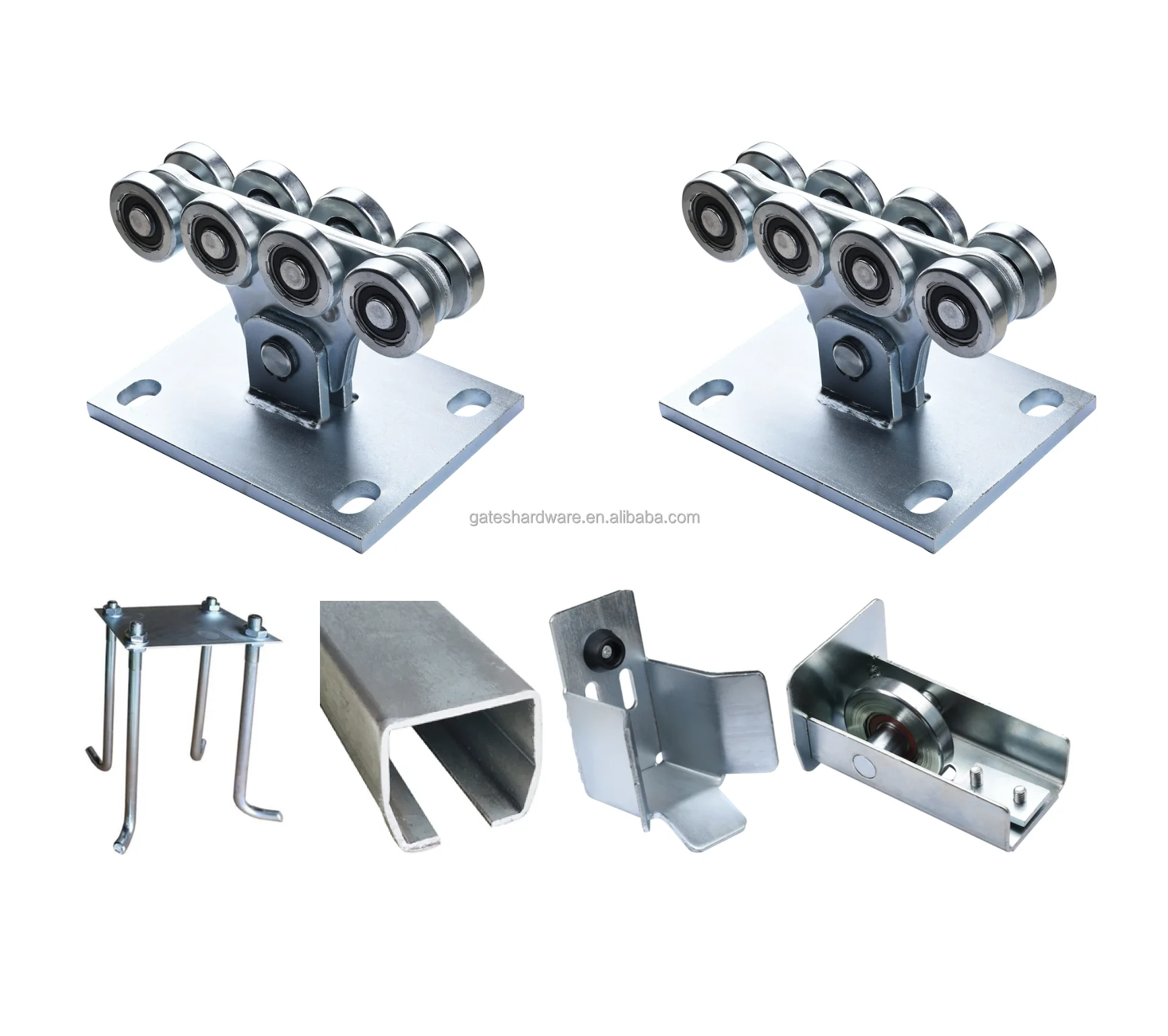

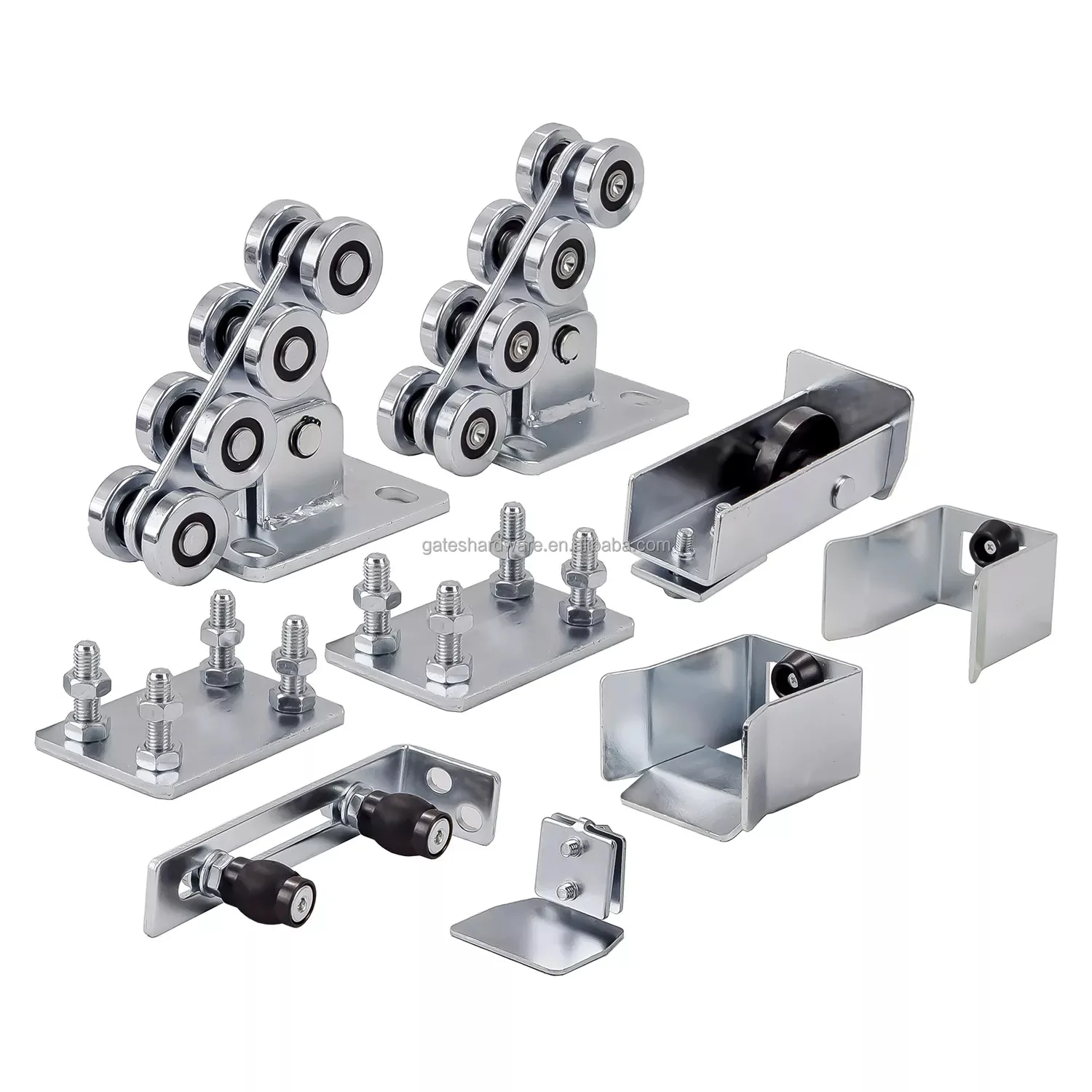

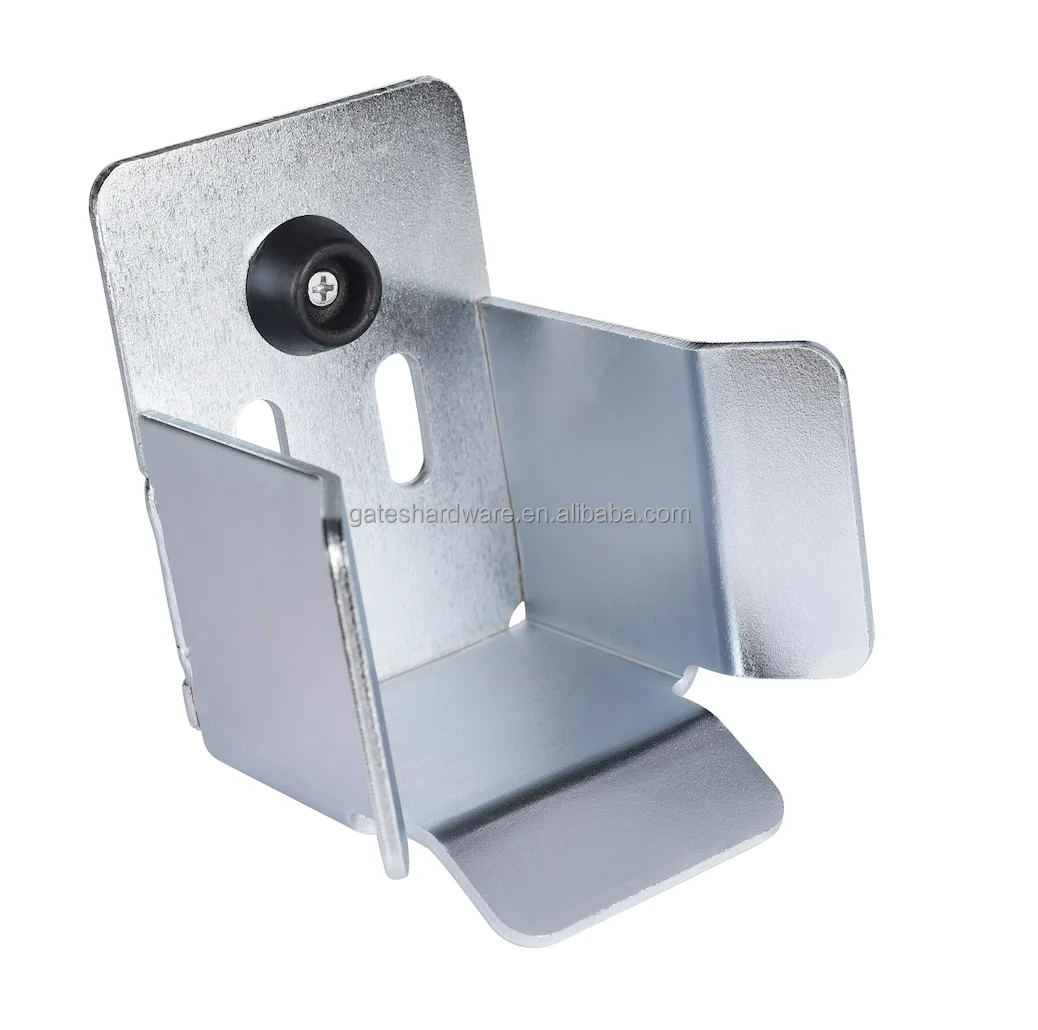

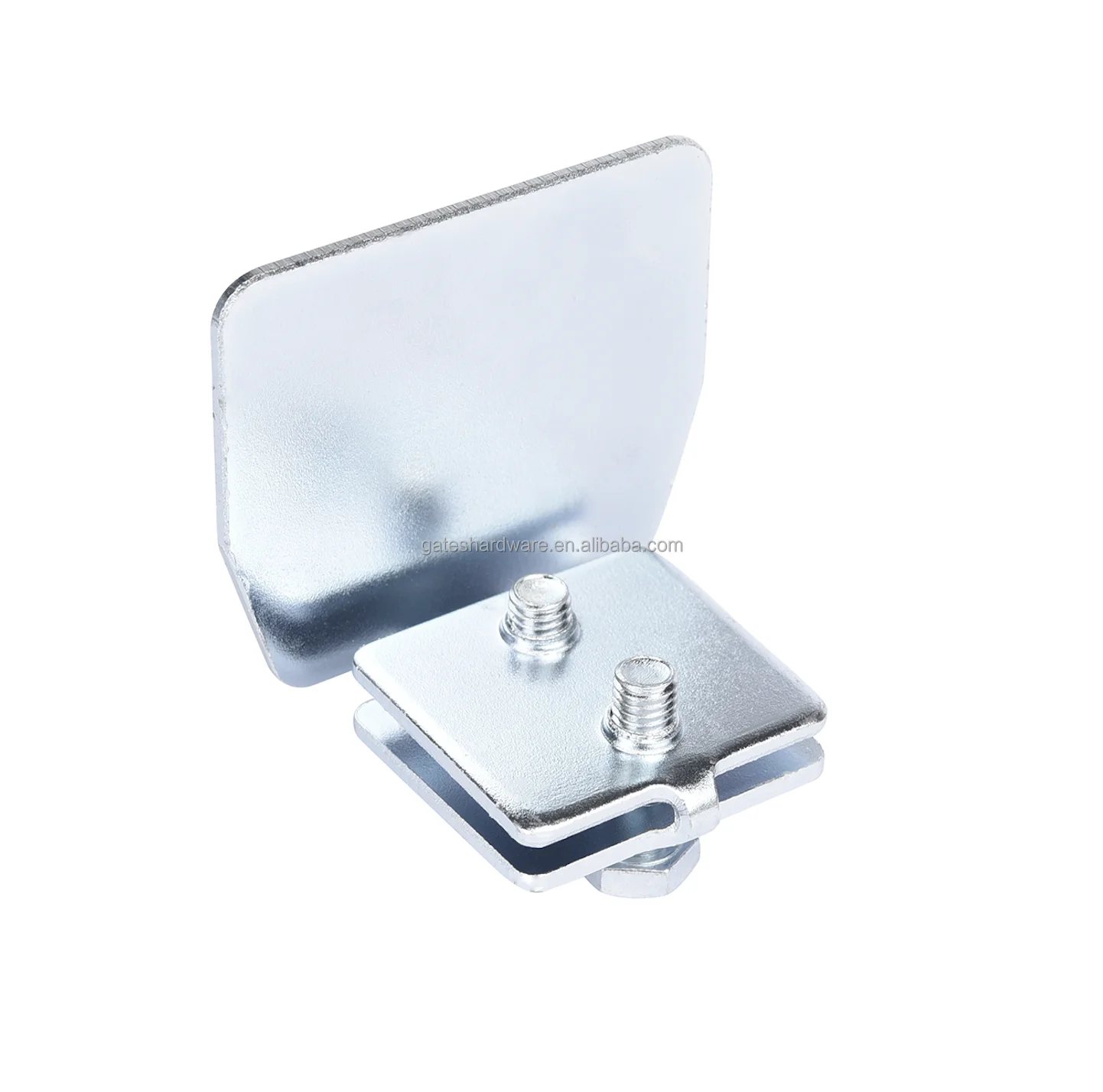

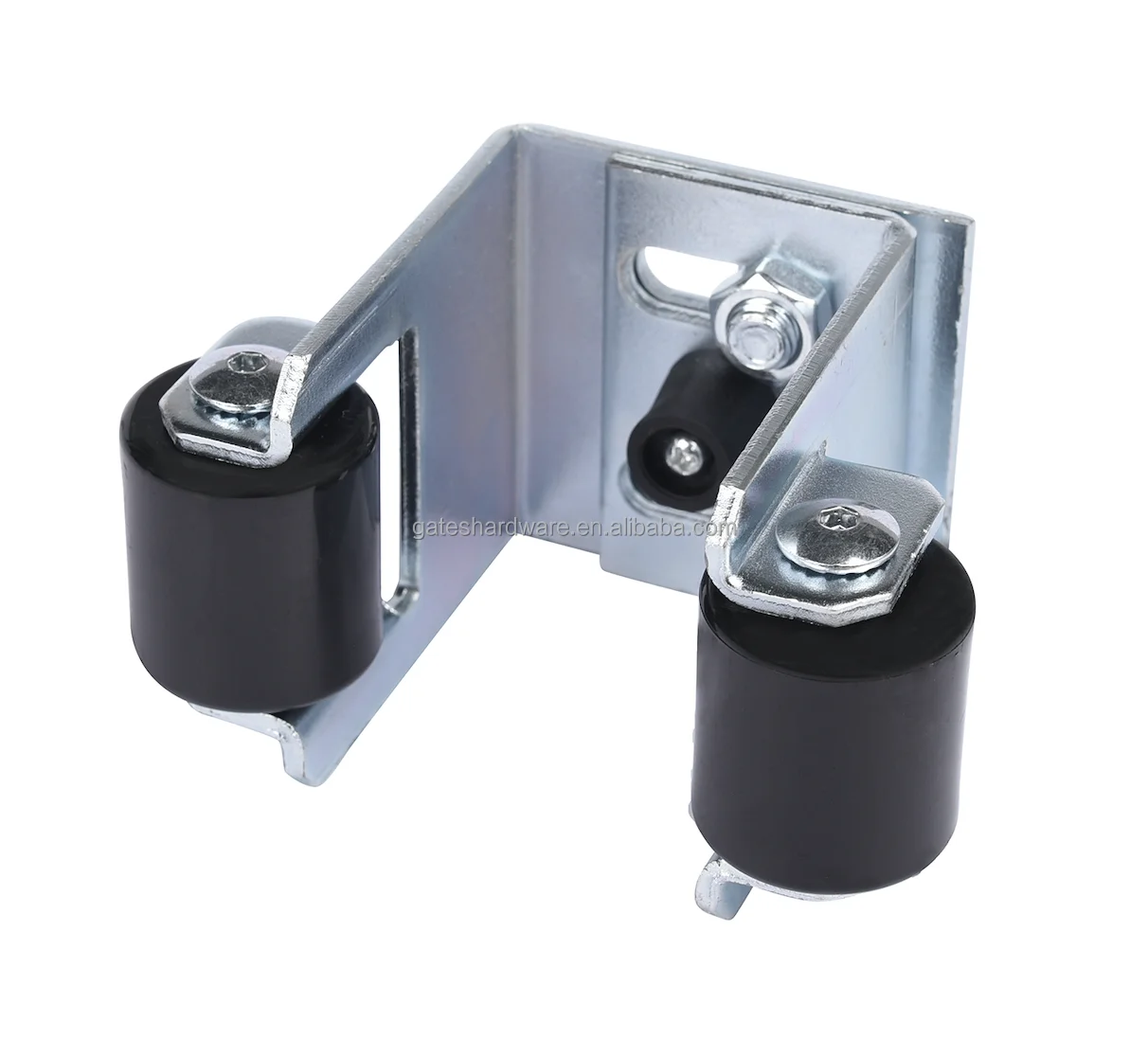

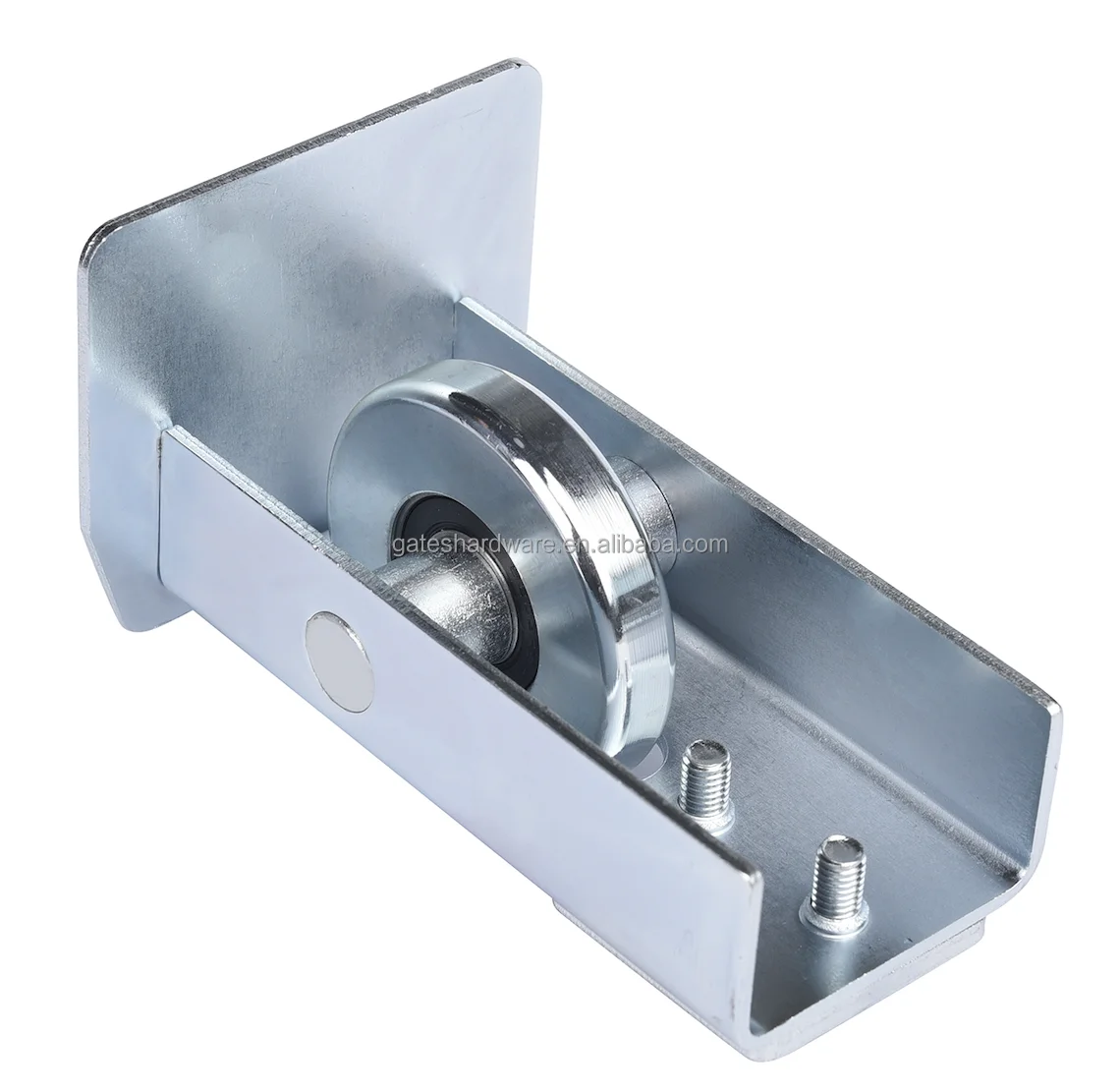

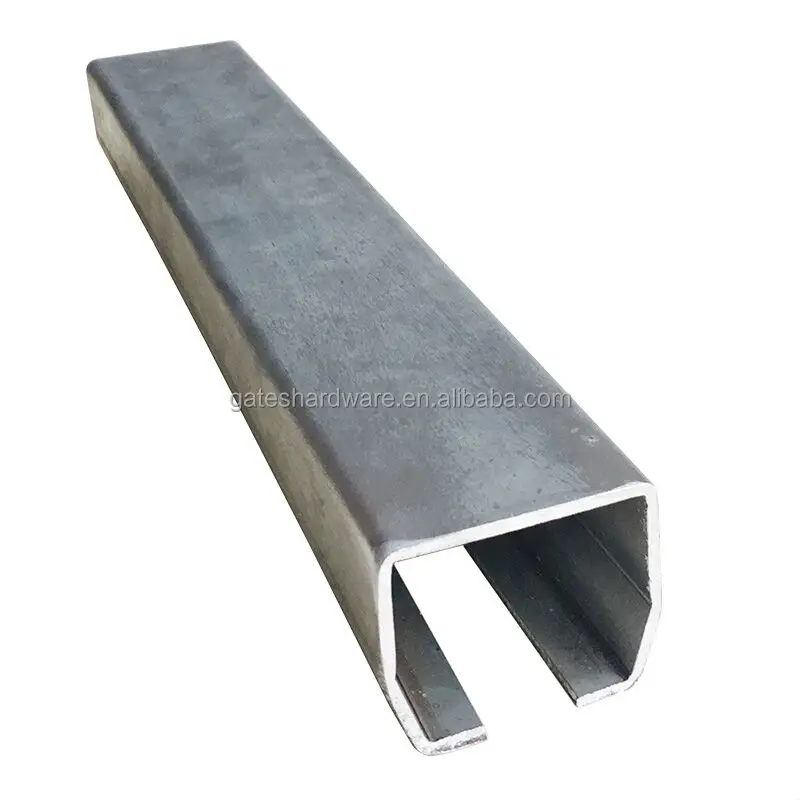

it normally works with Channel, Guide Wheel, End Stop and Channel End Cap.

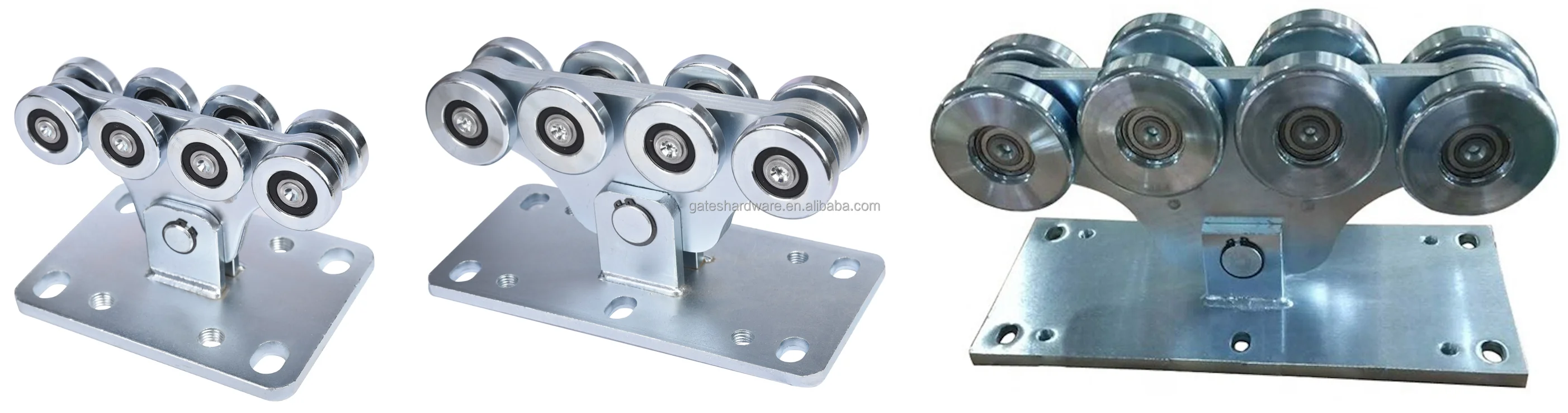

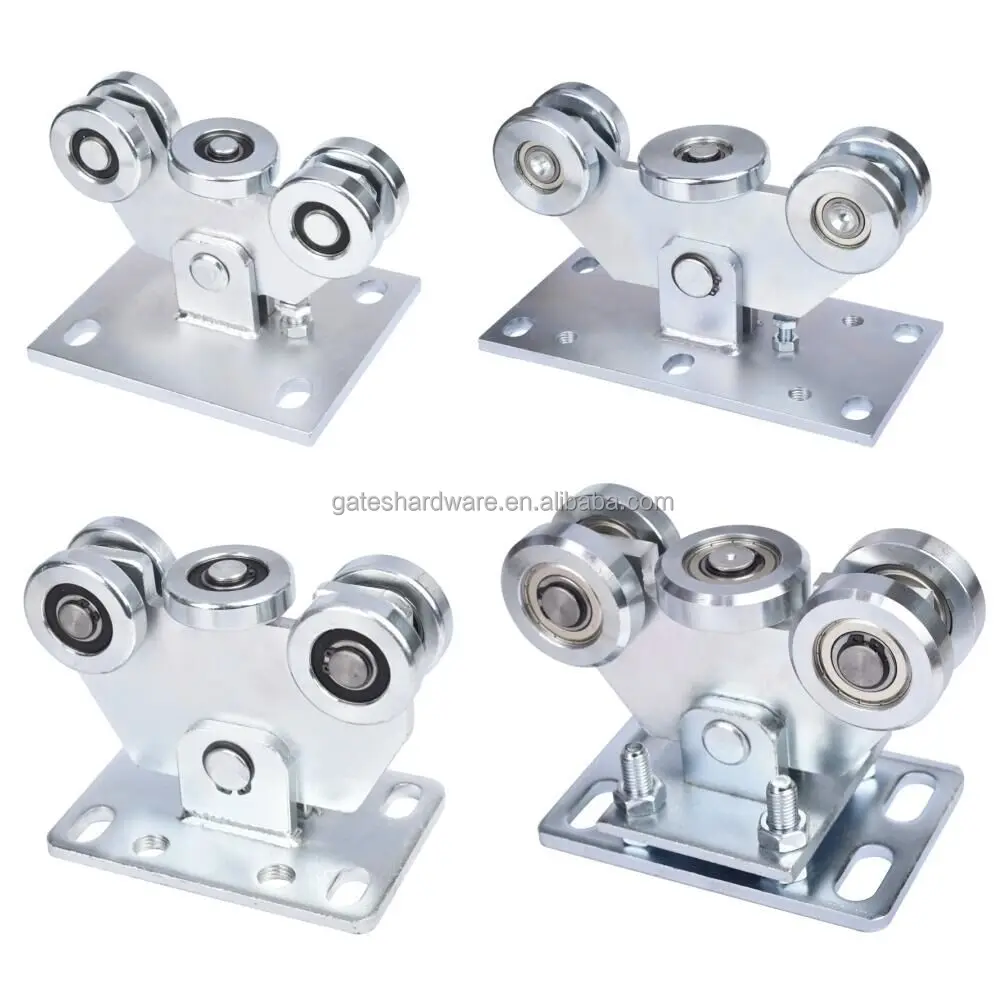

We have small, medium and large size.

We also make products for sliding gates, swing gates & industrial doors.

Warmly welcome you to send us inquiry !

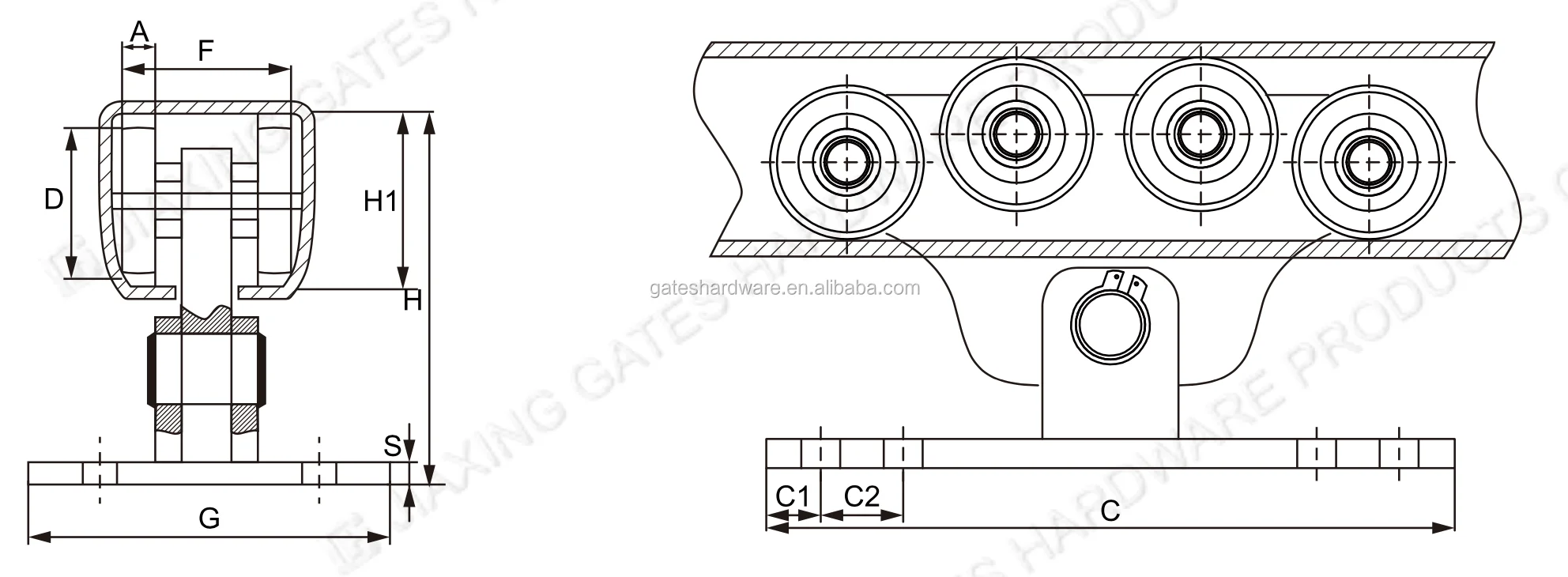

Product Code	D	A	H	H1	S	F	G	C	C1	C2	Loading Capacity	Compatible Track	Weight (kg)
CW-8S	48	12.5	140	52.5	10	51	140	190	20	/	400	GIPI8RS(Z)	4.7
CW-8M	68	15	162	74	10	72	150	300	25	35	600	GIPI8RM(Z)	11
CW-8G	113	30	260	129	15	103	200	470	25	35	1200	GIPI8RG(Z)	36.5

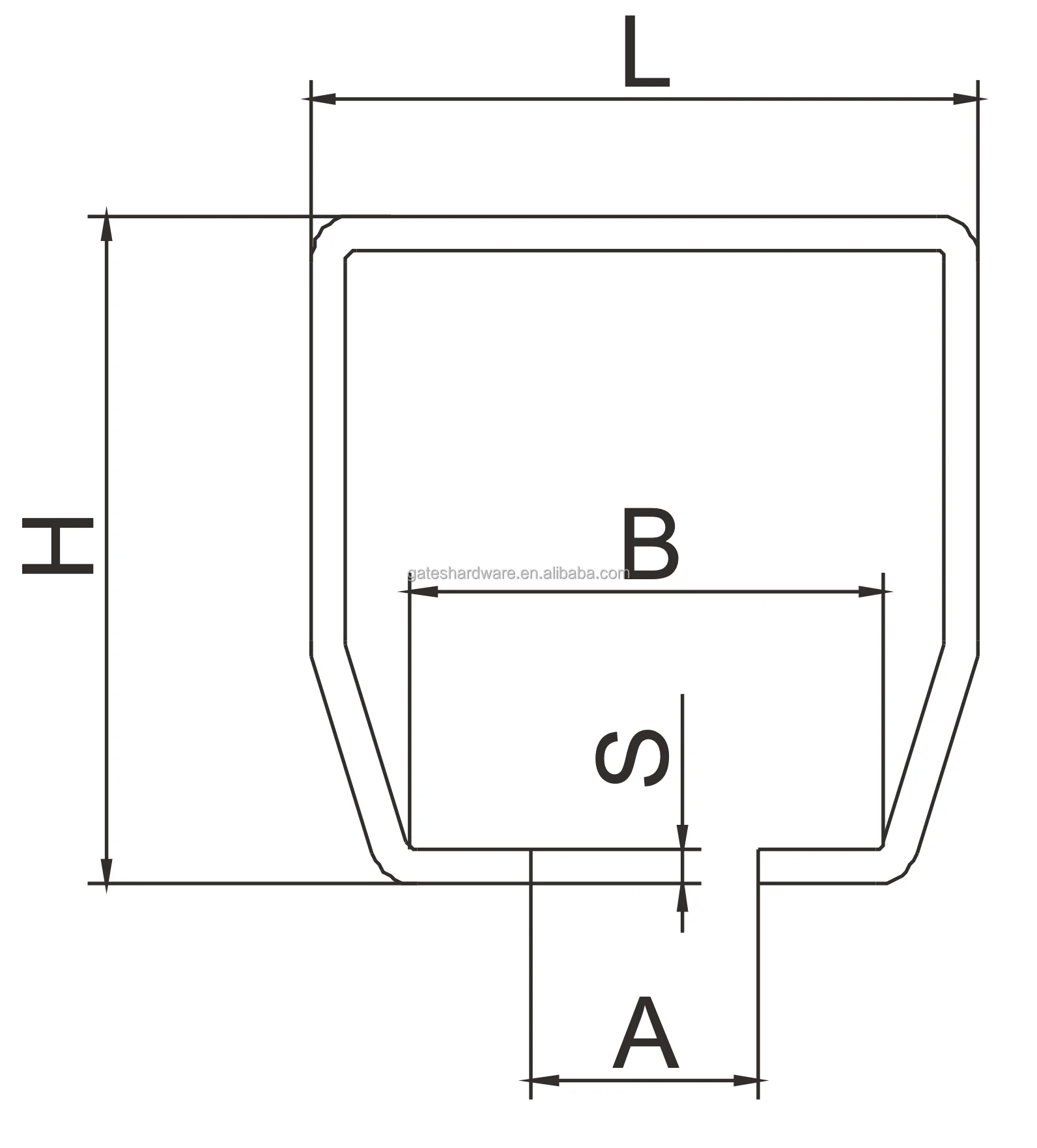

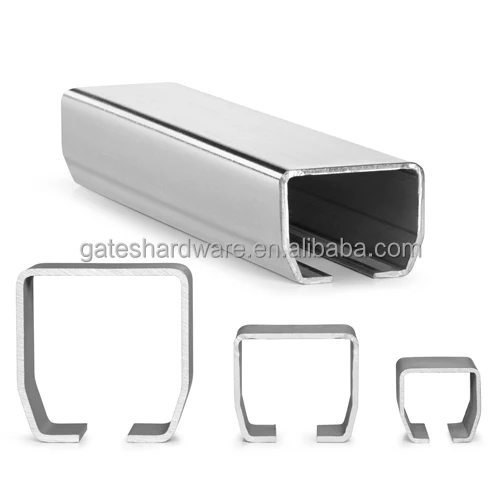

Code	Compatible Wheel	L (mm)	H (mm)	A (mm)	B (mm)	S (mm)
GIPI8RS(Z)	CW-8S	70	60	22	52	3.5
GIPI8RM(Z)	CW-8M	94	85	33	73	5
GIPI8RG(Z)	CW-8G	136	142	38	104	6
