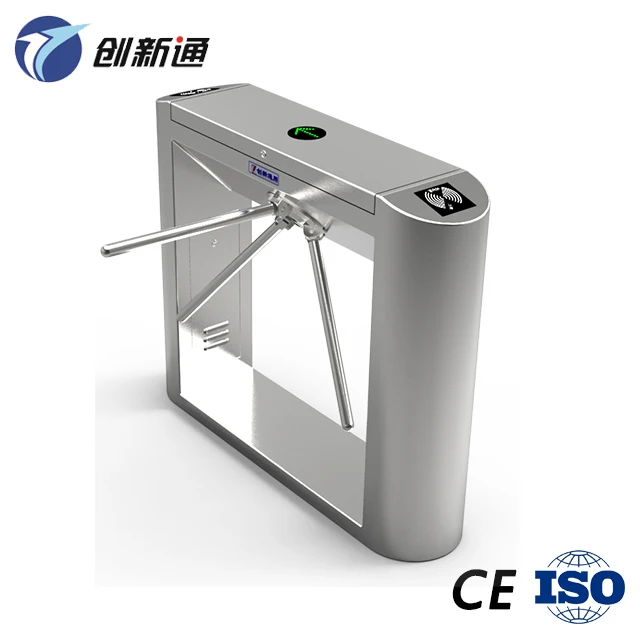

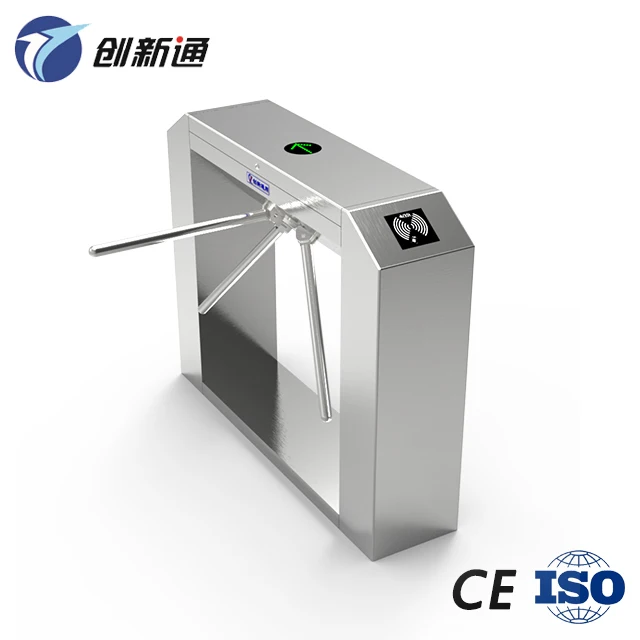

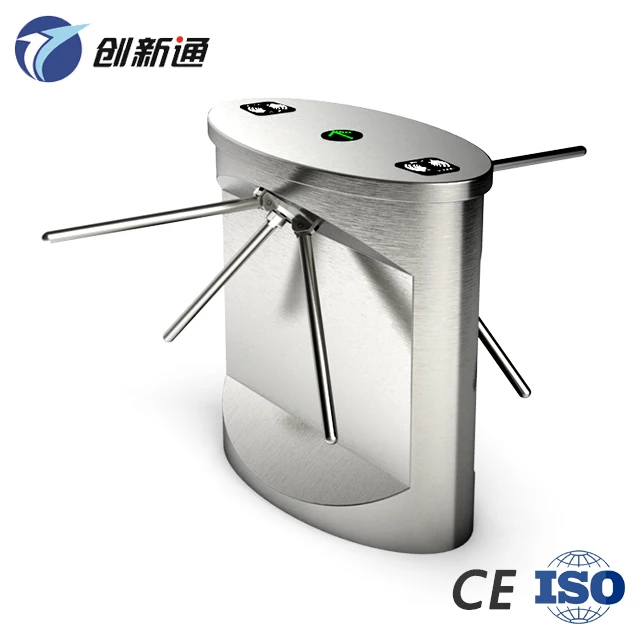

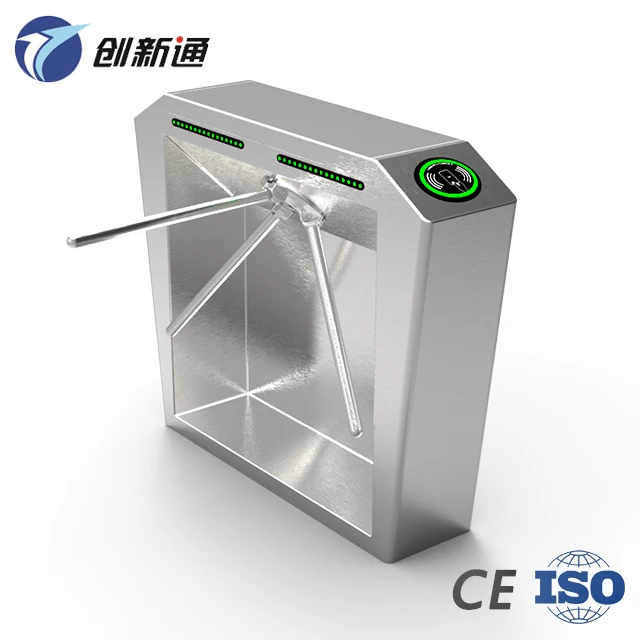

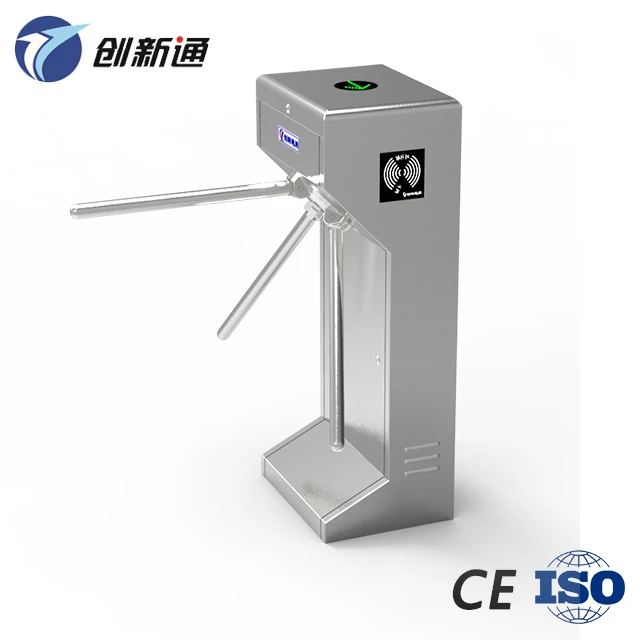

Turnstile Motor with Access Control System Tripod Turnstile Mechanism
Product Description

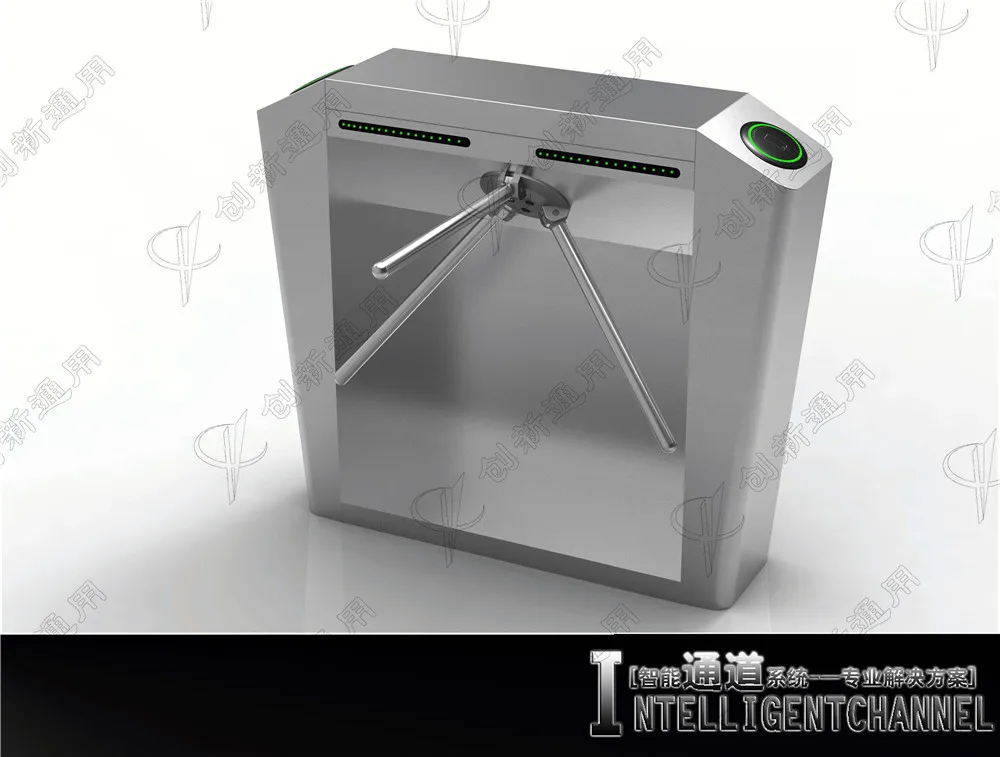

Tripod Turnstile Sportlight: 1.Adopt Brush-less motor,it has longer lifespan. 2.Adopt ARM control technology, merits for stronger function and better expand-ability. 3.Modular design, the structure is simpler and easier to maintain. 4.Better buffer effect, greatly prevent collision and human injuries; 5.With timely reverse push force will fright illegible intruder. 6.Merits for smooth running,speed adjustable and low wear. 7.Higher cost effective( high end performance and affordable price)
Tripod Turnstile Technical Parameter: 1.Housing material: Stainless steel 304 2.Dimension:Width280*Length1200*Height980mm 3.Weight:About 70kg 4.Pole length:510mm 5.Pole maximum force:80kg 6.Pole working force :3KG 7.Pole rotation: one-way and two-way 8.Working movement:12V/20W DC motor 9.Working environment: Indoor and outdoor(canopy is suggested) 10.Suitable Temperature: -40℃ ~ 80℃ 11.Emergency measure: Pole falling when power off 12.Gate opening time:0.2s 13.Standard input interface: Relay switch signal
Tripod Turnstile Main Function: 1.Equipped with standard card read window, can be connect with multi card-readdevice 2.Tripod turnstile with function of break down self check and alarm,easy maintenance and operation. 3.can be controlled by external button or remote control. Can set one or bi-direction passing at will 4.Auto reset function. 5.LED indicator light :green and red indicate the passing information 6.Anti-follow function,Anti buffering function,Anti-reverse,anti-pinch. 7.Alarm prompt function: Sending out alarm when has illegal intruder or crash. 8.Gate auto open when power is off to meet the fire protection requirements. 9.Memory function:fast access.accurate signal memory, continuous to receive many times the legitimate signal, after the last man detected by automatic reset. 10.The pole will Auto drop when power is off, auto raising when power is on. 11.Dynamic prompt:When receiving legitimate open-gate signal,tripod turnstile arms move forward about 5 degree,and rotate mutely with a soft touch to the reset point.
Company Information

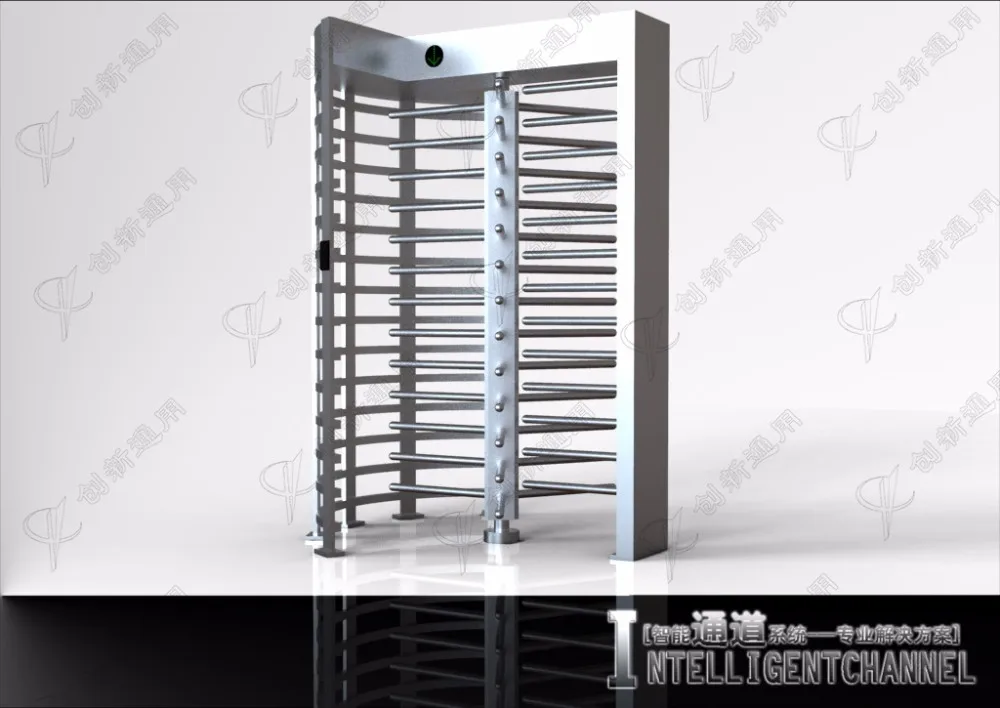

Founded in 2006, CXT Co.,Ltd. Is a national new hi-tech enterprise, Integrating R&D, production, sales and service in one.We manufacture turnstiles specifically to your needs for access control, enhanced security, campus safety management, Scenic Spots fare collection,access attendance management, traffic control,Special industry(Prison,Banks) entry and exit control etc. We specialized in constructing waist-high and full high turnstiles and other security solutions, including custom projects.
