embossing paper die cutting machine industrial paper cutting machines

Product Overview

Description

 automatic die cutting and creasing machine

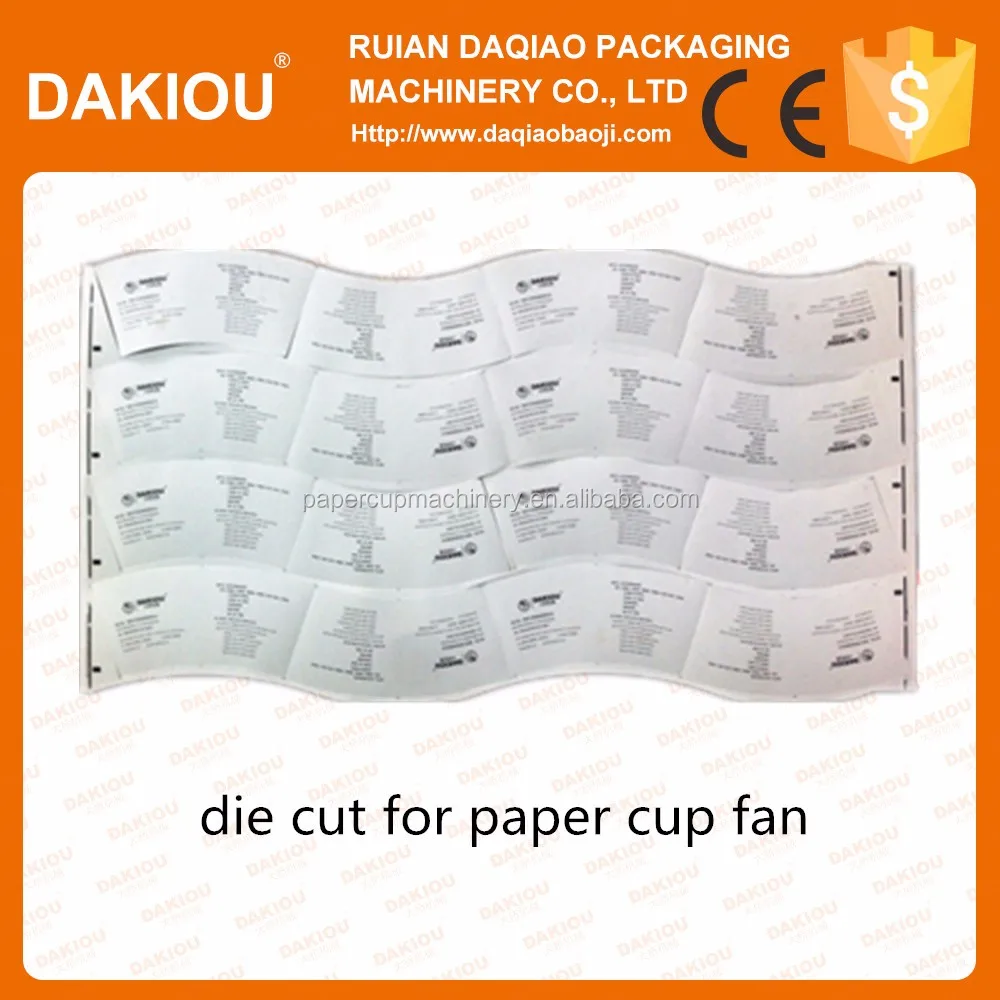

It  is the professional equipment which uses for cutting various kind of popular paper and PE coated paper, be applicable to cup paper, paper box, medical package, wine package and other environmental protection products.

Wooden mold with Knife:



 it adopts micro-computer, human-computer control interface, servo positioning, alternation current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing, so it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing, all the key parts and controls of the machine are imported products and finish machining,

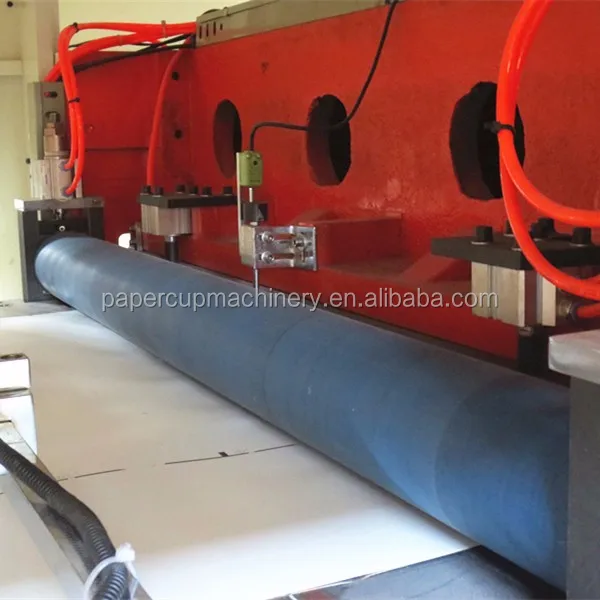

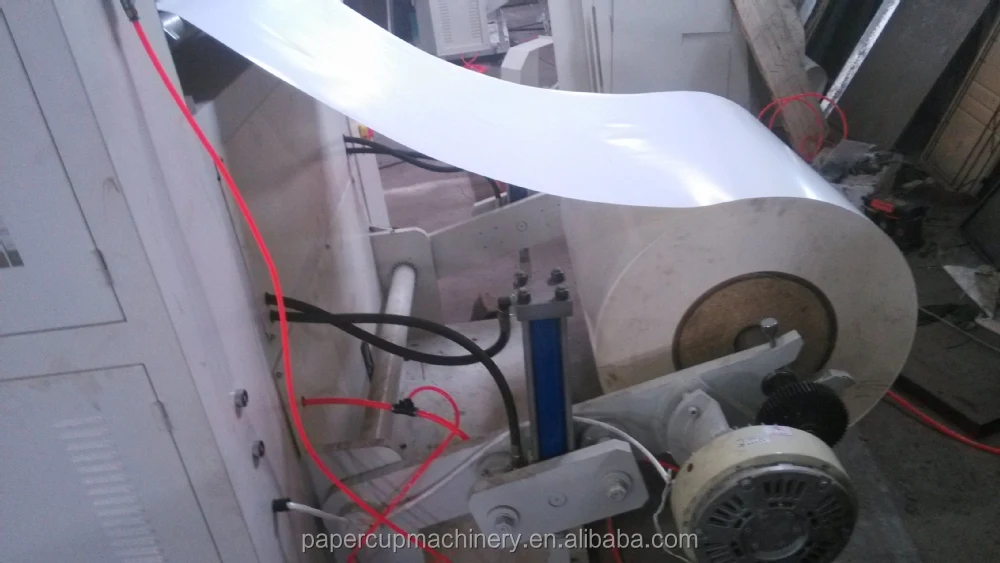

Machine part:

 Technical Data:

MODEL	PY-950	PY-1200
Die-cutting precision	±0.10mm	±0.10mm
Maximum die-cutting size	950*550mm	1200*650mm
Die-cutting rate	90-140 times/minute	80-120 times/minute
Applicable paper type	100-600g/m²	100-600g/m²
Total power of electric machinery	11kw	11kw
Max Die-Cutting Pressure	300T	300T
Overall dimensions(L×W×H)	4100×2000×1850mm	4100×2250×1850mm
Weight	7.5T	9T

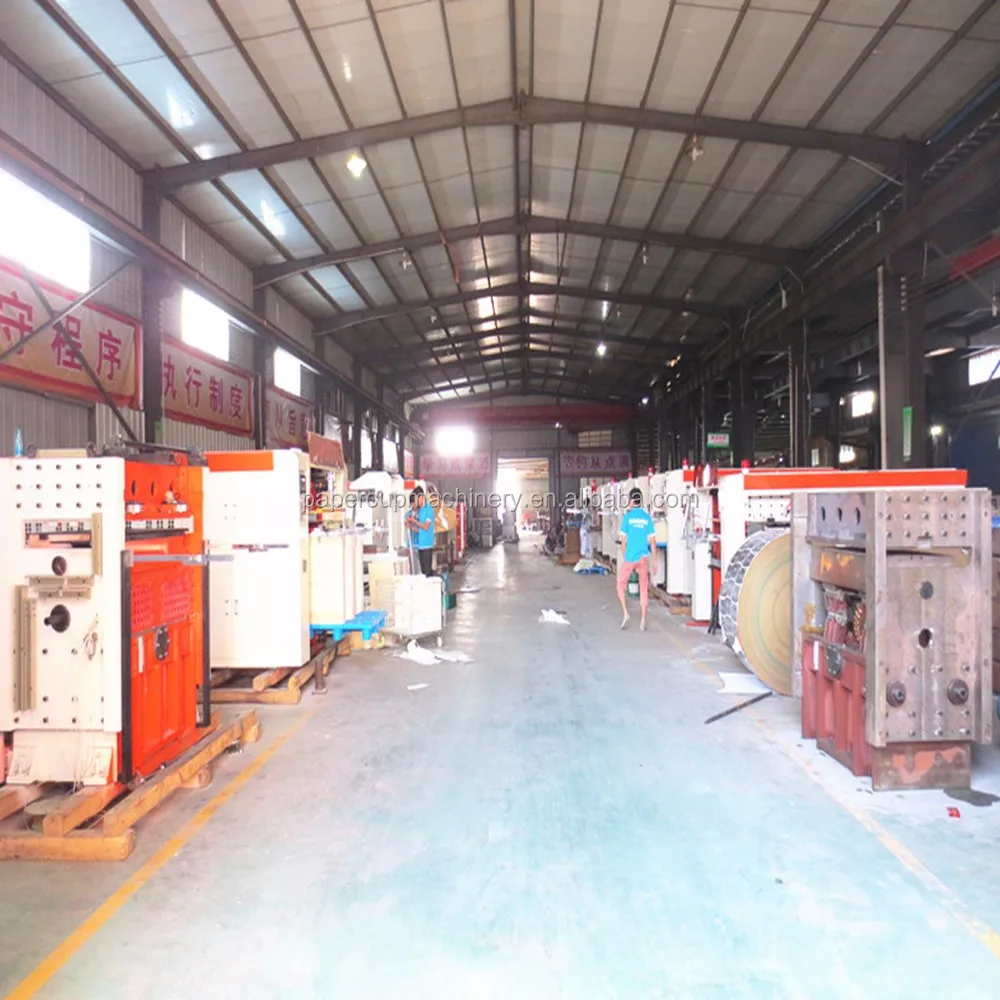

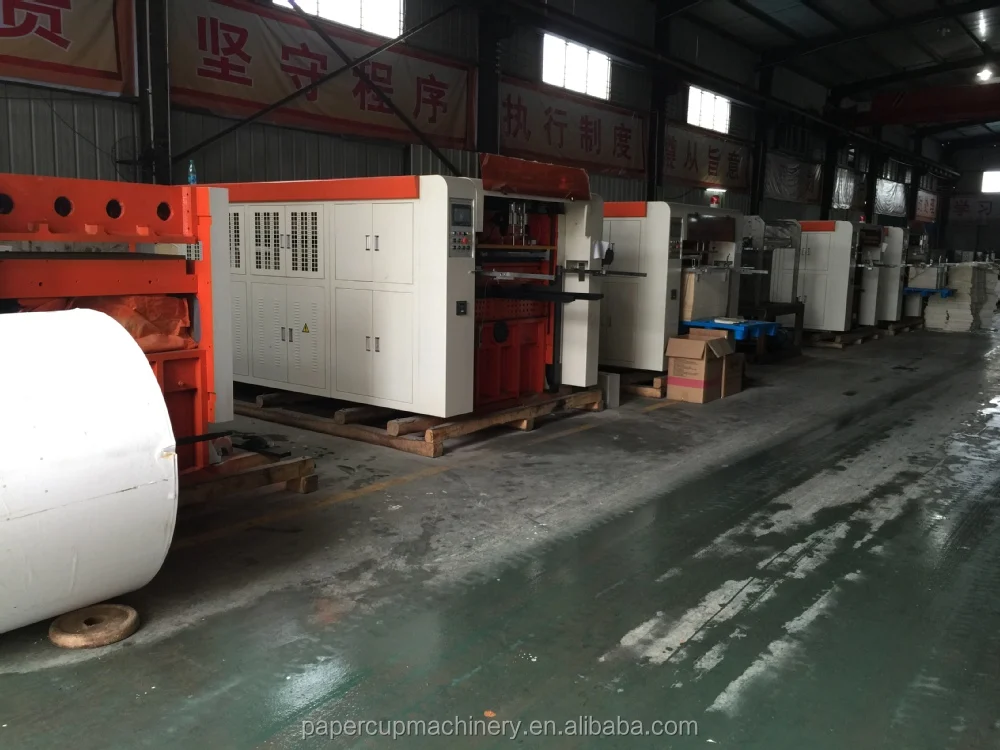

 Company Information

  Package and loading container: Our Services

  Engineers available to service machinery overseas

 1.Q:Are your company a manufacturer or trading company?

A:We are a manufacturer with ten years of exporting experience by own trading company

 2.Q:Where is your factory? How can I get there?

A:Our factory is located in wenzhou City, Zhejiang Province. It takes about one and  a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou international airport first, and then we can send a car to pick up you.

 3.Q:Can your products be customized?

   A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM orders are highly welcome.

  4.Q . how's the delivery time ?
A. Usually it will take about 3-4 weeks for production,all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case
