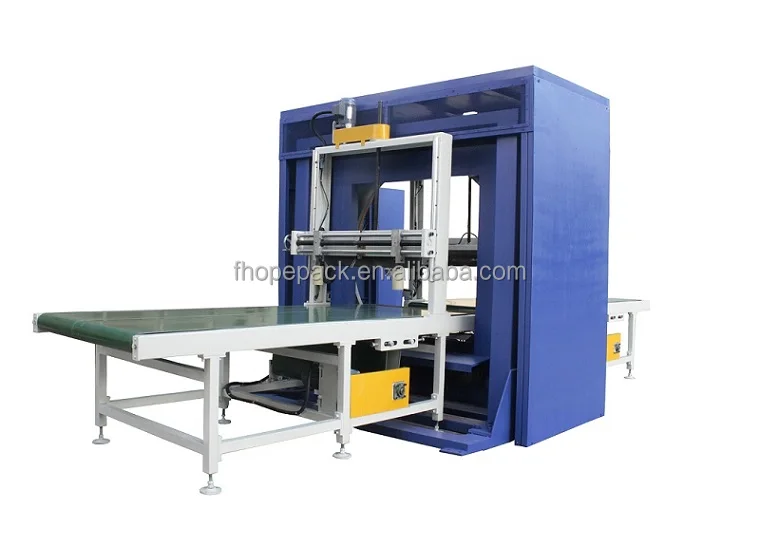

horizontal orbital stretch wrapper, spiral wrapping machine

Product Application

This is master orbital spiral stretch wrapepr and spiral wrapping machine with automatic material cutting and sealing station specialized for packing horizontal objects such as sheets, doors, Floor board, window, furniture… the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping.

Operation

a) Place the products onto the orbital SPIRAL stretch wrapper in-feeding conveyor.
b) Moving the product to wrapping position automatically while sensors detect it
c) Press down device presses the package automatically.
d) Products stop automatically while it at the sealing position.
e) Feeding and cutting packing material automatically.
f) Products go through the wrapper for automatic sealing and wrapping.
g) Place the reinforcing wraps to the tail end of the product.
h) Unloading the packed package.
i) End for circle

Wrapping Station

1) Reinforce aluminum cast-solid ring with strong structure makes steady in wrapping
2) Four-ring & double-PU wheel devices make working more safe stable & energetic.
3) The higher level main board with stronger structure and frame for wrapping.

Conveyor

1) Structure of the conveyor will protect the surface of the product.
2) Automatic infeed conveyor system and outfeed conveyor system.
3) Conveyors driven by motor with gear box.

4) Diferent type conveyors available via package

Control System

1) PLC and program makes machine able to do automatic wrapping according packing goal.
2) Interface HMI operation.
3) Photocell sensor is adopted for setting packing position and it is adjustable.

4)  Wrapping position stop automatically and adjustable on touch screen.

Automatic material cutter

1) Automatic material feeding and cutting device.
2) Automatic material clamping for next wrapping.
3) Sensor and PLC program control.
4) The operation parameter is adjustable.
5)This device makes machine automatically and unmanned operation.

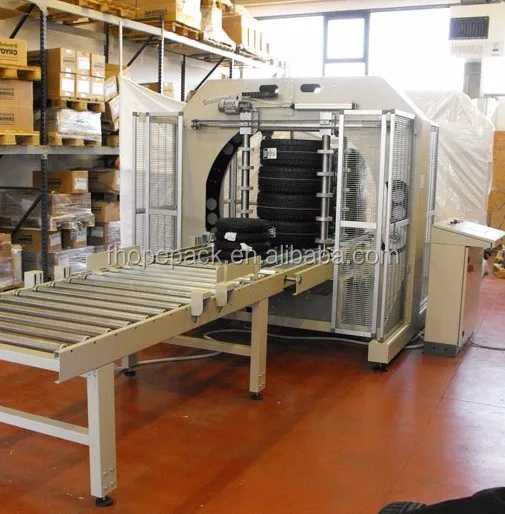

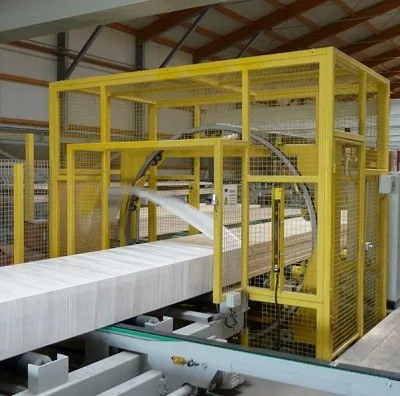

APPLICATION:

Following are some applications per client's package and packaging goal. The solution there
