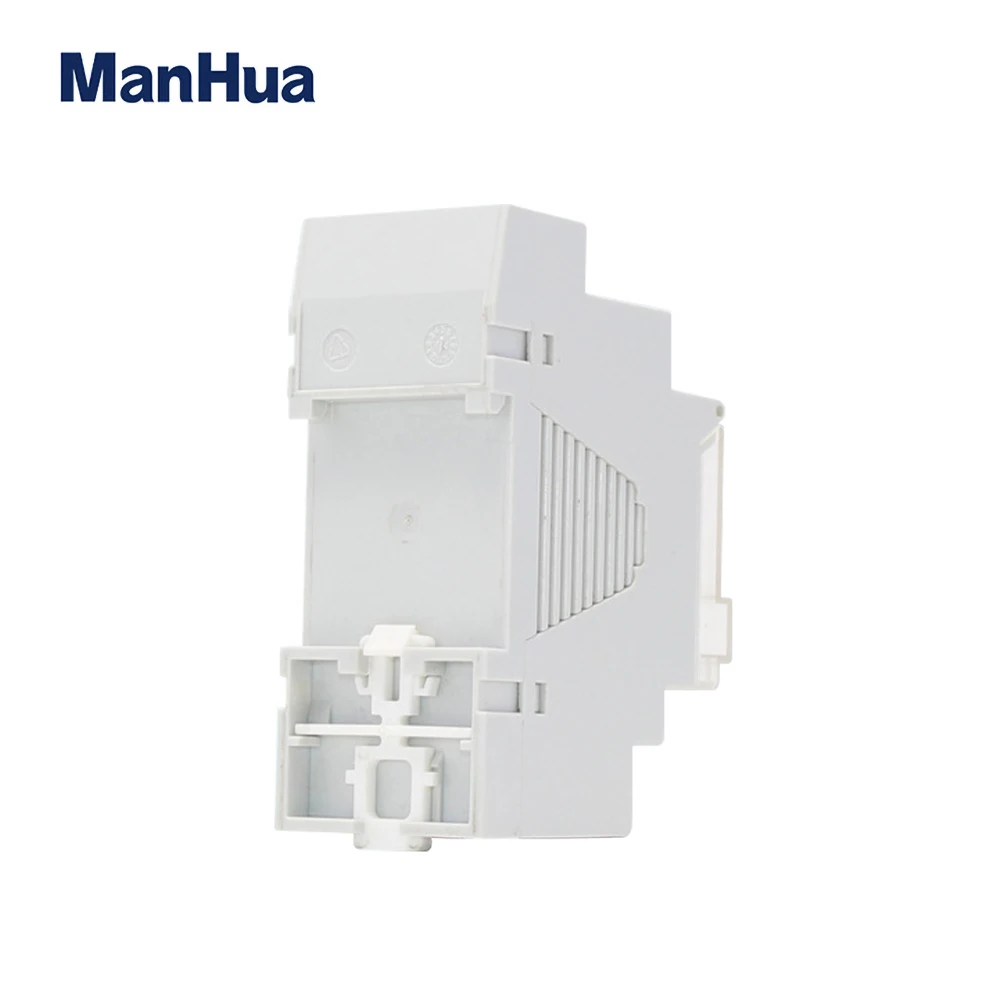

Manhua low voltage automatic street light timer control switch
Product Description
1. About the MT610 TIMER.
Manhua Automatic astronomical time controller monitoring system is a kind of monitoring software of time controller that running in the windows system; the basic function is to manage the controller by using the friendly interface, simple operation, convenient utilization and centralized control.
It can make the connection through the USB of computer and the RS485 interface of the controller.
The maximum number of connected controller can reach 255 and the communication distance can reach 1500 meters, so as to realize the computer automatic management of the time controller.
2.Basic features
2.1 Each controller has single channel output
2.2 Each one contains 4 sets of ON/OFF time controller
2.3 Each one has 4 kinds of setting mode: “sunrise”, “sunset”, “set”, and “close”.
2.4 When choose “sunrise” and “sunset”, the controller will calculate and set the time automatically.
2.5 the setting time of “sunrise” and “sunset” mode can be corrected within 0 to 59 minutes.
2.6 Has one operating button and two LED Indicator lights.
2.7 can connect PC with own RS485 communication interface.
2.8 external 220V AC power supply.
3. timing controller operation
3.1 Automatic astronomical time controller
3.2 operation of the controller
3.2.1 manually-control mode
* press “on/off” button for 3 seconds to entering the manual operating mode on auto-working mode
* LED working light on
* the controller manipulates the manual operating output when you press “on/off” button .
3.2.2 auto-control mode
*when the controller is power on or reset
*press “on/off” button for 3 seconds to entering the auto operating mode on manual-working mode
*LED working light flashes
*the controller manipulates the auto-operating output according to the setting method
3.3 production test
* press the button to the production test mode when power on or reset after LED light flashes for 3 times. Then press one time and LED light will be on and off alternately.
*on this mode, the controller will delete all the settings of the system
*back to the normal working mode when power is on
4.Adapter USB –RS485
Adapter USB –RS485
Must use adapter USB –RS485 In order to communicating the control system and time controller ,see picture 6.
Connect the PC and controller via USB and RS485 when using
Adapter USB –RS485 no need external power supply
Packaging & Shipping
Packaging Details: Standard exportation packing
Delivery Details: Within 5-25 days after your order confirmed
Company Information
We are the experienced manufacturer of industrial electric products for years.Manhua Electric Co.,Ltd.
It was established in 2009 and domestic business started in 1980s. At present, our main products are timer switches, timer, relay, sockets and surge arrestors.
This year, we have started to do more jobs on the electric products for solar and ofgrid solar powersystem.
Our products have exported to the market of Germany and USA since the year of 2005, and
till now the products have stable growing market in Germany, Spain,USA, South America, CIS
countries and Thailand...
We have built our divisions/agents in Chicago USA, Frankfurt Germany and Dubai,UAE
We bring trust, comfort and benefits for our customer. Over the years, we have always done the
humane management. Our staff has played the full role in the innovation and management.
We have the experienced team of research and development in the electronic products.
Our Services
1. OEM service is available.
2. Fast producing time.
3. Reply promptly in 24 hours.
FAQ
Q1: Are you a Manufacture Factory?
Yes.We are the Direct Manufacture Factory, and our factory has specialized in industrial electronic products since 1980s.
Q2: Do you have stock products to sell?
No,We produce these electronic products accorded to the customer’s requirement,
It also means material, density, shape, size,design,quantity will depend on what your need.OEM
orders always be welcomed.
Q3: Does the electronic product can be printed a LOGO? Yes, we can print the logo as your requirement .
Q4: What advantages do you have?
A: We are the direct Manufacturer in Wenzhou and could offer you the most competitive price.
B: We are the Factory, and we have the ability to carry out production schedule for punctual
delivery.
C: We could make products according to your requirments.
D: We can provide free samples for quality evaluation.
Q5: If I want to get a Quotation, what information need be provided to you?
