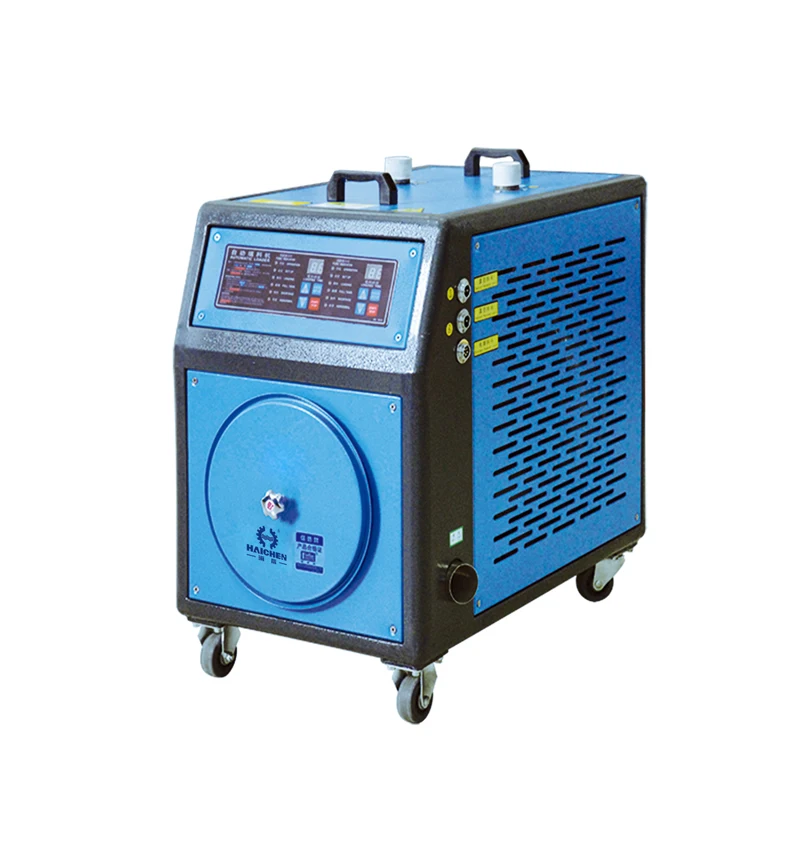

XTL 3.5HP Plastic vacuum autoloader with stainless steel hopper used for plastic raw materials
- Category: >>>
- Supplier: Ningbo Haichen Servo Information Technology Co. Ltd.
Share on (60531236941):
Product Overview
Description
XTL-3.5HP Plastic vacuum autoloader with stainless steel hopper used for plastic raw materials
Product description
Featrue:
• The main engine and material hopper are designed separately,and thus it is dafe,easy and convenient to nbe operated.
• The whole operation is controlled by Micro Trip computer.
• Equipped with an independent filter,which is very convenient to clean up dust.
• The equipped muffer reguces the noise in operation.
• Stainless stell material hopper is light in weight,durable and very convenient for cleaning the device.
• The contro box,being designed separately,is easy to be well maintained
• Auto-buzzer will give alarm while lacking material
• Auto-protective device protect mortor against overloading.
• XTL-900GN-2 controlling two suction hopper by one single controller not only can avoid taking space but also manage convenient.
• The bunker with electronic eye can be installed on the cahrging inlet of molding machine directly.
• The air revolving dust arrester reduce the clean times of filter,is suitable for the grinded material conveying.
• Can select two-material productional valve,used for new material mixed grinded material using or instant receving of grinded material.
Main Technical Data:
| Model | XTL-600GN | XTL-800GN | XTL-3.5HP | XTL-5HP | XTL-7.5HP | XTL-10HP | XTL-900GN-2 | XTL-800GN2-P | |
| Motor | Type | Induction | |||||||
| Specification | 1100w3Ø | 1500w3Ø | 3000w3Ø | 3500w3Ø | 5500w3Ø | 7500w3Ø | 2200w3Ø | 1100w3Ø | |
| Conveying Capacity(kg/hr) | 450 | 550 | 600 | 700 | 1100 | 1500 | 450+450 | 650 | |
| Static wind pressure(MAX) | 1450mmAq | 2000mmAq | 2200mmAq | 2200mmAq | 2500mmAq | 2800mmAq | 2000mmAq | 1450mmAq | |
| Filter | Ø188x115H | Ø188x115H | Ø188x260H | Ø188x260H | Ø188x260H | Ø188x260H | Ø188x115H | Ø188x115H | |
| Volume of material hopper(L) | 6.5 | 6.5 | 12 | 25 | 25 | 25 | 6.5/12 | 6.5 | |
| Inside Diameter of Conveying Pipe(mm) | Ø38 | Ø38 | Ø38 | Ø51 | Ø51 | Ø63.5 | Ø38 | Ø38 | |
| External Size(mm) | Main Body LxWxH | 680*370 *500 | 700*370 *500 | 700*500 *850 | 700*500 *850 | 700*600 *850 | 750*650 *850 | 850*480 *740 | 680*370 *500 |
| Material Hopper LxWxH | 430*440 *295 | 430*440 *295 | 430*440 *500 | 430*440 *500 | 430*440 *500 | 430*440 *500 | 430*440 *500 | 430*440 *700 | |
| Weight(kg) | Main body | 55 | 65 | 72 | 82 | 120 | 130 | 70 | 60 |
| Material hopper | 6 | 6 | 7 | 8 | 8 | 8 | 6+6 | 12 | |
