M6 M8 M10 M12 Fanged Elevator Bolt Nut And Washer For Bucket DIN15237 Carbon Steel Galvanized Belt screws or Belt bolts
- Category: >>>
- Supplier: Handan City Yongnian Getai Fastener Co. Ltd.
Share on (60531256608):
Product Overview
Description
Product Description

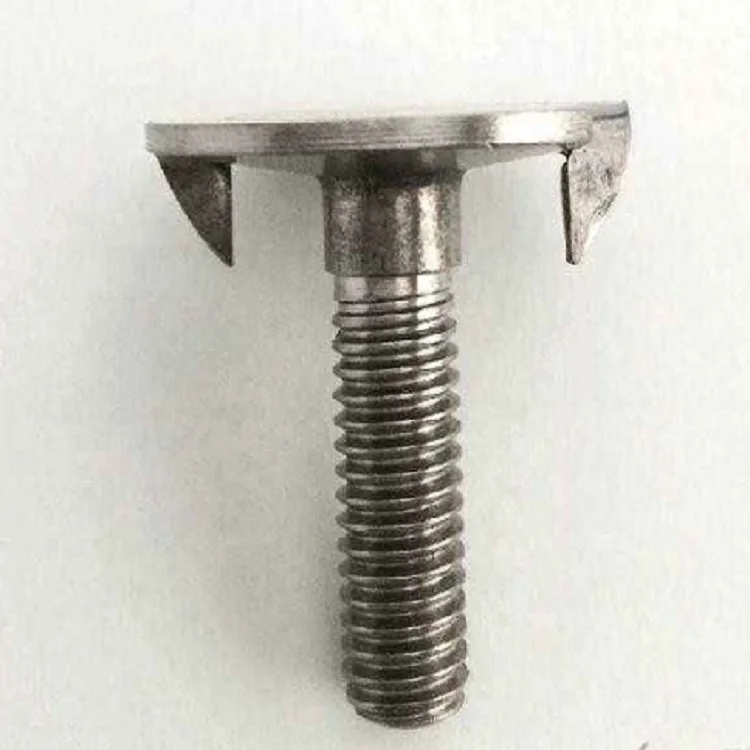

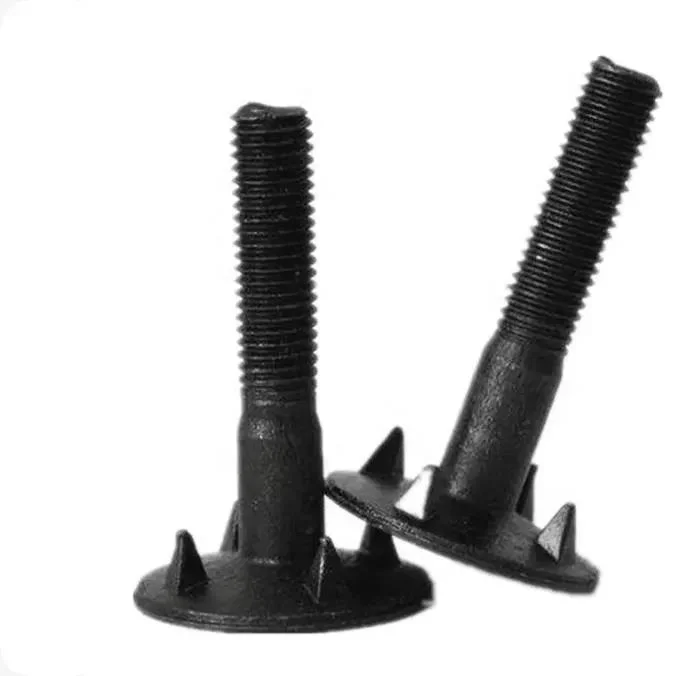

Bucket Elevator Bolt

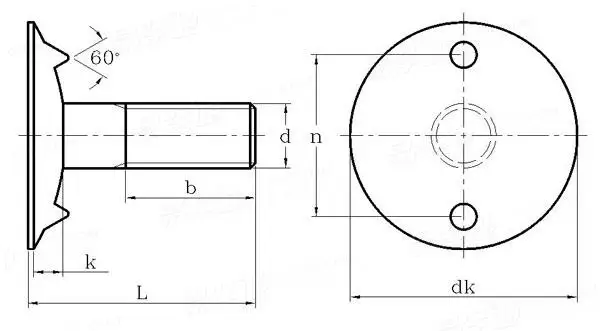

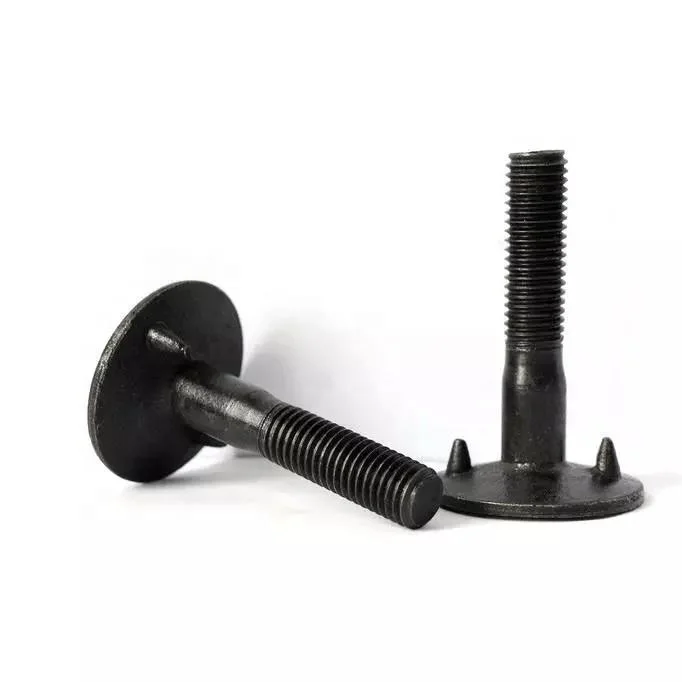

EURO elevator bolts have a concave head and two lugs on the underside to help prevent rotation when tightening. The Euro elevator bolts are intended for the attachment of pressed steel elevator buckets incorporating recessed bolt holes. The recessed area surrounding the bolt hole is intended to accommodate the similarly domed surface under the bolt head.

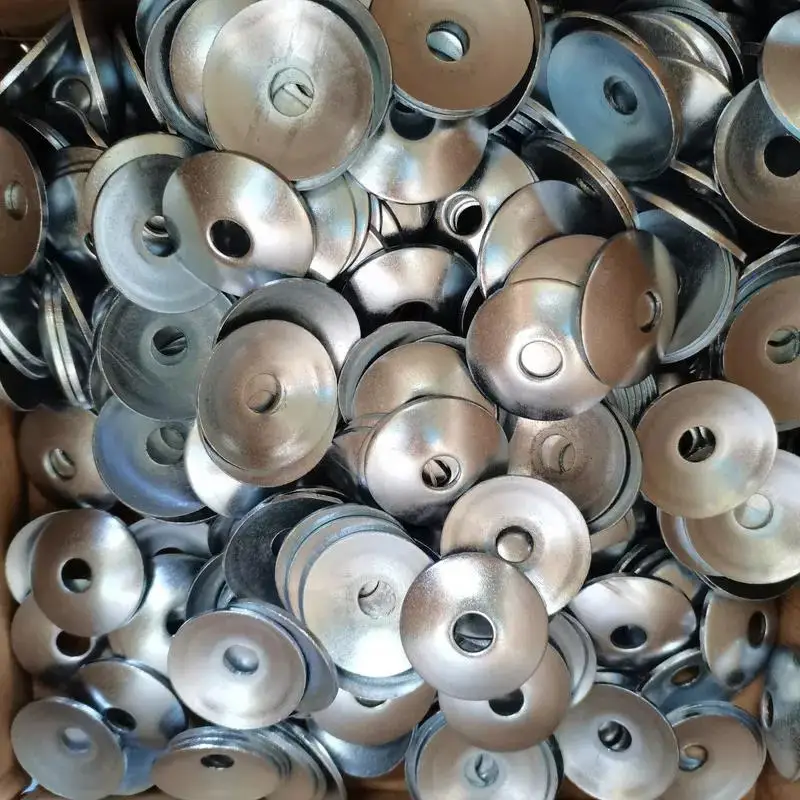

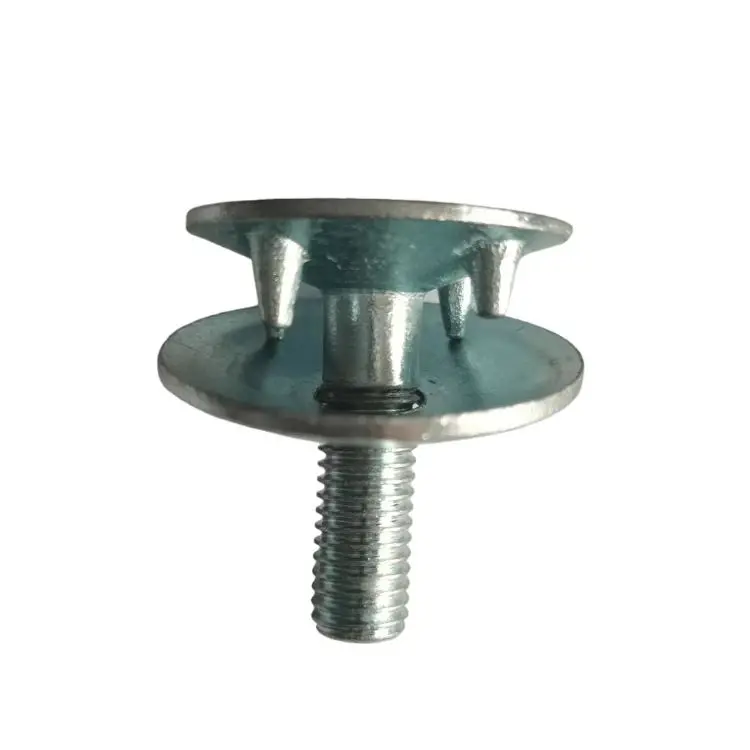

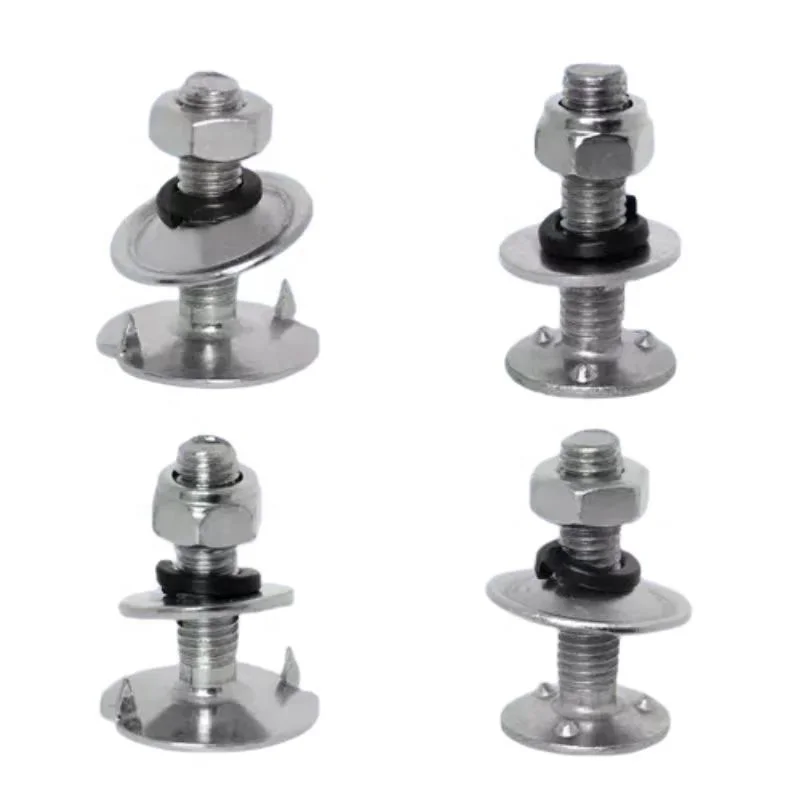

• - For steel elevator buckets with recessed holes - use Euro Bolt with large domed washer

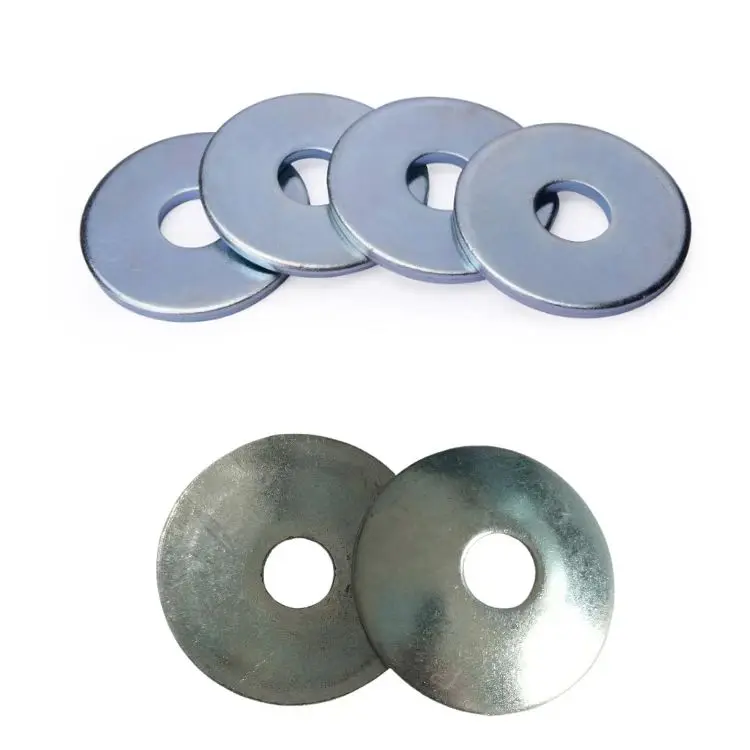

• - For steel buckets with flat holes - use Euro Bolt and small flat washer
• - For plastic elevator buckets - use Euro Bolt and large flat washer
Specification | Length/mm | Head Diameter /mm | Class | Weight (bolt only)/gram | Packaging/pcs |
M6 | 25 | 18 | 4.8 | 7.5 | 100 |
M7 | 25 | 27 | 4.8 | 17.5 | 100 |
M7 | 25 | 21 | 4.8 | 10.5 | 100 |
M8 | 25 | 30 | 4.8 | 19.5 | 100 |
M8 | 25 | 24 | 4.8 | 14.5 | 100 |
M8 | 30 | 30 | 4.8 | 19 | 100 |
M8 | 30 | 24 | 4.8 | 16.5 | 100 |
M8 | 35 | 30 | 4.8 | 21.5 | 100 |
M8 | 35 | 24 | 4.8 | 18.5 | 100 |
M8 | 40 | 30 | 4.8 | 22.5 | 100 |
M8 | 45 | 30 | 4.8 | 23.5 | 100 |
M10 | 25 | 30 | 4.8 | 31 | 100 |
M10 | 30 | 30 | 4.8 | 37.5 | 100 |
M10 | 35 | 30 | 4.8 | 38.5 | 100 |
M10 | 40 | 30 | 4.8 | 39.5 | 100 |
M10 | 45 | 30 | 4.8 | 40.5 | 100 |
M10 | 50 | 30 | 4.8 | 43..5 | 100 |
M10 | 55 | 30 | 4.8 | 46.5 | 100 |
M12 | 45 | 42 | 4.8 | 68 | 100 |
M12 | 50 | 42 | 4.8 | 70 | 100 |
M12 | 55 | 42 | 4.8 | 73.5 | 100 |
M12 | 60 | 42 | 4.8 | 83 | 100 |
M12 | 65 | 42 | 4.8 | 92.5 | 100 |
M12 | 70 | 42 | 4.8 | 102 | 100 |
*Our elevator bolts come in 100-piece packs and are available ex-stock in bare steel, stainless steel or zinc-plated steel. Most of the elevator bolts are in accordance with DIN 15237 and are in stock in the sizes M6, M7, M8, M10 and M12. We also supply other non-standard sizes and versions, such as Norway and Sabre-Tooth elevator bolts with UNC or metric threads.

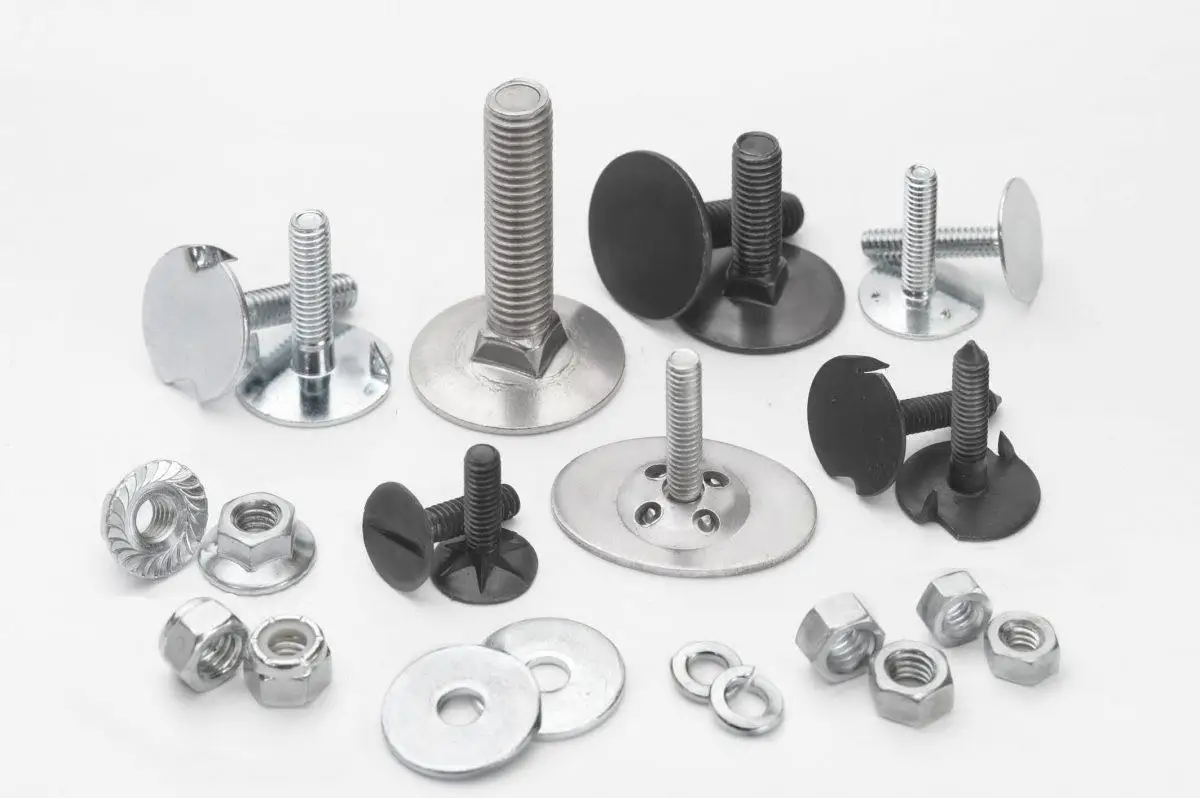

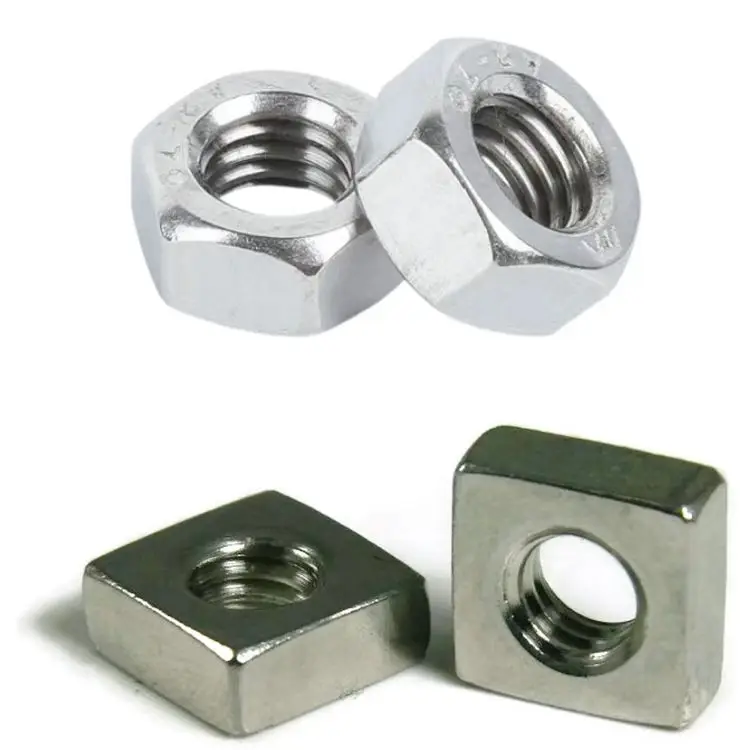

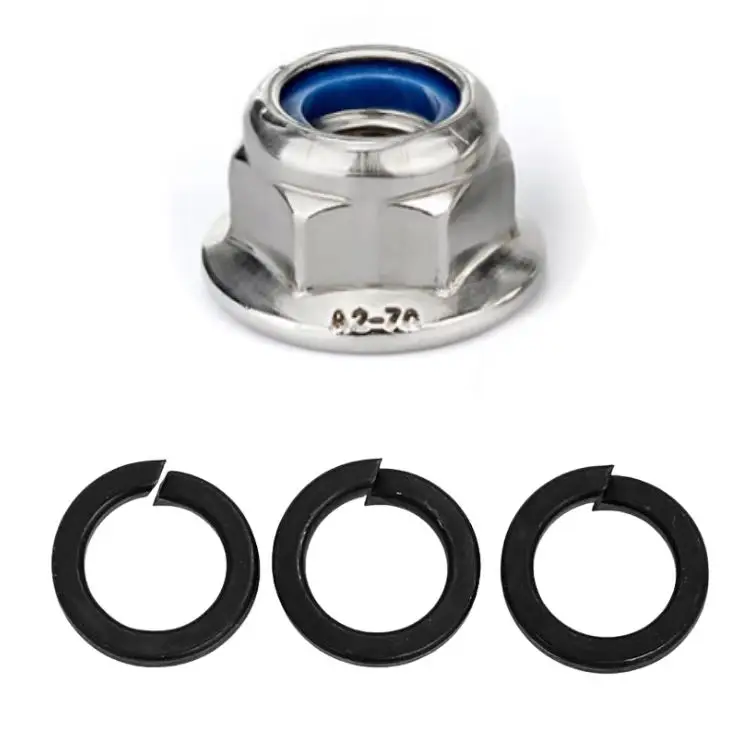

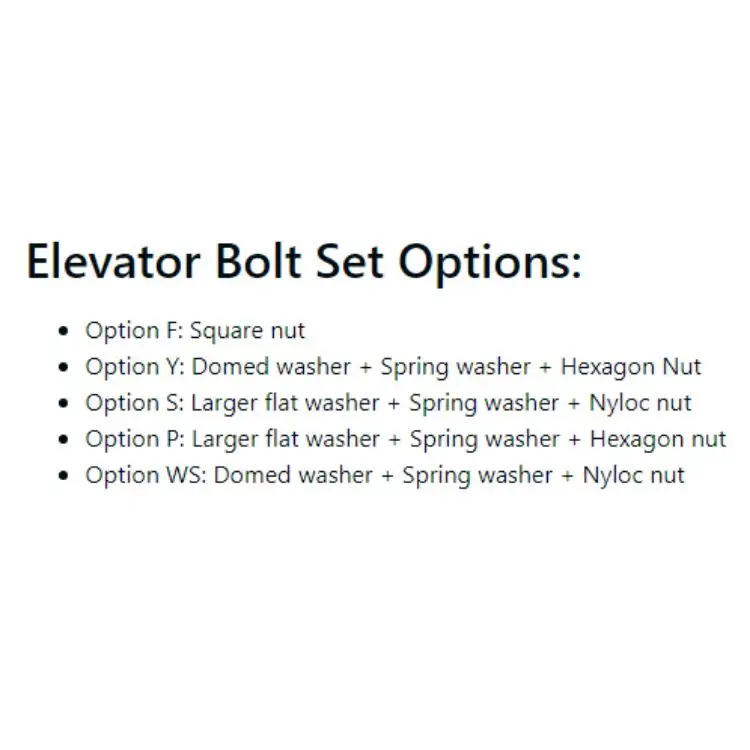

Accessories
Specification
Product name | Bucket Elevator Bolts |
Surface treatment | Plain, Black Oxide, Zinc Plated, Polished |
Size | M6-M12 |
Material | Steel, Stainless Steel |
Place of Origin | Hebei, China |
Port | Tianjin Port or as requested |
Payment term | T/T |
Delivery time | 10-15 days |
Recommend Products
Why Choose Us
Good Service:
We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we will continue to
serve you after sales and will be responsible for the mistakes from us.
Low Price:
The prices of our production are reasonable! The prices will be much better if your quantity is good.
Perfect Quality:
We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are
master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality, good at modern concept of management.
We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we will continue to
serve you after sales and will be responsible for the mistakes from us.
Low Price:
The prices of our production are reasonable! The prices will be much better if your quantity is good.
Perfect Quality:
We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are
master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality, good at modern concept of management.

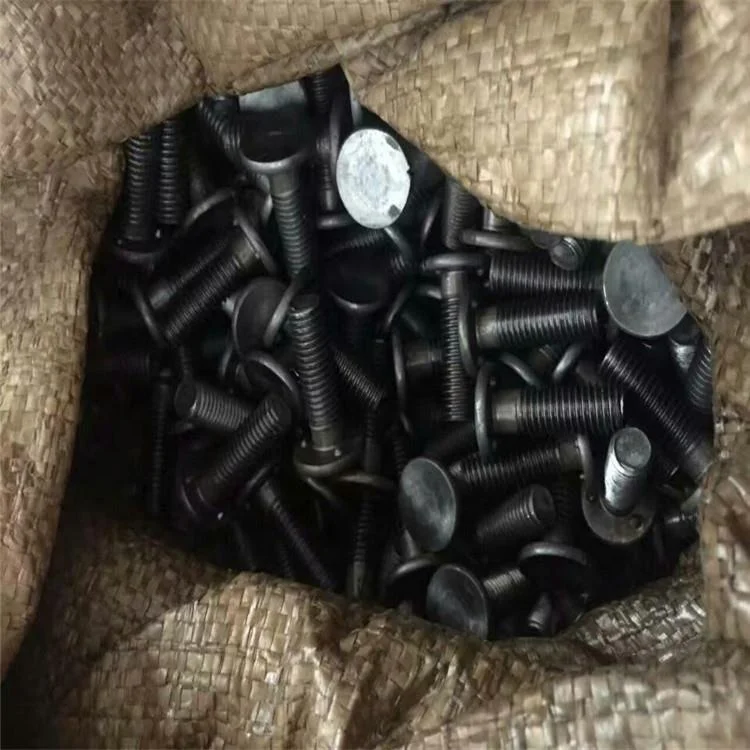

Product packaging
