15m3 Dongfeng 10 wheeler 20 ton dump trucks 6x4 for sale
- Category: >>>
- Supplier: Shiyan Yunlihong Industrial & Trade Co. Ltd.
Share on (60531660523):
Product Overview
Description
China 10 wheel dump truck capacity 16 ton sale
Truck model
| DFH3250B-KP7V | Wheel base | 3650+1350mm |
Box size
| 5200x2300x1000mm | Top speed | 90km/h |
Box volume
| 12 m3 | Loading weight | 16 tons |
Cabin Model |
LHD or RHD Sleeper cab, forward control type, low roof , adjustable driver's seat, with air conditioner
| ||
Brand
| DCEC B210 33 | Intake way | Turbo inter-cooling |
Rated power & speed | 155 Kw at 2500 rpm | Max. torque | 700N.m at 1500rpm |
Engine type | in-line, 4 stroke, water-cooled | Displacement | 6 cylinder, 5.9L, diesel |
Type
| Manual, 8JS85E, 8 forward gear, 2 reverse gear, synchronization | ||
Torque
| 850N.m | ||
Front axle loading | Dongfeng DANA 5T front axle | ||
Rear axle loading
| Dongfeng DANA 10T x2 rear axle | ||
Suspension
| 9/10 | ||
Chassis Frame
| 300x90x(8+6) | ||
Tire
| 10.00R20 | ||
Window
| Power window | ||
Fuel tank
| 200L | ||
Overall dimension | 7950x2500x3370mm | ||

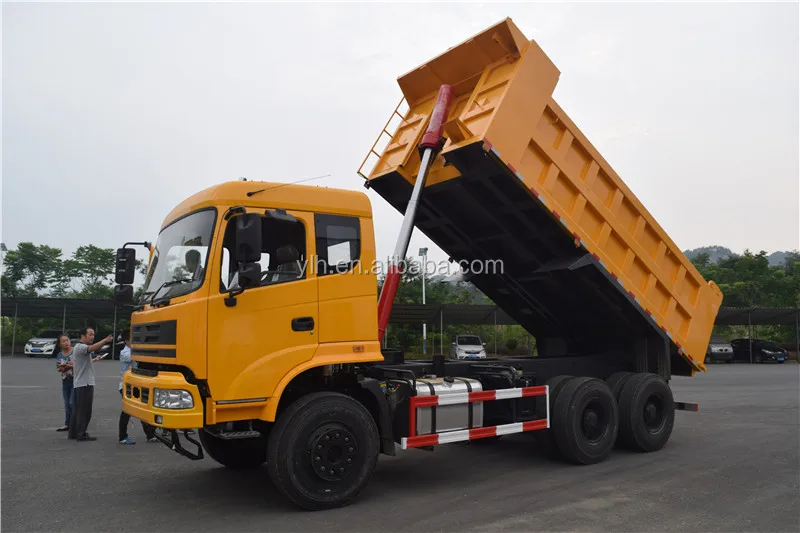

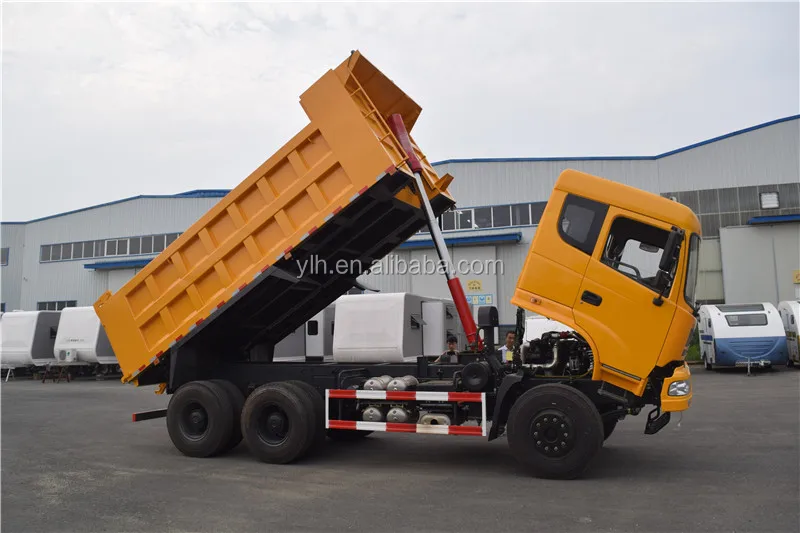

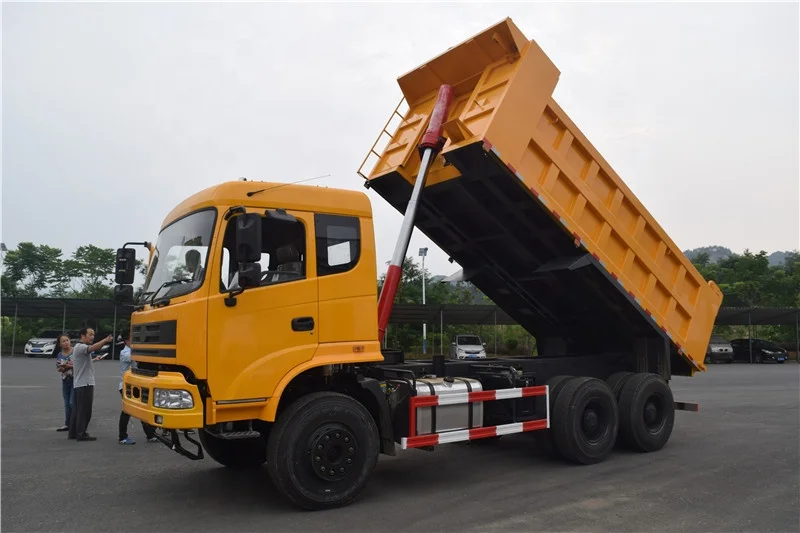

Front lifting hydrocylinder, stronger lifting capacity and better stability

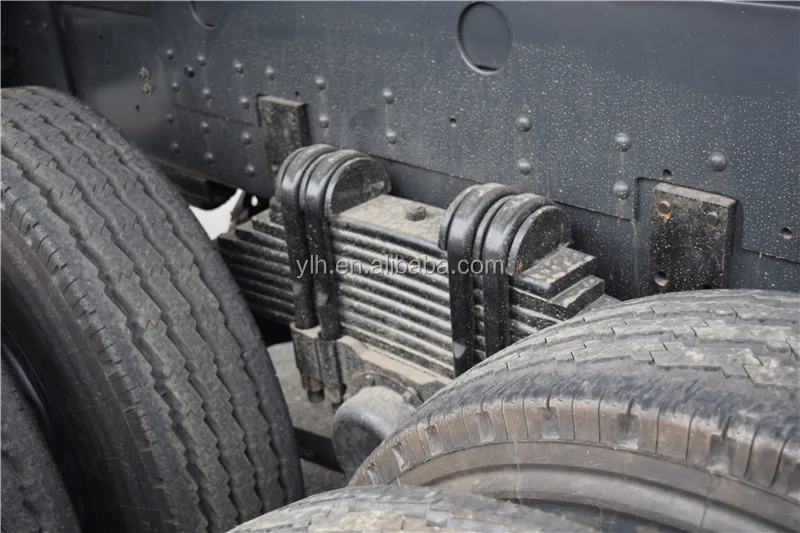

Strong spring plates, front 9, rear 10. high industrial ability

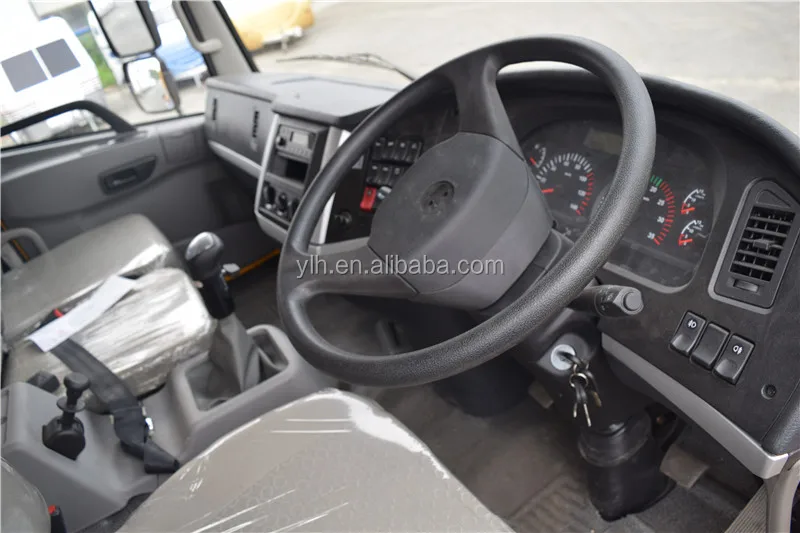

Cabin with air conditioner, power window, left hand drive and right hand drive are option.
