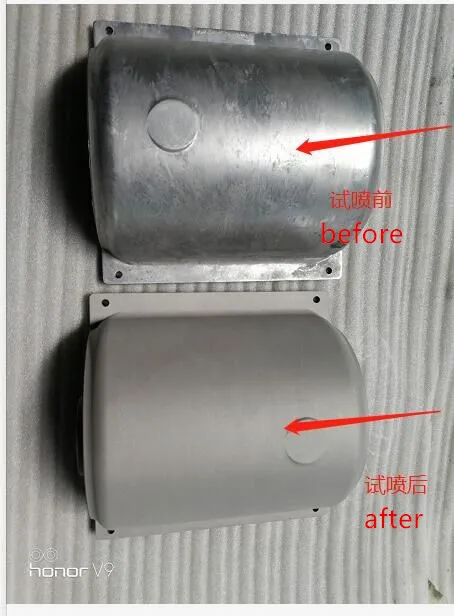

As the sand blasting machine works, for the abrasive’s impact and cutting action on the surface, the surface of the workpiece gets some different cleanliness and roughness, and the mechanical properties of the workpiece surface is improved, thereby it improves the fatigue resistance of the workpiece, increases the adhesion between the workpiece and coating, extends the durability of the coating, and also does well in leveling and decoration of coatings, which assists in removing the impurities, motley and oxide layer of the surface, at the same time roughening the media surface, and eliminating the residual stress of workpiece as well as improving the surface hardness.
Model
KF -9060B
Outside size (L*W*H mm)
1130*700*1650
Cabinet size (L*W*H mm)
900*600*650
Number of guns
1 (aluminum alloy with boron carbide nozzle)
Separator motor
0.75kw
Compressed air supply

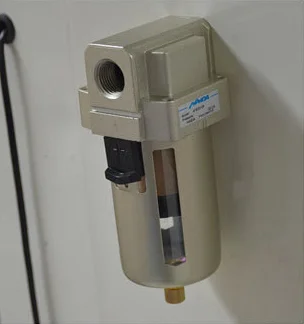

dry and clean compressed air with pressure at 5-8 bar(kg/cm2) and flow of 0.5-1.2m3/min(1 cubic)
How to choose sand blasting machine?
1.Based on the size of workpiece, you can choose box type sand blasting machine, mobile sand blasting machine or auto sand blasting machine.
2.The specifications of sand blasting machine refer to the shape of workpiece. There are usually fixed specifications for workpiece under 1 meter. If the workpiece is much larger, the sand blasting machine should be open type or custom-made.
3.The requirements on the workpiece’s surface depend on dry blasting or wet blasting. If dry blasting, there will be more choices for abrasives; if wet blasting, it usually takes glass-bead.
4.You need to be familiar with spare parts of sand blasting machine. Sand blasting gun and sand blasting gloves are often required to be replaced for the severe abrasion.
Used for surface treatment of parts, as well as pre-treatment of coating and flaw detection processes.

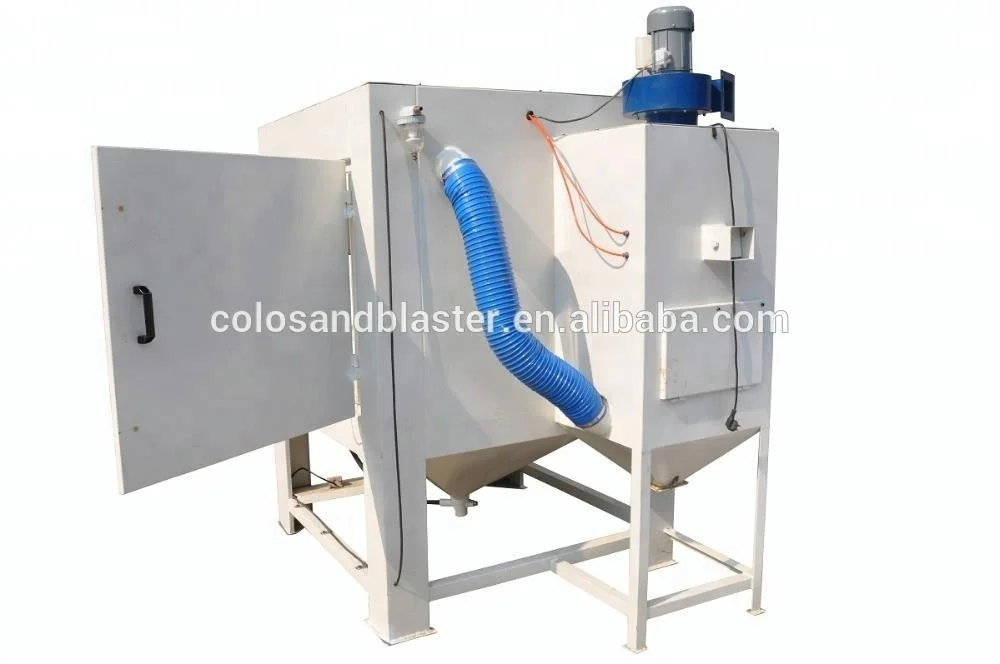

blasting machine are suitable for surface treatment of all products of metal,plastic and glass ect.removing oxide skin, residues burrs and scratches can be used for decoration light, matte and strengthen management . There are cyclone separation system and dust removal system, separator will separate the abrasive from bust and dust removal system can deal with and collect the emit useless dust and can vibrating clean up dust automatically. Dust Remove effect of good reduce the cost of abrasive and improve efficiency and there is no enviromental pollution.
This sandblasting machine is an intelligent digital sandblasting machine of independent research in our company, which itself is a collection of five advantages.
1. A key switch of the manual and automatic mode for blasting, making customer use the machine more handy.
2. Sandblasting duration can be set for average sandblasting of each product.
3. Coexist of manual dedusting and automatic dedusting
4. Automatic fault detection
5. Smart statistics of working duration is available for querying, which is a convenience for customers’ quotation and workers’piece-work.

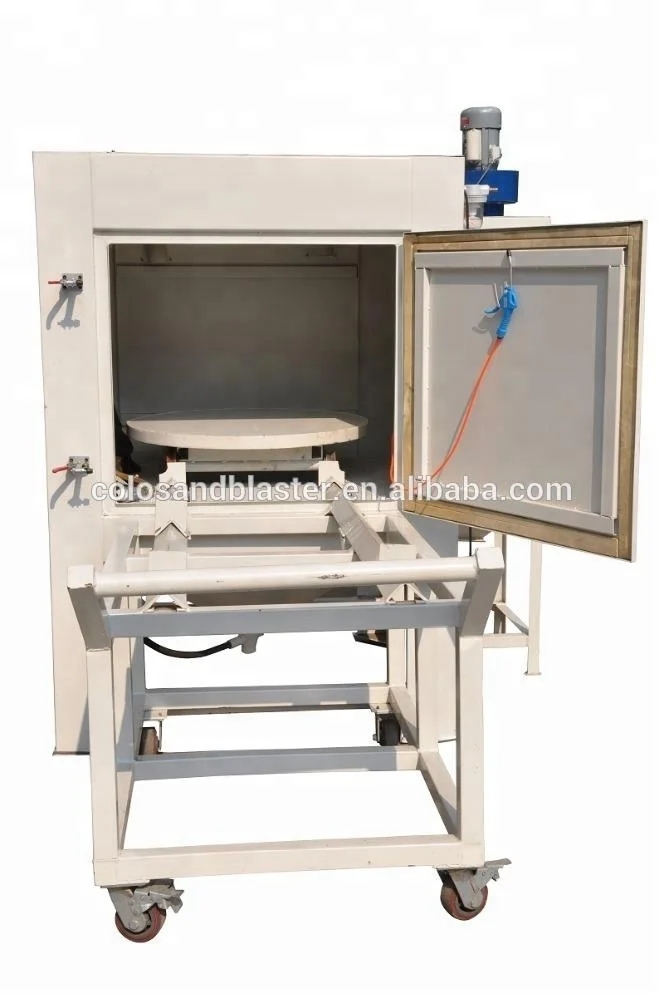

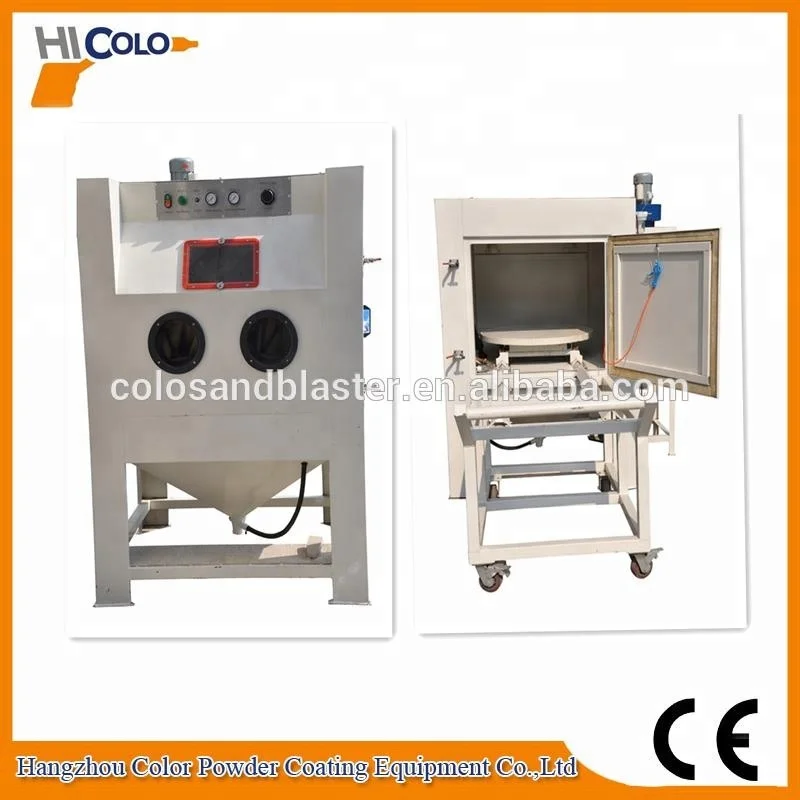

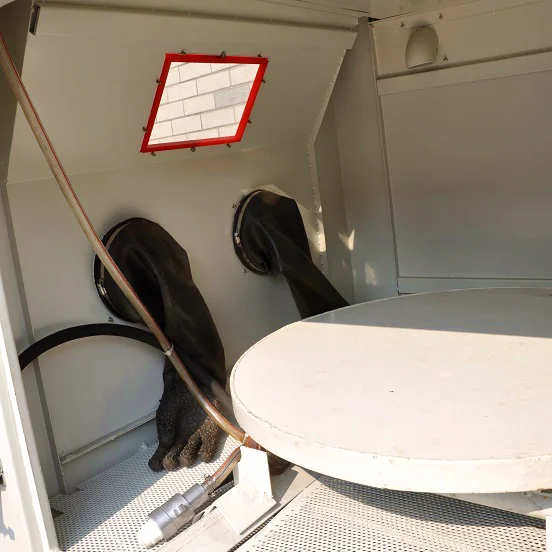

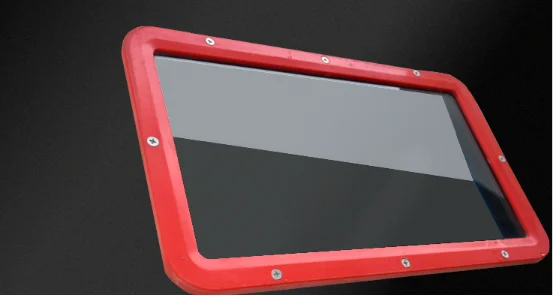

Detailed Images
Size Information

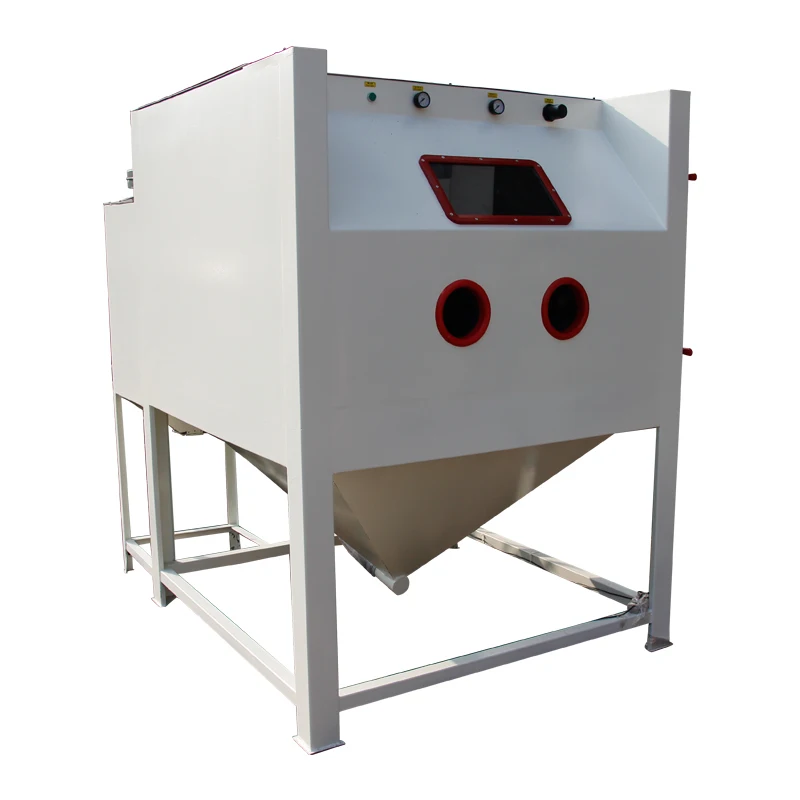

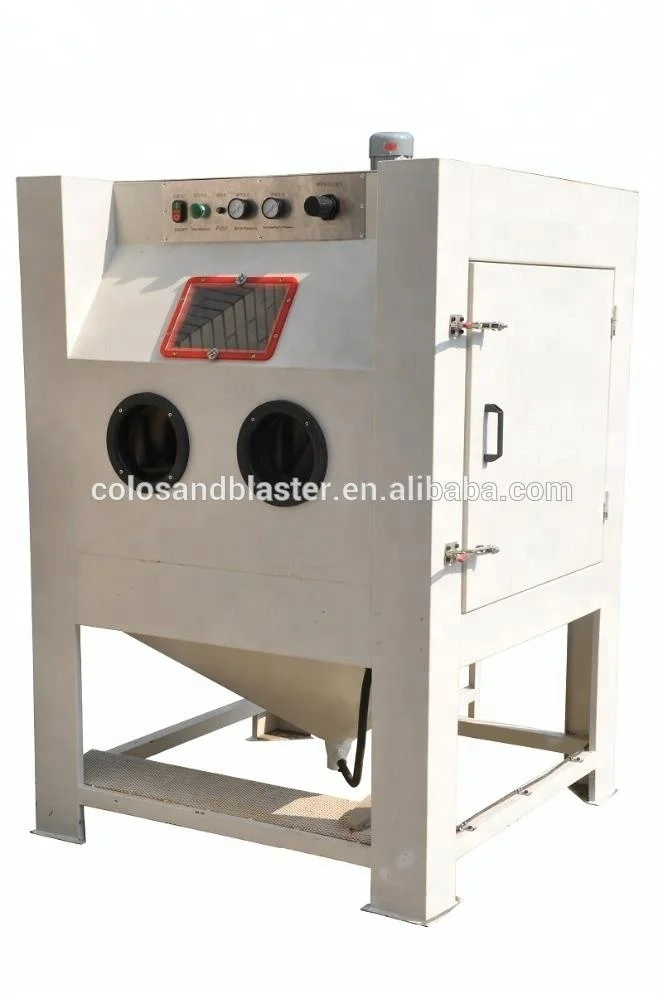

Dry suction sand blasting machine
Model
KF-6050B
KF -9060B
KF -9080B
KF -1010B
KF -1212B
Outside size (L*W*H mm)
830*600*1650
1130*700*1650
1130*900*1850
1230*1100*1850
1430*1300*1850
Cabinet size (L*W*H mm)
600*500*650
900*600*650
900*800*800
1000*1000*800
1200*1200*800
Related Products
Packing&Shipping

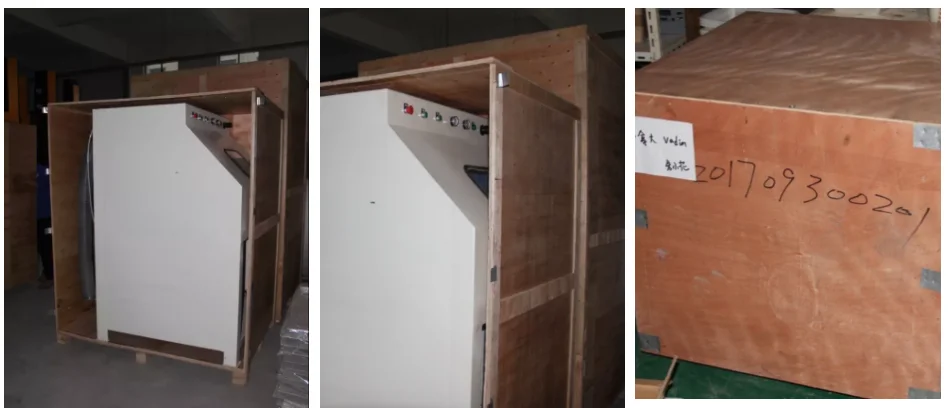

Normal Package: Blister foam, if wooden case package,please kindly let us know.
Shipping: Sea,Air,Express delivery as your requirements.
