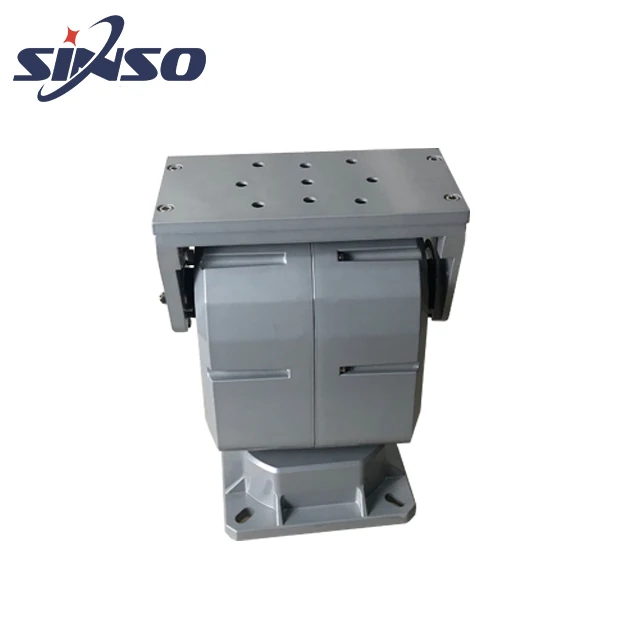

hot selling 12V joystick control variable speed IP66 heavy duty pan tilt motor
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (60531732771):
Product Overview
Description
Product Paramenters
Function:
1)Automatic cruise: vertical ,horizontal,vertical and horizontal automatic rotation
2) three gears of high, medium and low switching in vertical ,horizontal
3)remember function:remember the cruise mode and speed settings before turn off
4)Time Switch:Automatic off/on and automatic running with control switch,achieve unattended
Feature:
· AC220V or DC12V /DC24V power supply
· High-efficiency motor, runs smooth
· Built-in stability device to overcome the shortcomings of the vertical rotation and natural droop
· Pan tilt with excellent anti-aging and anti-corrosion material make it applicable to a variety of climatic conditions
1)Automatic cruise: vertical ,horizontal,vertical and horizontal automatic rotation
2) three gears of high, medium and low switching in vertical ,horizontal
3)remember function:remember the cruise mode and speed settings before turn off
4)Time Switch:Automatic off/on and automatic running with control switch,achieve unattended
Feature:
· AC220V or DC12V /DC24V power supply
· High-efficiency motor, runs smooth
· Built-in stability device to overcome the shortcomings of the vertical rotation and natural droop
· Pan tilt with excellent anti-aging and anti-corrosion material make it applicable to a variety of climatic conditions
Item NO. | SN-3025-E | ||||
Application | CCTV camera,Lighting,Laser,Bird Repellent System,Physiotherapy Instrument,Antenatal | ||||
Control Mode | wireless remote+wireless keyboard | ||||
Control range | remote:50~100 meters,keyboard:0~500 meters | ||||
Input Voltage | 12VDC,24VDC,220VAC | ||||

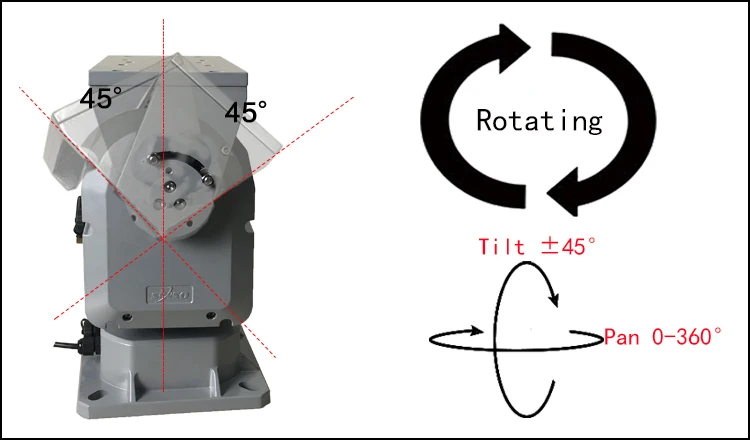

Rotation Angle | Pan:0~355°;Tilt:±45° | ||||
Rotation Speed | Pan:0-16°/S;Tilt:0-7°/S | ||||
Load weight | 8 Kg | ||||
Load mode | Top/side | ||||
Material | Aluminum | ||||
IP Grade | IP66 | ||||
Dimension | 224*170*284mm(L*W*H) | ||||
Weight | 6Kg | ||||
Working temperature | Normal version:-10℃~+45℃,Low temperature version: -30℃~+45℃ | ||||
Products Description

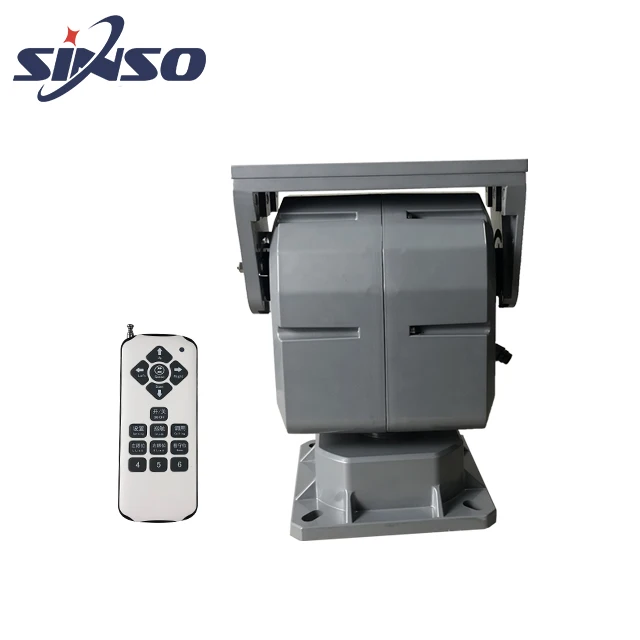

Wireless remote
wireless remote,without wiring,compact and lightweight portable,control range up to 50~100M
adjustment in 4 directions and to be
able to adjust the direction of freedom
adjustment in 4 directions and to be
able to adjust the direction of freedom

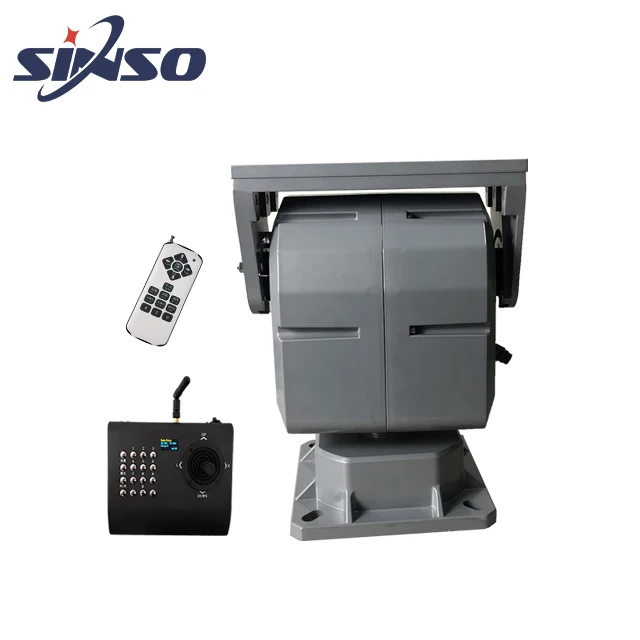

Wireless Keyboard
wireless keyboard control,control range up to 400~500 Meters,keyboard,with battery inside,can be used without external power
supply
supply
8 direction adjustment:right,lift,up,down,top right,top left,bottom right,bottom left,to be able to adjust the direction of freedom

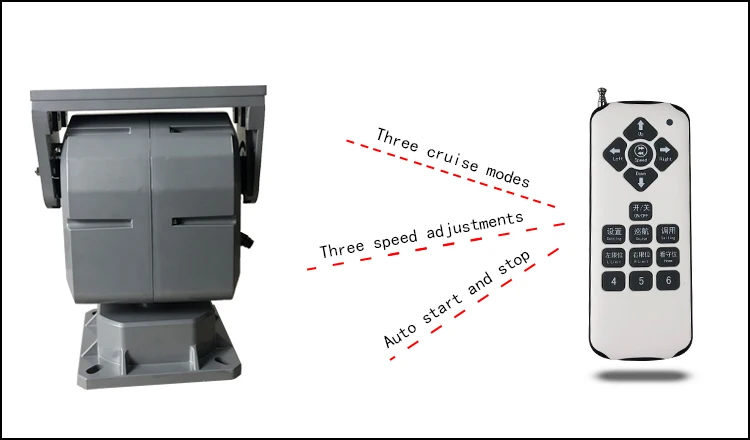

Auto Cruise/Variable Speed Function
Autocruise Function:there are three cruise modes for auto cruise function :horizontal mode,vertical mode,horizontal vertical mode.
One-Click switch Continuously Variable(keyboard):By pressing the keyboard joystick to control the rotation speed of pan tilt Three
speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed. H:pan:16°/sec, tilt:7°/s,
M:pan:10°/sec, tilt:5°/s,
L:pan:5°/sec, tilt: 3°/s
One-Click switch Continuously Variable(keyboard):By pressing the keyboard joystick to control the rotation speed of pan tilt Three
speed adjustment(remote):Arbitrary switching High speed, Medium speed,low speed. H:pan:16°/sec, tilt:7°/s,
M:pan:10°/sec, tilt:5°/s,
L:pan:5°/sec, tilt: 3°/s

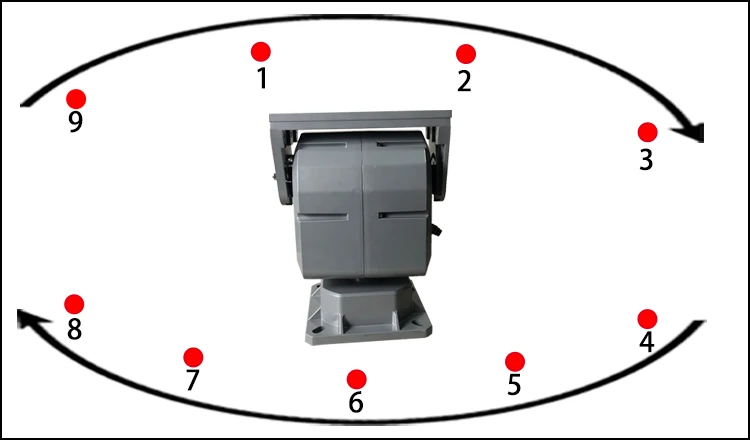

Preset/Auto Scan/Guard Function
Guard Function:pan tilt will move to guard position automatically when pan tilt without operated for some time.
Auto Scan:stop and cruise between the presets ,residence time can be set
Preset function:One-click Move to main area, quick response,there are 5 preset positions by remote and 8 preset positions by keyboard.
Auto Scan:stop and cruise between the presets ,residence time can be set

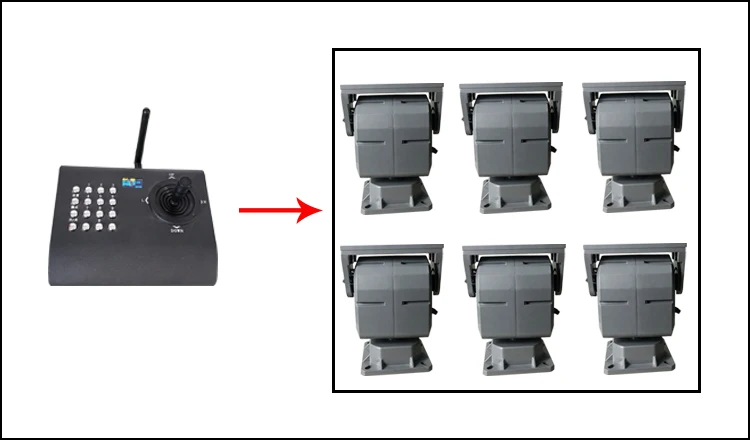

One for more,more for one
One keyboard can be control up to 10 pan tilts One/multiple keyboard for one /multiple pan tilt
Self - organized networks:Automatic pre-interference channel switching,multiple equipment installation,control distance can be extended

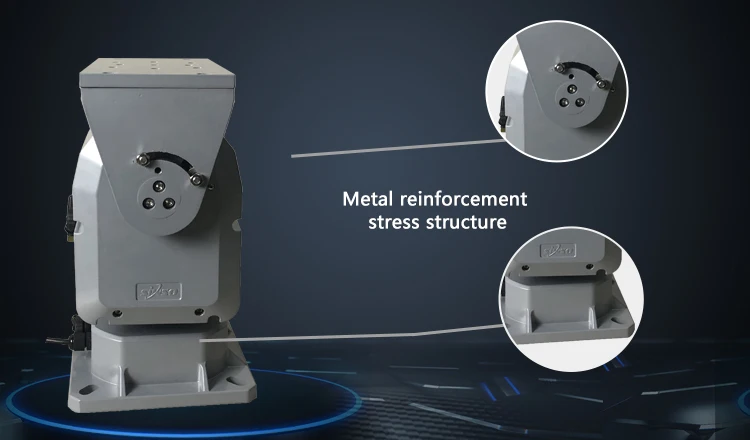

Material
IP66 protection grade,waterproof and dustproof,No fear of sun and rain;Aluminum material,stable and durable
both limits in horizontal and vertical are mechanical limit,So the rotation range are adjustable
both limits in horizontal and vertical are mechanical limit,So the rotation range are adjustable

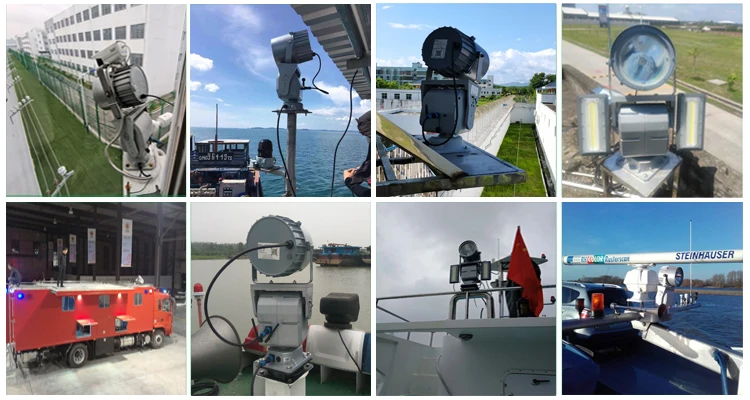

Application
Application:CCTV camera,Lighting,Laser,Bird Repellent System,Physiotherapy Instrument,Antenatal
