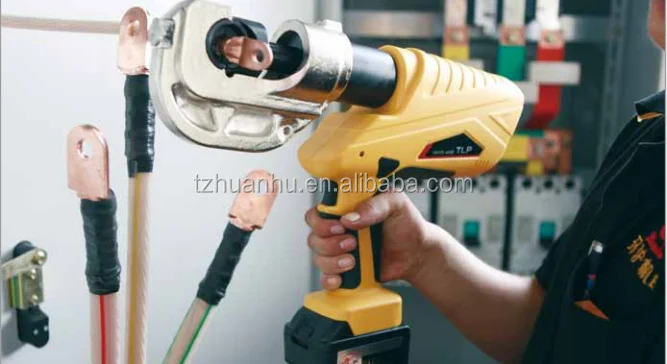

Battery Powered Wire Cable Crimping Tool for 16 400mm2 HHYD 400E

Product Overview

Description



Apllication

Battery powered crimping tools are the most efficient solution for crimping applications. Simply press a button to apply the required force.

Two-sate hydraulic system automatically switches to power stroke after a fast speed. When the crimping is complete, the ram retracts automatically.





Specification

Model	HHYD-400E
Hydraulic Ram Output	12 Ton
Ram Stroke	42 mm
Battery capacity	150 crimping cycles
Crimping range	16-400 mm2
Crimping times	6s-18s(Depend on the size of cable)
Battery	18V/4.0Ah Li-ion
Charging times	2 hours
Crimping dies	16,25,35,50,70,95,120,150,185,240,300,400mm2
Qty of battery	2 pcs
Charger	1 pcs
Seals for the cylinder	1 set
Seals for the safety valve	1 set





Characteristics

Open C-crimping head with 42mm width, rotating 350 ℃

Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time

10000+ cycle service life

Ram retracts to original position automatically when operation is complete

Manual retraction in case of need

Audible  buzzer and red LED light in case of error

Quick motor stop for higher user safety

Powerful 18V Li-ion battery with low battery warning

Ergonomic 2-component grip area and balanced center of gravity

Sturdy plastic storage box
