2017 High Capacity PP Sediment Spun Bond Filter Cartridge Making Machine Production Line

Product Overview

Description

2017 High Capacity PP Sediment Spun Bond Filter Cartridge Making Machine Production Line

Company profile
Wuxi ANGE Environmental Technology Company Limited is found in 2000with 1,000,000 RMB registered capital. We are an ISO cerfiticated manufacturer specializing in High Quality PP Melt Blown Filter Cartridge Making Machine, PP string wound filter making machine, CTO active arbon filter making machine, and PP melt blown nonwoven fabric making machine with 20 years' experience in machine design and filter making. Our clients are full of the world: USA, Japan, Korea, Singapore, Thailand, Russia, Malaysia, Egypt, Taiwan, Ukraine, Turkey, Brazil, Argentina, and Indonesia...
Welcome to visit our factory and check the excellent machines by yourself. Let's together contribute to build a brilliant environment protection industry!





Machine Introduction
PP Melt Blown Filter Cartridge Making Machine/ PP Spun Filter Cartridge Making Machine is a machine that used to produce pp melt blown filter cartridges which are widely used both in household water purifier and industrial wastewater pretreatment. And the principle of this equipment is as below:
There are two kinds of PP Melt Blown Filter Cartridge Making Machine, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank. Whatever both principle is similar as below:

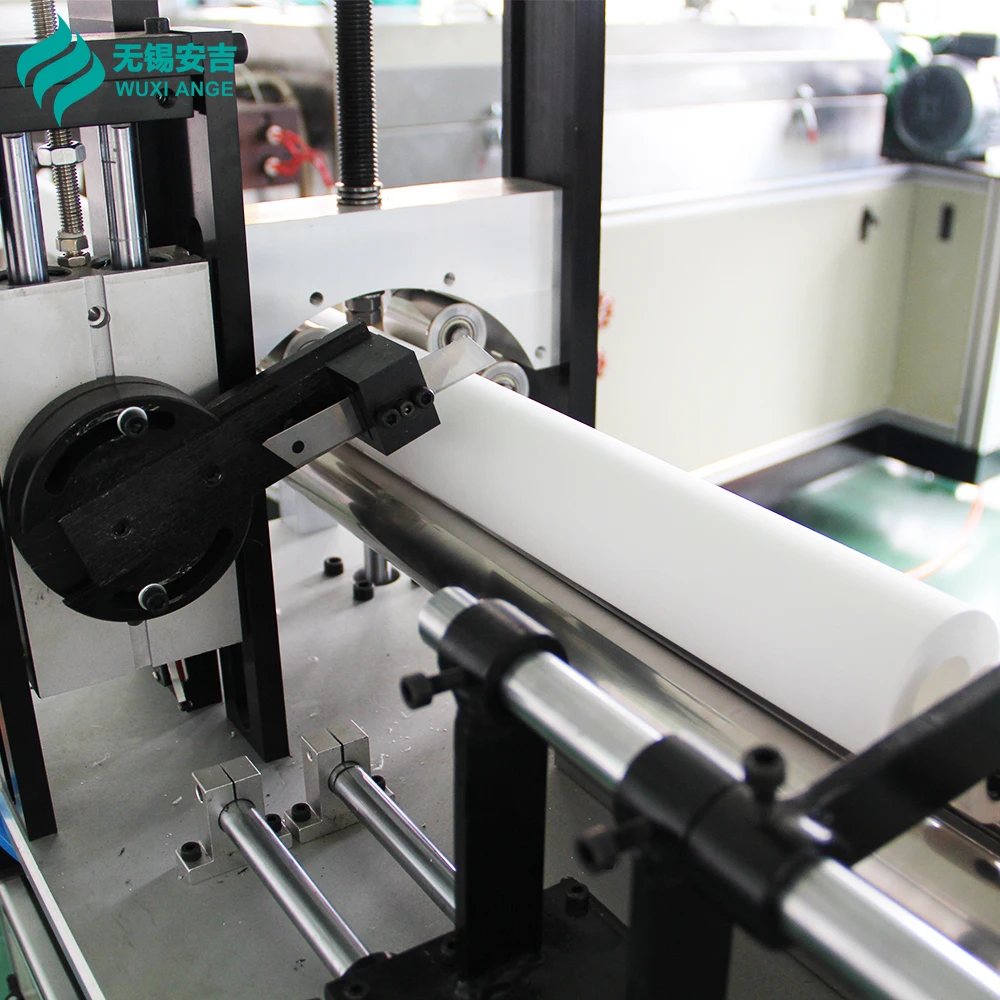

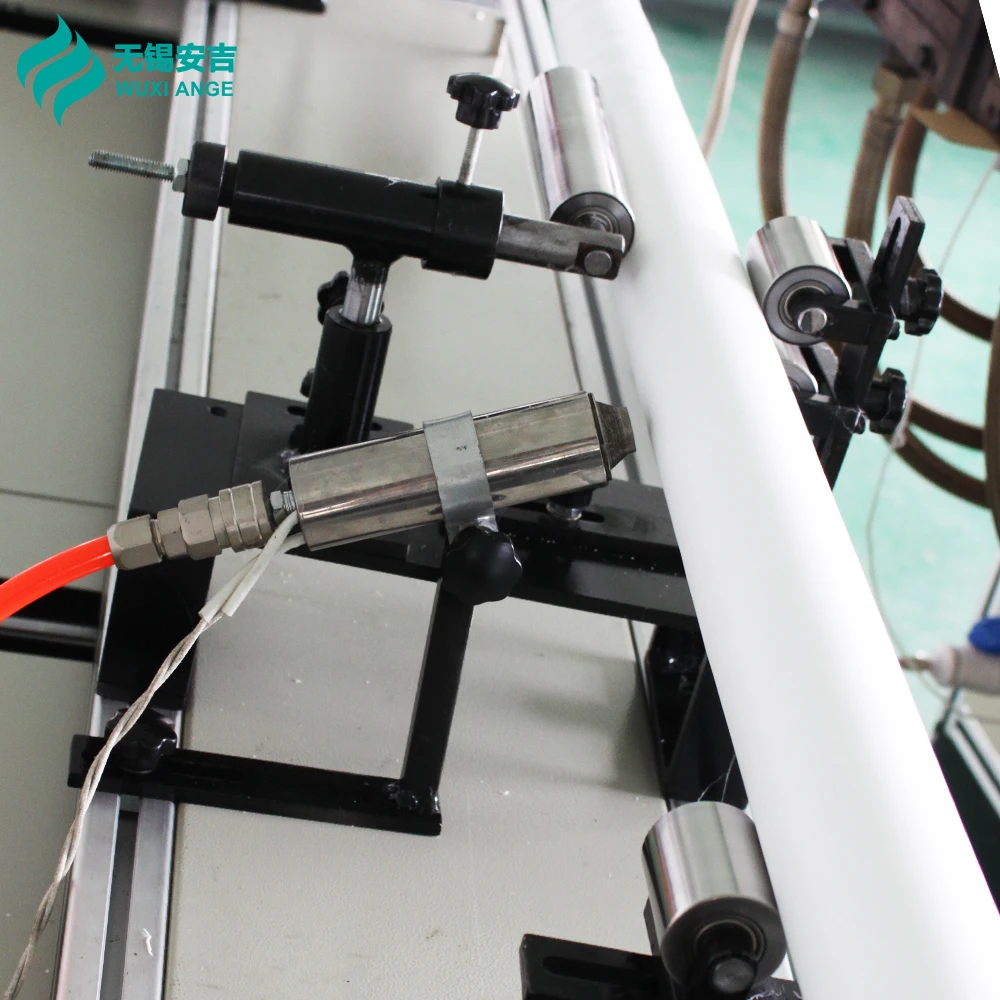

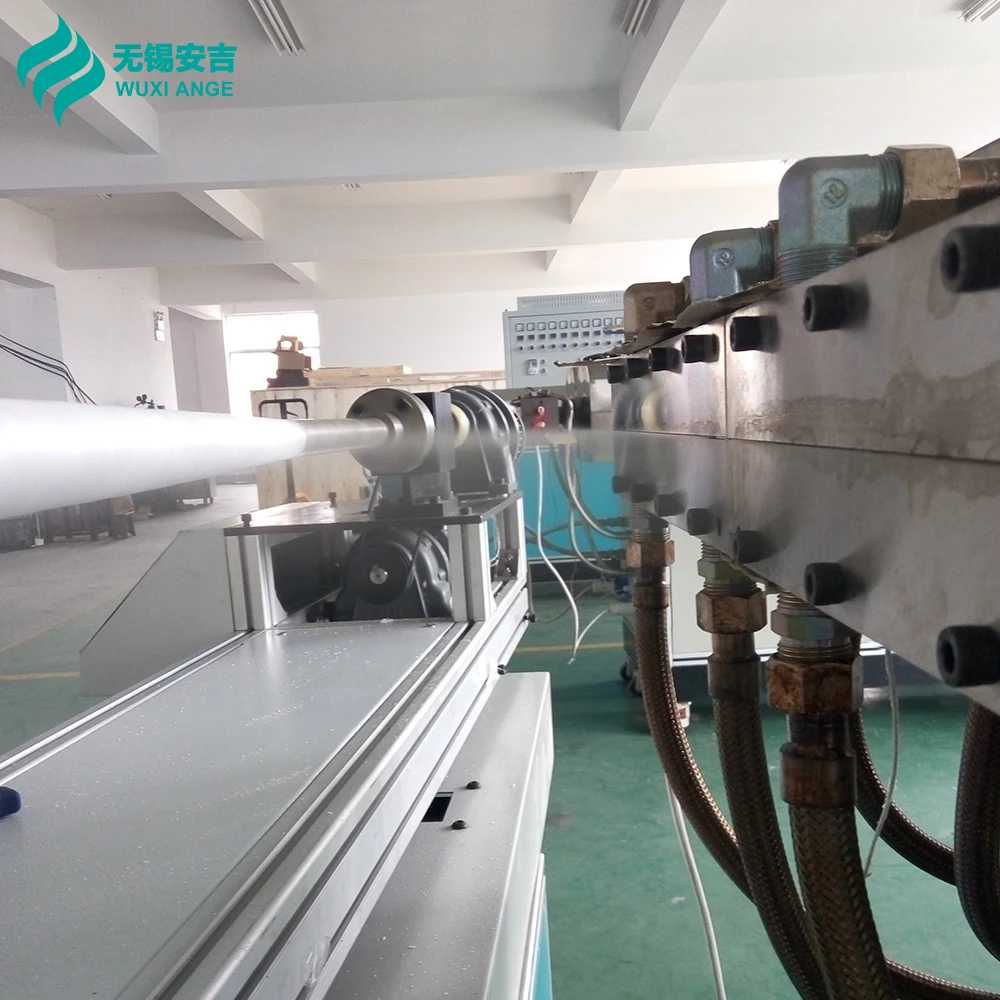

Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the spindle of Winding Machine. Winding Machine rotates and forms filter cartridges. Then formed filter cartridges get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.

2E2M PP Melt Blown Filter Cartridge Machine/ PP Spun Filter Cartridge Making Machine includes:









Differences between PP Melt Blown Filter Cartridge Making Machine PP Spun Filter Cartridge Making Machine with Roots Blower and machine with Air compressor and with air tank



If you want to know more about the differences of two machines, please feel free to contact us.



Parameter



Name	PP melt blown filter cartridge making machine/ PP spun filter making machine
Mode	URB-2
Total Installed Power	54 KW
Actual Running Power	30-35 KW
Output	3500~4500pcs/day (refer to 10” filters)
Raw Material	100% New Polypropylene
Internal Diameter	28mm default (free to customize)
Outer Diameter	38~120mm (free to customize)
Length	5",10",20",30",...(free to customize)
Filter Precision	0-20 micron

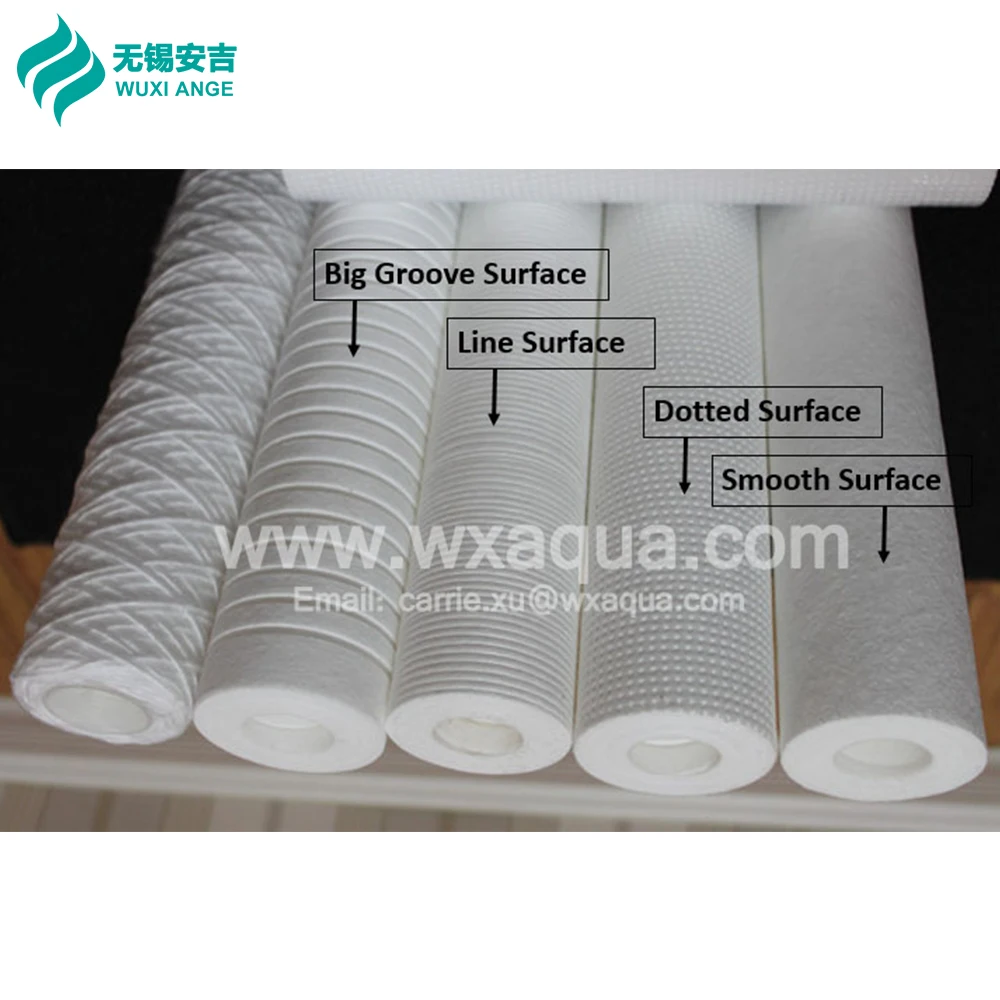

Filter Surface	Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (grooving machine) Dotted Surface (extra tool) Logo on Surface (carving machine)
Default Voltage	3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged.
Machine Weight	2.6-3.5T
Operation Area	50m2(L*W)*3m (H) or above
Container Size	8~10 wooden boxes and use 20’’ container

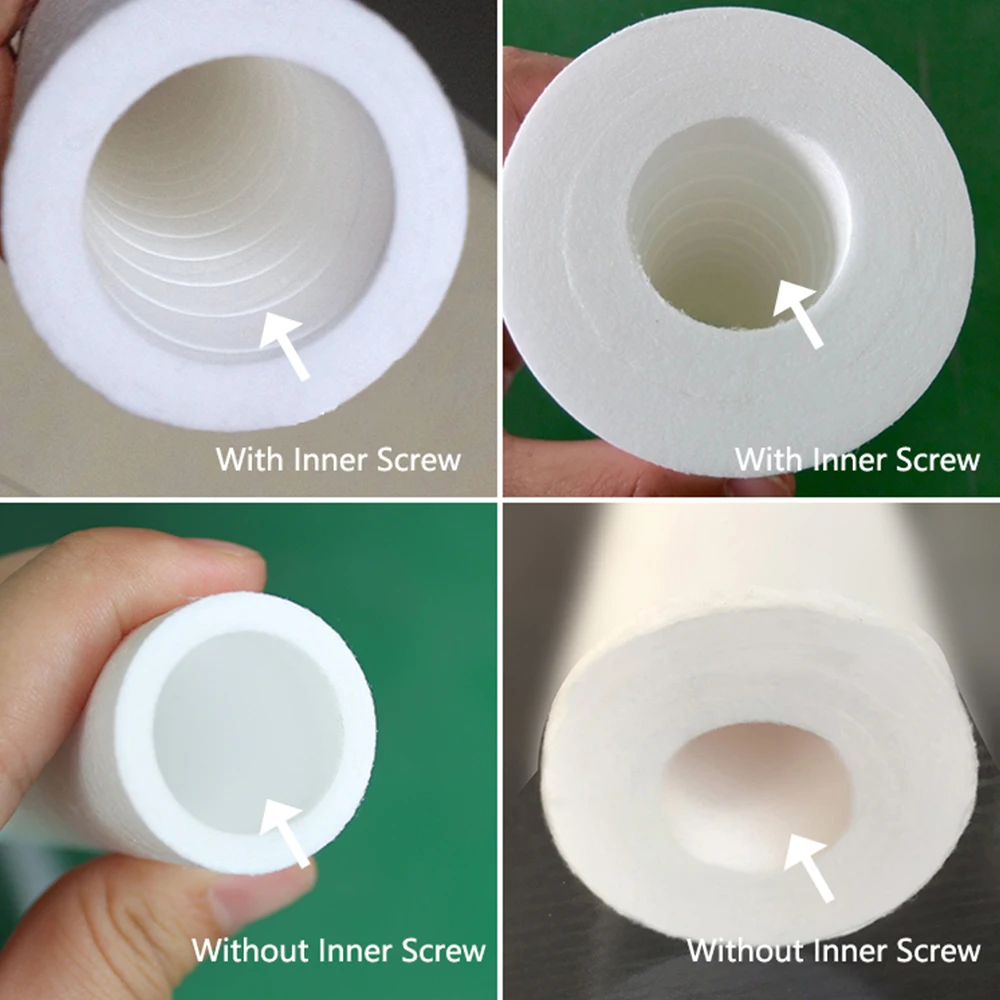

In 2016, we design a new machine which can produce non inner screw filters. Filter thickness can be minimum 3mm.





For more information about the non inner screw filter making machine, kindly please contact us.



Supporting Machines for PP Melt Blown Filter Cartridge Making Machine



If you want to know more information about PP Melt Blown Filter Cartridge Making Machine, please feel free to contact us.



Training: 2 solutions
1. Welcome to stay in our factory for a long-term training 7~14days until you master all the skills.
2. We provide an installing and training service to your factory in 7~14days until you master all the skills and you should take care of the plane ticket, hotel and living cost during this time.


After-sale Services
One-year warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
If you have any questions, our engineers are always available to give a comprehensive answer with their 30-year experience in filter making industry.

Our engineers can speak well English.

Certificate
We have passed CE and ISO 9001:2008





Packaging & Shipping
Every part is packed by plastic film, and all are packed in wooden case.
Shanghai Port is our usual choice, but other ports are available due to your requirements.



We at AQUATECH CHINA.
We have attended to AQUATECH CHINA for 5 years. You can also visited us at AQUATECH CHINA EXHIBITION.

We also manufacture :
1. PP string wound filter making machine

2. CTO active carbon filter making machine

3. PP non woven fabric making machine



If you are interested in any machines mentioned above, kindly please let me know.
