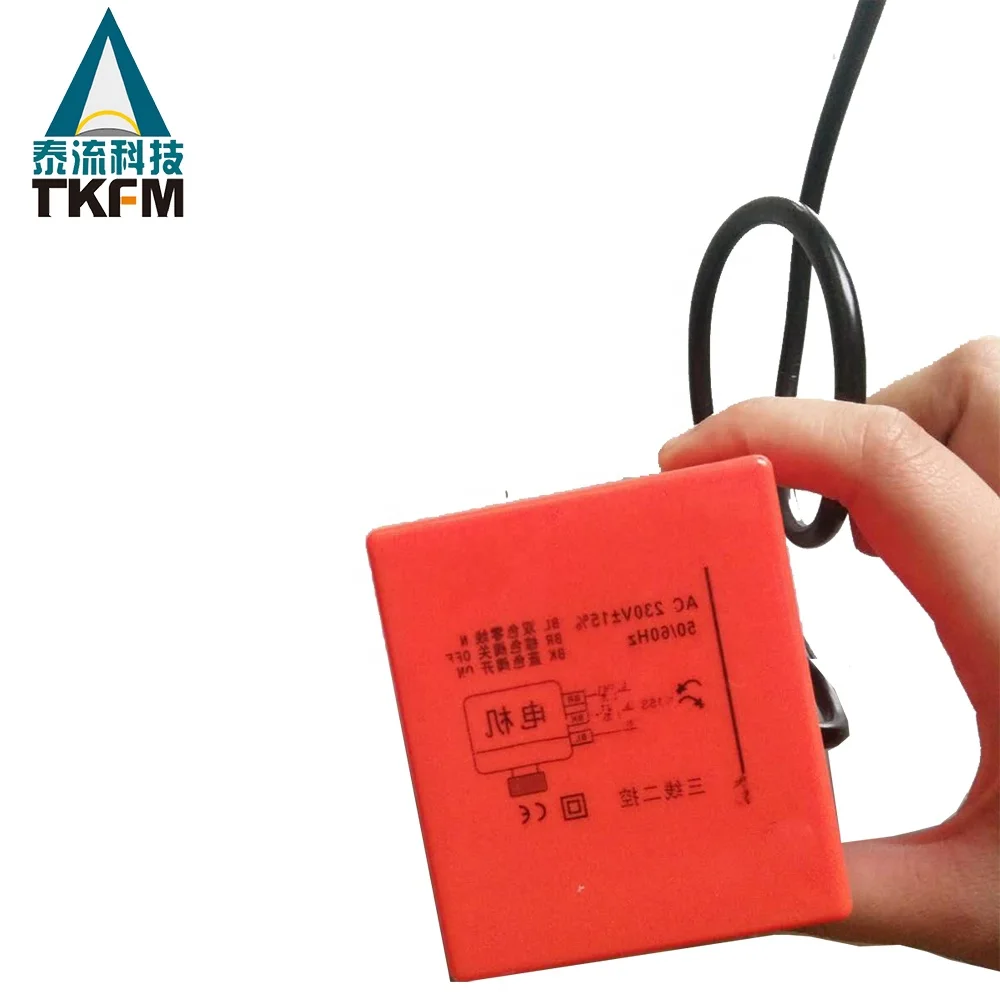

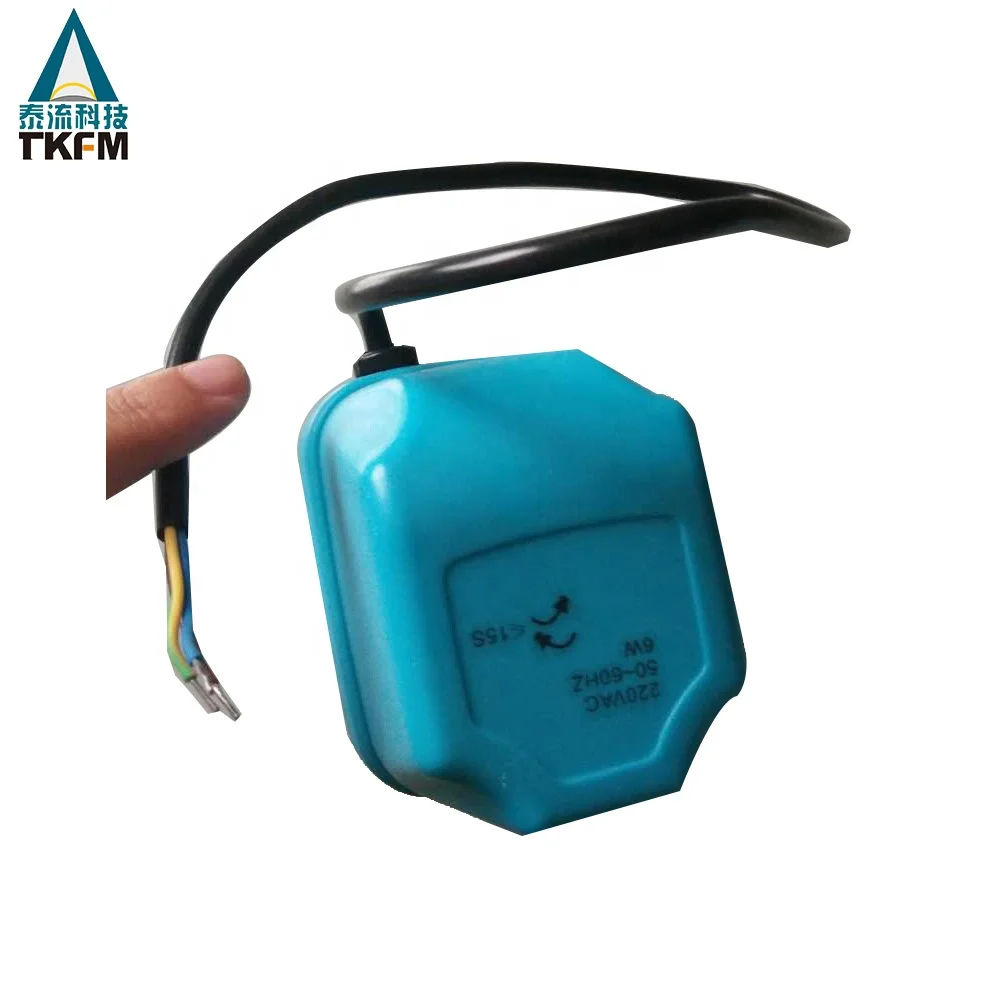

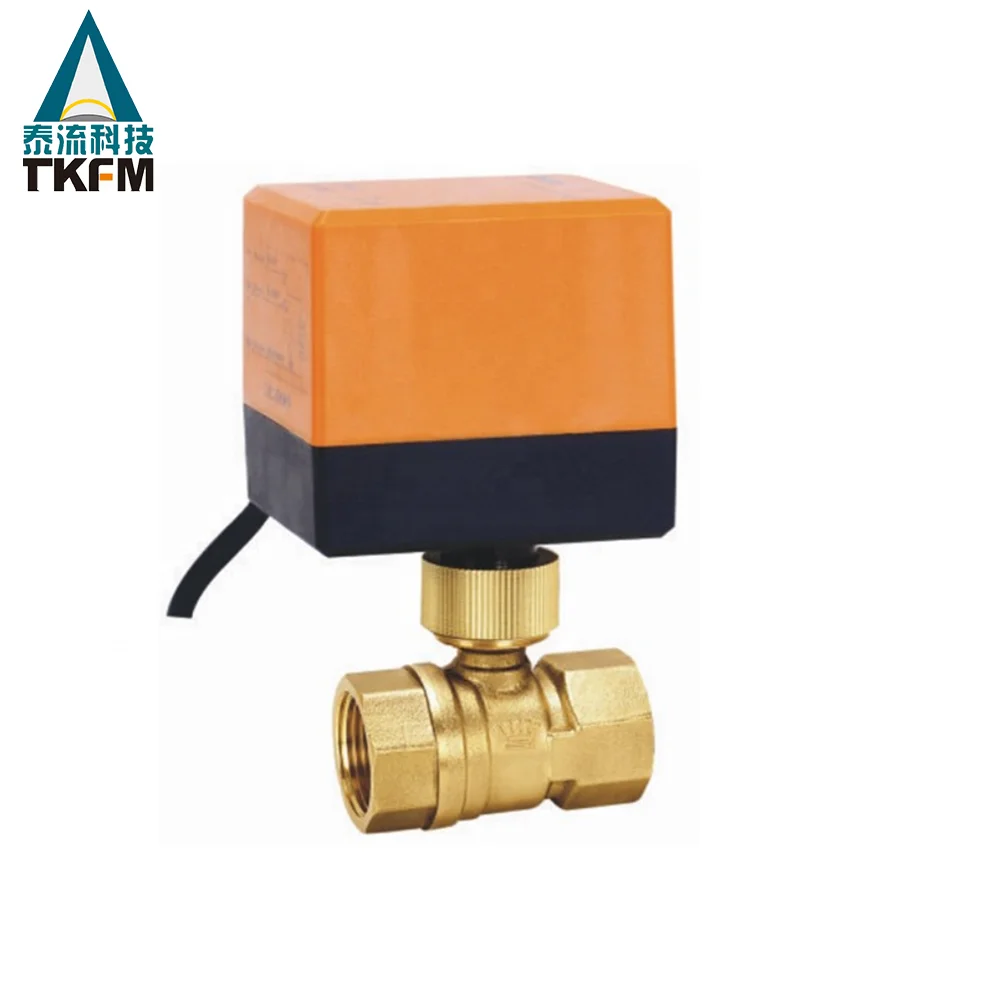

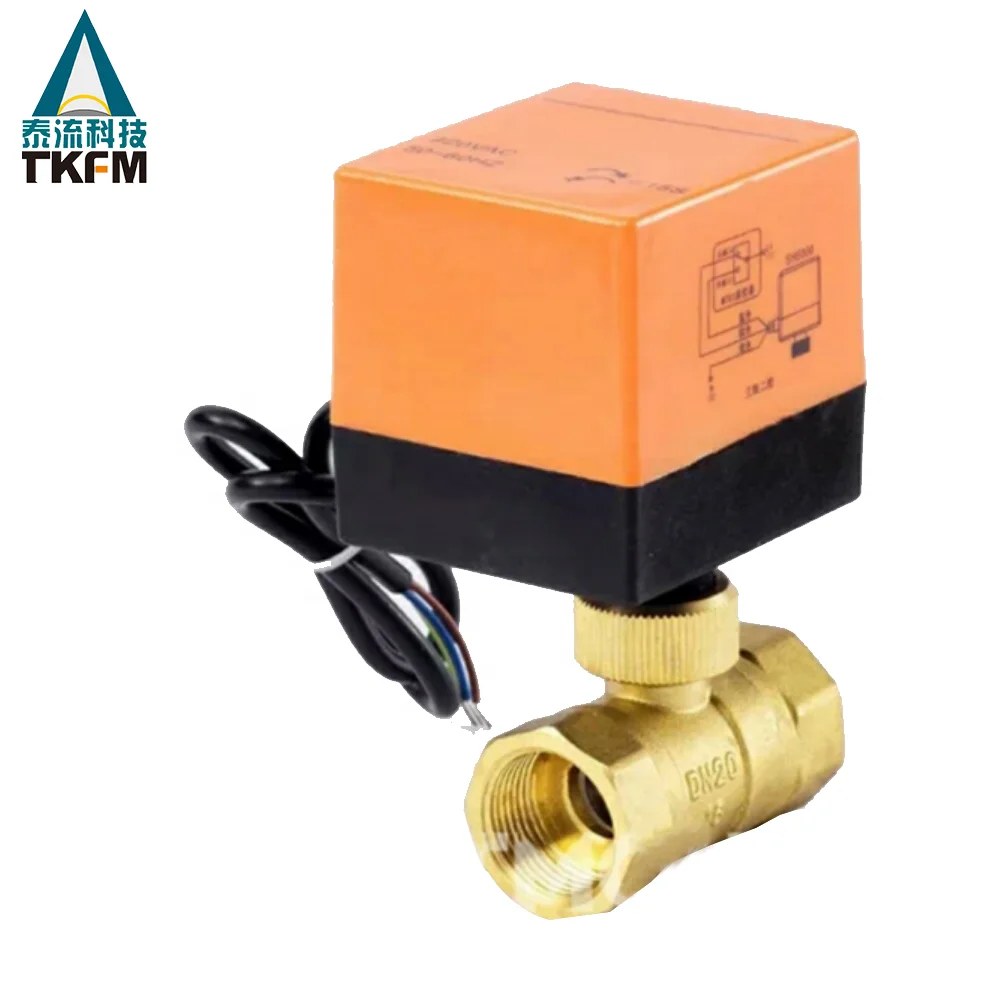

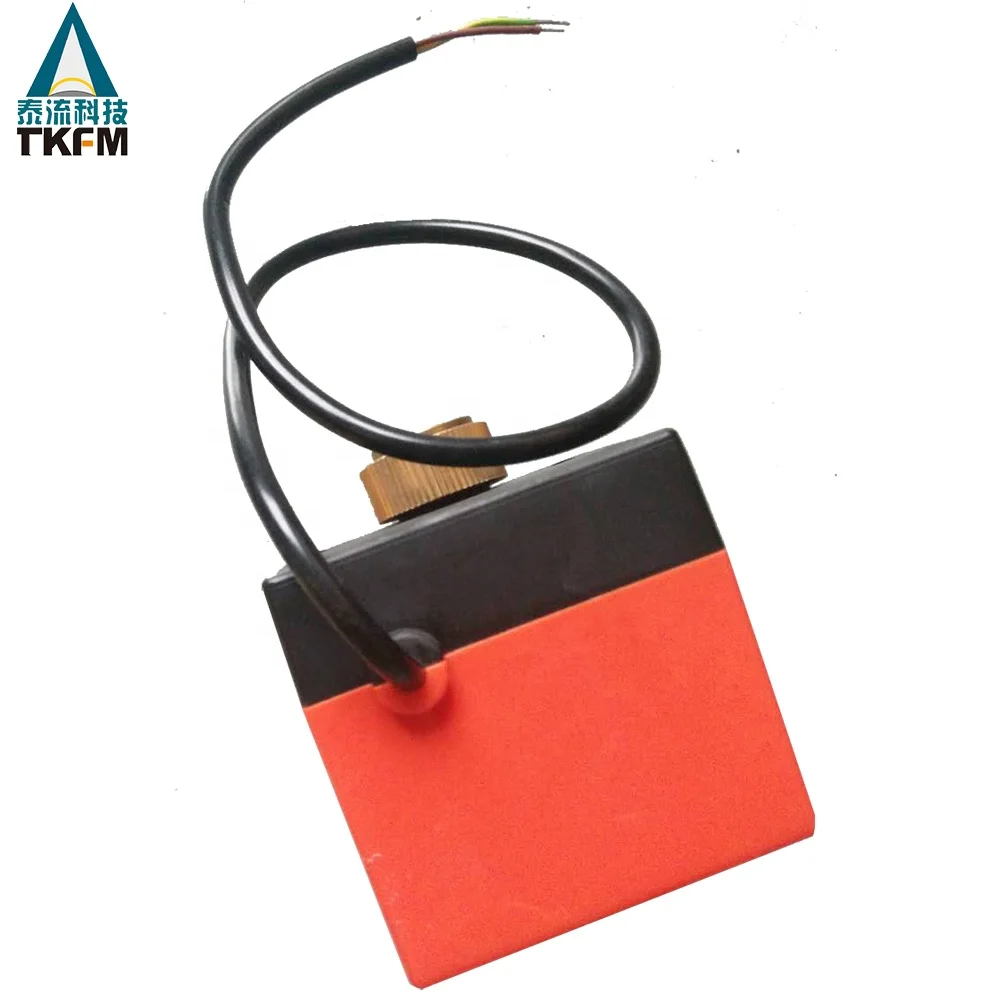

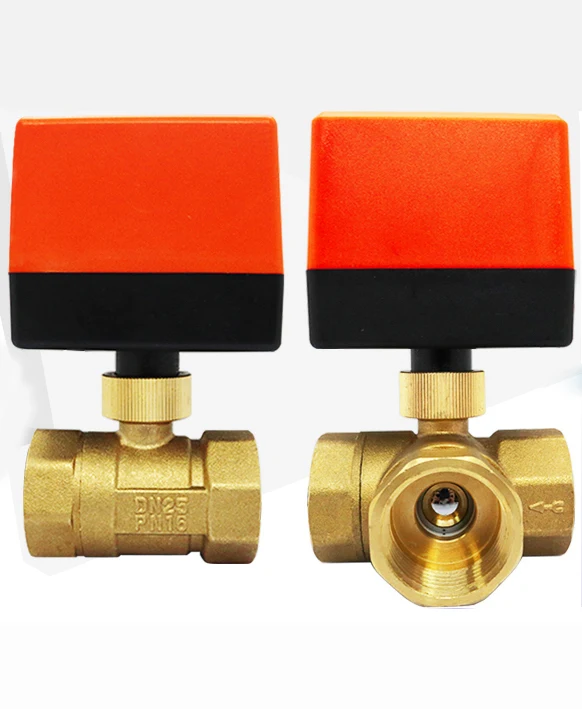

DN 25 PN 16 programmable water control shutoff electronic motorized brass ball valve 24vdc with actuator
- Category: Plumbing >>>
- Supplier: Shenyang Taike Fluid Control Co. Ltd.
Share on (60531824140):
Product Overview
Description
Product Description
Mini float electric ball valve/ air conditioner electric two-way valve valve
Brand: TKFM
Material: Brass
Origin: Shenyang,China
Color Classification: Grey/Red/Blue or others
Accessory structure: floating ball valve Connection method: BSP Thread
Control way: Three-lines two control; Three-Lines one control
Accessory structure: floating ball valve Connection method: BSP Thread
Control way: Three-lines two control; Three-Lines one control
Motor type: synchronous motor | Valve body pressure: PN16 | |
Lead wire length: 300MM | Temperature: -5-+100 ℃ | |
Action time: 8 /15 seconds | Drive torque: 6N.M | |
Connection: Female thread | Power consumption: 6 watts (only when operating) | |
Closing pressure difference: ≤0.4Mpa | Applicable medium: cold and hot water or 50% ethanol solution | |
Electrical specifications: (50/60HZ) AC220V AC 24V DV12V DC24V | ||

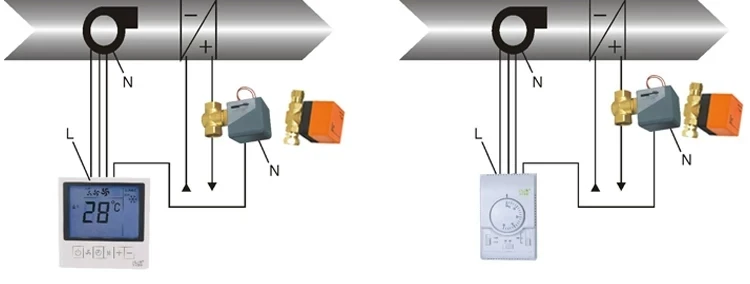

Installation Instructions

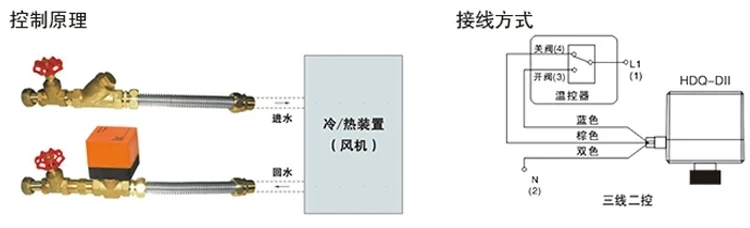

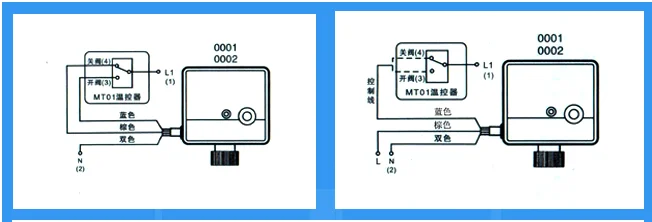

Three-lines two control：
One common wire is opened, and the other is closed;
The power cord is a live wire (positive) and a neutral wire (negative)
The two-color line common line is connected to the neutral line (negative)
The live wire (positive) is connected to the blue valve opening wire to open the valve,
The live wire (positive) is connected to the brown valve-off wire to close the valve.
The switching time is 15 seconds for alternating current and 8 seconds for direct current.
It adopts synchronous motor, built-in current position contact switch, and automatically power off after fully open or fully
closed.
The power cord is a live wire (positive) and a neutral wire (negative)
The two-color line common line is connected to the neutral line (negative)
The live wire (positive) is connected to the blue valve opening wire to open the valve,
The live wire (positive) is connected to the brown valve-off wire to close the valve.
The switching time is 15 seconds for alternating current and 8 seconds for direct current.
It adopts synchronous motor, built-in current position contact switch, and automatically power off after fully open or fully
closed.
Three-Lines one control:(normally closed type)
Three-Lines one control:(normally closed type)
A live wire, a neutral wire, and an open valve wire!
When the valve opening line is connected to the live line, it will open, and if it is not connected, it will be closed.
Switch action time: AC power is 15 seconds (three wires and one control without DC power)
It adopts synchronous motor, built-in current position contact switch, and automatically power off after fully open or fully
closed.
A live wire, a neutral wire, and an open valve wire!
When the valve opening line is connected to the live line, it will open, and if it is not connected, it will be closed.
Switch action time: AC power is 15 seconds (three wires and one control without DC power)
It adopts synchronous motor, built-in current position contact switch, and automatically power off after fully open or fully
closed.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
