wholesale 2 channels professional most power amplifier

Product Overview

Description

wholesale 2 channels professional most power amplifier



Model	KV500	KV600	KV800	KV1000	KV1200
8Ω Stereo power	2×500W	2×600W	2×800W	2×1000W	2×1200W
4Ω Stereo power	2×900W	2×1200W	2×1500W	2×1800W	2×2000W
2Ω Stereo power	2×1500W	2 ×2000W	2×2300W	2×2600W	2×2900W
8 BTL	2000W	2300W	2600W	3000W	3600W
Frequency Response	20-20KHz(±0.3dB)
THD+N	>0.08% 1KHz
S/N Ratio	>100dB	>100dB	>100dB	>100dB	>100dB
Slew Ratio	≥30V/μs	≥30V/μs	≥30V/μs	≥30V/μs	≥40V/μs
Damping Factor	≥300:1	≥500:1	≥500:1	≥500:1	≥700:1
Crosstalk	>90dB@ 1KHz
Input Impedance	30KΩ(Balance)/15KΩ(Unbalance)
Input Sensitivity	0.775V/1.0V/1/4V
Protect	overheat short circuits,DC,limit and softstart,output relay-zero current switch intellctual clip limiter
Height	3U
Gross Weight	26KG	29KG	31KG	33.5KG	38.5KG
Packing Dimension	473×482×132mm







•  All series has standard operating mode and the input sensitivity selection


• With a full range of electronic circuit high-speed protection


• Using AI,SMT, wave soldering and ICT automation process


• Recommended in the high-end works of entertainment and media engineering reinforcement application

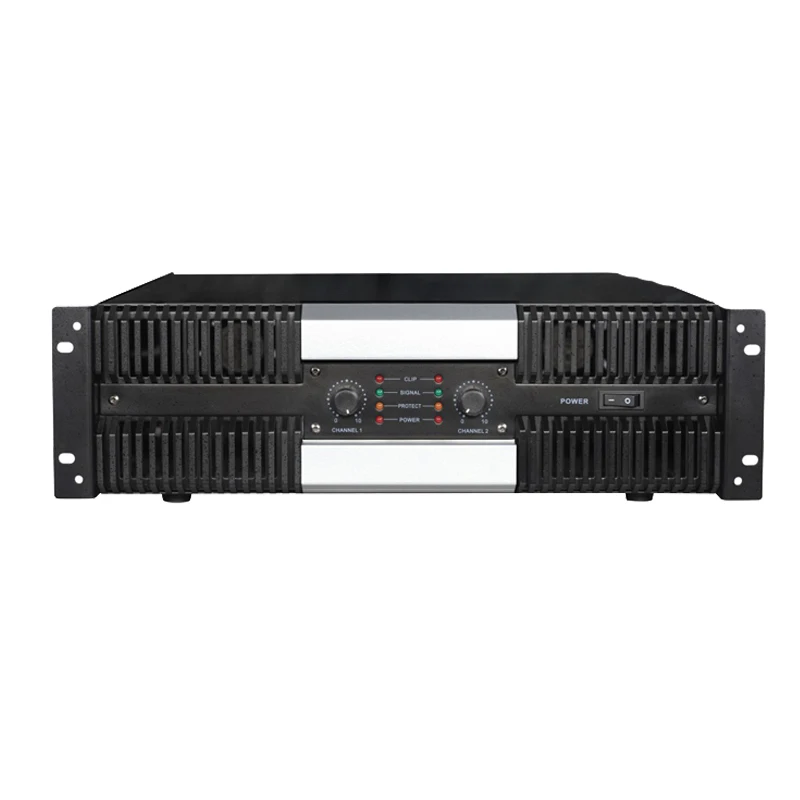

  Front panel

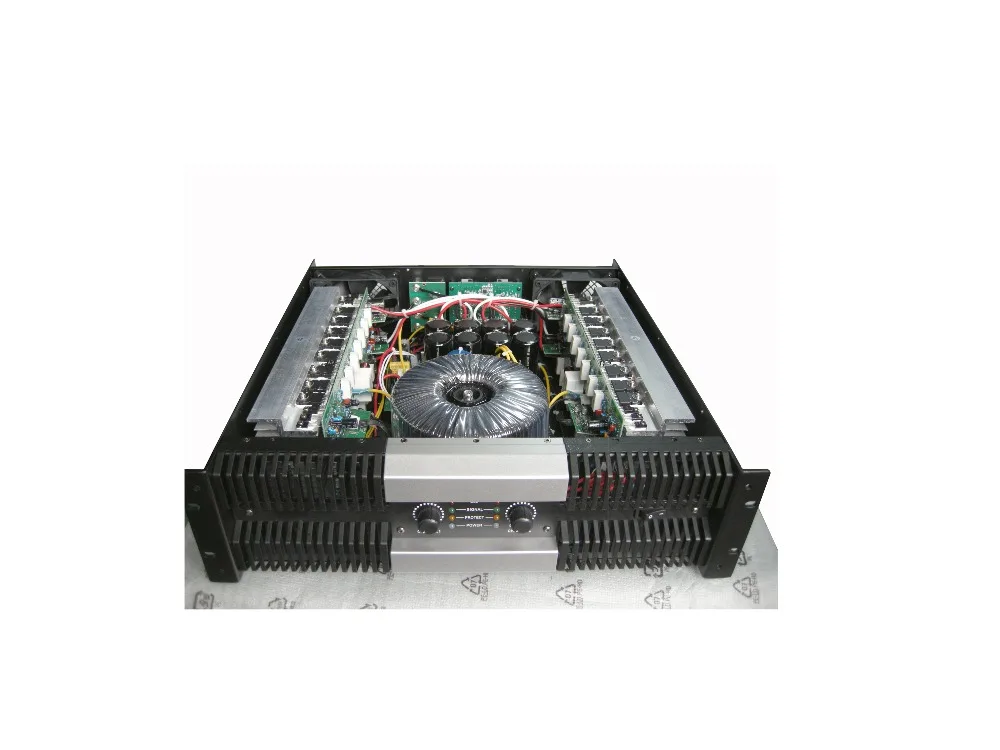

 Inner  View
