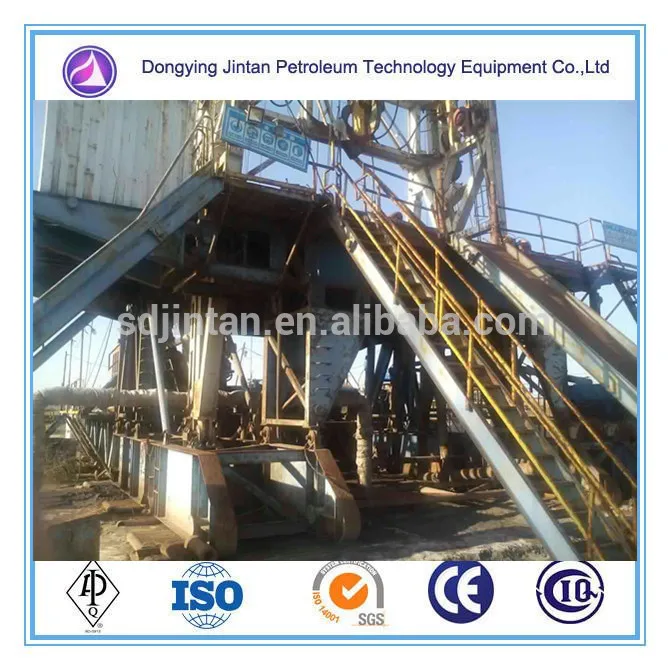

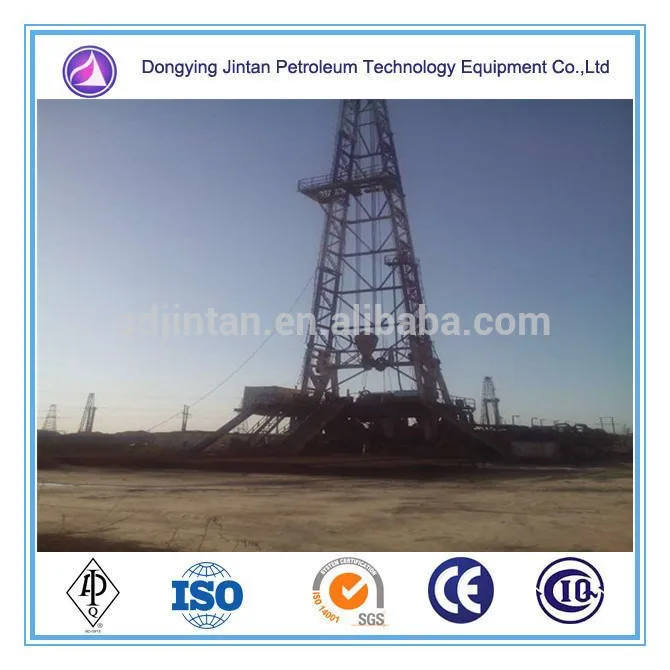

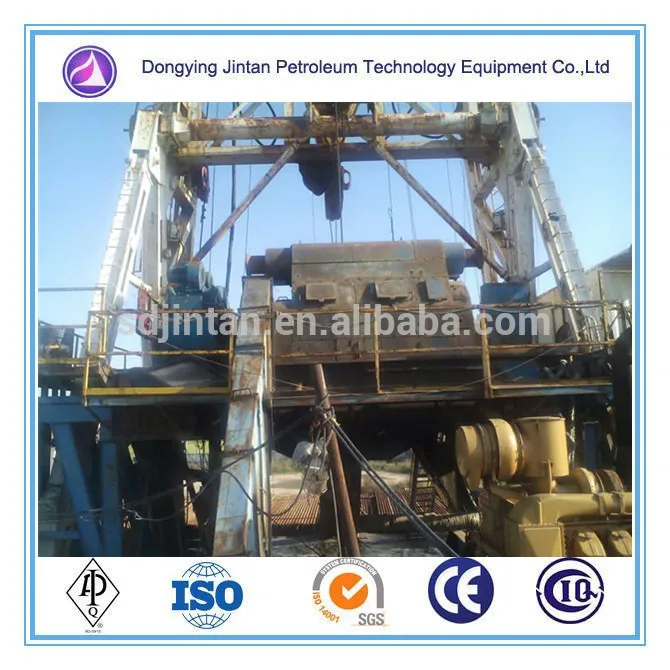

Second hand ZJ40 Drilling Rig for well drilling

No.

System

Name

Spec and model

Quanty

1

Lifting System

Winch

JC-40

1

2

Drilling mast

JJ225/40-K1

1

3

Substructure height

JC225/6.3-T

1

4

Crown block

TC-225

1

5

Travelling block

YC-225

1

6

Hook

DG-225

1

7

Ring

LSDH350T\3.3m

1

8

Swivel

SL450

1

1

Circulation System

Drilling pump

SL3NB-1300

2

2

Drilling fluid tank

41m³

5

3

Aggravation pump

SDL-20

1

4

Power driven mixed funnel

DL-100

1

5

Aggravation fluid jet flow funnel

SLD-20

1

6

Aggravation drilling fluid storage tank

40 m³

1

1

Power transmission system

Rotary table

ZP275

1

2

Diesel engine

G12V190PZL-1

3

3

4

Mechanical transmission device

JS3-1000

3

5

Electrical generator

EFC6  406-6LA42

2

1

Drilling control system

Power house

EFC6  406-6LA42

2

Automatic pressure fan

MCC

3

Power-driven pressure fan

2V-6.5/12

4

Brake system

2VF-6/8

5

Auxiliary brake

Belt brake

1

Solid control system

Shale shaker

GPS-2

2

Desander

QZS250XZ

3

Desilter

ZCN100X

4

Centrifuge

LW450-1000N

5

Degasser

ZCQ270

6

1

Well control system

Annular BOP

2

Single and double BOP

2FZ35-35

3

Spool

FS35-35

4

Control device

FKQ320-4

5

Manifold

2YJG35

6

Killfold

YG35

7

BOP pipeline

5″X35MpaX5.5m

8

Open flow pipeline

127mm

9

Drilling tools BOP tool

upper\lower

cock 5″back pressure valve

10

Drill control duty house

1.5m*2.55m*2m

11

Onsite storage aggravation material

Limestone flour/barite

1

Instruments and Gauges

Weight indicator

JZ408

1

2

Pump pressure gauge

40MPa

3

3

Power winch

XJFH-35-5T-KS

2

4

Liquid level gauge

L/1850mm

2

5

NPT water loss gauge

2NS-1

1

6

density gauge

NB-1

1

7

Viscometer gauge

CMN

1

8

Rotate viscometer gauge

90TZS51-2/4F

1

9

Water tank

40m³

3

1

Life equipped equipments

Meeting room

8m*2.55m*2.65m

1

2

3

Drilling duty house /engineer house

8m*2.55m*2.65m

1

4

Drilling mud test duty house

4m*2.55m*2.65m

1

5

Fire fighting tools house

1.5m*2.55m*2m

1

6

Spare parts material house

4.5m*2.55m2.65m

6

7

Drilling mud material house

4.5m*2.55m2.65m

1

8

Camping house

8m*2.55m*2.65m

1

9

Camping kitchen

8m*2.55m*2.65m

1

10

Camping dinning house

9m*2.55m*2.65m

1

11

Life house

3m*2.55m*2.65m

1

12

Toilet

2.55m*2.55m*2.65m

1

1

Fire fighting equipments

Dry powder extinguisher

MFZ8kg

10

2

CO2 extinguisher

MFZ35kg

4

3

fire fighting shovel

MFZ50kg

2

4

Fire axe

MT5kg

7

5

Fire felt

MT3Kg

2

6

Hand handle fire-fighting pump

8

7

Fire fighting barrel

2

8

Fire fighting hose

10

9

19mm high pressure water gun

1

1

Safety system and other

Racking platform escape system

RC10A

1

2

Drilling floor emergency slip way

12m*1m

1

3

Drill collar

165

15

4

Drill pipe

127

400

5

Joint

Kinds of models

6

Hydraulic tong

7

Casing tong

8

Rail

9

Cathead
