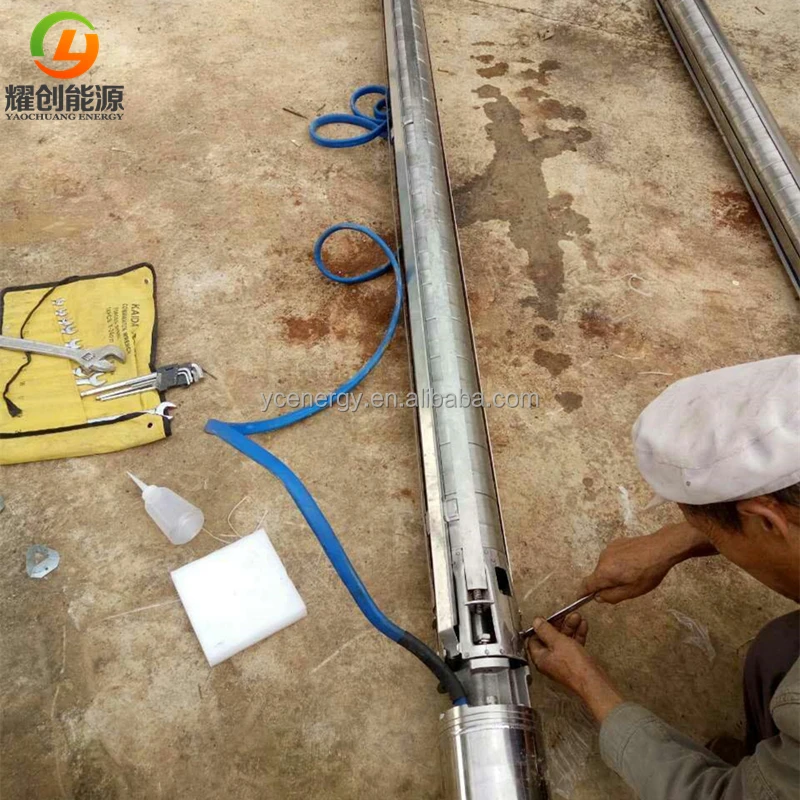

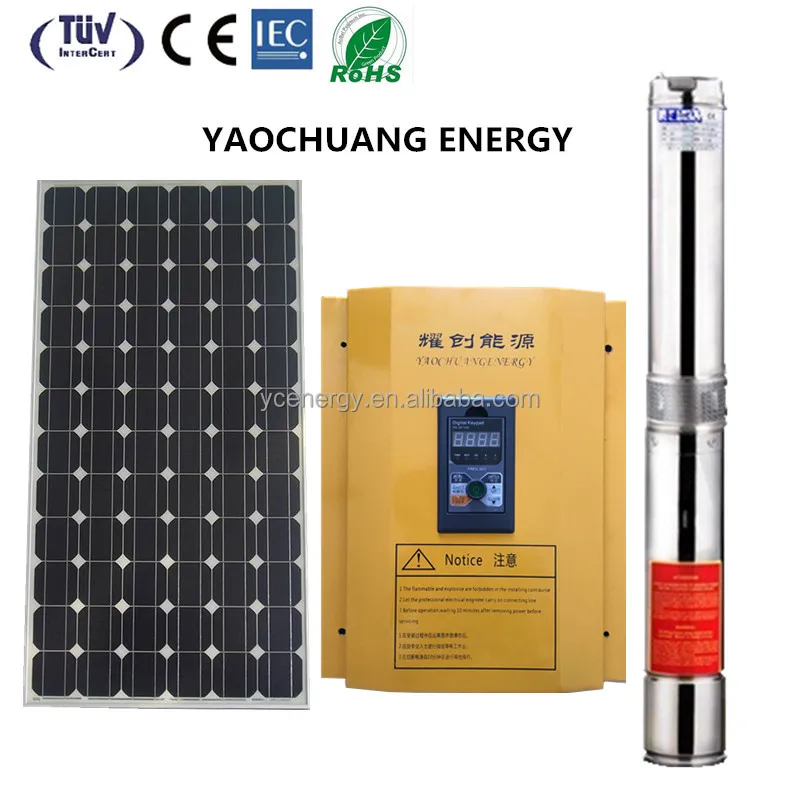

8 inch diameter 50HP 37KW solar submersible water pump for deep well borehole
- Category: >>>
- Supplier: Yunnan Yaochuang Energy Development Co. Ltd.
Share on (60532112965):
Product Overview
Description
Product Description
Specification
item | value |
Warranty | 1-25years |
Brand Name | Yaochuang |
Model Number | YC |
Place of Origin | China |
Shanghai | |
Application | Family Homes, Irrigation and Agriculture |
Power Source | Electric |
Pressure | High Pressure |
Structure | SCREW PUMP |
Certification | RoHS, ce |
Usage | Water |
Standard or Nonstandard | Standard |
Theory | Mixed Flow Pump |
Service | Free design |
Output Freqency | 50HZ/60HZ |
Solar system technology | IPM or IGBT of Mitsubishi |
Solar panel rack | customized |
Product name | 8 inch diameter 50HP solar submersible water pump |
Solar panel | Polycrystalline monocrystalline |
Pump Material | Full stainless steel |
Why Choose Us
Factory
High quality solar panel workshop and solar pump inverter product line
Sale team
Professional sale team, over 10 years experience with solar energy products
After sale service
Customized system design, and commissioning & installation service
YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO.,LTD is engaged in producing solar modules and PV applications with perfect quality, and have built excellent cooperative relationship with world-class famous PV manufacturers and installers. Our products not only get domestic clients' high praise, but also export to Africa, South America, Southeast Asia, and The Middle East.
Presently, our main products are solar panels and PV applications, including solar modules, off-grid system, and correlative equipments, and serve for energy power, lighting, communication, traffic, agriculture, weather forecast and so on. We believe in innovation, cooperation, teamwork, speed spirit, and continue to exploit, and work hard. So that the cost of products can be reduced, and we can provide clean and substantial new energy to our clients, and get brighter future!
Presently, our main products are solar panels and PV applications, including solar modules, off-grid system, and correlative equipments, and serve for energy power, lighting, communication, traffic, agriculture, weather forecast and so on. We believe in innovation, cooperation, teamwork, speed spirit, and continue to exploit, and work hard. So that the cost of products can be reduced, and we can provide clean and substantial new energy to our clients, and get brighter future!
\t\t\t\t\t\t\t\t\tsolar water pump \t\t\t\t\t\t\t
What is solar water pump?

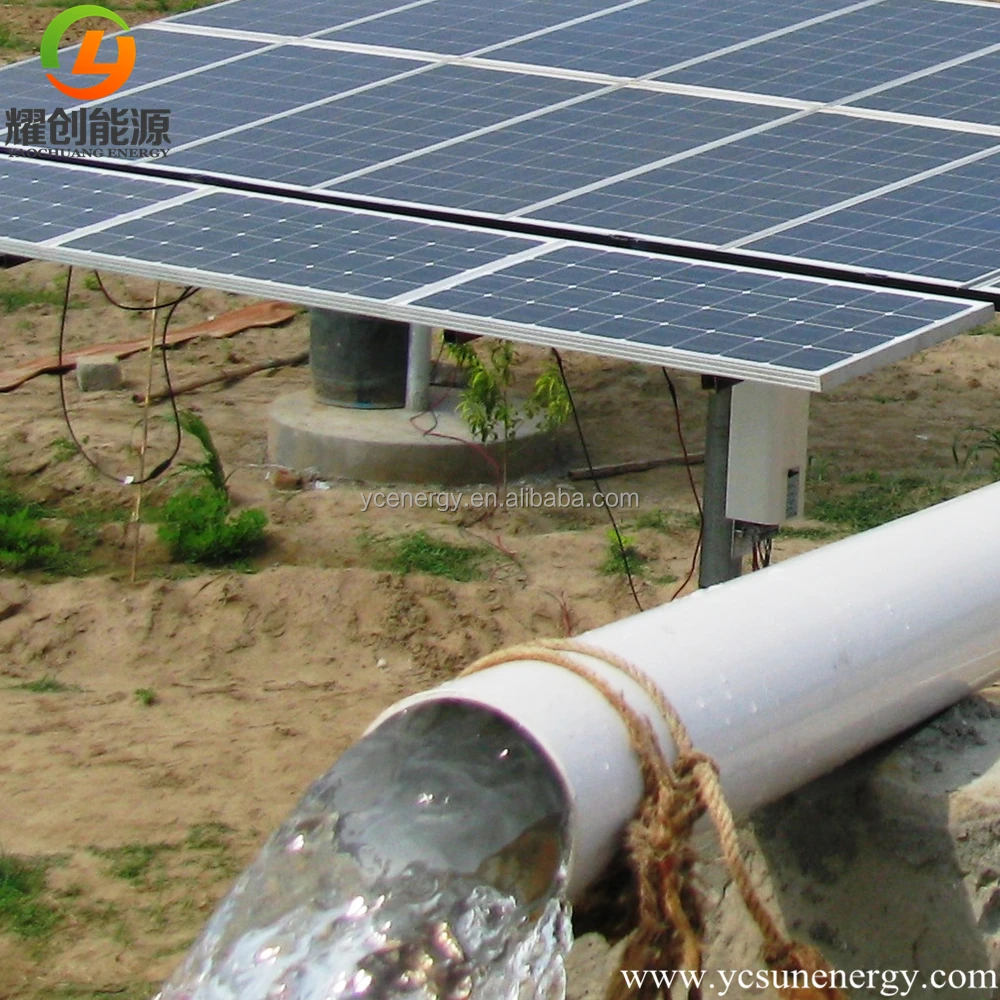

Solar water pump system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.

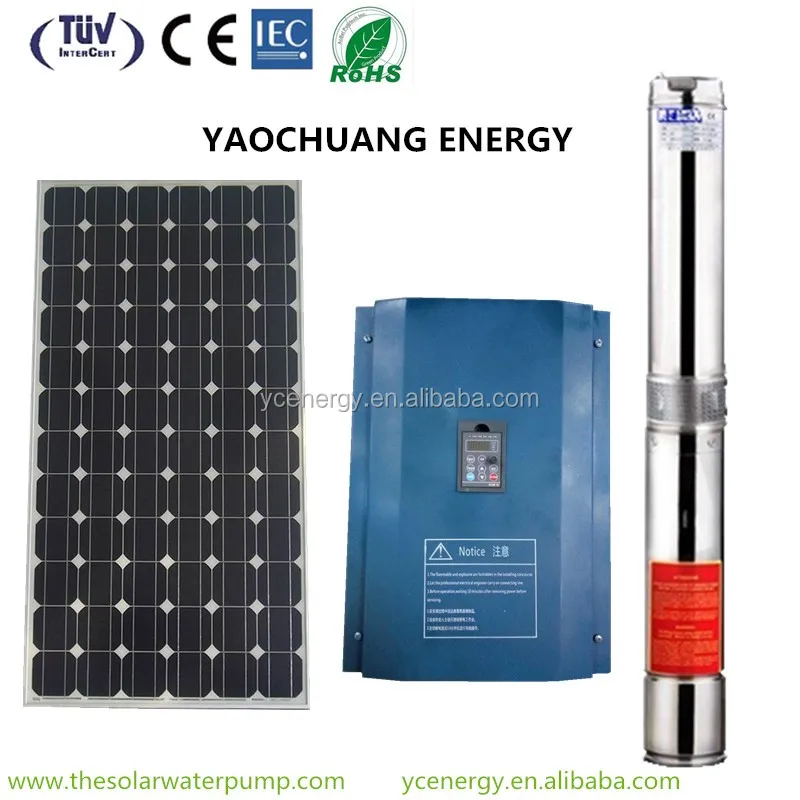

Solar water pump system configuration
Solar panel polycrystalline / monocrystalline 5-320Wp
Pump inverter 220V single or three phase / 380V three phase
Submersible deep well water pump / horizontal centrifugal water pump / vertical centrifugal water pump. etc.
Combiner box, distribution box, cables, mounting bracket, etc.

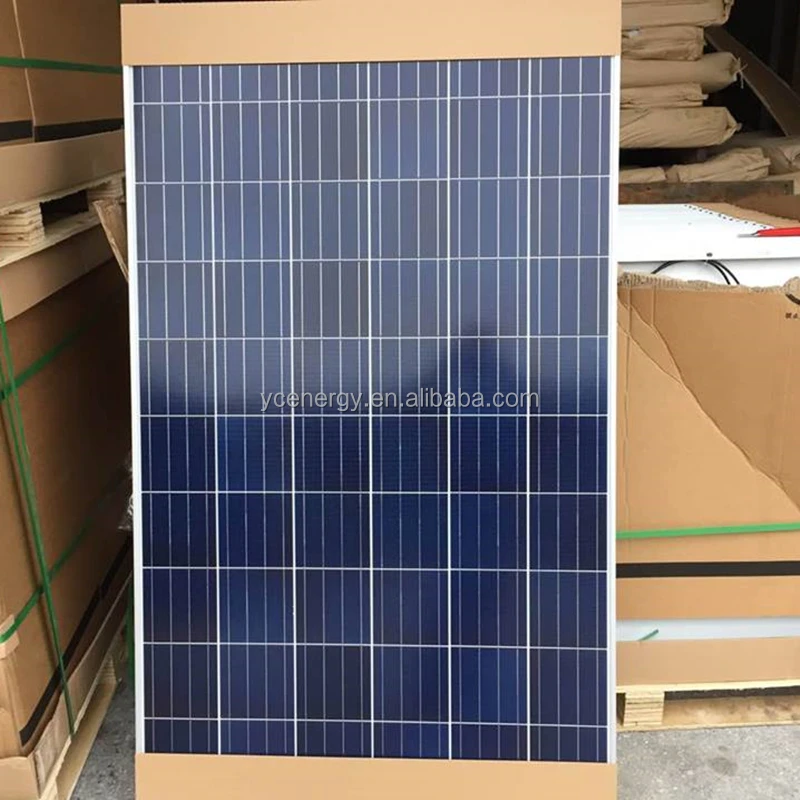

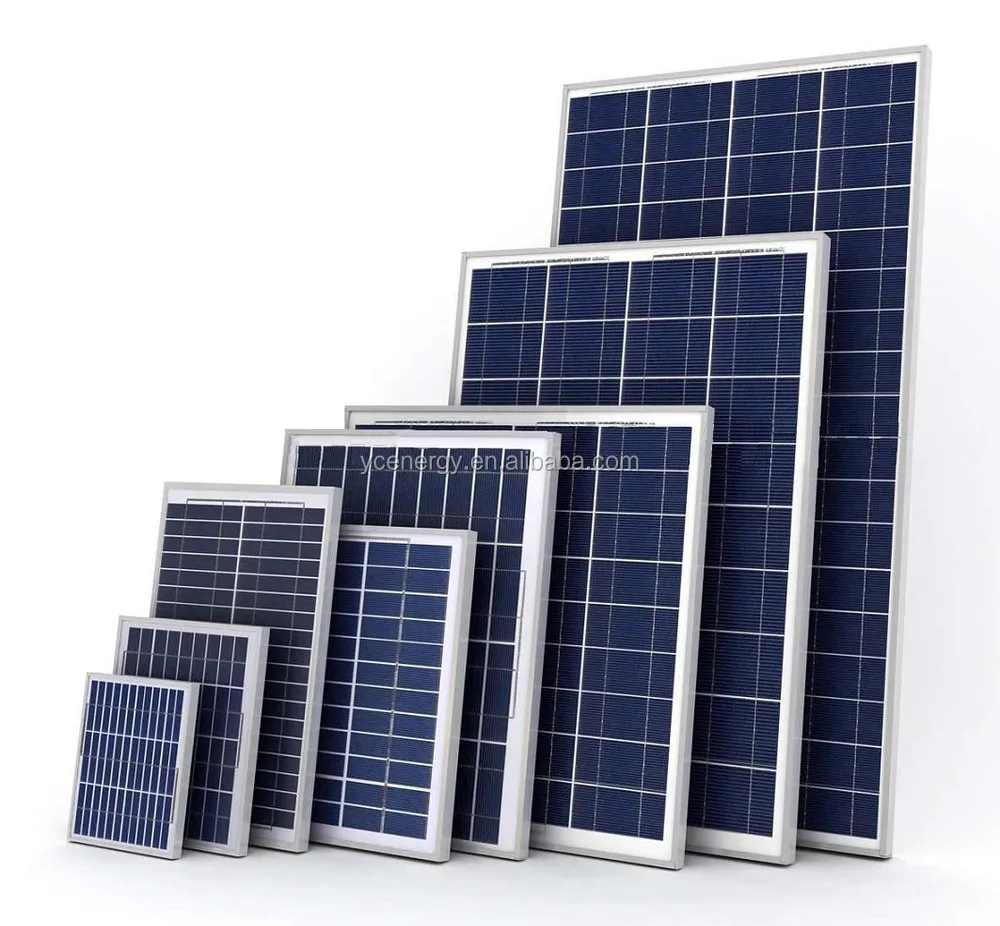

Solar panel
The solar cell is made according to the photovoltaic effect theory, and it can converted solar radiation energy into electrical directly. A solar cell can only generate a about 0.5 volts, the voltage is far lower than the actual use of the desired voltage. In order to meet the needs of practical application ,solar cells should be connected to solar panels. Solar panels contains a certain number of solar cells, these solar cells are connected through a wire. Such as a component, the number of solar cell 72, which means that a solar module can produce about 36 volts.

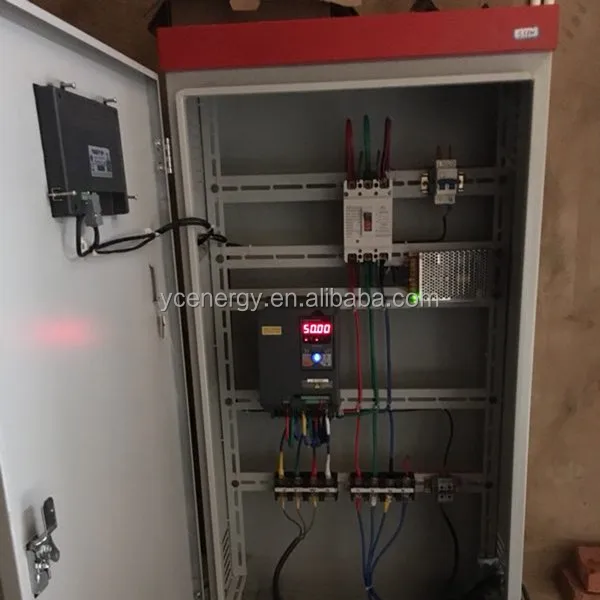

Pump inverter integrated controller
Solar water pump controller is with maximum power point tracking technology (MPPT) to maximize the conversion of electrical energy of the solar panels for the water pump powered. Solar water pump controller have the display unit to display a square solar cells voltage, current, output voltage, current, power, cumulative power generation, operating status, abnormal alarm and the electrical parameters. At the same time with a standard electrical communication interface, enabling remote monitoring.

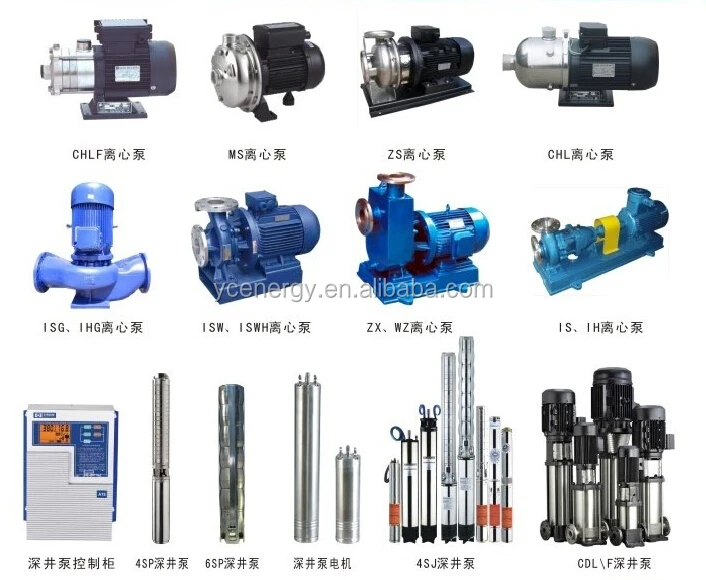

Water pump
Water pump is a equipment for lifting water , because the solar water system will take the frequency conversion function, you need to use water pump with three-phase 380V or three-phase 220V. To be based on the actual usage of the pump , the lift height and water yield, as well as consider the local lighting conditions.
10HP solar water pump system configuration | ||||||
Solar panel YC250P(60) | 250Wp polycrystalline | 18pcs / string | 3 strings / set | |||
Pump inverter YCSBH3PH110 | 11KW pump inverter | 380V three phase output | MPPT voltage: 300-750V DC | |||
Water pump | 7.5KW (10HP) | Head lift: 272 - 12.5 meter | ||||
11KW submersible deep well solar water pump system
1.5KW home used solar water pump

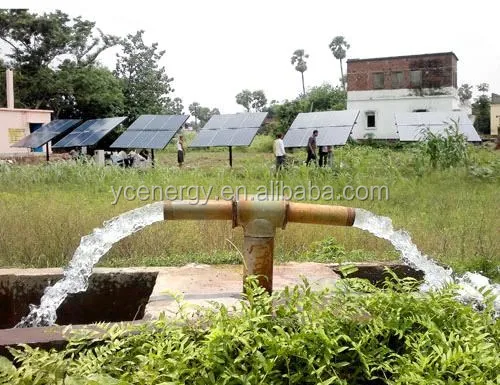

2.2KW solar water pump project in Pakistan
FAQ
1. who are we?
We are based in Yunnan, China, start from 2013,sell to Mid East(35.00%),Africa(22.00%),South America(19.00%),Domestic Market(13.00%),South Asia(5.00%),Southeast Asia(2.00%),Eastern Europe(2.00%),Oceania(1.00%),Eastern Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar water pump,submersible deep well solar water pump,solar water pump system for agriculture,solar panel,DC solar pump
4. why should you buy from us not from other suppliers?
Yaochuang Energy solar pump controller system increases 15% water discharge, 10% operating time, and fault rate decreases 20%.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Arabic
We are based in Yunnan, China, start from 2013,sell to Mid East(35.00%),Africa(22.00%),South America(19.00%),Domestic Market(13.00%),South Asia(5.00%),Southeast Asia(2.00%),Eastern Europe(2.00%),Oceania(1.00%),Eastern Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar water pump,submersible deep well solar water pump,solar water pump system for agriculture,solar panel,DC solar pump
4. why should you buy from us not from other suppliers?
Yaochuang Energy solar pump controller system increases 15% water discharge, 10% operating time, and fault rate decreases 20%.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Arabic
